逆波兰式的产生及计算(C++版及Java版本)—编译原理,数据结构
在现实生活中大家对于计算使用都是中缀表达式(nifix expression),如但是在计算机中表达式常常是以后缀表达式(postfix expression),又称逆波兰表达式(reverse Polish notation, RPN ).
例如:中缀表达式 1+((2+3)*4)-5
逆波兰表达式: 1 2 3 + 4 * + 5
1.逆波兰表达式的转换
1.1逆波兰表达式的转换概念图
1.2逆波兰表达式转换规则
操作符优先级
| 运算符 | 优先级 |
|---|---|
| + - | 1 |
| * / | 2 |
| ( | 3(入栈后变为最低) |
- 从左到右依次扫描中缀表达式
- 如果输入带当前元素为 数字 ,直接输出到输出带中.
- 如果输入带当前元素为 运算符
- 如果当前操作符堆栈为 空, 不管是什么运算符都直接push压入堆栈中.
- 如果当前输入带操作符为 ‘)’,一直pop弹出栈顶元素到输出带中,直到遇到’(’ tip: 括号不输出
- 如果当前输入带操作符不为’)’
- 如果操作符堆栈中栈顶运算符的优先级 大于等于 输入带当前运算符优先级,则将操作符堆栈栈顶pop弹出,并输出到输出带中,直到栈顶优先级 小于 当前优先级
- 如果操作符堆栈中栈顶运算符的优先级 小于 输入带当前运算符优先级,则将当前运算符push压栈
- 当输入带扫描完成,将操作符堆栈中剩余运算符pop弹出到输出带中
2.逆波兰表达式的计算
2.1逆波兰表达式的计算模型
2.2逆波兰表达式的计算规则
例如对于 1 2 3 + 4 * + 5
- 对输入带从左到右依次扫描
- 如果 输入带当前元素为数字,将其push压入运算数堆栈
- 如果 输入带当前元素为运算符,取出运算数堆栈栈顶的两个元素,第一个栈顶元素为右运算数,第二个栈顶元素为左运算数,再将运算结果压入栈顶
- 扫描结束后,运算数堆栈剩余的一个元素就是结果

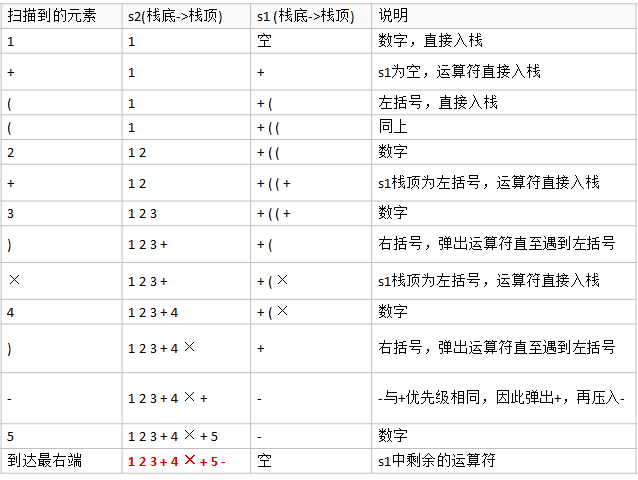

3.逆波兰表达式转换过程表
例如 1+((2+3)4)-5
4.逆波兰表达式计算过程表
例:1 2 3 + 4 * + 5 -
代码(cpp版)
#include <iostream>
#include <stack>
#include <string>
#include <map>
#include <queue>
#include <algorithm>
using namespace std;
bool isDigit(char ch);
void getPostfixNotation();
void initializeOperatorPriority();
int dealWithDigit(int i);
void dealWithOperator(int i);
string transCharToString(char ch);
void showPostfixNotation();
bool isOperator(string str);
int calculate(char ch);
int stackCalculate();
queue<string> postfixNotation;
stack<char> operators;
map<char, int> operatorPriority;
stack<int> calculateStack;
string expression;
int main()
{
freopen("in.txt", "r", stdin);
freopen("out.txt", "w", stdout);
cin >> expression;
initializeOperatorPriority();
getPostfixNotation();
showPostfixNotation();
stackCalculate();
cout << calculateStack.top() << endl;
return 0;
}
void initializeOperatorPriority()
{
operatorPriority['+'] = 1;
operatorPriority['-'] = 1;
operatorPriority['*'] = 2;
operatorPriority['/'] = 2;
operatorPriority['('] = 3;
}
void getPostfixNotation()
{
for (int i = 0; i < expression.length();)
{
if (isDigit(expression[i]))
{
i = dealWithDigit(i);
}
else
{
dealWithOperator(i);
i++;
}
}
postfixNotation.push(transCharToString(operators.top()));
operators.pop();
}
bool isDigit(char ch)
{
bool flag = false;
if (ch >= '0' and ch <= '9')
{
flag = true;
}
return flag;
}
int dealWithDigit(int i)
{
string number;
number += expression[i++];
while (isDigit(expression[i]))
{
number += expression[i++];
}
postfixNotation.push(number);
return i;
}
void dealWithOperator(int i)
{
if (operators.empty())
{
operators.push(expression[i]);
}
else
{
if (expression[i] != ')')
{
while (!operators.empty() and operatorPriority[operators.top()] >= operatorPriority[expression[i]] and operators.top() != '(')
{
postfixNotation.push(transCharToString(operators.top()));
operators.pop();
}
operators.push(expression[i]);
}
else
{
while (operators.top() != '(')
{
postfixNotation.push(transCharToString(operators.top()));
operators.pop();
}
operators.pop();
}
}
}
string transCharToString(char ch)
{
string temp = " ";
temp[0] = ch;
return temp;
}
void showPostfixNotation()
{
int postfixNotation_size = postfixNotation.size();
for (int i = 0; i < postfixNotation_size; i++)
{
cout << postfixNotation.front() << " ";
postfixNotation.push(postfixNotation.front());
postfixNotation.pop();
}
cout << endl;
}
int stackCalculate()
{
while (!postfixNotation.empty())
{
if (isOperator(postfixNotation.front()))
{
int result = calculate(postfixNotation.front()[0]);
calculateStack.push(result);
}
else
{
int number = atoi(postfixNotation.front().c_str());
calculateStack.push(number);
}
postfixNotation.pop();
}
return 0;
}
int calculate(char ch)
{
int result;
int right = calculateStack.top();
calculateStack.pop();
int left = calculateStack.top();
calculateStack.pop();
switch (ch)
{
case '+':
result = left + right;
break;
case '-':
result = left - right;
break;
case '*':
result = left * right;
break;
case '/':
result = left / right;
break;
}
return result;
}
bool isOperator(string str)//return '0' means its not operator
{
bool flag = true;
if (str[0] >= '0' and str[0] <= '9')
{
flag = false;
}
return flag;
}
//21+((42-2)*15+6)-18
//1 + ((2 + 3) * 4) - 5
Java版本
public class ReversePolishNotation
{
// integer bigger means higher priority
private static Map<String, Integer> priority = new HashMap<>();
//set the base priority
static
{
priority.put("(", 4);
priority.put("*", 3);
priority.put("/", 3);
priority.put("-", 2);
priority.put("+", 2);
}
public static Integer reversePolish(String infixNotation)
{
List<String> newInfixNotation = getNewInfixNotation(infixNotation);
List<String> prefixNotation = transFromInfixToPrefix(newInfixNotation);
Integer result = calculate(prefixNotation);
return result;
}
//transform (string)infixNotation to (list<string>)infixNotation
public static List<String> getNewInfixNotation(String infixNotation)
{
List<String> newInfixNotation = new ArrayList<>();
for (int cnt = 0; cnt < infixNotation.length(); ++cnt)
{
char nowChar = infixNotation.charAt(cnt);
//find the continuous digits and combine
if(Character.isDigit(nowChar))
{
StringBuffer temp = new StringBuffer();
while (cnt < infixNotation.length() && Character.isDigit(infixNotation.charAt(cnt)))
{
temp.append(infixNotation.charAt(cnt));
++cnt;
}
--cnt;
newInfixNotation.add(temp.toString());
}
//else if nowChar is operator
else if(nowChar != ' ')
{
newInfixNotation.add(String.valueOf(nowChar));
}
}
return newInfixNotation;
}
//transform infixNotation to prefixNotation
public static List<String> transFromInfixToPrefix(List<String> infixNotation)
{
List<String> result = new ArrayList<>();
Stack<String> operator = new Stack<>();
for (String s : infixNotation)
{
//if its not digit
if(!Character.isDigit(s.charAt(0)))
{
if(!operator.isEmpty())
{
if(s.equals(")"))
{
while (!operator.isEmpty() && !operator.peek().equals("("))
{
result.add(operator.pop());
}
operator.pop();
}
else
{
while (!operator.isEmpty() && priority.get(operator.peek()) >= priority.get(s) && !operator.peek().equals("("))
{
result.add(operator.pop());
}
operator.push(s);
}
}
else {
operator.push(s); }
}
// if its digit
else {
result.add(s);}
}
while (!operator.isEmpty()) {
result.add(operator.pop());}
return result;
}
// calculate the result by prefixNotation
public static Integer calculate(List<String> prefixNotation)
{
Stack<Integer> calculateStack = new Stack<>();
for (String str : prefixNotation)
{
if(Character.isDigit(str.charAt(0)))
{
calculateStack.push(Integer.parseInt(str));
}
else
{
Integer after = calculateStack.pop();
Integer before = calculateStack.pop();
Integer result = 0;
switch (str)
{
case "+":
result = before + after;
break;
case "-":
result = before - after;
break;
case "*":
result = before * after;
break;
case "/":
result = before / after;
break;
}
calculateStack.push(result);
}
}
return calculateStack.pop();
}
public static void main(String[] args)
{
String temp="1+((2+3)*4)-5";
System.out.println(reversePolish(temp));//结果是16正确
}
}
