SparkSql 项目实战 | 各区域热门商品Top3

数据源

链接：https://pan.baidu.com/s/1lUbGmA10yOgUL4Rz2KAGmw
提取码：yh57

源码在github：https://github.com/lidonglin-bit/Spark-Sql

一.数据准备

我们这次 Spark-sql 操作中所有的数据均来自 Hive.
首先在 Hive 中创建表, 并导入数据.
一共有 3 张表: 1 张用户行为表, 1 张城市表, 1 张产品表

CREATE TABLE `user_visit_action`(
  `date` string,
  `user_id` bigint,
  `session_id` string,
  `page_id` bigint,
  `action_time` string,
  `search_keyword` string,
  `click_category_id` bigint,
  `click_product_id` bigint,
  `order_category_ids` string,
  `order_product_ids` string,
  `pay_category_ids` string,
  `pay_product_ids` string,
  `city_id` bigint)
row format delimited fields terminated by '\t';
load data local inpath '/export/servers/datas/user_visit_action.txt' into table spark1602.user_visit_action;

CREATE TABLE `product_info`(
  `product_id` bigint,
  `product_name` string,
  `extend_info` string)
row format delimited fields terminated by '\t';
load data local inpath '/export/servers/datas/product_info.txt' into table spark1602.product_info;

CREATE TABLE `city_info`(
  `city_id` bigint,
  `city_name` string,
  `area` string)
row format delimited fields terminated by '\t';
load data local inpath '/export/servers/datas/city_info.txt' into table spark1602.city_info;

二.各区域热门商品 Top3

需求简介

这里的热门商品是从点击量的维度来看的.
计算各个区域前三大热门商品，并备注上每个商品在主要城市中的分布比例，超过两个城市用其他显示。

例如:
地区	商品名称		点击次数	城市备注
华北	商品A		100000	北京21.2%，天津13.2%，其他65.6%
华北	商品P		80200	北京63.0%，太原10%，其他27.0%
华北	商品M		40000	北京63.0%，太原10%，其他27.0%
东北	商品J		92000	大连28%，辽宁17.0%，其他 55.0%

思路分析

使用 sql 来完成. 碰到复杂的需求, 可以使用 udf 或 udaf
1.先把需要的字段查出来
2.按照地区和商品名称聚合
3.按照地区进行分组开窗，排序 开窗函数
4.过滤出来名次小于等于3的
5. 城市备注需要自定义 UDAF 函数

具体实现

提前准备

• 1.添加依赖

   <dependencies>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-core_2.11</artifactId>
            <version>2.1.1</version>
        </dependency>

        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-sql_2.11</artifactId>
            <version>2.1.1</version>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-hive_2.11</artifactId>
            <version>2.1.1</version>
        </dependency>


        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.27</version>
        </dependency>


    </dependencies>
    <build>
        <plugins>
            <!-- 打包插件, 否则 scala 类不会编译并打包进去 -->
            <plugin>
                <groupId>net.alchim31.maven</groupId>
                <artifactId>scala-maven-plugin</artifactId>
                <version>3.4.6</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>testCompile</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

• 2.本次需要用hive，把hive-site.xml文件导入到resources下

测试数据(实现一小部分sql)

实现前面的一部分，后部分要用UDAF

import org.apache.spark.sql.SparkSession

object SqlApp {
  def main(args: Array[String]): Unit = {
    System.setProperty("HADOOP_USER_NAME", "root")
    val spark = SparkSession
      .builder()
      .master("local[*]")
      .appName("SqlApp")
      .enableHiveSupport()
      .getOrCreate()


    //去执行sql，从hive查询数据
    spark.sql("use spark1602")
    spark.sql(
      """
        |select
        |    ci.*,
        |    pi.product_name,
        |    uva.click_product_id
        |from user_visit_action uva
        |join product_info pi
        |on uva.click_product_id = pi.product_id
        |join city_info ci
        |on uva.city_id = ci.city_id
        |""".stripMargin).createOrReplaceTempView("t1")

    spark.sql(
      """
        |select
        |   area,
        |   product_name,
        |   count(*) count
        |from t1
        |group by area,product_name
        |""".stripMargin).createOrReplaceTempView("t2")

    spark.sql(
      """
        |select
        |   area,
        |   product_name,
        |   count,
        |   rank() over(partition by area order by count desc) rk
        |from t2
        |""".stripMargin).createOrReplaceTempView("t3")


    spark.sql(
      """
        |select
        |  area,
        |   product_name,
        |   count
        |from t3
        |where rk<=3
        |""".stripMargin).show

    spark.close()
  }
}

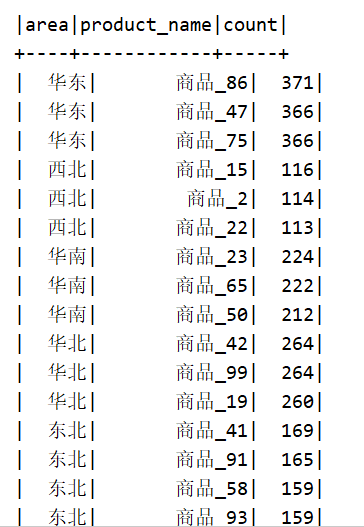

结果

使用UDAF实现城市备注的部分

• 1.创建UDAF

import org.apache.spark.sql.SparkSession

object SqlApp {
  def main(args: Array[String]): Unit = {
    System.setProperty("HADOOP_USER_NAME", "root")
    val spark = SparkSession
      .builder()
      .master("local[*]")
      .appName("SqlApp")
      .enableHiveSupport()
      .getOrCreate()

    spark.udf.register("remark",new CityRemarkUDAF)

    //去执行sql，从hive查询数据
    spark.sql("use spark1602")
    spark.sql(
      """
        |select
        |    ci.*,
        |    pi.product_name,
        |    uva.click_product_id
        |from user_visit_action uva
        |join product_info pi
        |on uva.click_product_id = pi.product_id
        |join city_info ci
        |on uva.city_id = ci.city_id
        |""".stripMargin).createOrReplaceTempView("t1")

    spark.sql(
      """
        |select
        |   area,
        |   product_name,
        |   count(*) count,
        |   remark(city_name) remark
        |from t1
        |group by area,product_name
        |""".stripMargin).createOrReplaceTempView("t2")

    spark.sql(
      """
        |select
        |   area,
        |   product_name,
        |   count,
        |   remark,
        |   rank() over(partition by area order by count desc) rk
        |from t2
        |""".stripMargin).createOrReplaceTempView("t3")


    spark.sql(
      """
        |select
        |  area,
        |   product_name,
        |   count,
        |   remark
        |from t3
        |where rk<=3
        |""".stripMargin).show(false)



    spark.close()

  }

}

实现UDAF

import java.text.DecimalFormat

import org.apache.spark.sql.Row
import org.apache.spark.sql.expressions.{MutableAggregationBuffer, UserDefinedAggregateFunction}
import org.apache.spark.sql.types.{DataType, LongType, MapType, StringType, StructField, StructType}

class CityRemarkUDAF extends UserDefinedAggregateFunction{
  //输入的数据类型  "北京","天津","String"
  override def inputSchema: StructType = StructType(Array(StructField("city",StringType)))

  //缓冲类型，每个地区的每个商品，缓冲所有城市的点击量
  //1.Map(北京->1000 天津->1000 石家庄->500)  用Map来存
  //2.总的点击量
  override def bufferSchema: StructType =
    StructType(Array(StructField("map",MapType(StringType,LongType)),StructField("total",LongType)))

  //最终聚合的结果类型   北京21.2%   天津13.2%  其他65.6%  String
  override def dataType: DataType = StringType

  //确定性
  override def deterministic: Boolean = true

  //对缓冲区做初始化
  override def initialize(buffer: MutableAggregationBuffer): Unit = {
    buffer(0) = Map[String,Long]()
    buffer(1) = 0L
  }

  //分区内聚合
  override def update(buffer: MutableAggregationBuffer, input: Row): Unit = {
    input match {
        //这个是remark(city_name)
      case Row(cityName:String) =>
        //1.总数的点击量 + 1
        buffer(1) = buffer.getLong(1) + 1L
        //2.给这个城市的点击量 + 1 => 找到缓冲的map，取出来这个城市原来的点击 +1  再赋值过去
        val map = buffer.getMap[String,Long](0)
        buffer(0) = map + (cityName -> (map.getOrElse(cityName,0L)+1L))
      case  _ =>
    }

  }

  //分区间的聚合
  override def merge(buffer1: MutableAggregationBuffer, buffer2: Row): Unit = {
    val map1 = buffer1.getMap[String,Long](0)
    val map2 = buffer2.getMap[String,Long](0)

    val total1 = buffer1.getLong(1)
    val total2 = buffer2.getLong(1)

    // 1.总数的聚合
    buffer1(1) = total1 + total2
    //2.map的聚合
    buffer1(0) = map1.foldLeft(map2){
      case (map,(cityName,count))=>
      map + (cityName-> (map.getOrElse(cityName,0L) +count))
    }

  }

  //返回最后的聚合结果
  override def evaluate(buffer: Row): String = {
    //北京21.2%，天津13.2%，其他65.6%
    val cityAndCount = buffer.getMap[String,Long](0)
    val total = buffer.getLong(1)

    val cityCountTop2 = cityAndCount.toList.sortBy(-_._2).take(2)
    var cityRemarks = cityCountTop2.map {
      case (cityName, count) => CityRemark(cityName, count.toDouble/total)
    }
   // CityRemark("其他",1-cityRemarks.foldLeft(0D)(_+_.cityRadio))
    cityRemarks :+= CityRemark("其他",cityRemarks.foldLeft(1D)(_-_.cityRadio))
    cityRemarks.mkString(",")

  }
}
case class CityRemark(cityName:String,cityRadio:Double){
  val f = new DecimalFormat("0.00%")
  //北京21.2%，天津13.2%，其他65.6%
  override def toString:String = s"$cityName:${f.format(cityRadio.abs)}"
}

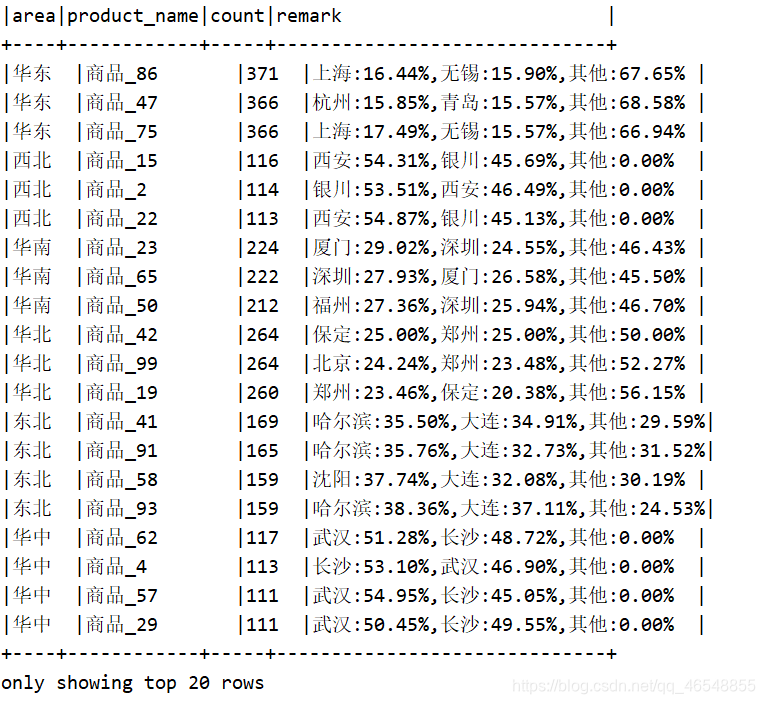

结果

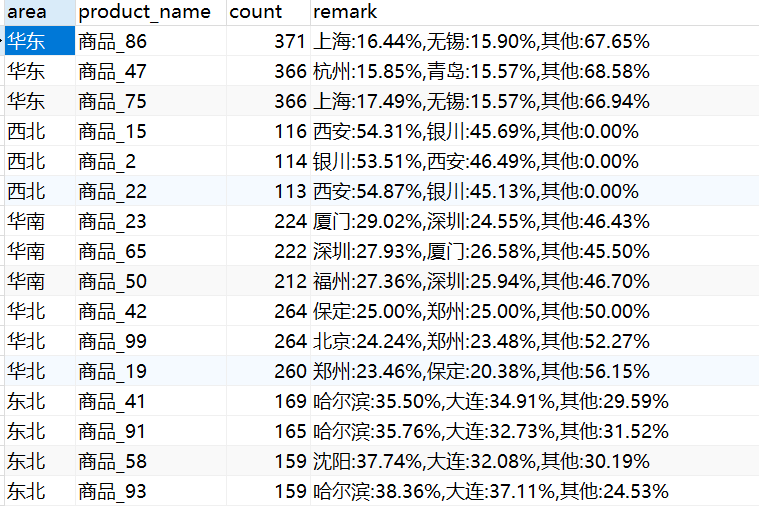

把数据写到mysql中

代码实现

import java.util.Properties

import org.apache.spark.sql.SparkSession

object SqlApp {
  def main(args: Array[String]): Unit = {
    System.setProperty("HADOOP_USER_NAME", "root")
    val spark = SparkSession
      .builder()
      .master("local[*]")
      .appName("SqlApp")
      .enableHiveSupport()
      .getOrCreate()

    spark.udf.register("remark",new CityRemarkUDAF)

    //去执行sql，从hive查询数据
    spark.sql("use spark1602")
    spark.sql(
      """
        |select
        |    ci.*,
        |    pi.product_name,
        |    uva.click_product_id
        |from user_visit_action uva
        |join product_info pi
        |on uva.click_product_id = pi.product_id
        |join city_info ci
        |on uva.city_id = ci.city_id
        |""".stripMargin).createOrReplaceTempView("t1")

    spark.sql(
      """
        |select
        |   area,
        |   product_name,
        |   count(*) count,
        |   remark(city_name) remark
        |from t1
        |group by area,product_name
        |""".stripMargin).createOrReplaceTempView("t2")

    spark.sql(
      """
        |select
        |   area,
        |   product_name,
        |   count,
        |   remark,
        |   rank() over(partition by area order by count desc) rk
        |from t2
        |""".stripMargin).createOrReplaceTempView("t3")

    val url = "jdbc:mysql://hadoop102:3306/sparksql?useUnicode=true&characterEncoding=UTF-8"
    val user = "root"
    val pw = "root"

    val props = new Properties()
    props.put("user",user)
    props.put("password",pw)

    spark.sql(
      """
        |select
        |  area,
        |   product_name,
        |   count,
        |   remark
        |from t3
        |where rk<=3
        |""".stripMargin)
      .coalesce(1)
        .write
      .mode("overwrite")
    .jdbc(url,"sql1602",props)
    //把结果写到mysql中

    spark.close()

  }

}

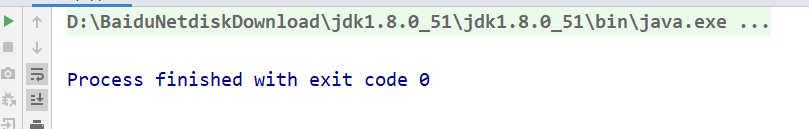

成功
