SpringCloud搭建项目环境手把手更新....

首先是父工程

使用Maven创建出父工程flightMicroservice

父工程pom

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.onlyk</groupId>
  <artifactId>flightMicroservice</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>pom</packaging>

  <name>flightMicroservice</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
    <druid.version>1.1.10</druid.version>
  </properties>
  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>Edgware.SR4</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
      <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-dependencies</artifactId>
        <version>1.5.13.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
      <!--  连接池  -->
      <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid-spring-boot-starter</artifactId>
        <version>${druid.version}</version>
      </dependency>
    </dependencies>
  </dependencyManagement>
</project>

子工程flight-common

使用SpringCloud创建项目flight-common
选择Lombok
导入pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.onlyk</groupId>
        <artifactId>flightMicroservice</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <artifactId>flight-common</artifactId>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <!--ribbon相关依赖-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-ribbon</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-config</artifactId>
        </dependency>
        <!--引入Feign依赖-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-feign</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

启动类不需要加载数据源

@SpringBootApplication(exclude={DataSourceAutoConfiguration.class, HibernateJpaAutoConfiguration.class})

导入工具类
BuildTree.java

package com.onlyk.flightcommon.utils;

import com.onlyk.flightcommon.vo.TreeVo;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * @author only老K 我为自己代言
 * @create 2020-03-29 17:13
 * @blogaddress https://blog.csdn.net/weixin_44255950
 */
public class BuildTree {
    /**
     * 默认-1为顶级节点
     * @param nodes
     * @param <T>
     * @return
     */
    public static <T> TreeVo<T> build(List<TreeVo<T>> nodes) {

        if (nodes == null) {
            return null;
        }
        List<TreeVo<T>> topNodes = new ArrayList<TreeVo<T>>();

        for (TreeVo<T> children : nodes) {
            String pid = children.getParentId();
            if (pid == null || "-1".equals(pid)) {
                topNodes.add(children);

                continue;
            }

            for (TreeVo<T> parent : nodes) {
                String id = parent.getId();
                if (id != null && id.equals(pid)) {
                    parent.getChildren().add(children);
                    children.setHasParent(true);
                    parent.setChildren(true);
                    continue;
                }
            }

        }

        TreeVo<T> root = new TreeVo<T>();
        if (topNodes.size() == 1) {
            root = topNodes.get(0);
        } else {
            root.setId("000");
            root.setParentId("-1");
            root.setHasParent(false);
            root.setChildren(true);
            root.setChecked(true);
            root.setChildren(topNodes);
            root.setText("顶级节点");
            Map<String, Object> state = new HashMap<>(16);
            state.put("opened", true);
            root.setState(state);
        }

        return root;
    }

    /**
     * 指定idparam为顶级节点
     * @param nodes
     * @param idParam
     * @param <T>
     * @return
     */
    public static <T> List<TreeVo<T>> buildList(List<TreeVo<T>> nodes, String idParam) {
        if (nodes == null) {
            return null;
        }
        List<TreeVo<T>> topNodes = new ArrayList<TreeVo<T>>();

        for (TreeVo<T> children : nodes) {

            String pid = children.getParentId();
            if (pid == null || idParam.equals(pid)) {
                topNodes.add(children);

                continue;
            }

            for (TreeVo<T> parent : nodes) {
                String id = parent.getId();
                if (id != null && id.equals(pid)) {
                    parent.getChildren().add(children);
                    children.setHasParent(true);
                    parent.setChildren(true);

                    continue;
                }
            }
        }
        return topNodes;
    }
}

CodeMsg.java

package com.onlyk.flightcommon.result;

/**
 * @author only老K 我为自己代言
 * @create 2020-03-29 17:13
 * @blogaddress https://blog.csdn.net/weixin_44255950
 */
public class CodeMsg {
    private int code;
    private String msg;

    //通用的错误码
    public static CodeMsg SUCCESS = new CodeMsg(0, "success");
    public static CodeMsg SERVER_ERROR = new CodeMsg(500100, "服务端异常");
    public static CodeMsg BIND_ERROR = new CodeMsg(500101, "参数校验异常：%s");
    //登录模块 5002XX
    public static CodeMsg SESSION_ERROR = new CodeMsg(500210, "Session不存在或者已经失效");
    public static CodeMsg PASSWORD_EMPTY = new CodeMsg(500211, "登录密码不能为空");
    public static CodeMsg MOBILE_EMPTY = new CodeMsg(500212, "手机号不能为空");
    public static CodeMsg MOBILE_ERROR = new CodeMsg(500213, "手机号格式错误");
    public static CodeMsg MOBILE_NOT_EXIST = new CodeMsg(500214, "手机号不存在");
    public static CodeMsg PASSWORD_ERROR = new CodeMsg(500215, "密码错误");


    //权限模块 5003XX


    //数据字典 5004XX
    public static CodeMsg ORDER_NOT_EXIST = new CodeMsg(500400, "订单不存在");

    //秒杀模块 5005XX
    public static CodeMsg MIAO_SHA_OVER = new CodeMsg(500500, "商品已经秒杀完毕");
    public static CodeMsg REPEATE_MIAOSHA = new CodeMsg(500501, "不能重复秒杀");


    private CodeMsg( ) {
    }

    private CodeMsg( int code,String msg ) {
        this.code = code;
        this.msg = msg;
    }

    public int getCode() {
        return code;
    }
    public void setCode(int code) {
        this.code = code;
    }
    public String getMsg() {
        return msg;
    }
    public void setMsg(String msg) {
        this.msg = msg;
    }

    public CodeMsg fillArgs(Object... args) {
        int code = this.code;
        String message = String.format(this.msg, args);
        return new CodeMsg(code, message);
    }

    @Override
    public String toString() {
        return "CodeMsg [code=" + code + ", msg=" + msg + "]";
    }
}

Result.java

package com.onlyk.flightcommon.result;

/**
 * @author only老K 我为自己代言
 * @create 2020-03-29 17:13
 * @blogaddress https://blog.csdn.net/weixin_44255950
 */
public class Result<T> {
    private int code;
    private String msg;
    private T data;

    public Result() {
    }

    /**
     *  成功时候的调用
     * */
    public static  <T> Result<T> success(T data){
        return new Result<T>(data);
    }

    /**
     *  失败时候的调用
     * */
    public static  <T> Result<T> error(CodeMsg codeMsg){
        return new Result<T>(codeMsg);
    }

    private Result(T data) {
        this.data = data;
    }

    private Result(int code, String msg) {
        this.code = code;
        this.msg = msg;
    }

    private Result(CodeMsg codeMsg) {
        if(codeMsg != null) {
            this.code = codeMsg.getCode();
            this.msg = codeMsg.getMsg();
        }
    }


    public int getCode() {
        return code;
    }
    public void setCode(int code) {
        this.code = code;
    }
    public String getMsg() {
        return msg;
    }
    public void setMsg(String msg) {
        this.msg = msg;
    }
    public T getData() {
        return data;
    }
    public void setData(T data) {
        this.data = data;
    }
}

TreeVo.java

package com.onlyk.flightcommon.vo;

import java.util.ArrayList;
import java.util.List;
import java.util.Map;

/**
 * @author only老K 我为自己代言
 * @create 2020-03-29 17:14
 * @blogaddress https://blog.csdn.net/weixin_44255950
 */
public class TreeVo<T> {
    /**
     * 节点ID
     */
    private String id;
    /**
     * 显示节点文本
     */
    private String text;
    /**
     * 节点状态，open closed
     */
    private Map<String, Object> state;
    /**
     * 节点是否被选中 true false
     */
    private boolean checked = false;
    /**
     * 节点属性
     */
    private Map<String, Object> attributes;

    /**
     * 节点的子节点
     */
    private List<TreeVo<T>> children = new ArrayList<TreeVo<T>>();

    /**
     * 父ID
     */
    private String parentId;
    /**
     * 是否有父节点
     */
    private boolean hasParent = false;
    /**
     * 是否有子节点
     */
    private boolean hasChildren = false;

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getText() {
        return text;
    }

    public void setText(String text) {
        this.text = text;
    }

    public Map<String, Object> getState() {
        return state;
    }

    public void setState(Map<String, Object> state) {
        this.state = state;
    }

    public boolean isChecked() {
        return checked;
    }

    public void setChecked(boolean checked) {
        this.checked = checked;
    }

    public Map<String, Object> getAttributes() {
        return attributes;
    }

    public void setAttributes(Map<String, Object> attributes) {
        this.attributes = attributes;
    }

    public List<TreeVo<T>> getChildren() {
        return children;
    }

    public void setChildren(List<TreeVo<T>> children) {
        this.children = children;
    }

    public boolean isHasParent() {
        return hasParent;
    }

    public void setHasParent(boolean isParent) {
        this.hasParent = isParent;
    }

    public boolean isHasChildren() {
        return hasChildren;
    }

    public void setChildren(boolean isChildren) {
        this.hasChildren = isChildren;
    }

    public String getParentId() {
        return parentId;
    }

    public void setParentId(String parentId) {
        this.parentId = parentId;
    }

    public TreeVo(String id, String text, Map<String, Object> state, boolean checked, Map<String, Object> attributes,
                  List<TreeVo<T>> children, boolean isParent, boolean isChildren, String parentID) {
        super();
        this.id = id;
        this.text = text;
        this.state = state;
        this.checked = checked;
        this.attributes = attributes;
        this.children = children;
        this.hasParent = isParent;
        this.hasChildren = isChildren;
        this.parentId = parentID;
    }

    public TreeVo() {
        super();
    }
}

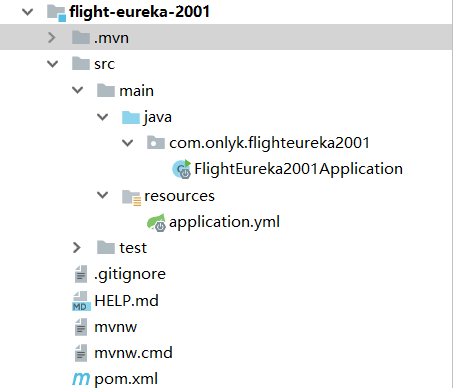

子工程flight-eureka-2001

使用SpringCloud创建flight-eureka-2001
选择Lombok
导入pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.onlyk</groupId>
        <artifactId>flightMicroservice</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <artifactId>flight-eureka-2001</artifactId>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka-server</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

yml文件配置（集群版本）

# register-with-eurekas 是否相互注册
# fetch-registry 是否同步信息，默认是true
---
server:
  port: 2001
  context-path: /
eureka:
  instance:
    hostname: eureka2001.onlyk.com
  client:
    register-with-eureka: false
    service-url:
      defaultZone: http://eureka2002.onlyk.com:2002/eureka/,http://eureka2003.onlyk.com:2003/eureka/
spring:
  profiles: eureka2001
---
server:
  port: 2002
  context-path: /
eureka:
  instance:
    hostname: eureka2002.onlyk.com
  client:
    register-with-eureka: false
    service-url:
      defaultZone: http://eureka2002.onlyk.com:2002/eureka/,http://eureka2003.onlyk.com:2003/eureka/
spring:
  profiles: eureka2002
---
server:
  port: 2003
  context-path: /
eureka:
  instance:
    hostname: eureka2003.onlyk.com
  client:
    register-with-eureka: false
    service-url:
      defaultZone: http://eureka2002.onlyk.com:2002/eureka/,http://eureka2003.onlyk.com:2003/eureka/
spring:
  profiles: eureka2003

启动类配置

@EnableEurekaServer
@SpringBootApplication

子工程flight-provider-1001

使用SpringCloud创建flight-provider-1001
选择Lombok
导入pom

#留下父亲工程组织信息，以及自己的项目名
 <properties>
        <java.version>1.8</java.version>
        <mysql.version>5.1.44</mysql.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>${mysql.version}</version>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>com.zking</groupId>
            <artifactId>flight-common</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.1</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
        </dependency>

        <!--添加注册中心Eureka相关配置-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-config</artifactId>
        </dependency>
        <!--Hystrix相关依赖-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-hystrix</artifactId>
        </dependency>
        <!-- actuator监控引入 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
    </dependencies>
    <build>
        <resources>
            <!--解决mybatis-generator-maven-plugin运行时没有将XxxMapper.xml文件放入target文件夹的问题-->
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
            </resource>
            <!--解决mybatis-generator-maven-plugin运行时没有将jdbc.properites文件放入target文件夹的问题-->
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>*.properties</include>
                    <include>*.xml</include>
                    <include>*.yml</include>
                </includes>
            </resource>
        </resources>

        <plugins>
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.2</version>
                <dependencies>
                    <!--使用Mybatis-generator插件不能使用太高版本的mysql驱动 -->
                    <dependency>
                        <groupId>mysql</groupId>
                        <artifactId>mysql-connector-java</artifactId>
                        <version>${mysql.version}</version>
                    </dependency>
                </dependencies>
                <configuration>
                    <overwrite>true</overwrite>
                </configuration>
            </plugin>

            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

yml配置

---
server:
  port: 1001
  context-path: /
spring:
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf8
    username: root
    password: 123
  jpa:
    hibernate:
      ddl-auto: update
    show-sql: true
  application:
    name: microservice-flight
  profiles: provider-hystrix-1001
  thymeleaf:
    prefix: classpath:/templates

eureka:
  instance:
    hostname: localhost
    appname: microservice-flight
    instance-id: microservice-flight:1001
    prefer-ip-address: true
  client:
    service-url:
      defaultZone: http://eureka2001.onlyk.com:2001/eureka/,http://eureka2002.onlyk.com:2002/eureka/,http://eureka2003.onlyk.com:2003/eureka/

info:
  groupId: com.onlyk
  artifactId: microservice-flight-provider-hystrix-1001
  version: 1.0-SNAPSHOT
  userName: http://onlyk.com
  phone: 123456

hystrix:
  command:
    default:
      execution:
        isolation:
          thread:
            timeoutInMilliseconds: 1500

---
server:
  port: 1005
  context-path: /
spring:
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf8
    username: root
    password: 123
  jpa:
    hibernate:
      ddl-auto: update
    show-sql: true
  application:
    name: microservice-flight
  profiles: provider-hystrix-1005

eureka:
  instance:
    hostname: localhost
    appname: microservice-flight
    instance-id: microservice-flight:1005
    prefer-ip-address: true
  client:
    service-url:
      defaultZone: http://eureka2001.onlyk.com:2001/eureka/,http://eureka2002.onlyk.com:2002/eureka/,http://eureka2003.onlyk.com:2003/eureka/

info:
  groupId: com.onlyk
  artifactId: microservice-flight-provider-hystrix-1005
  version: 1.0-SNAPSHOT
  userName: http://onlyk.com
  phone: 123456

hystrix:
  command:
    default:
      execution:
        isolation:
          thread:
            timeoutInMilliseconds: 1500

---
server:
  port: 1006
  context-path: /
spring:
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf8
    username: root
    password: 123
  jpa:
    hibernate:
      ddl-auto: update
    show-sql: true
  application:
    name: microservice-flight
  profiles: provider-hystrix-1006

eureka:
  instance:
    hostname: localhost
    appname: microservice-flight
    instance-id: microservice-flight:1006
    prefer-ip-address: true
  client:
    service-url:
      defaultZone: http://eureka2001.javaxl.com:2001/eureka/,http://eureka2002.javaxl.com:2002/eureka/,http://eureka2003.javaxl.com:2003/eureka/

info:
  groupId: com.onlyk
  artifactId: microservice-flight-provider-hystrix-1006
  version: 1.0-SNAPSHOT
  userName: http://onlyk.com
  phone: 123456

hystrix:
  command:
    default:
      execution:
        isolation:
          thread:
            timeoutInMilliseconds: 1500

启动类配置

# MapperScan 扫码当前包的mapper
# EnableEurekaClient Eureka的客户端
# EnableTransactionManagement 事务
@MapperScan("com.zking.flightprovider1001.mapper")
@EnableTransactionManagement
@EnableEurekaClient
@SpringBootApplication

由于上面使用到了Mybatis所以有Maven逆向生成代码这篇博客里面有哦
使用逆向生成工具完成（把逆向生成的entity放入到common中去）

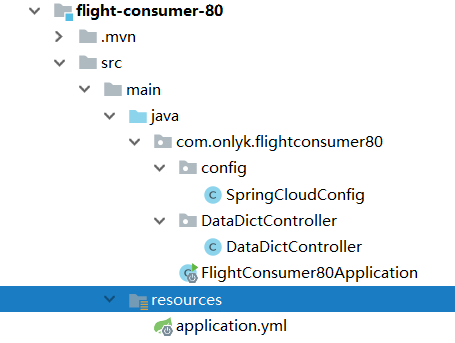

子工程flight-consumer-80

使用SpringCloud创建flight-consumer-80
pom依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.onlyk</groupId>
        <artifactId>flightMicroservice</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <artifactId>flight-consumer-80</artifactId>

    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>com.onlyk</groupId>
            <artifactId>flight-common</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
        </dependency>


    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

yml配置

# eurake配置、feign与Hystrix整合、ribbon与server:
  port: 80
  context-path: /
eureka:
  client:
    service-url:
      defaultZone: http://eureka2001.onlyk.com:2001/eureka/,http://eureka2002.onlyk.com:2002/eureka/,http://eureka2003.onlyk.com:2003/eureka/
    register-with-eureka: false

feign:
  hystrix:
    enabled: true

ribbon:
  ReadTimeout: 10000
  ConnectTimeout: 9000

hystrix:
  command:
    default:
      execution:
        isolation:
          thread:
            timeoutInMilliseconds: 3000

启动类配置

@ComponentScan(basePackages = {"com.onlyk.flightcommon","com.onlyk.flightconsumer80"})//扫描公共模块 用了哪里的就扫描哪里的
@EnableEurekaClient
//在当前微服务（消费者80）调用了其他微服务（生产者1001）
@EnableFeignClients(value = "com.onlyk.*.*")
@SpringBootApplication(exclude={DataSourceAutoConfiguration.class, HibernateJpaAutoConfiguration.class})

SpringCloudConfig配置类（主要做负载均衡及其策略配置）

package com.onlyk.flightconsumer80.config;

import com.netflix.loadbalancer.IRule;
import com.netflix.loadbalancer.RetryRule;
import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.web.client.RestTemplate;

/**
 * @author only老K 我为自己代言
 * @create 2020-03-30 11:54
 * @blogaddress https://blog.csdn.net/weixin_44255950
 */
public class SpringCloudConfig {
    @LoadBalanced  // 引入ribbon负载均衡
    @Bean
    public RestTemplate getRestTemplate() {
        return new RestTemplate();
    }

    /**
     * 自定义调用规则（服务提供者掉线后不再调用，解决轮询问题）
     * @return
     */
    @Bean
    public IRule myRule(){
        return new RetryRule();
//        return new RandomRule();
    }
}

子工程flight-zuul-3001

使用SpringCloud创建flight-zuul-3001

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.onlyk</groupId>
        <artifactId>flightMicroservice</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <artifactId>flight-zuul-3001</artifactId>

    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>com.onlyk</groupId>
            <artifactId>flight-common</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-eureka</artifactId>
        </dependency>
        <!-- actuator监控 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <!-- hystrix容错 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-hystrix</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-config</artifactId>
        </dependency>
        <!--zuul网关-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zuul</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

yml配置

server:
  port: 3001
  context-path: /
spring:
  application:
    name: microservice-zuul
eureka:
  instance:
    instance-id: microservice-zuul:3001
    prefer-ip-address: true
  client:
    service-url:
      defaultZone: http://eureka2001.onlyk.com:2001/eureka/,http://eureka2002.onlyk.com:2002/eureka/,http://eureka2003.onlyk.com:2003/eureka/
info:
  groupId: com.onlyk.testSpringcloud
  artifactId: microservice-zuul-3001
  version: 1.0-SNAPSHOT
  userName: http://onlyk.com
  phone: 123456

zuul:
  routes:
    studentServer.serviceId: microservice-flight
    studentServer.path: /flightServer/**
  ignored-services: "*"
  prefix: /onlyk

启动类配置

@SpringBootApplication(exclude={DataSourceAutoConfiguration.class, HibernateJpaAutoConfiguration.class})
@EnableZuulProxy

过滤器（启动屏蔽内部微服务访问的作用）
AccessFilter.java

package com.onlyk.flightzuul3001.filter;

import com.netflix.zuul.ZuulFilter;
import com.netflix.zuul.context.RequestContext;
import com.netflix.zuul.exception.ZuulException;
import org.apache.log4j.Logger;
import org.springframework.stereotype.Component;

import javax.servlet.http.HttpServletRequest;

/**
 * @author only老K 我为自己代言
 * @create 2020-03-30 12:05
 * @blogaddress https://blog.csdn.net/weixin_44255950
 */
@Component
public class AccessFilter extends ZuulFilter {

    Logger logger= Logger.getLogger(AccessFilter.class);

    /**
     * 判断该过滤器是否要被执行
     */
    @Override
    public boolean shouldFilter() {
        return true;
    }

    /**
     * 过滤器的具体执行逻辑
     */
    @Override
    public Object run() throws ZuulException {
        RequestContext ctx = RequestContext.getCurrentContext();
        HttpServletRequest request = ctx.getRequest();
        String parameter = request.getParameter("accessToken");
        logger.info(request.getRequestURL().toString()+" 请求访问");
        if(parameter==null){
            logger.error("accessToken为空！");
            ctx.setSendZuulResponse(false);
            ctx.setResponseStatusCode(401);
            ctx.setResponseBody("{\"result\":\"accessToken is empty!\"}");
            return null;
        }
        //  token判断逻辑
        logger.info(request.getRequestURL().toString()+" 请求成功");
        return null;
    }

    /**
     * 过滤器的类型 这里用pre，代表会再请求被路由之前执行
     */
    @Override
    public String filterType() {
        return "pre";
    }

    /**
     * 过滤器的执行顺序
     */
    @Override
    public int filterOrder() {
        return 0;
    }

}

TestFilter.java

package com.onlyk.flightzuul3001.config;

import org.springframework.stereotype.Component;

import javax.servlet.*;
import javax.servlet.annotation.WebFilter;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

/**
 * @author only老K 我为自己代言
 * @create 2020-03-30 12:06
 * @blogaddress https://blog.csdn.net/weixin_44255950
 */

@Component
@WebFilter(urlPatterns = "/*", filterName = "ajaxCORS")
public class TestFilter implements Filter {

    @Override
    public void init(FilterConfig arg0) throws ServletException {
        System.out.println("过滤器初始化");
    }

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain)
            throws IOException, ServletException {
        System.out.printf("过滤器实现");
        HttpServletResponse httpResponse = (HttpServletResponse) servletResponse;

        // Access-Control-Allow-Origin就是我们需要设置的域名
        // Access-Control-Allow-Headers跨域允许包含的头。
        // Access-Control-Allow-Methods是允许的请求方式
        httpResponse.addHeader("Access-Control-Allow-Origin", "*");// *,任何域名
        httpResponse.setHeader("Access-Control-Allow-Headers", "Origin, X-Requested-With, Content-Type, Accept");
        httpResponse.setHeader("Access-Control-Allow-Methods", "POST, GET, PUT, DELETE");
        filterChain.doFilter(servletRequest, servletResponse);
    }

    @Override
    public void destroy() {
        System.out.println("过滤器销毁了");
    }
}

最终配置类
ZuulConfig.java

package com.onlyk.flightzuul3001.config;

import com.onlyk.flightzuul3001.filter.AccessFilter;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * @author only老K 我为自己代言
 * @create 2020-03-30 12:05
 * @blogaddress https://blog.csdn.net/weixin_44255950
 */
@Configuration
public class ZuulConfig {
    @Bean
    public AccessFilter accessFilter(){
        return new AccessFilter();
    }
}

环境搭建完毕，写代码测试即可

provider-1001

DataDictMapper
List<DataDict> list(Map map);
DataDictMapper.xml
  <select id="list" resultType="com.onlyk.flightcommon.entity.DataDict" parameterType="java.util.Map" >
    select
    <include refid="Base_Column_List" />
    from t_springcloud_data_dict
    <where>
      <if test="description != null" >
        description like #{description}
      </if>
    </where>
  </select>

package com.onlyk.flightprovider1001.server;

import com.onlyk.flightcommon.entity.DataDict;

import java.util.List;

/**
 * @author only老K 我为自己代言
 * @create 2020-04-03 15:19
 * @blogaddress https://blog.csdn.net/weixin_44255950
 */
public interface DataDictService {
    int deleteByPrimaryKey(Integer id);

    int insert(DataDict record);

    int insertSelective(DataDict record);

    DataDict selectByPrimaryKey(Integer id);

    int updateByPrimaryKeySelective(DataDict record);

    int updateByPrimaryKey(DataDict record);

    public List<DataDict> list();
}

package com.onlyk.flightprovider1001.server.impl;

import com.onlyk.flightcommon.entity.DataDict;
import com.onlyk.flightprovider1001.mapper.DataDictMapper;
import com.onlyk.flightprovider1001.server.DataDictService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * @author only老K 我为自己代言
 * @create 2020-04-03 15:20
 * @blogaddress https://blog.csdn.net/weixin_44255950
 */
@Service
public class DataDictServiceImpl implements DataDictService {
    @Autowired
    private DataDictMapper dataDictMapper;
    @Override
    public int deleteByPrimaryKey(Integer id) {
        return dataDictMapper.deleteByPrimaryKey(id);
    }

    @Override
    public int insert(DataDict record) {
        return dataDictMapper.insert(record);
    }

    @Override
    public int insertSelective(DataDict record) {
        return dataDictMapper.insertSelective(record);
    }

    @Override
    public DataDict selectByPrimaryKey(Integer id) {
        return dataDictMapper.selectByPrimaryKey(id);
    }

    @Override
    public int updateByPrimaryKeySelective(DataDict record) {
        return dataDictMapper.updateByPrimaryKeySelective(record);
    }

    @Override
    public int updateByPrimaryKey(DataDict record) {
        return dataDictMapper.updateByPrimaryKey(record);
    }

    @Override
    public List<DataDict> list() {
        return dataDictMapper.list(null);
    }
}


package com.onlyk.flightprovider1001.controller;

import com.onlyk.flightcommon.entity.DataDict;
import com.onlyk.flightcommon.result.Result;
import com.onlyk.flightprovider1001.server.DataDictService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.List;

/**
 * @author only老K 我为自己代言
 * @create 2020-04-03 15:23
 * @blogaddress https://blog.csdn.net/weixin_44255950
 */
@RestController
@RequestMapping("/dataDict")
public class DataDictController {
    @Autowired
    private DataDictService dataDictService;
    @RequestMapping("/list")
    public Result<List<DataDict>> list(){
        try {
            System.out.println("112523");
            Thread.sleep(200);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        List<DataDict> list = dataDictService.list();
        return Result.success(list);
    }
}

common

package com.onlyk.flightcommon.server;

import com.onlyk.flightcommon.entity.DataDict;
import com.onlyk.flightcommon.result.CodeMsg;
import com.onlyk.flightcommon.result.Result;
import feign.hystrix.FallbackFactory;
import org.springframework.stereotype.Component;

import java.util.List;

/**
 * @author only老K 我为自己代言
 * @create 2020-04-03 8:29
 * @blogaddress https://blog.csdn.net/weixin_44255950
 */
@Component
public class DataDictClientFallbackFactory implements FallbackFactory<DataDictClientService> {
    @Override
    public DataDictClientService create(Throwable throwable) {
        return new DataDictClientService() {
            @Override
            public Result<List<DataDict>> list() {
                return Result.error(CodeMsg.SERVER_ERROR);
            }
        };
    }
}


package com.onlyk.flightcommon.server;

import com.onlyk.flightcommon.entity.DataDict;
import com.onlyk.flightcommon.result.Result;
import org.springframework.cloud.netflix.feign.FeignClient;
import org.springframework.web.bind.annotation.GetMapping;

import java.util.List;

/**
 * @author only老K 我为自己代言
 * @create 2020-04-03 8:28
 * @blogaddress https://blog.csdn.net/weixin_44255950
 */
@FeignClient(value="MICROSERVICE-FLIGHT",fallbackFactory = DataDictClientFallbackFactory.class)
public interface DataDictClientService {
    @GetMapping(value="/dataDict/list")
    public Result<List<DataDict>> list();
}

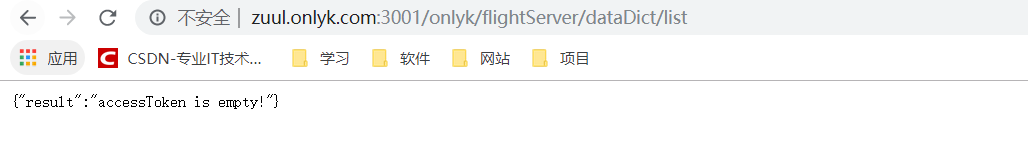

启动测试

启动顺序（注册中心–1001–80–zuul）80启动不启动没有关系

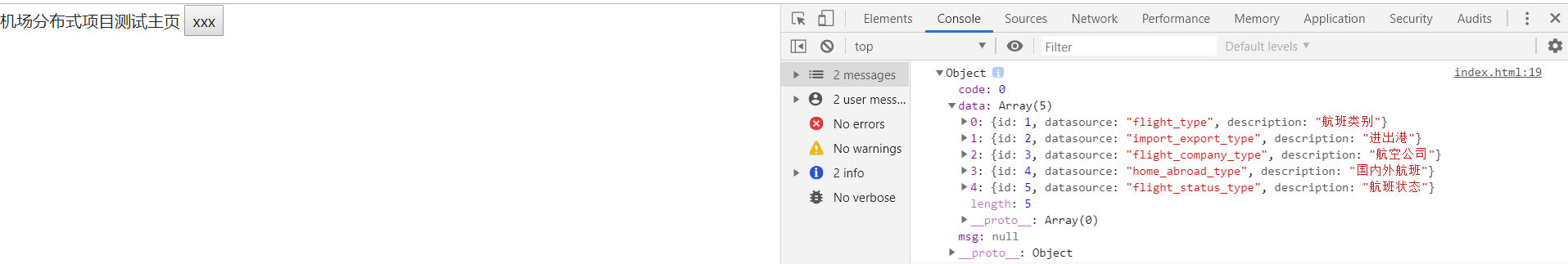

数据字典实现
