BIO,NIO,AIO 有什么区别?
- BIO (Blocking I/O): 同步阻塞I/O模式,数据的读取写入必须阻塞在一个线程内等待其完成。在活动连接数不是特别高(小于单机1000)的情况下,这种模型是比较不错的,可以让每一个连接专注于自己的 I/O 并且编程模型简单,也不用过多考虑系统的过载、限流等问题。线程池本身就是一个天然的漏斗,可以缓冲一些系统处理不了的连接或请求。但是,当面对十万甚至百万级连接的时候,传统的 BIO 模型是无能为力的。因此,我们需要一种更高效的 I/O 处理模型来应对更高的并发量。
- NIO (New I/O): NIO是一种同步非阻塞的I/O模型,在Java 1.4 中引入了NIO框架,对应 java.nio 包,提供了 Channel , Selector,Buffer等抽象。NIO中的N可以理解为Non-blocking,不单纯是New。它支持面向缓冲的,基于通道的I/O操作方法。 NIO提供了与传统BIO模型中的
Socket
和ServerSocket
相对应的SocketChannel
和ServerSocketChannel
两种不同的套接字通道实现,两种通道都支持阻塞和非阻塞两种模式。阻塞模式使用就像传统中的支持一样,比较简单,但是性能和可靠性都不好;非阻塞模式正好与之相反。对于低负载、低并发的应用程序,可以使用同步阻塞I/O来提升开发速率和更好的维护性;对于高负载、高并发的(网络)应用,应使用 NIO 的非阻塞模式来开发 - AIO (Asynchronous I/O): AIO 也就是 NIO 2。在 Java 7 中引入了 NIO 的改进版 NIO 2,它是异步非阻塞的IO模型。异步 IO 是基于事件和回调机制实现的,也就是应用操作之后会直接返回,不会堵塞在那里,当后台处理完成,操作系统会通知相应的线程进行后续的操作。AIO 是异步IO的缩写,虽然 NIO 在网络操作中,提供了非阻塞的方法,但是 NIO 的 IO 行为还是同步的。对于 NIO 来说,我们的业务线程是在 IO 操作准备好时,得到通知,接着就由这个线程自行进行 IO 操作,IO操作本身是同步的。查阅网上相关资料,我发现就目前来说 AIO 的应用还不是很广泛,Netty 之前也尝试使用过 AIO,不过又放弃了。
以上转载自:https://blog.csdn.net/m0_37721946/article/details/103538660
一、BIO

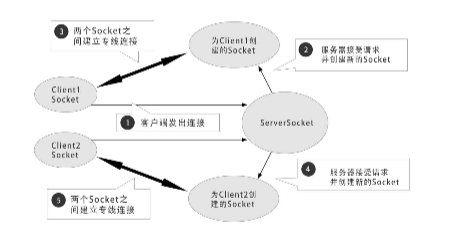

阻塞输入输出,传统得tcp和udp编程形式,服务端为每一个客户端之间建立专线连接。
前面得信息处理会影响后面得信息处理。
二、NIO

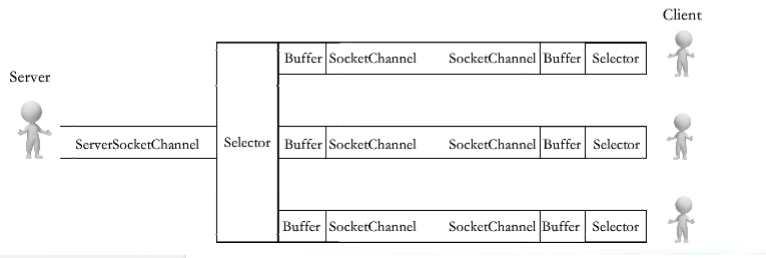

非阻塞输入输出。一个线程同时管理多个连接,减少线程多的压力,不是真的异步操作。

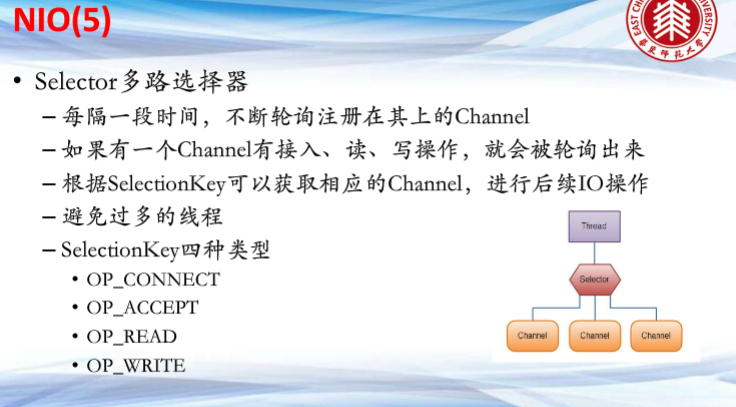

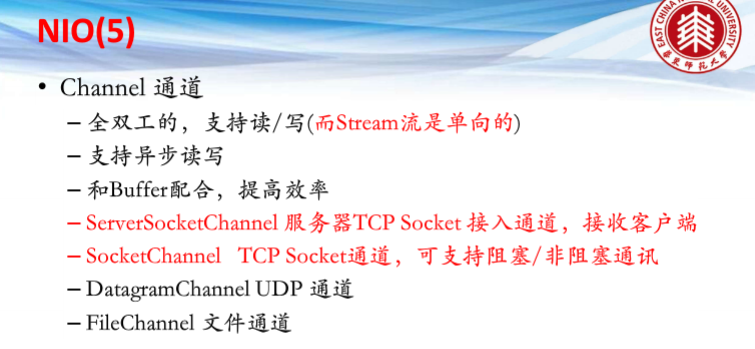

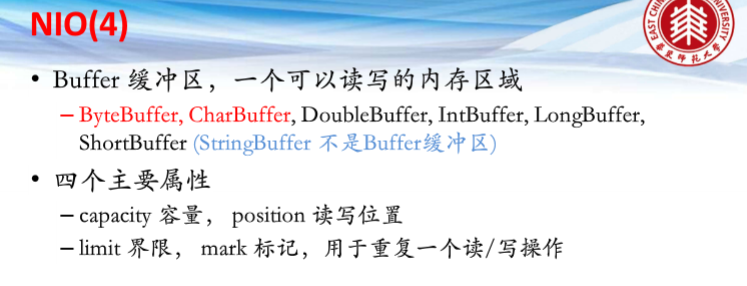

Selector:多路选择器 Channel:通道 Buffer:缓冲区
服务端方法:
1.建立服务端通道并且在制定端口等待连接
2.多路选择器进行轮询,并且提取出有动作得通道
3.根据通道内得信息判断是否是请求连接信息还是传输信息。如果是请求连接则同意连接。若是读取信息则需要通过缓冲流读取,写入信息也是需要通过缓冲流进行。
客户端方法:
1.请求连接
2.进行写入操作,写入操作也是需要先过缓冲流区的。
示例:
package nio;
import java.io.IOException;
import java.net.InetSocketAddress;
import java.nio.ByteBuffer;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.ServerSocketChannel;
import java.nio.channels.SocketChannel;
import java.util.Iterator;
import java.util.Set;
public class NioServer {
public static void main(String[] args) throws IOException {
//1.建立服务端通道并且在制定端口等待连接
int port = 8001;
Selector selector = null;
ServerSocketChannel servChannel = null;
try {
selector = Selector.open();
servChannel = ServerSocketChannel.open();
servChannel.configureBlocking(false);
servChannel.socket().bind(new InetSocketAddress(port), 1024);
servChannel.register(selector, SelectionKey.OP_ACCEPT);//将多入选择器与通道进行绑定
System.out.println("服务器在8001端口守候");
} catch (IOException e) {
e.printStackTrace();
System.exit(1);
}
while(true)
{
try {
selector.select(1000);//轮询操作
Set<SelectionKey> selectedKeys = selector.selectedKeys();//取出需要处理的通道
Iterator<SelectionKey> it = selectedKeys.iterator();
SelectionKey key = null;
while (it.hasNext()) {
key = it.next();
it.remove();
try {
handleInput(selector,key);
} catch (Exception e) {
if (key != null) {
key.cancel();
if (key.channel() != null)
key.channel().close();
}
}
}
}
catch(Exception ex)
{
ex.printStackTrace();
}
try
{
Thread.sleep(500);
}
catch(Exception ex)
{
ex.printStackTrace();
}
}
}
public static void handleInput(Selector selector, SelectionKey key) throws IOException {
if (key.isValid()) {
// 处理新接入的请求消息
if (key.isAcceptable()) {
// Accept the new connection
ServerSocketChannel ssc = (ServerSocketChannel) key.channel();
SocketChannel sc = ssc.accept();
sc.configureBlocking(false);
// Add the new connection to the selector
sc.register(selector, SelectionKey.OP_READ);
}
if (key.isReadable()) {
// Read the data
SocketChannel sc = (SocketChannel) key.channel();
ByteBuffer readBuffer = ByteBuffer.allocate(1024);
int readBytes = sc.read(readBuffer);
if (readBytes > 0) {
readBuffer.flip();
byte[] bytes = new byte[readBuffer.remaining()];
readBuffer.get(bytes);
String request = new String(bytes, "UTF-8"); //接收到的输入
System.out.println("client said: " + request);
String response = request + " 666";
doWrite(sc, response);
} else if (readBytes < 0) {
// 对端链路关闭
key.cancel();
sc.close();
} else
; // 读到0字节,忽略
}
}
}
public static void doWrite(SocketChannel channel, String response) throws IOException {
if (response != null && response.trim().length() > 0) {
byte[] bytes = response.getBytes();
ByteBuffer writeBuffer = ByteBuffer.allocate(bytes.length);
writeBuffer.put(bytes);
writeBuffer.flip();
channel.write(writeBuffer);
}
}
}
package nio;
import java.io.IOException;
import java.net.InetSocketAddress;
import java.nio.ByteBuffer;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.SocketChannel;
import java.util.Iterator;
import java.util.Set;
import java.util.UUID;
public class NioClient {
public static void main(String[] args) {
String host = "127.0.0.1";
int port = 8001;
Selector selector = null;
SocketChannel socketChannel = null;
try
{
selector = Selector.open();
socketChannel = SocketChannel.open();
socketChannel.configureBlocking(false); // 非阻塞
// 如果直接连接成功,则注册到多路复用器上,发送请求消息,读应答
if (socketChannel.connect(new InetSocketAddress(host, port)))
{
socketChannel.register(selector, SelectionKey.OP_READ);
doWrite(socketChannel);
}
else
{
socketChannel.register(selector, SelectionKey.OP_CONNECT);
}
} catch (IOException e) {
e.printStackTrace();
System.exit(1);
}
while (true)
{
try
{
selector.select(1000);
//函数功能(根据源码上的注释翻译而来):选择一些I/O操作
//已经准备好的管道。每个管道对应着一个key。这个方法
//是一个阻塞的选择操作。当至少有一个通道被选择时才返回。
//当这个方法被执行时,当前线程是允许被中断的。
Set<SelectionKey> selectedKeys = selector.selectedKeys();
Iterator<SelectionKey> it = selectedKeys.iterator();
SelectionKey key = null;
while (it.hasNext())
{
key = it.next();
it.remove();
try
{
//处理每一个channel
handleInput(selector, key);
}
catch (Exception e) {
if (key != null) {
key.cancel();
if (key.channel() != null)
key.channel().close();
}
}
}
}
catch (Exception e)
{
e.printStackTrace();
}
}
// 多路复用器关闭后,所有注册在上面的Channel资源都会被自动去注册并关闭
// if (selector != null)
// try {
// selector.close();
// } catch (IOException e) {
// e.printStackTrace();
// }
//
// }
}
public static void doWrite(SocketChannel sc) throws IOException {
byte[] str = UUID.randomUUID().toString().getBytes();
ByteBuffer writeBuffer = ByteBuffer.allocate(str.length);
writeBuffer.put(str);
writeBuffer.flip();
sc.write(writeBuffer);
}
public static void handleInput(Selector selector, SelectionKey key) throws Exception {
if (key.isValid()) {
// 判断是否连接成功
SocketChannel sc = (SocketChannel) key.channel();
if (key.isConnectable()) {
if (sc.finishConnect()) {
sc.register(selector, SelectionKey.OP_READ);
}
}
if (key.isReadable()) {
ByteBuffer readBuffer = ByteBuffer.allocate(1024);
int readBytes = sc.read(readBuffer);
if (readBytes > 0) {
readBuffer.flip();
byte[] bytes = new byte[readBuffer.remaining()];
readBuffer.get(bytes);
String body = new String(bytes, "UTF-8");
System.out.println("Server said : " + body);
} else if (readBytes < 0) {
// 对端链路关闭
key.cancel();
sc.close();
} else
; // 读到0字节,忽略
}
Thread.sleep(3000);
doWrite(sc);
}
}
}
三、AIO编程
异步的输入输出操作,采用回调方法进行读写处理

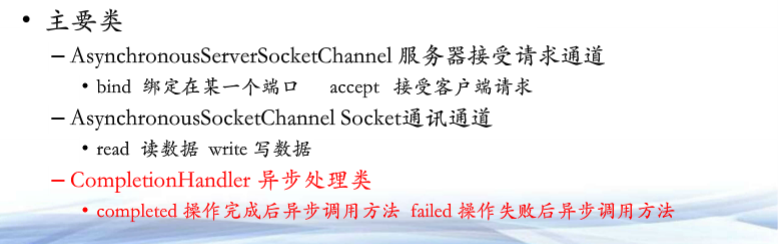

主要思想:通过AsynchronousServerSocketChannel建立服务端请求通道,并且通过bind绑定端口和地址,同时在accept函数中放入CompletionHandler异步处理类让。异步处理类的主要是使该操作完成后就可以实现后续的任务,若成功则执行completed()函数,失败或发生异常则执行failed函数。
package aio;
import java.io.IOException;
import java.net.InetSocketAddress;
import java.nio.ByteBuffer;
import java.nio.CharBuffer;
import java.nio.channels.AsynchronousChannelGroup;
import java.nio.channels.AsynchronousServerSocketChannel;
import java.nio.channels.AsynchronousSocketChannel;
import java.nio.channels.CompletionHandler;
import java.nio.charset.Charset;
import java.nio.charset.CharsetDecoder;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
public class AioServer {
public static void main(String[] args) throws IOException {
AsynchronousServerSocketChannel server = AsynchronousServerSocketChannel.open();
server.bind(new InetSocketAddress("localhost", 8001));
System.out.println("服务器在8001端口守候");
//开始等待客户端连接,一旦有连接,做26行任务
server.accept(null, new CompletionHandler<AsynchronousSocketChannel, Object>() {
@Override
public void completed(AsynchronousSocketChannel channel, Object attachment) {
server.accept(null, this); //持续接收新的客户端请求
ByteBuffer buffer = ByteBuffer.allocate(1024); //准备读取空间
//开始读取客户端内容,一旦读取结束,做33行任务
channel.read(buffer, buffer, new CompletionHandler<Integer, ByteBuffer>() {
@Override
public void completed(Integer result_num, ByteBuffer attachment) {
attachment.flip(); //反转此Buffer
CharBuffer charBuffer = CharBuffer.allocate(1024);
CharsetDecoder decoder = Charset.defaultCharset().newDecoder();
decoder.decode(attachment,charBuffer,false);
charBuffer.flip();
String data = new String(charBuffer.array(),0, charBuffer.limit());
System.out.println("client said: " + data);
channel.write(ByteBuffer.wrap((data + " 666").getBytes())); //返回结果给客户端
try{
channel.close();
}catch (Exception e){
e.printStackTrace();
}
}
@Override
public void failed(Throwable exc, ByteBuffer attachment) {
System.out.println("read error "+exc.getMessage());
}
});
}
@Override
public void failed(Throwable exc, Object attachment) {
System.out.print("failed: " + exc.getMessage());
}
});
while(true){
try {
Thread.sleep(5000);
} catch (InterruptedException e) {
// TODO Auto-generated catch block
e.printStackTrace();
}
}
}
}
package aio;
import java.net.InetSocketAddress;
import java.nio.ByteBuffer;
import java.nio.CharBuffer;
import java.nio.channels.AsynchronousSocketChannel;
import java.nio.channels.CompletionHandler;
import java.nio.charset.Charset;
import java.nio.charset.CharsetDecoder;
import java.util.UUID;
public class AioClient {
public static void main(String[] a) {
try
{
AsynchronousSocketChannel channel = AsynchronousSocketChannel.open();
//18行连接成功后,自动做20行任务
channel.connect(new InetSocketAddress("localhost", 8001), null, new CompletionHandler<Void, Void>() {
public void completed(Void result, Void attachment) {
String str = UUID.randomUUID().toString();
//24行向服务器写数据成功后,自动做28行任务
channel.write(ByteBuffer.wrap(str.getBytes()), null,
new CompletionHandler<Integer, Object>() {
@Override
public void completed(Integer result, Object attachment) {
try {
System.out.println("write " + str + ", and wait response");
//等待服务器响应
ByteBuffer buffer = ByteBuffer.allocate(1024); //准备读取空间
//开始读取服务器反馈内容,一旦读取结束,做39行任务
channel.read(buffer, buffer, new CompletionHandler<Integer, ByteBuffer>() {
@Override
public void completed(Integer result_num, ByteBuffer attachment) {
attachment.flip(); //反转此Buffer
CharBuffer charBuffer = CharBuffer.allocate(1024);
CharsetDecoder decoder = Charset.defaultCharset().newDecoder();
decoder.decode(attachment,charBuffer,false);
charBuffer.flip();
String data = new String(charBuffer.array(),0, charBuffer.limit());
System.out.println("server said: " + data);
try{
channel.close();
}catch (Exception e){
e.printStackTrace();
}
}
@Override
public void failed(Throwable exc, ByteBuffer attachment) {
System.out.println("read error "+exc.getMessage());
}
});
channel.close();
} catch (Exception e) {
e.printStackTrace();
}
}
@Override
public void failed(Throwable exc, Object attachment) {
System.out.println("write error");
}
});
}
public void failed(Throwable exc, Void attachment) {
System.out.println("fail");
}
});
Thread.sleep(10000);
}
catch (Exception e) {
e.printStackTrace();
}
}
}
参考中国大学mooc《java核心技术》
