本文默认你使用的是CodeRunner来运行C++,并且能成功在VScode上运行C++程序
配置C++调试

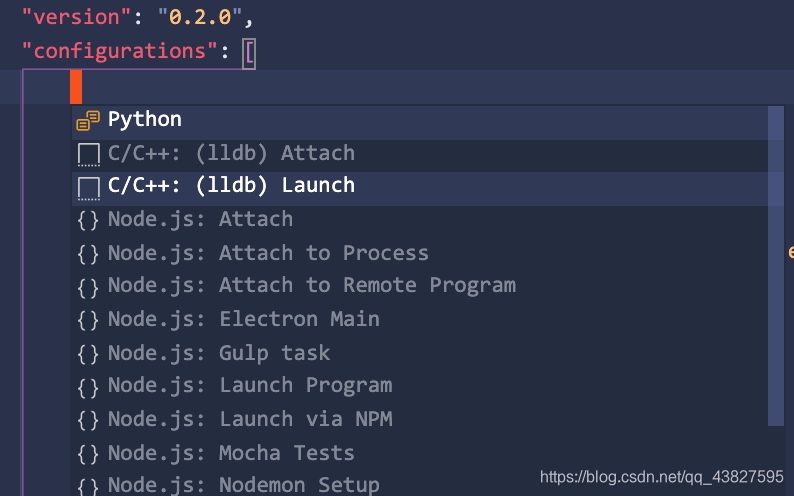

安装C/C++ extension,添加配置 C/C++: (lldb) Launch
配置launch.json
{
// Use IntelliSense to learn about possible attributes.
// Hover to view descriptions of existing attributes.
// For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
"version": "0.2.0",
"configurations": [
{
"preLaunchTask": "build c++",
"name": "Launch C++",
"type": "cppdbg",
"request": "launch",
"program": "${workspaceFolder}/a.out",
"args": [],
"stopAtEntry": false,
"cwd": "${workspaceFolder}",
"environment": [],
"externalConsole": true, // 在终端调试
"MIMode": "lldb",
},
{
"name": "Python",
"type": "python",
"request": "launch",
"stopOnEntry": false,
"pythonPath": "${config:python.pythonPath}",
"program": "${file}",
"cwd": "${workspaceRoot}",
"env": {
"PYTHONPATH": "${workspaceRoot}"
},
"envFile": "${workspaceRoot}/.env"
}
]
}
externalConsole:设置为 true 是用mac自带终端来运行程序(凑合着还能用)

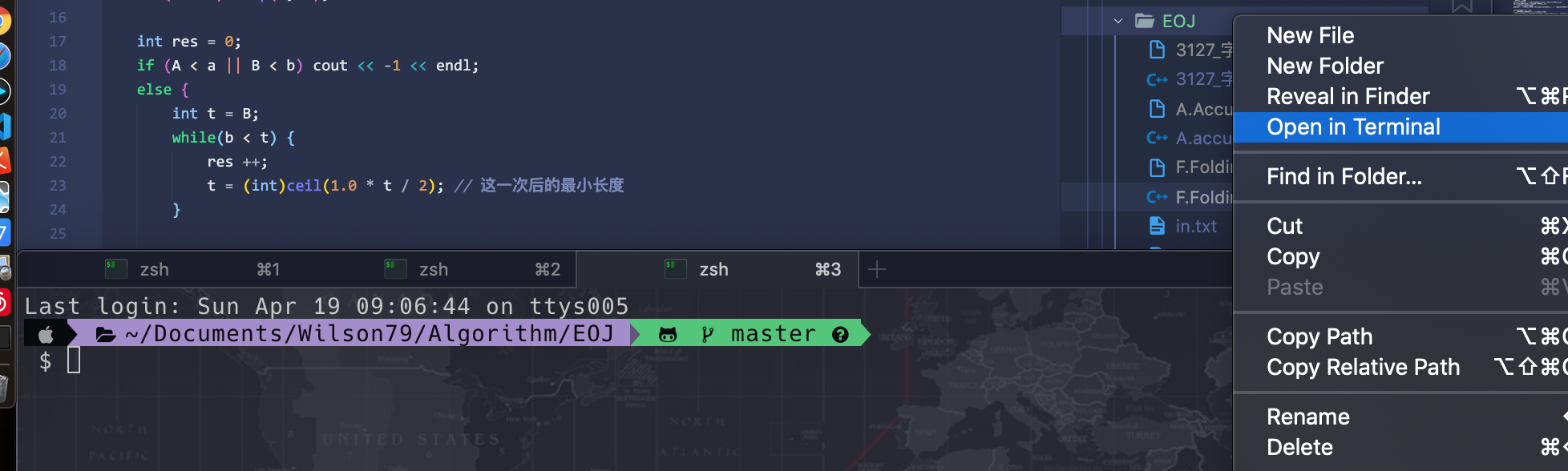

我根据下面的回答,把VScode默认终端改成了iterm2,但是调试是打开的还是mac自带的终端(暂时不知道怎么解决)
Change default terminal app in Visual Studio Code on Mac
配置task.json
{
// See https://go.microsoft.com/fwlink/?LinkId=733558
// for the documentation about the tasks.json format
"version": "2.0.0",
"tasks": [
{
"label": "build c++",
"type": "shell",
"command": "g++",
"args": [
"${file}",
"-std=c++17",
"-o",
"${workspaceFolder}/a.out",
"-g"
],
"group": "build",
"presentation": {
"echo": true,
"focus": false,
"panel":"shared",
"showReuseMessage": true,
"clear": false,
"reveal": "silent"
},
},
]
}

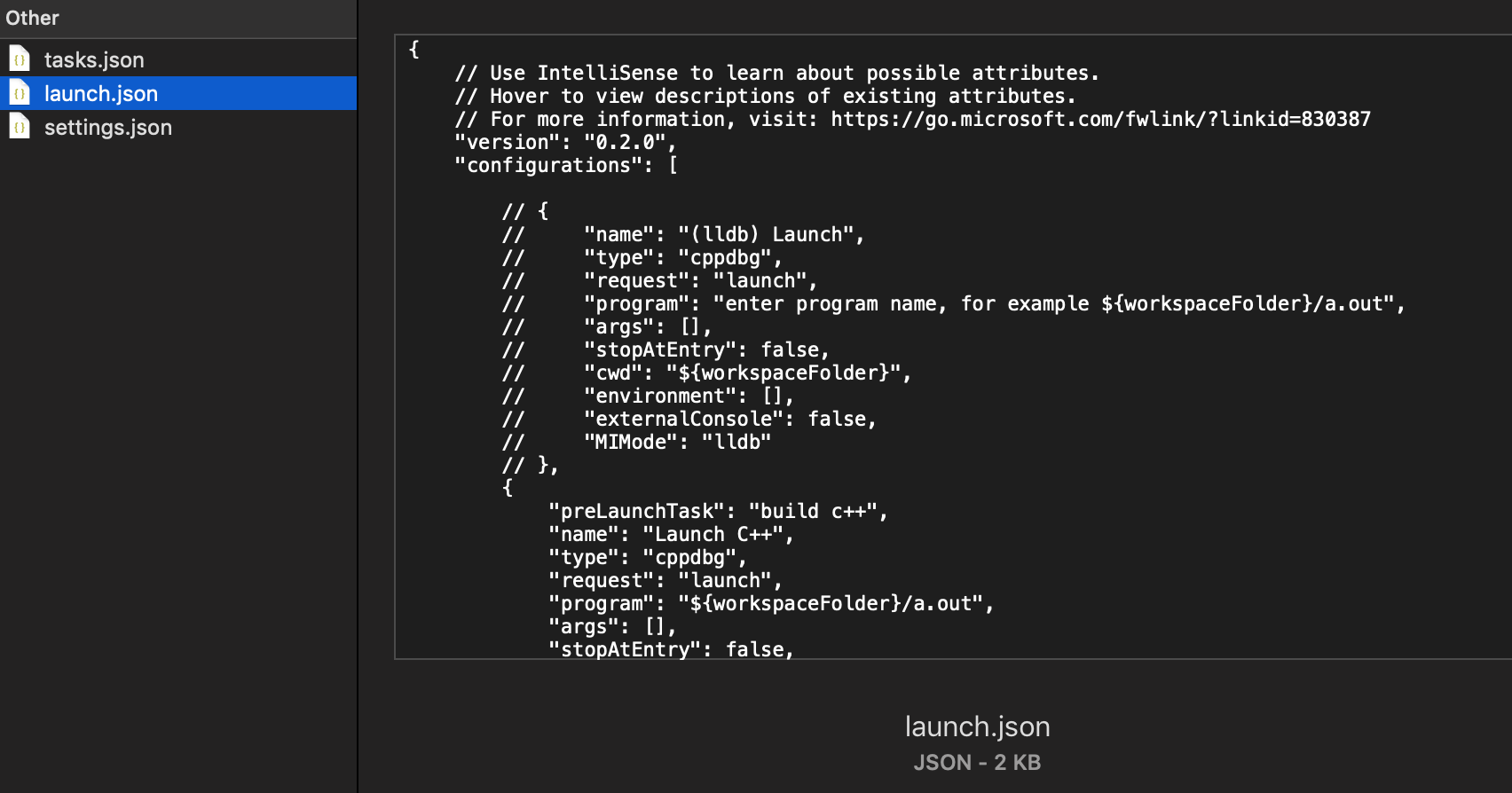

配置好这两个文件后,会保存在当前workplace目录中的.vscode
文件
(ps:你配置好的debug环境只对当前工作区有效)

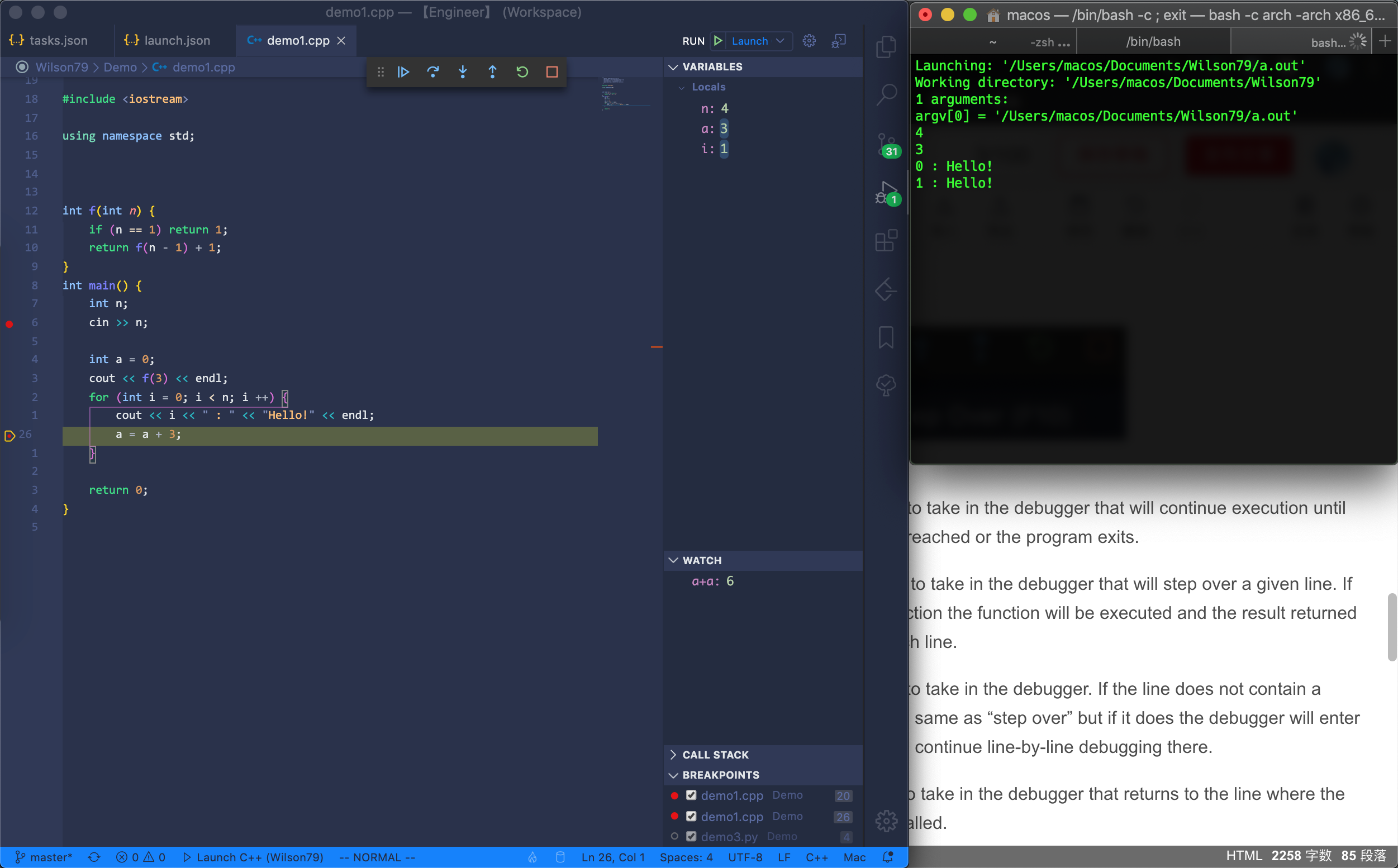

然后就可以打开调试界面进行调试了(快捷方式:命令面板输入Debug Launcher: Auto)
调试continue、step over、step into、step out
Continue – An action to take in the debugger that will continue execution until the next breakpoint is reached or the program exits.
Step over – An action to take in the debugger that will step over a given line. If the line contains a function the function will be executed and the result returned without debugging each line.
Step into – An action to take in the debugger. If the line does not contain a function it behaves the same as “step over” but if it does the debugger will enter the called function and continue line-by-line debugging there.
Step out – An action to take in the debugger that returns to the line where the current function was called.
https://www.fourkitchens.com/blog/article/step-step-through-debugging/
其他问题
问题解决:cpptools high CPU
安装了C/C++ extension后,每次会很高的cpu消耗,如下图所示
强行退出这个cpptools进程后,可以解决问题
但是每次都要这样杀进程,未免太麻烦了
所以要么卸载C/C++ extension,无法调试,要么找到解决方法…
最终折腾了很久,我终于有了解决方案
在settings.json中添加如下设置即可
"C_Cpp.intelliSenseEngine": "Disabled"
问题解决:launch.json matches multiple schemas
VSC 安装 Google Chrome Debugger 后出现Matches multiple schemas when only one must validate node 错误的解决方法
问题解决:Terminal乱码

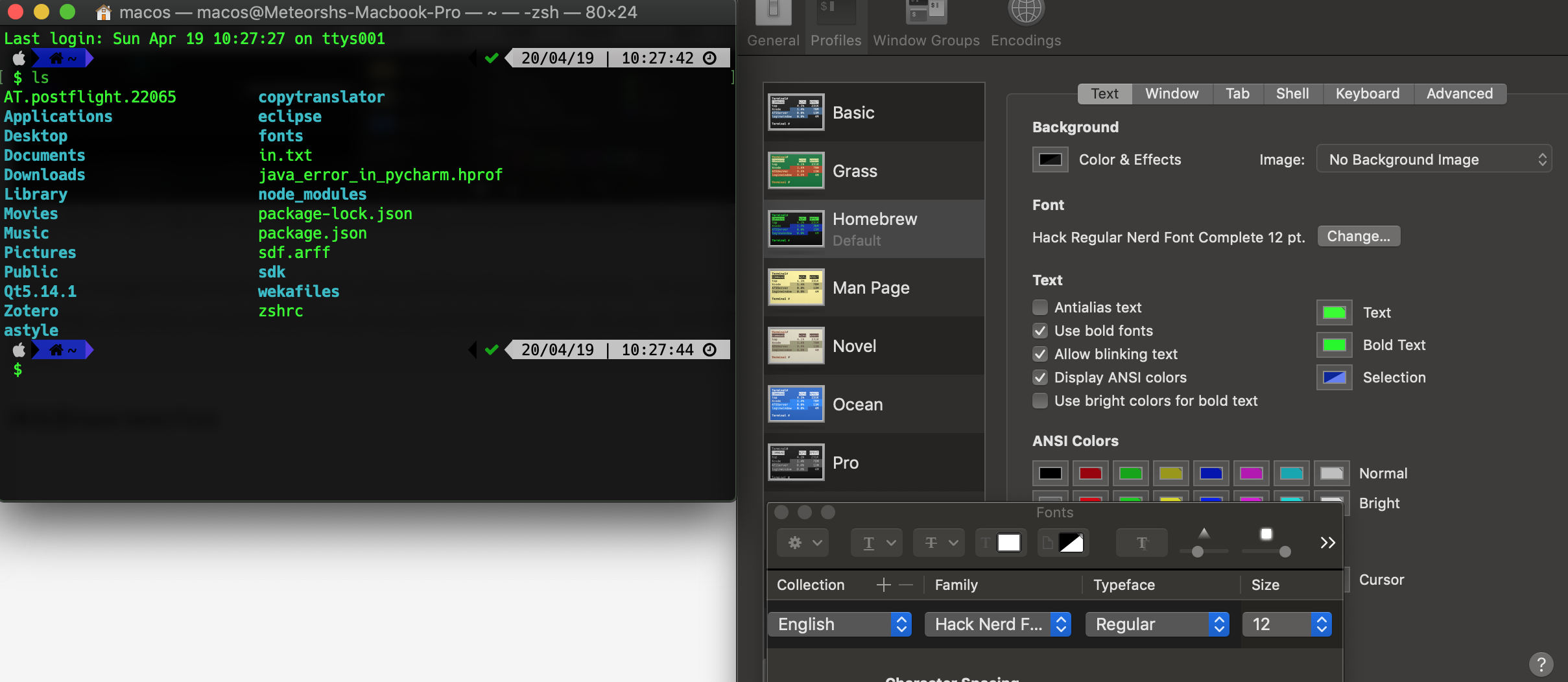

修改成Hack Nerd Font,即可
REFERENCES
[1] 使用 VSCode 在 Mac 上配置 C/C++ 调试环境
[2] Change default terminal app in Visual Studio Code on Mac
