问题描述
给定一个链表,返回链表开始入环的第一个节点。如果链表无环,则返回null
;
为了表示给定链表中的环,我们使用整数 pos
来表示链表尾连接到链表中的位置(索引从0开始)。如果pos
是-1
,则在该链表中没有环。
说明:不允许修改给定的链表
示例1:
输入: head=[3,2,0,-4], pos = 1
输出: tail connects to node index 1
解释: 链表中有一个环,其尾部连接到第二个节点。

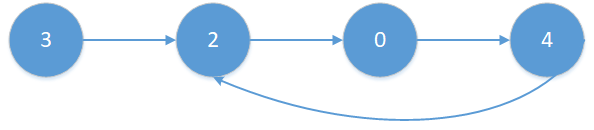

图1 例题1
示例2:
输入: head=[1,2], pos = 0
输出: tail connects to node index 1
解释: 链表中有一个环,其尾部连接到第二个节点。
图2 例题2
解题思路
题干中提取信息:
数据结构:链表;
功能要求:环检测;
返回信息:若环存在,则返回环的第一个节点;若不存在,返回null;
特殊说明:不允许改变链表,即原地算法;
对于2,我们通过Leetcode141已经获知环检测的算法,即快慢指针;
考虑3,需要在检测到环之后,查找到第一个节点,需要在环检测升级找到其第一个节点:我们不妨以例题1为思考图,环的第一个节点为节点2,其特点为存在两个不同的前置节点,此时的一个解题思路是遍历过程中记录下走过的节点并存储,第一个重复键即为环首节点,下面进行编程:
解题代码1
import java.util.Set;
import java.util.HashSet;
class ListNode{
int val;
ListNode next;
ListNode(int x) {
val = x;
next = null;
}
}
//solution 1: fast&slow pointers with set deceting unique keys
public static ListNode solutionWithCon(ListNode head) {
//pre-judge head's reationality
if (head == null || head.next == null) {
return null;
}
Set<ListNode> set = new HashSet<>();
ListNode pointer = head;
//1. detect the cycle
while (pointer != null) {
// 2. find the cycle
if (set.contains(pointer)) {
return pointer;
}
set.add(pointer);
pointer = pointer.next;
}
return null;
}
复杂度分析
我们分析一下solutionWithCon的复杂度,这里为方便,我们假设链表长度为N=F+a+b,非环部分占节点F, 环节点占a+b:

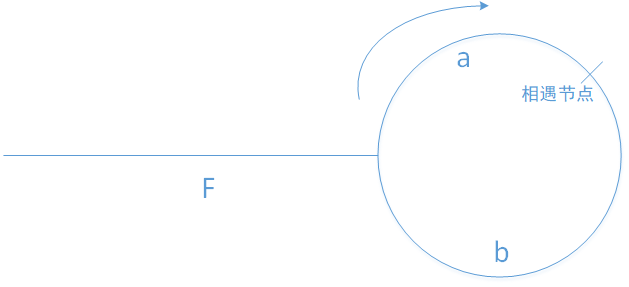

图3
时间复杂度:solutionWithCon仅需一个节点,访问了(F+a+b)个节点,时间复杂度为O(N);
空间复杂度:solutionWithCon需要一个集合作为辅助数据结构,空间复杂度为O(N);
进阶思考
是否存在空间复杂度为O(1)的情况下完成题干要求?
我们可以通过图3进行抽象思考,在检测环的时候,还假设快慢指针,快指针走过的距离(节点数)为(F+a+b+a),慢指针走过的距离为(F+a),我们需要求第F个节点,根据快指针走过的节点数为慢指针的二倍我们可知:
2distance(slowP) = distance(fastP)
2(F+a) = F+a+b+a
F = b (1)
我们通过图3,又知道,相遇的时刻slowP经过b会再次回到首节点,那么如何限定到这个不知道具体数值的b呢?从公式(1)可知,从head节点走到初始节点则为环首节点,此时根据这两个条件就可以判断,slowP单步走,另一个指针从head节点单步走,相遇的节点即为环的首节点,此时,有第二个解法solutionWithTwoP:
解题代码2
public static ListNode solutionWithTwoP(ListNode head) {
if (head == null || head.next == null) {
return null;
}
ListNode slowP = head;
ListNode fastP = head;
// 1. detect cycle
while (fastP != null && fastP.next != null) {
slowP = slowP.next;
fastP = fastP.next.next;
//2. find the start-node of cycle
if (slowP == fastP) {
ListNode node = head;
while (node != slowP) {
node = node.next;
slowP = slowP.next;
}
return slowP;
}
}
return null;
}
复杂度分析
时间复杂度:此时时间复杂度为O(N);
空间复杂度:没有辅助数据结构,故为O(1);
GitHub代码
完整代码文件请访问GitHub。
