1、创建模型
示例:我们来假定下面这些概念,字段和关系
学生模型:一个学生有姓名、年龄
学生详细模型:把学生的详情放到详情表,包含生日,手机号,家庭住址等信息。学生详情模型和学生模型之间是一对一的关系(one-to-one)
学校信息:学校有名称、城市以及邮箱
课程模型:课程有场所和日期,一个课程可能会有多人喜欢,一个学生也可以喜欢多种课程,所以学生和课程是多对多的的关联关系(many-to-many);一个学校和课程应该一对多的关系(one-to-many)
(1)数据库创建
(2)模型创建models.py
#coding:utf-8
from django.db import models
# Create your models here.
#课程模型
class Course(models.Model):
nid = models.AutoField(primary_key=True)
#课程名字
couse_name = models.CharField(max_length=32)
#课程容量
couse_num = models.IntegerField()
#课程日期
couse_date = models.DateTimeField()
#课程学校
school = models.ForeignKey(to="School",on_delete=models.CASCADE)#级联删除
#课程学生
student = models.ManyToManyField(to="Student")
#让返回的是课程的名称
def __str__(self):
return self.couse_name
#学校模型
class School(models.Model):
nid = models.AutoField(primary_key=True)
#学校名称
school_name = models.CharField(max_length=32)
#学校邮箱
school_email = models.CharField(max_length=32)
#学校地址
school_address = models.CharField(max_length=32)
#学生模型
class Student(models.Model):
nid = models.AutoField(primary_key=True)
#学生姓名
stu_name = models.CharField(max_length=32)
#学生年龄
stu_age = models.IntegerField()
#学生邮箱
stu_email = models.CharField(max_length=32)
def __str__(self):
return self.stu_name
#学生信息模型
class StudentMessage(models.Model):
#学生地址
stu_addr = models.CharField(max_length=32)
#学生电话
stu_tel = models.IntegerField()
def __str__(self):
return self.stu_addr
此时进行数据库迁移生成多张表

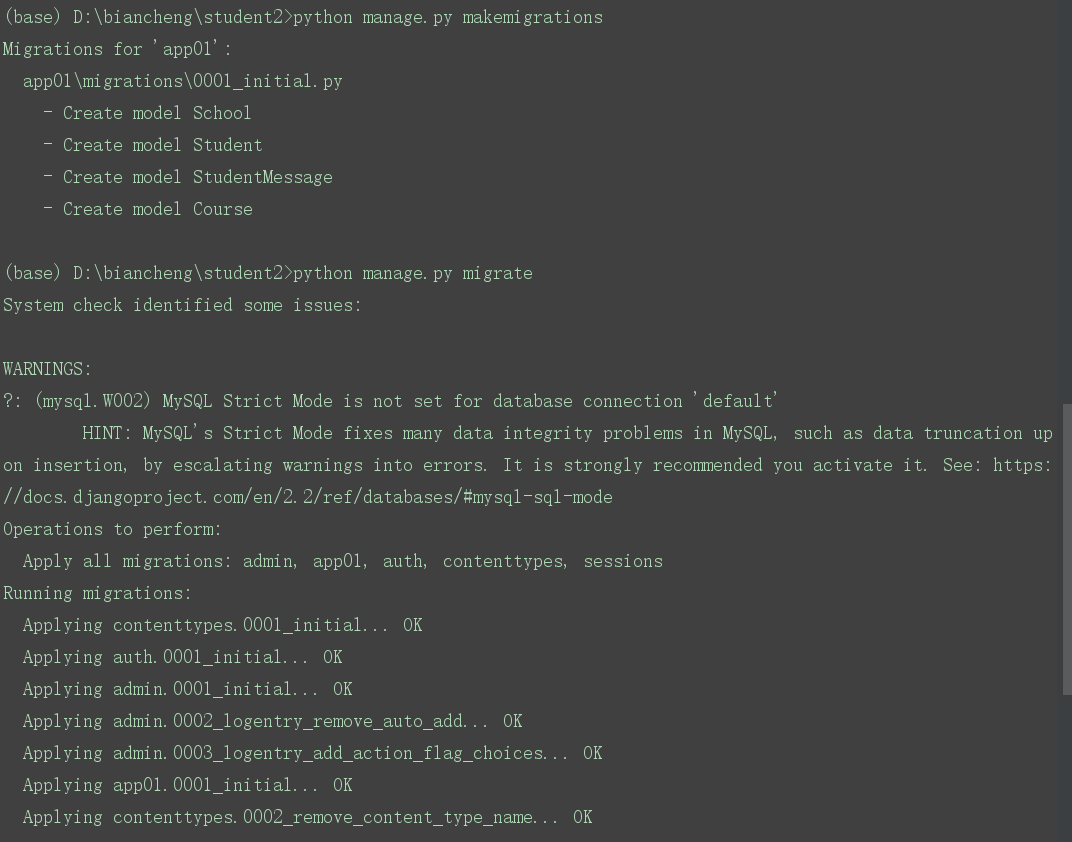

(3)数据库迁移
(4) 设置course_views的页面
#coding:utf-8
from django.shortcuts import render
from app01.models import *
# Create your views here.
################课程管理系统##################
def course_view(request):
#课程列表
course_list = Course.objects.all()
#返回课程管理页面
return render(request,"course_view.html",{"course_list":course_list})
配置静态路径settings.py
STATIC_URL = '/static/'
#配置静态路径
STATICFILES_DIRS = [
os.path.join(BASE_DIR,"static")
]
course_views.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>课程管理页面</title>
<link rel="stylesheet" href="/static/bootstrap.css">
</head>
<body>
<h3>课程管理页面</h3>
<div class="container">
<div class="row">
<div class="col-md-8 col-md-offset-2">
<a href="">添加课程</a>
<table class="table table-bordered table-hover table-striped">
<thead>
<tr>
<th>课程编号</th>
<th>课程名称</th>
<th>课程容量</th>
<th>课程日期</th>
<th>课程学校</th>
<th>课程学生</th>
<th>课程操作</th>
</tr>
</thead>
<tbody>
{% for course in course_list %}
<tr>
<td>{{ forloop.counter }}</td>
<td>{{ course.course_name }}</td>
<td>{{ course.course_num }}</td>
<td>{{ course.course_date|date:"Y-m-d" }}</td>
<td>{{ course.school.name }}</td>
<td>{% for student in course.students.all %}
<span>{{ student.name }}</span>
{% if not forloop.last %}
,
{% endif %}
{% endfor %}
</td>
<td>
<a href="">编辑</a>
<a href="">删除</a>
</td>
</tr>
{% endfor %}
</tbody>
</table>
</div>
</div>
</div>
</body>
</html>
运行结果:
(5)
