栈
栈的定义:(Stack)只允许在一端进行插入或者删除操作的线性表。
S = (a1,a2,a3,a4,a5)
------------------------->入栈顺序 先进后出
栈的基本操作:InitStack(& S):初始化一个空栈S
StackEmpty(S):判断栈空 ;
Push(&S): 进栈(压栈) ,若栈S未满,将x加入成为新栈的栈顶元素top,top需要上移一位
Pop(& S):出栈(弹出),若栈非空,则弹出栈顶元素,用x返回,top需要向下移动一位
GetTop(S, &x):读取栈顶元素,非空则用x返回top指向的元素。
栈的顺序存储结构
#define MaxSize 50
tydef struct{
ElemType data[MaxSize]; //栈的数据域
int top; //栈顶指针
}SqStack;
栈空条件:S.top == -1(栈的初始位置) 栈满条件:S.top=MaxSize-1 求栈长:S.top+1
栈的初基本操作
void InitStack(SqStack &s){ //初始化
S.top == -1;
}
bool StackEmpty(SqStack s){ //判空
if(s.top == -1)
return true;
else
return false;
}
bool Push(SqStack &s, ElemType x){ //进栈操作
if(s.top == MaxSize-1) //栈满溢出
return false;
s.data[++top] = x; //插入到栈顶,同时栈顶指针上移
return true;
}
bool Pop(SqStack &s, ElemType &x){
if(s.top == -1)
return false;
x = s.data[top--]; //x获取栈顶元素,同时top指针下移
return true;
}
bool GetTop(SqStack &s, ElemType &x){
if(s.top == -1)
return false;
x=data[s.top];
return true;
}

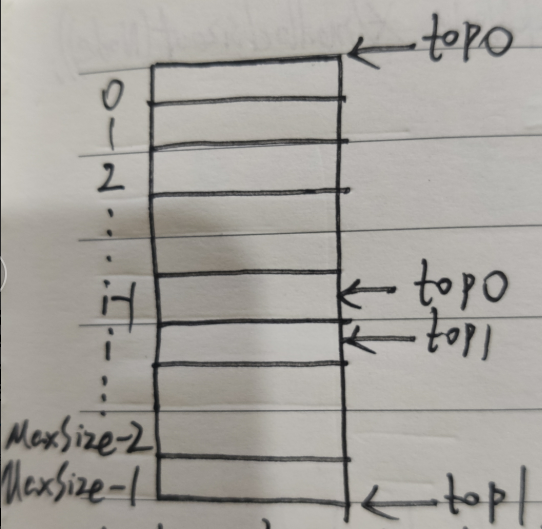

共享栈:将两个栈底设置在共享空间的两端,top0的初始位置设在1号栈的栈顶,top1的初始位置设置在0号栈的栈顶也在1号栈的底部,最大存储空间为原来栈的一半,将top0指针与top1指针相碰时,栈满。
判空:0号栈:top == -1 1号栈:top = MaxSize-1 栈满:top1-top == 1;
共享栈的优点:存储时间复杂度为O(1),空间利用率高。
栈的链式存储:链栈 通过指针将栈内部元素进行链接
top->next指向栈顶元素
typedef strcut LinkNode{ //定义链栈的结点
ElemType data;
struct LinkNode *next;
}LinkedStackNode,*LinkedStack;
typedef struct LStack{
LinkedStackNode base; //定义栈底指针
LinkedStackNode top; //定义栈顶指针
}LStack;
链栈的所有操作都在表头(栈顶)进行。top -> next
链栈的基本操作:
LinkedStack Init_LinkedStack(){ //初始化链栈,为空栈
//根据top指针的移动动态分配结点空间
LinkedStack top = (LinkedStackNode *)malloc(sizeof(Node));
if(top ! = NULL)
top ->next = null; //开始为栈顶,指向空、
return top;
}
bool LinkeStack_Empty(LinkedStack top){ //判空
if(top->next == null){
return true;
}else
return false;
}
//入栈:将元素x插入链栈栈顶,设置头结点指针域指向新插入位置的,设置为栈顶元素
bool Push_LinkedStack (LinkedStack top ,ElemType x){
LinkedStackNode *node = (LinkedStackNode)malloc (sizeof(LinkedStackNode));
if(node == null)
return false;
else{
node->data = x;
node->next = top->next; //设置为栈顶
top ->next = node; //原栈顶指向新结点
return true;
}
}
//出栈:删除栈顶数据元素,通过x返回被删元素的数据值,设置top指向链栈中的下一个元素
int Pop_LinkedStack(LinkedStack top, ElemType &x){
LinkedStackNode *node; //不用分配空间,已存在目标结点
if(top -> next == null){
return 0;
}else{
node = top->next; //找到栈顶结点
*x = node->data;
top->next = node->next; //被删元素的指向赋值给top;
free(node); //释放结点空间
return x;
}
}
//读取栈顶元素
int Get_LinkedStack(LinkedStack top, ElemType &x){
if(top->next == null)
return 0;
else{
x = top->next->data; //栈顶元素的数据域赋值给x
return 1;
}
}
