QT项目三：数据管理系统

工程源码下载地址

https://download.csdn.net/download/guoyunfei123/12262949

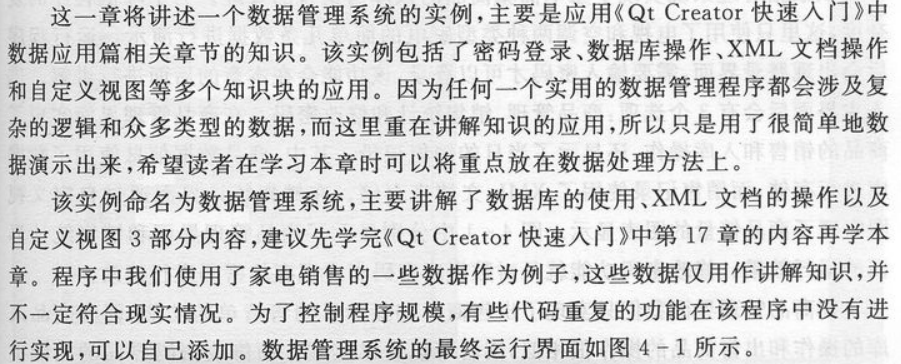

参考《Qt及Qt Quick开发实战精解》

 操作

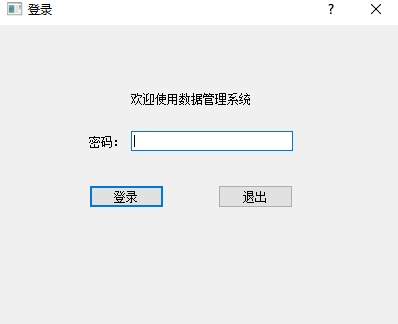

登录界面

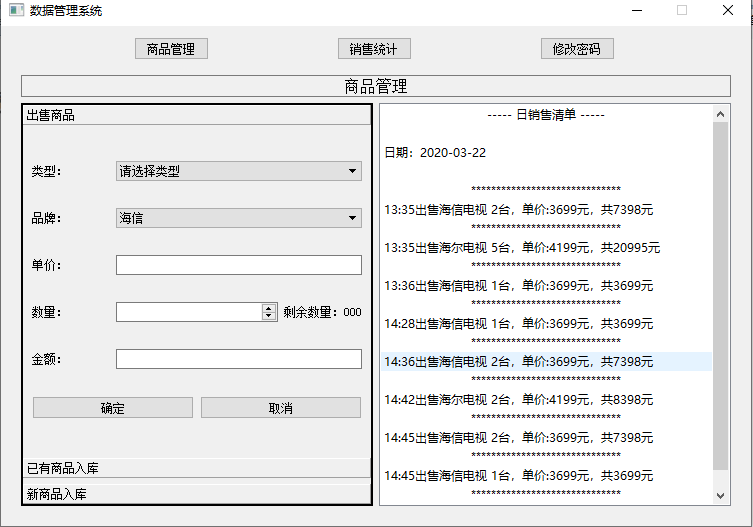

 商品管理界面

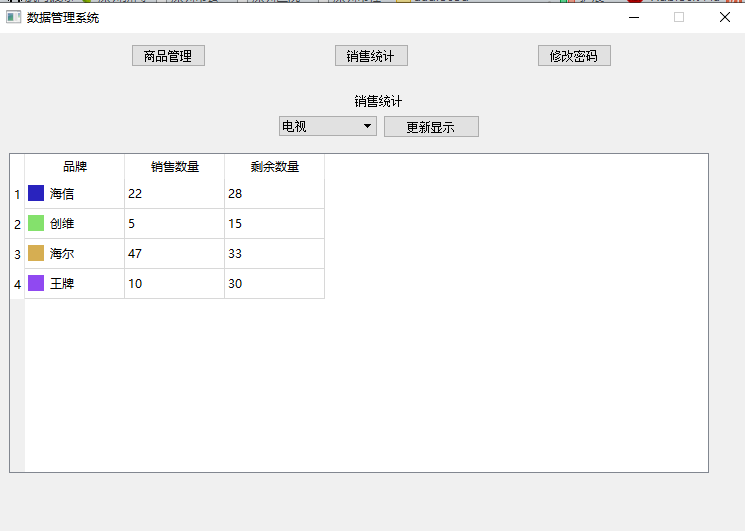

销售统计



修改密码



主要程序代码

connection.h

#ifndef CONNECTION_H
#define CONNECTION_H

#include <QtSql>
#include <QDebug>
#include <QDomDocument>

static bool createConnection()
{
    QSqlDatabase db = QSqlDatabase::addDatabase("QSQLITE");
    db.setHostName("yafeilinux");
    db.setDatabaseName("data.db");
    db.setUserName("yafei");
    db.setPassword("123456");

    if(!db.open())
    {
        //提示出错
        return false;
    }

    QSqlQuery query;

    //创建分类表
    query.exec("create table type(id varchar primary key, name varchar)");
    query.exec(QString("insert into type values ('0', '请选择类型')"));
    query.exec(QString("insert into type values ('01', '电视')"));
    query.exec(QString("insert into type values('02', '空调')"));

    //创建品牌表
    query.exec("create table brand(id varchar primary key, name varchar, type varchar, price int, sum int, sell int, last int)");
    query.exec(QString("insert into brand values('01', '海信', '电视', 3699, 50, 10, 40)"));
    query.exec(QString("insert into brand values('02', '创维', '电视', 3499, 20, 5, 15)"));
    query.exec(QString("insert into brand values('03', '海尔', '电视', 4199, 80, 40, 40)"));
    query.exec(QString("insert into brand values('04', '王牌', '电视', 3999, 40, 10, 30)"));
    query.exec(QString("insert into brand values('05', '海尔', '空调', 2899, 60, 10, 50)"));
    query.exec(QString("insert into brand values('06', '格力', '空调', 1799, 70, 20, 50)"));

    //创建密码表
    query.exec("create table password(pwd varchar primary key)");
    query.exec(QString("insert into password values('123456')"));

    return true;
}

static bool createXml()
{
    QFile file("data.xml");
    if(file.exists())
    {
        return true;
    }

    if(!file.open(QIODevice::WriteOnly | QIODevice::Truncate))
    {
        return false;
    }

    QDomDocument doc;
    QDomProcessingInstruction instruction;
    instruction = doc.createProcessingInstruction(
                "xml", "version=\"1.0\" encoding=\"UTF-8\"");
    doc.appendChild(instruction);
    QDomElement root = doc.createElement(QString("日销售清单"));
    doc.appendChild(root);
    QTextStream out(&file);
    doc.save(out, 4);
    file.close();
    return true;
}

#endif // CONNECTION_H

main.cpp

#include <QTextCodec>
#include "widget.h"
#include "connection.h"
#include "logindialog.h"

#include <QApplication>

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);
    QTextCodec::setCodecForLocale(QTextCodec::codecForLocale());
    if(!createConnection() || !createXml())
    {
        qDebug() <<"不能连接数据库";
        return false;
    }

    Widget w;

    LoginDialog dialog;
    if(dialog.exec() == QDialog::Accepted)
    {
        w.show();
        return a.exec();
    }
    else
    {
        return 0;
    }
}

widget.h

#ifndef WIDGET_H
#define WIDGET_H

#include <QDomDocument>
#include <QStandardItemModel>
#include <QWidget>

class QStandardItemModel;

QT_BEGIN_NAMESPACE
namespace Ui { class Widget; }
QT_END_NAMESPACE

enum DateTimeType
{
    Time,
    Date,
    DateTime
};


class Widget : public QWidget
{
    Q_OBJECT

public:
    Widget(QWidget *parent = nullptr);
    ~Widget();
    QString getDateTime(DateTimeType type);

private slots:
    void on_sellTypeComboBox_currentIndexChanged(const QString &type);

    void on_sellBrandComboBox_currentIndexChanged(const QString &brand);

    void on_sellNumSpinBox_valueChanged(int value);

    void on_sellCancelBtn_clicked();

    void on_sellOkBtn_clicked();

    void on_typeComboBox_currentIndexChanged(const QString &type);

    void on_updateBtn_clicked();

    void on_manageBtn_clicked();

    void on_chartBtn_clicked();

    void on_passwordBtn_clicked();

    void on_pwdOkBtn_clicked();

    void on_pwdCancelBtn_clicked();

private:
    Ui::Widget *ui;
    QDomDocument doc;
    QStandardItemModel *chartModel;

    bool docRead();
    bool docWrite();
    void writeXml();
    void createNodes(QDomElement &date);
    void showDailyList();

    void createChartModelView();
    void showChart();
};
#endif // WIDGET_H

widget.cpp

#include "widget.h"
#include "ui_widget.h"
#include "connection.h"

#include <QMessageBox>
#include <QSplitter>
#include <QTableView>

Widget::Widget(QWidget *parent)
    : QWidget(parent)
    , ui(new Ui::Widget)
{
    ui->setupUi(this);

    setFixedSize(750, 500);
//    ui->stackedWidget->setCurrentIndex(0);

    QSqlQueryModel *typeModel = new QSqlQueryModel(this);
    typeModel->setQuery("select name from type");
    ui->sellTypeComboBox->setModel(typeModel);

//    QSplitter *splitter = new QSplitter(ui->managePage);
//    splitter ->resize(700, 360);
//    splitter->move(0, 50);
//    splitter->addWidget(ui->toolBox);
//    splitter->addWidget(ui->dailyList);
//    splitter->setStretchFactor(0, 1);
//    splitter->setStretchFactor(1, 1);
    ui ->typeComboBox ->setModel(typeModel);
    createChartModelView();
}

Widget::~Widget()
{
    delete ui;
}

QString Widget::getDateTime(DateTimeType type)
{
    QDateTime datetime = QDateTime::currentDateTime();
    QString date = datetime.toString("yyyy-MM-dd");
    QString time = datetime.toString("hh:mm");
    QString dateAndTime = datetime.toString("yyyy-MM-dd dddd hh:mm");

    if(type == Date)
    {
        return date;
    }
    else if(type == Time)
    {
        return time;
    }
    else
    {
        return dateAndTime;
    }
}


void Widget::on_sellTypeComboBox_currentIndexChanged(const QString &type)
{
    if(type == "请选择类型")
    {
        //进行其他部件的状态设置
        on_sellCancelBtn_clicked();
    }
    else
    {
        ui ->sellBrandComboBox ->setEnabled(true);
        QSqlQueryModel *model = new QSqlQueryModel(this);
        model ->setQuery(QString("select name from brand where type = '%1'").arg(type));
        ui ->sellBrandComboBox ->setModel(model);
        ui ->sellCancelBtn ->setEnabled(true);
    }
}

void Widget::on_sellBrandComboBox_currentIndexChanged(const QString &brand)
{
    ui ->sellNumSpinBox ->setValue(0);
    ui ->sellNumSpinBox ->setEnabled(false);
    ui ->sellSumLineEdit ->clear();
    ui ->sellSumLineEdit ->setEnabled(false);
    ui ->sellOkBtn ->setEnabled(false);

    QSqlQuery query;
    query.exec(QString("select price from brand where name = '%1' and type = '%2'").arg(brand).arg(ui ->sellTypeComboBox ->currentText()));

    query.next();
    ui ->sellPriceLineEdit ->setEnabled(true);
    ui ->sellPriceLineEdit ->setReadOnly(true);
    ui ->sellPriceLineEdit ->setText(query.value(0).toString());

    query.exec(QString("select last from brand where name = '%1' and type = '%2'").arg(brand).arg(ui->sellTypeComboBox ->currentText()));
    query.next();
    int num = query.value(0).toInt();
    if(num == 0)
    {
        QMessageBox::information(this, tr("提示"), tr("该商品已经售完!"), QMessageBox::Ok);
    }
    else
    {
        ui ->sellNumSpinBox ->setEnabled(true);
        ui ->sellNumSpinBox ->setMaximum(num);
        ui ->sellLastNumLabel ->setText(tr("剩余数量：%1").arg(num));
        ui ->sellLastNumLabel ->setVisible(true);
    }
}

void Widget::on_sellNumSpinBox_valueChanged(int value)
{
    if(value == 0)
    {
        ui ->sellSumLineEdit ->clear();
        ui ->sellSumLineEdit ->setEnabled(false);
        ui ->sellOkBtn ->setEnabled(false);
    }
    else
    {
        ui ->sellSumLineEdit ->setEnabled(true);
        ui ->sellSumLineEdit ->setReadOnly(true);
        qreal sum = value * ui ->sellPriceLineEdit ->text().toInt();
        ui ->sellSumLineEdit ->setText(QString::number(sum));
        ui ->sellOkBtn ->setEnabled(true);
    }
}

void Widget::on_sellCancelBtn_clicked()
{
    ui ->sellTypeComboBox ->setCurrentIndex(0);
    ui ->sellBrandComboBox ->clearEditText();
    ui ->sellPriceLineEdit ->clear();
    ui ->sellLastNumLabel ->setText(tr("剩余数量：000"));
    ui ->sellNumSpinBox ->clear();
    ui ->sellSumLineEdit ->clear();
}

void Widget::on_sellOkBtn_clicked()
{
    QString type = ui ->sellTypeComboBox ->currentText();
    QString name = ui ->sellBrandComboBox ->currentText();
    int value = ui ->sellNumSpinBox ->value();
    //cellNUmSpinBox的最大值就是以前的剩余量
    int last = ui ->sellNumSpinBox ->maximum() - value;

    QSqlQuery query;
    query.exec(QString("select sell from brand where name = '%1' and type = '%2'").arg(name).arg(type));
    query.next();
    int sell = query.value(0).toInt() + value;

    //事务操作
    QSqlDatabase::database().transaction();
    bool rtn = query.exec(QString("update brand set sell = '%1', last = '%2' where name = '%3' and type = '%4'")
                          .arg(sell).arg(last).arg(name).arg(type));

    if(rtn)
    {
        QSqlDatabase::database().commit();
        QMessageBox::information(this, tr("提示"), tr("购买成功!"), QMessageBox::Ok);
        writeXml();
        showDailyList();
        on_sellCancelBtn_clicked();
    }
    else
    {
        QSqlDatabase::database().rollback();
    }
}

//读取XML文档
bool Widget::docRead()
{
    QFile file("data.xml");
    if(!file.open(QIODevice::ReadOnly))
    {
        return false;
    }

    if(!doc.setContent(&file))
    {
        file.close();
        return false;
    }

    file.close();
    return true;
}

//写入XML文档
bool Widget::docWrite()
{
    QFile file("data.xml");
    if(!file.open(QIODevice::WriteOnly | QIODevice::Truncate))
    {
        return false;
    }

    QTextStream out(&file);
    doc.save(out, 4);
    file.close();
    return true;
}

void Widget::writeXml()
{
    //先从文件读取
    if(docRead())
    {
        QString currentDate = getDateTime(Date);
        QDomElement root = doc.documentElement();
        //根据是否有日期节点进行处理
        if(!root.hasChildNodes())
        {
            QDomElement date = doc.createElement(QString("日期"));
            QDomAttr curDate = doc.createAttribute("date");
            curDate.setValue(currentDate);
            date.setAttributeNode(curDate);
            root.appendChild(date);
            createNodes(date);
        }
        else
        {
            QDomElement date = root.lastChild().toElement();
            //根据是否已经有今天的日期节点进行处理
            if(date.attribute("date") == currentDate)
            {
                createNodes(date);
            }
            else
            {
                QDomElement date = doc.createElement(QString("日期"));
                QDomAttr curDate = doc.createAttribute("date");
                curDate.setValue(currentDate);
                date.setAttributeNode(curDate);
                root.appendChild(date);
                createNodes(date);
            }
        }

        //写入到文件
        docWrite();
    }
}

void Widget::createNodes(QDomElement &date)
{
    QDomElement time = doc.createElement(QString("时间"));
    QDomAttr curTime = doc.createAttribute("time");
    curTime.setValue(getDateTime(Time));
    time.setAttributeNode(curTime);
    date.appendChild(time);
    QDomElement type = doc.createElement(QString("类型"));
    QDomElement brand = doc.createElement(QString("品牌"));
    QDomElement price = doc.createElement(QString("单价"));
    QDomElement num = doc.createElement(QString("数量"));
    QDomElement sum = doc.createElement(QString("金额"));

    QDomText text;
    text = doc.createTextNode(QString("%1").arg(ui ->sellTypeComboBox ->currentText()));
    type.appendChild(text);

    text = doc.createTextNode(QString("%1").arg(ui ->sellBrandComboBox ->currentText()));
    brand.appendChild(text);

    text = doc.createTextNode(QString("%1").arg(ui ->sellPriceLineEdit ->text()));
    price.appendChild(text);

    text = doc.createTextNode(QString("%1").arg(ui ->sellNumSpinBox ->value()));
    num.appendChild(text);

    text = doc.createTextNode(QString("%1").arg(ui ->sellSumLineEdit ->text()));
    sum.appendChild(text);

    time.appendChild(type);
    time.appendChild(brand);
    time.appendChild(price);
    time.appendChild(num);
    time.appendChild(sum);
}

void Widget::showDailyList()
{
    ui ->dailyList ->clear();

    if(docRead())
    {
        QDomElement root = doc.documentElement();
        QString title = root.tagName();
        QListWidgetItem *titleItem = new QListWidgetItem;
        titleItem ->setText(QString("----- %1 -----").arg(title));
        titleItem ->setTextAlignment(Qt::AlignCenter);
        ui ->dailyList ->addItem(titleItem);

        if(root.hasChildNodes())
        {
            QString currentDate = getDateTime(Date);
            QDomElement dateElement = root.lastChild().toElement();
            QString date = dateElement.attribute("date");

            if(date == currentDate)
            {
                ui ->dailyList ->addItem("");
                ui ->dailyList ->addItem(QString("日期：%1").arg(date));
                ui ->dailyList ->addItem("");

                QDomNodeList children = dateElement.childNodes();
                //遍历当日销售的所有商品
                for(int i=0; i<children.count(); i++)
                {
                    QDomNode node = children.at(i);
                    QString time = node.toElement().attribute("time");
                    QDomNodeList list = node.childNodes();
                    QString type = list.at(0).toElement().text();
                    QString brand = list.at(1).toElement().text();
                    QString price = list.at(2).toElement().text();
                    QString num = list.at(3).toElement().text();
                    QString sum = list.at(4).toElement().text();
                    QString str = time + "出售" + brand + type
                            + " " + num + "台，" + "单价:" + price
                            + "元，共" + sum + "元";
                    QListWidgetItem *tempItem = new QListWidgetItem;
                    tempItem ->setText("******************************");
                    tempItem ->setTextAlignment(Qt::AlignCenter);
                    ui ->dailyList ->addItem(tempItem);
                    ui ->dailyList ->addItem(str);
                }
            }
        }
    }
}

void Widget::createChartModelView()
{
    chartModel = new QStandardItemModel(this);
    chartModel ->setColumnCount(3);
    chartModel ->setHeaderData(0, Qt::Horizontal, QString("品牌"));
    chartModel ->setHeaderData(1, Qt::Horizontal, QString("销售数量"));
    chartModel ->setHeaderData(2, Qt::Horizontal, QString("剩余数量"));

    QSplitter *splitter = new QSplitter(ui ->chartPage);
    splitter ->resize(700, 320);
    splitter ->move(0, 80);

    QTableView *table = new QTableView;
//    PieView *pieChart = new PieView;
    splitter ->addWidget(table);
//    splitter ->addWidget(pieChart);
    splitter ->setStretchFactor(0, 1);
    splitter ->setStretchFactor(1, 2);
    splitter ->setStretchFactor(2, 3);

    table ->setModel(chartModel);
//    pieChart ->setModel(chartModel);

    QItemSelectionModel *selectionModel = new QItemSelectionModel(chartModel);
    table ->setSelectionModel(selectionModel);
//    pieChart ->setSelectionModel(selectionModel);



}

void Widget::showChart()
{
    QSqlQuery query;
    query.exec(QString("select name, sell, last from brand where type = '%1'").arg(ui ->typeComboBox ->currentText()));
    chartModel ->removeRows(0, chartModel ->rowCount(QModelIndex()), QModelIndex());

    int row = 0;

    while(query.next())
    {
        int r = qrand() %256;
        int g = qrand() %256;
        int b = qrand() %256;

        chartModel ->insertRows(row, 1, QModelIndex());

        chartModel ->setData(chartModel ->index(row, 0, QModelIndex()), query.value(0).toString());
        chartModel ->setData(chartModel ->index(row, 1, QModelIndex()), query.value(1).toString());
        chartModel ->setData(chartModel ->index(row, 2, QModelIndex()), query.value(2).toString());
        chartModel ->setData(chartModel ->index(row, 0, QModelIndex()), QColor(r, g, b), Qt::DecorationRole);

        row++;
    }
}



void Widget::on_typeComboBox_currentIndexChanged(const QString &type)
{
    if(type != "请选择类型")
    {
        showChart();
    }
}

void Widget::on_updateBtn_clicked()
{
    if(ui ->typeComboBox ->currentText() != "请选择类型")
    {
        showChart();
    }
}

void Widget::on_manageBtn_clicked()
{
    ui ->stackedWidget ->setCurrentIndex(0);
}

void Widget::on_chartBtn_clicked()
{
    ui ->stackedWidget ->setCurrentIndex(1);
    showChart();
}

void Widget::on_passwordBtn_clicked()
{
    ui ->stackedWidget ->setCurrentIndex(2);
}

void Widget::on_pwdOkBtn_clicked()
{
    if(ui ->oldPwdLineEdit ->text().isEmpty())
    {
        QMessageBox::warning(this, tr("更改密码"), tr("旧密码不能为空！"), QMessageBox::Ok);
        ui ->oldPwdLineEdit ->setFocus();
    }
    else
    {
        QSqlQuery query;
        query.exec(QString("select pwd from password"));
        query.next();

        qDebug() << query.value(0).toString();
        if(query.value(0).toString() != ui ->oldPwdLineEdit ->text())
        {
            QMessageBox::warning(this, tr("更改密码"), tr("旧密码不对！"), QMessageBox::Ok);
            ui ->oldPwdLineEdit ->setFocus();
        }
        else
        {
            if(ui ->newPwdLineEdit ->text().isEmpty()
                    || ui ->newPwdLineEdit ->text() != ui ->newPwdConfirmLineEdit ->text())
            {
                QMessageBox::warning(this, tr("更改密码"), tr("新密码为空或者新密码和确认密码不相同"), QMessageBox::Ok);
                ui ->oldPwdLineEdit ->setFocus();
            }
            else
            {
                query.exec(QString("update password set pwd = '%1'").arg(ui ->newPwdLineEdit ->text()));
                QMessageBox::information(this, tr("更改密码"), tr("密码修改成功！！！"), QMessageBox::Ok);
            }
        }
    }
}

void Widget::on_pwdCancelBtn_clicked()
{
    ui ->oldPwdLineEdit ->clear();
    ui ->newPwdLineEdit ->clear();
    ui ->newPwdConfirmLineEdit ->clear();
}

 logindialog.h

#ifndef LOGINDIALOG_H
#define LOGINDIALOG_H

#include <QDialog>

namespace Ui {
class LoginDialog;
}

class LoginDialog : public QDialog
{
    Q_OBJECT

public:
    explicit LoginDialog(QWidget *parent = nullptr);
    ~LoginDialog();

private slots:
    void on_loginBtn_clicked();

    void on_quitBtn_clicked();

private:
    Ui::LoginDialog *ui;
};

#endif // LOGINDIALOG_H

 logindialog.cpp

#include "logindialog.h"
#include "ui_logindialog.h"

#include <QMessageBox>
#include <QSqlQuery>
#include <QDebug>

LoginDialog::LoginDialog(QWidget *parent) :
    QDialog(parent),
    ui(new Ui::LoginDialog)
{
    ui->setupUi(this);
    setFixedSize(400, 300);
    setWindowTitle("登录");

    ui ->pwdLineEdit ->setFocus();
    ui ->loginBtn ->setDefault(true);
}

LoginDialog::~LoginDialog()
{
    delete ui;
}

void LoginDialog::on_loginBtn_clicked()
{
    if(ui ->pwdLineEdit ->text().isEmpty())
    {
        QMessageBox::information(this, tr("请输入密码"), tr("请先输入密码再登录！"), QMessageBox::Ok);
        ui ->pwdLineEdit ->setFocus();
    }
    else
    {
        QSqlQuery query;
        query.exec("select pwd from password");
        query.next();

//        qDebug() << query.value(0).toString();
        if(query.value(0).toString() == ui ->pwdLineEdit ->text())
        {
            QDialog::accept();
        }
        else
        {
//            qDebug() << ui ->pwdLineEdit ->text();
            QMessageBox::warning(this, tr("密码错误"),
                                 tr("请输入正确的密码再登录!"), QMessageBox::Ok);
            ui ->pwdLineEdit ->clear();
            ui ->pwdLineEdit ->setFocus();
        }
    }
}

void LoginDialog::on_quitBtn_clicked()
{
    QDialog::reject();
}
