全部每周作业和视频思考题答案和解析 见 浙江大学 数据结构 思考题+每周练习答案汇总
题目：In 1953, David A. Huffman published his paper "A Method for the Construction of Minimum-Redundancy Codes", and hence printed his name in the history of computer science. As a professor who gives the final exam problem on Huffman codes, I am encountering a big problem: the Huffman codes are NOT unique. For example, given a string "aaaxuaxz", we can observe that the frequencies of the characters 'a', 'x', 'u' and 'z' are 4, 2, 1 and 1, respectively. We may either encode the symbols as {'a'=0, 'x'=10, 'u'=110, 'z'=111}, or in another way as {'a'=1, 'x'=01, 'u'=001, 'z'=000}, both compress the string into 14 bits. Another set of code can be given as {'a'=0, 'x'=11, 'u'=100, 'z'=101}, but {'a'=0, 'x'=01, 'u'=011, 'z'=001} is NOT correct since "aaaxuaxz" and "aazuaxax" can both be decoded from the code 00001011001001. The students are submitting all kinds of codes, and I need a computer program to help me determine which ones are correct and which ones are not.
Input Specification:
Each input file contains one test case. For each case, the first line gives an integer N (2≤N≤63), then followed by a line that contains all the N distinct characters and their frequencies in the following format:
c[1] f[1] c[2] f[2] ... c[N] f[N]
where c[i] is a character chosen from {'0' - '9', 'a' - 'z', 'A' - 'Z', '_'}, and f[i] is the frequency of c[i] and is an integer no more than 1000. The next line gives a positive integer M (≤1000), then followed by M student submissions. Each student submission consists of N lines, each in the format:
c[i] code[i]
where c[i] is the i-th character and code[i] is an non-empty string of no more than 63 '0's and '1's.
Output Specification:
For each test case, print in each line either "Yes" if the student's submission is correct, or "No" if not.
Note: The optimal solution is not necessarily generated by Huffman algorithm. Any prefix code with code length being optimal is considered correct.
Sample Input:
7
A 1 B 1 C 1 D 3 E 3 F 6 G 6
4
A 00000
B 00001
C 0001
D 001
E 01
F 10
G 11
A 01010
B 01011
C 0100
D 011
E 10
F 11
G 00
A 000
B 001
C 010
D 011
E 100
F 101
G 110
A 00000
B 00001
C 0001
D 001
E 00
F 10
G 11
Sample Output:
Yes
Yes
No
No解答：一看到这个看着就有点麻烦题目我也是很郁闷的，何况课程里老师也说这个题比较繁杂。
我第一次尝试使用链的形式来创建树，即左节点右节点这种，但是在做的时候我发现了一些问题，即归并的问题。如果要归并则需要将所有还没有归并的根统计到一起：
#include <iostream>
#include <map>
#include <algorithm>
#include <vector>
using namespace std;
vector<pair<int, char>> myLetters;
struct HaffmanNode{
pair<int, char> Node;
HaffmanNode *Left;
HaffmanNode *Right;
};
HaffmanNode* createHaffmanNode();
HaffmanNode* generateUnion(HaffmanNode *A, HaffmanNode *B);
void getLetters(int N);
int main(void) {
int N;
cin >> N;
getLetters(N);
system("pause");
return 0;
}
void getLetters(int N) {
for (int i = 0;i < N;i++) {
pair<int, char> mypair;
cin >> mypair.second >> mypair.first;
myLetters.push_back(mypair);
}
sort(myLetters.begin(), myLetters.end());
for (int i=0;i <N;++i)
cout << "key:" << myLetters[i].first
<< " value:" << myLetters[i].second << endl;
}
HaffmanNode* createHaffmanNode() {
HaffmanNode* TreeNode = (HaffmanNode*)malloc(sizeof(struct HaffmanNode));
TreeNode->Left = NULL;
TreeNode->Right = NULL;
return TreeNode;
}
HaffmanNode* generateUnion(HaffmanNode *A, HaffmanNode *B) {
HaffmanNode* TreeNode = (HaffmanNode*)malloc(sizeof(struct HaffmanNode));
TreeNode->Left = A;
TreeNode->Right = B;
TreeNode->Node.first = '*';
TreeNode->Node.second = A->Node.second + B->Node.second;
return TreeNode;
}
generateUnion就是用来进行归并的，然后生成一个新的节点，让其代表字符为星号，表示是一个根。但是这样还得把根进行存储，因为再找的两个最小值可能不包含当前根。太麻烦了，舍弃这种方案。
所以还是用数组建树做吧。
程序比较长，我们先把最终结果给呈现上，然后再分析程序是如何进行构建的。
#include <iostream>
#include <map>
#include <algorithm>
#include <vector>
#include <string>
using namespace std;
map<char,int> myLetters;
struct HaffmanNode{
char Letter;
int Count;
int Parent;
int Left;
int Right;
};
int Nums;
vector<HaffmanNode> myTree;
HaffmanNode createNode();
void getLetters(int N);
void buildTree(int N);
int findMin();
void PrintTree(void);
int getLength();
struct HaffmanList;
void generateTree(int N,int length);
int main(void) {
int N;
cin >> N;
Nums = N;
getLetters(N);
buildTree(Nums);
int Length = getLength();
int M;
cin >> M;
for (int i = 0;i < M;i++) {
generateTree(N,Length);
}
//开始检测别人构建的哈夫曼树
system("pause");
return 0;
}
void getLetters(int N) {
for (int i = 0;i < N;i++) {
HaffmanNode myNode = createNode();
cin >> myNode.Letter >> myNode.Count;
pair<char, int>myletter;
myletter.first = myNode.Letter;
myletter.second = myNode.Count;
myLetters.insert(myletter);
myTree.push_back(myNode);
}
}
HaffmanNode createNode(){
HaffmanNode newNode;
newNode.Left = -1;
newNode.Right = -1;
newNode.Parent = -1;
return newNode;
}
HaffmanNode createUnion(int i,int j) {
HaffmanNode newNode;
newNode.Left = i;
newNode.Right = j;
newNode.Letter = '*';
newNode.Parent = -1;
newNode.Count = myTree[i].Count + myTree[j].Count;
return newNode;
}
int Min(int a, int b) {
if (myTree[a].Count < myTree[b].Count) {
return a;
}
else return b;
}
int Max(int a, int b) {
if (myTree[a].Count < myTree[b].Count) {
return b;
}
else return a;
}
int findMin() {
int n1 = 100000, n2 = 100000;
int i;
for (i = 0;i < Nums;i++) {
if (myTree[i].Parent < 0) {
n1 = i;
break;//Fuck!之前不小心把这个break写在if的外面了
}
}
for (i = n1+1;i < Nums;i++) {
if (myTree[i].Parent < 0) {
n2 = i;
break;
}
}
if (n1 == 100000 || n2 == 100000) {
return 0;
}else {
int max = myTree[Max(n1,n2)].Count;
for (i = n2 + 1;i < Nums;i++) {
if (myTree[i].Parent < 0) {
if (myTree[i].Count < max) {
if (Max(n1, n2) == n1)n1 = i;
else n2 = i;
max = myTree[Max(n1, n2)].Count;
}
}
}
//现在得到了Count最小的两个坐标。
HaffmanNode Union = createUnion(n1,n2);
myTree[n1].Parent = Nums;
myTree[n2].Parent = Nums;
myTree.push_back(Union);
Nums++;
return 1;
}
}
void buildTree(int N) {
while (findMin()) {
//PrintTree();
}
}
void PrintTree(void) {
cout << endl;
for (int i = 0;i < Nums;i++) {
cout << i<<" "<< myTree[i].Parent << " " << myTree[i].Count << " "
<< myTree[i].Letter << endl;
}
cout << endl;
}
int Length(int i,int depth) {
if (myTree[i].Left == -1 && myTree[i].Right == -1) {
return myTree[i].Count*depth;
}
else {
return Length(myTree[i].Left,depth+1) + Length(myTree[i].Right, depth + 1);
}
}
int getLength() {
int parent;
for (int i = 0;i < Nums;i++) {
if (myTree[i].Parent < 0) {
parent = i;
}
}
return Length(parent,0);
}
// *******************下面是检测用的数据和函数：********************************
struct HaffmanList {
char Letter;
int Count;
HaffmanList *Left;
HaffmanList *Right;
};
HaffmanList* createHaffmanList() {
HaffmanList* TreeNode = (HaffmanList*)malloc(sizeof(struct HaffmanList));
TreeNode->Left = NULL;
TreeNode->Right = NULL;
return TreeNode;
}
int leafNum;
int Length(HaffmanList* aList,int depth) {
if (aList == NULL)return 0;
if (aList->Left == NULL && aList->Right == NULL) {
leafNum++;
return depth*aList->Count;
}
else {
return Length(aList->Left, depth + 1) + Length(aList->Right, depth + 1);
}
}
void generateTree(int N,int length) {
HaffmanList* aList = createHaffmanList();
for (int i = 0;i < N;i++) {
HaffmanList* NodeIps = aList;
char le;
cin >> le;
string s;
cin >> s;
for (int i = 0;i < s.length();i++) {
if (s[i] == '0') {
if (NodeIps->Left == NULL) {
HaffmanList* tempList = createHaffmanList();
NodeIps->Left = tempList;
}
NodeIps = NodeIps->Left;
}
else {
if (NodeIps->Right == NULL) {
HaffmanList* tempList = createHaffmanList();
NodeIps->Right = tempList;
}
NodeIps = NodeIps->Right;
}
}
NodeIps->Count = myLetters[le];
}
//测试叶节点个数
//测试编码量
leafNum = 0;
int Length2 = Length(aList,0);
if (leafNum == N && Length2 == length) {
cout << "Yes"<<endl;
}
else {
cout << "No" << endl;
}
}

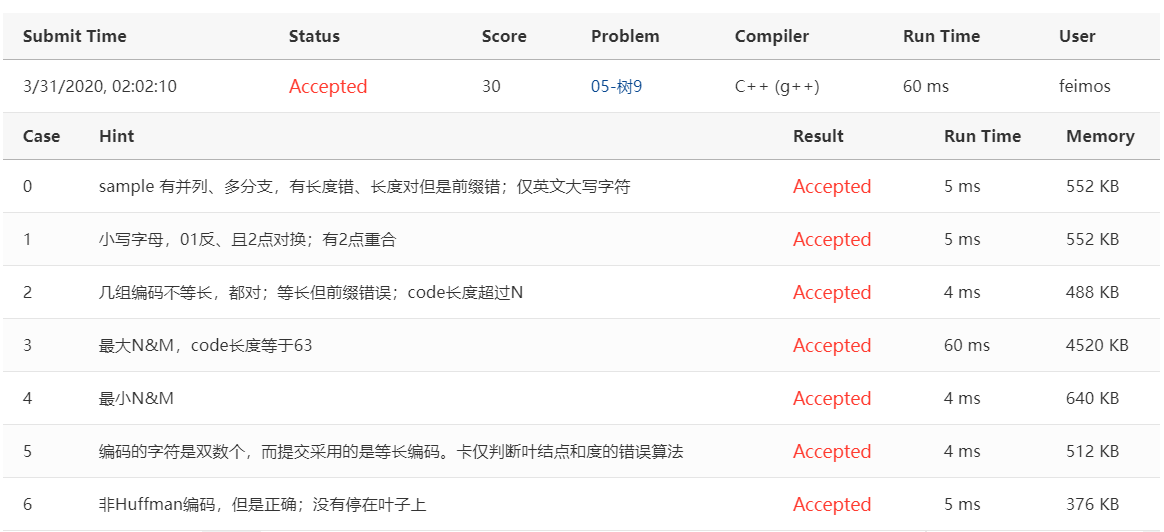

测试结果如下：
首先是建树，我们建立到结构体数组里，结构体的Parents变量记录父节点坐标。
在合并的时候我们需要找到Count最小的两个节点，然后合并。要注意的是这两个节点的Parents必须是-1，否则说明已经被合并过了。
首先设置一个非常大的i，如果找完整个数组，只找到一个Parents为-1的点，说明合并已经完成。
然后统计最优编码的总长度。PrintTree函数用来打印我们自己建立的树的信息。
然后进行检验，我们在每一行中读入的字符串，比如00101，第一个是0，我们往左建子树，第二个是0，还是往左建子树，然后往右建子树，以此类推。如果节点为NULL就创建新的节点，如果不为NULL就直接向下递进。建好树以后判断叶子的数量，如果为N说明可以，然后判断是不是最优建树。
建立哈夫曼树这里用了两种结构，一个是链式，一个是数组式的。
其实肯定建立哈夫曼树还有更简单的思路的方法，大家有兴趣可以自己尝试。
