前言:在上一个章节中《Kotlin-Android开发之透彻理解EventBus的MAIN、POSTING、BACKGROUND、ASYNC,4种线程模式》介绍了EventBus的使用方法以及EventBus的4种线程模式,其实在开发中会使用就行了,如果你有更高的追求,那就需要来翻阅一下源码了,我也是现学现卖,如有不周到的地方,还请指出。
源码解析:
1.EventBus的好处:EventBus可以代替Android传统的Intent,Handler,Broadcast或接口函数,在Fragment,Activity,Service线程之间传递数据,执行方法。

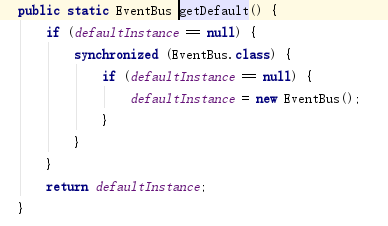

2.EventBus.getDefault():获取EventBus的单例对象。部分源码截图

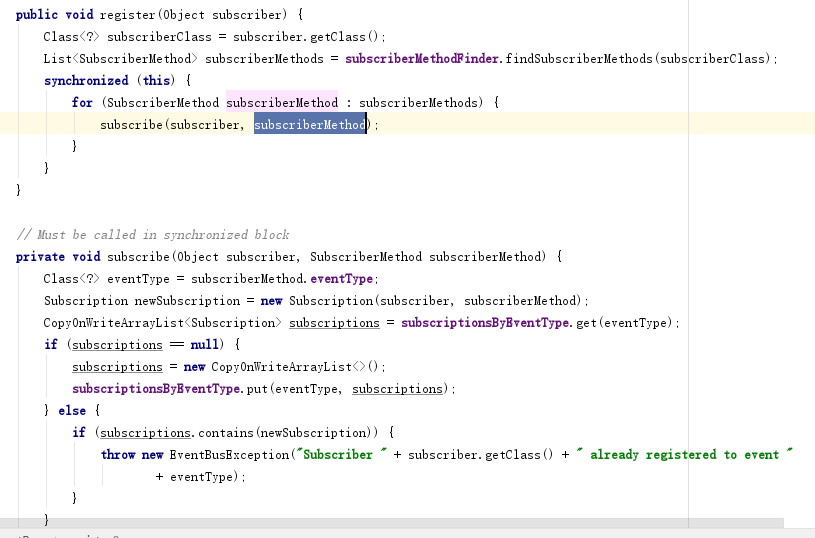

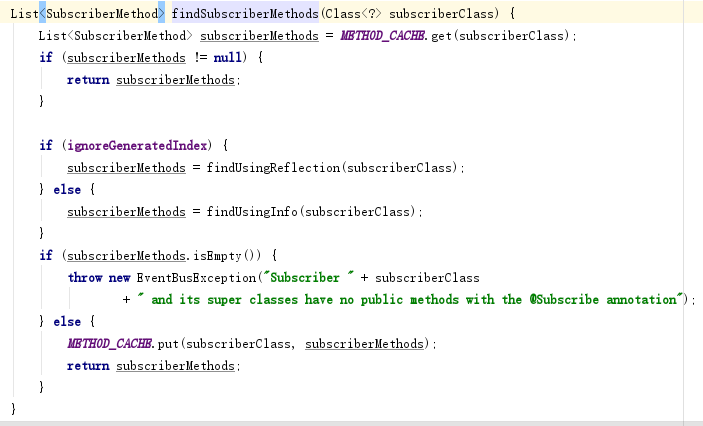

3.register :根据当前的类进行注册(也就是订阅者),然后根据订阅者去缓存中去查找(使用findSubscriberMethods方法),如果能找到直接返回subscriber这个类的所有订阅方法,反之就添加进缓存并且返回这个储存了所有订阅函数的集合subscriberMethods,最后通过for循环遍历通过subscribe方法把subscriber和subscriberMethod添加到map集合。
部分源码截图:

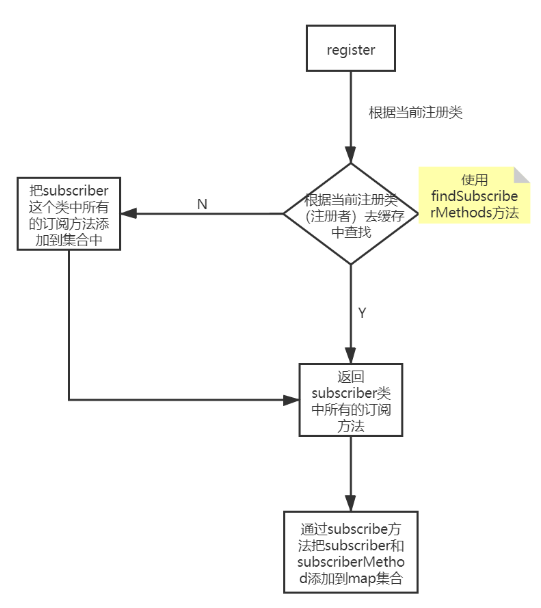

register流程图:

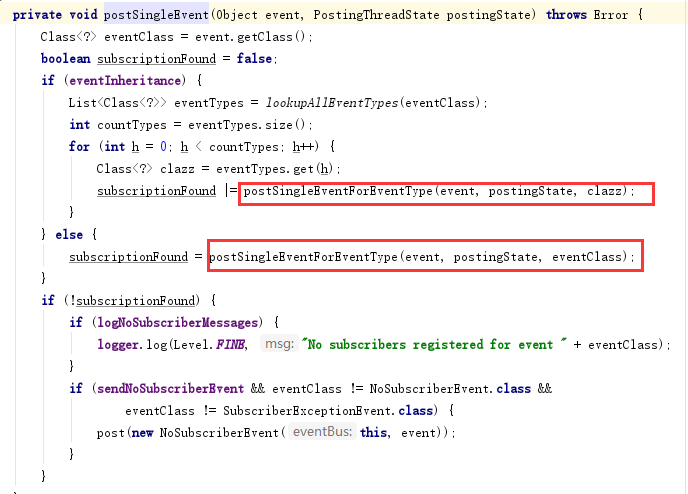

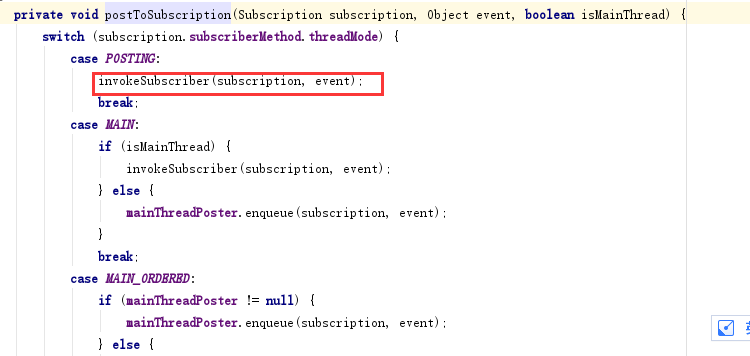

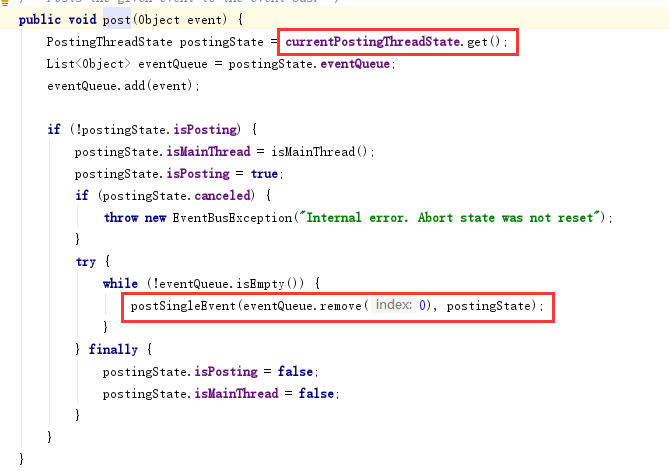

4.post:根据currentPostingThreadState.get()方法获取事件类型,根据类型通过postSingleEvent()和postSingleEventForEventType()获取订阅者和订阅方法,然后根据postToSubscription()方法根据是否在主线程和threadmode来进行判断,最后通过反射直接调用订阅者的订阅方法完成本次通信(invokeSubscriber())。
部分源码截图:
post流程图:

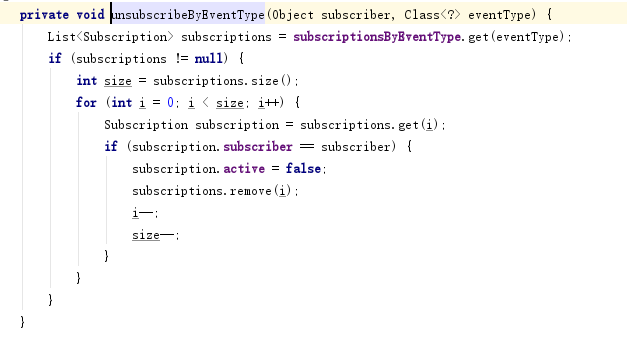

5.unregister:先订阅者从typesBySubscriber中获取到所有的事件类型,然后有了事件类型列表就可以遍历事件类型从subscriptionsByEventType获取到对应的订阅者包括订阅函数来释放,最后根据订阅者删除掉typesBySubscriber中的事件类型 此时订阅者已经被释放不再持有该订阅者引用
部分源码截图:
6.threadMode:
1)MAIN:主线程调用,视发布线程不同处理不同,如果发布者在主线程那么直接调用(非阻塞式),如果发布者不在主线程那么阻塞式调用。子线程发布->主线程接收,主线程发布->主线程接收
2)POSTING:默认的模式,开销最小的模式,因为声明为POSTING的订阅者会在发布的同一个线程调用,发布者在主线程那么订阅者也就在主线程,反之亦,避免了线程切换,如果不确定是否有耗时操作,谨慎使用,因为可能是在主线程发布。子线程发布->子线程接收,主线程发布->主线程接收
3)BACKGROUND:在子线程调用,如果发布在子线程那么直接在发布线程调用,如果发布在主线程那么将开启一个子线程来调用,这个子线程是阻塞式的,按顺序交付所有事件,所以也不适合做耗时任务,因为多个事件共用这一个后台线程。主线程发布->子线程接收、子线程发布->子线程接收
4)ASYNC:在子线程调用,总是开启一个新的线程来调用,适用于做耗时任务,比如数据库操作,网络请求等,不适合做计算任务,会导致开启大量线程。主线程发布->创建新的子线程接收、子线程发布->创建新的子线程接收(两个子线程不同)
7.Subscribe:@Subscribe采用运行时注解,且注解只能用在函数上,默认的threadmode为posting。
仿照EventBus手动实现自己的EventBus:
FlyEventBus.java
import android.os.Handler;
import android.os.Looper;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.Iterator;
import java.util.List;
import java.util.Map;
import java.util.Set;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
public class FlyEventBus {
private static FlyEventBus instance = new FlyEventBus();
private Map<Object, List<SubscribleMethod>> cacheMap;
private Handler handler;
//线程池
private ExecutorService executorService;
public static FlyEventBus getDefault() {
return instance;
}
private FlyEventBus() {
this.cacheMap = new HashMap<>();
handler = new Handler(Looper.getMainLooper());
executorService = Executors.newCachedThreadPool();
}
//注册
public void register(Object subscriber) {
Class<?> aClass = subscriber.getClass();
List<SubscribleMethod> subscribleMethods = cacheMap.get(subscriber);
//如果已经注册,就不需要注册
if (subscribleMethods == null) {
subscribleMethods = getSubscribleMethods(subscriber);
cacheMap.put(subscriber, subscribleMethods);
}
}
//遍历能够接收事件的方法
private List<SubscribleMethod> getSubscribleMethods(Object subscriber) {
List<SubscribleMethod> list = new ArrayList<>();
Class<?> aClass = subscriber.getClass();
//需要 subscriber --- 》BaseActivity ------->Activitiy
while (aClass != null) {
//判断分类是在那个报下,(如果是系统的就不需要)
String name = aClass.getName();
if (name.startsWith("java.") ||
name.startsWith("javax.") ||
name.startsWith("android.") ||
name.startsWith("androidx.")) {
break;
}
Method[] declaredMethods = aClass.getDeclaredMethods();
for (Method method : declaredMethods) {
FlySubscribe annotation = method.getAnnotation(FlySubscribe.class);
if (annotation == null) {
continue;
}
//检测这个方法合不合格
Class<?>[] parameterTypes = method.getParameterTypes();
if (parameterTypes.length != 1) {
throw new RuntimeException("eventbusz只能接收一个参数");
}
//符合要求
FlyThreadMode flyThreadMode = annotation.threadMode();
SubscribleMethod subscribleMethod = new SubscribleMethod(method, flyThreadMode, parameterTypes[0]);
list.add(subscribleMethod);
}
aClass = aClass.getSuperclass();
}
return list;
}
//取消注册
public void unregister(Object subscriber) {
Class<?> aClass = subscriber.getClass();
List<SubscribleMethod> list = cacheMap.get(subscriber);
//如果获取到
if (list != null) {
cacheMap.remove(subscriber);
}
}
public void post(final Object obj) {
Set<Object> set = cacheMap.keySet();
Iterator<Object> iterator = set.iterator();
while (iterator.hasNext()) {
//拿到注册类
final Object next = iterator.next();
//获取类中所有添加注解的方法
List<SubscribleMethod> list = cacheMap.get(next);
for (final SubscribleMethod subscribleMethod : list) {
//判断这个方法是否应该接收事件
if (subscribleMethod.getEventType().isAssignableFrom(obj.getClass())) {
switch (subscribleMethod.getThreadMode()) {
case MAIN:
//如果接收方法在主线程执行的情况
if(Looper.myLooper() == Looper.getMainLooper()){
invoke(subscribleMethod, next, obj);
} else {
//post方法执行在子线程中,接收消息在主线程中
handler.post(new Runnable() {
@Override
public void run() {
invoke(subscribleMethod, next, obj);
}
});
}
break;
//接收方法在子线程种情况
case ASYNC:
//post方法执行在主线程中
if(Looper.myLooper() == Looper.getMainLooper()){
executorService.execute(new Runnable() {
@Override
public void run() {
invoke(subscribleMethod, next, obj);
}
});
} else {
//post方法执行在子线程中
invoke(subscribleMethod, next, obj);
}
break;
}
}
}
}
}
private void invoke(SubscribleMethod subscribleMethod, Object next, Object obj) {
Method method = subscribleMethod.getMethod();
try {
method.invoke(next, obj);
} catch (IllegalAccessException e) {
e.printStackTrace();
} catch (InvocationTargetException e) {
e.printStackTrace();
}
}
}
FlySubscribe.java
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;
@Target(ElementType.METHOD)
@Retention(RetentionPolicy.RUNTIME)
public @interface FlySubscribe {
FlyThreadMode threadMode() default FlyThreadMode.POSTING;
}
FlyThreadMode.java
public enum FlyThreadMode {
POSTING,
MAIN,
MAIN_ORDERED,
BACKGROUND,
ASYNC
}
SubscribleMethod.java
import java.lang.reflect.Method;
//注册类中的注册方法信息
public class SubscribleMethod {
//注册方法
private Method method;
//线程类型
private FlyThreadMode threadMode;
//参数类型
private Class<?> eventType;
public SubscribleMethod(Method method, FlyThreadMode threadMode, Class<?> eventType) {
this.method = method;
this.threadMode = threadMode;
this.eventType = eventType;
}
public Method getMethod() {
return method;
}
public void setMethod(Method method) {
this.method = method;
}
public FlyThreadMode getThreadMode() {
return threadMode;
}
public void setThreadMode(FlyThreadMode threadMode) {
this.threadMode = threadMode;
}
public Class<?> getEventType() {
return eventType;
}
public void setEventType(Class<?> eventType) {
this.eventType = eventType;
}
}
总结:由此可以得出EventBus底层采用的是注解和反射的方式来获取订阅方法信息(首先是注解获取,若注解获取不到,再用反射),当前订阅者是添加到Eventbus总的事件订阅者的subscriptionByEventType集合中。
