1、简介
hashMap所继承或者实现的接口

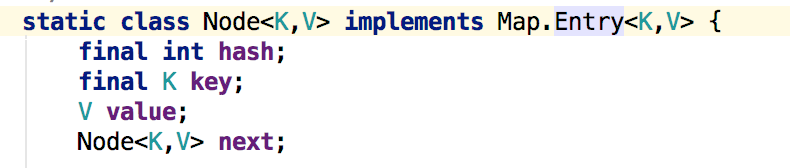

HashMap中有个Node的内部类,这其实就是一个单链表的结构

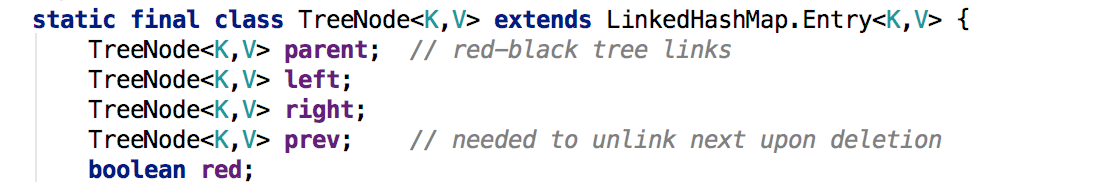

和TreeNode,传说中的红黑树
其他成员:
transient Node<K,V>[] table; 存储hash节点的数组
transient Set<Map.Entry<K,V>> entrySet; 将数组转为Set结构,方便keySet() 和 values()可以直接获取数据。
transient int size; 数据总数
transient int modCount; 修改次数
int threshold;需要进行resize的阈值,一般为capacity * load factor
final float loadFactor;hash表的装载因子
static final int DEFAULT_INITIAL_CAPACITY = 1 << 4; 默认容量,16
static final int MAXIMUM_CAPACITY = 1 << 30; 最大容量,2^30
static final float DEFAULT_LOAD_FACTOR = 0.75f; 默认装载因子
static final int TREEIFY_THRESHOLD = 8;将单链表结构转为树结构的阈值,也就是说当链表长度达到8的时候,将单链表转为树结构存储
static final int UNTREEIFY_THRESHOLD = 6;将树结构转回单链表的阈值
static final int MIN_TREEIFY_CAPACITY = 64;进行转树结构操作的最小容量
2、构造方法
无参构造:仅指定默认装载因子
public HashMap() {
this.loadFactor = DEFAULT_LOAD_FACTOR; // all other fields defaulted
}
可执行初始容量,装载因子也是默认0.75
public HashMap(int initialCapacity) {
this(initialCapacity, DEFAULT_LOAD_FACTOR);
}
可执行初始容量和装载因子,初始容量不能超过MAXIMUM_CAPACITY。根据初始容量计算阈值,tableSizeFor在找一个最接近初始容量的2的幂。
public HashMap(int initialCapacity, float loadFactor) {
if (initialCapacity < 0)
throw new IllegalArgumentException("Illegal initial capacity: " +
initialCapacity);
if (initialCapacity > MAXIMUM_CAPACITY)
initialCapacity = MAXIMUM_CAPACITY;
if (loadFactor <= 0 || Float.isNaN(loadFactor))
throw new IllegalArgumentException("Illegal load factor: " +
loadFactor);
this.loadFactor = loadFactor;
this.threshold = tableSizeFor(initialCapacity);
}
static final int tableSizeFor(int cap) {
int n = cap - 1;
n |= n >>> 1;
n |= n >>> 2;
n |= n >>> 4;
n |= n >>> 8;
n |= n >>> 16;
return (n < 0) ? 1 : (n >= MAXIMUM_CAPACITY) ? MAXIMUM_CAPACITY : n + 1;
}
根据Map构建一个新的HashMap,装载因子依然默认0.75,根据map的大小来计算阈值。
public HashMap(Map<? extends K, ? extends V> m) {
this.loadFactor = DEFAULT_LOAD_FACTOR;
putMapEntries(m, false);
}
final void putMapEntries(Map<? extends K, ? extends V> m, boolean evict) {
int s = m.size();
if (s > 0) {
if (table == null) { // pre-size
float ft = ((float)s / loadFactor) + 1.0F;
int t = ((ft < (float)MAXIMUM_CAPACITY) ?
(int)ft : MAXIMUM_CAPACITY);
if (t > threshold)
threshold = tableSizeFor(t);
}
else if (s > threshold)
resize();
for (Map.Entry<? extends K, ? extends V> e : m.entrySet()) {
K key = e.getKey();
V value = e.getValue();
putVal(hash(key), key, value, false, evict);
}
}
}
3、put方法
public V put(K key, V value) {
return putVal(hash(key), key, value, false, true);
}
首先是计算key的hash值
static final int hash(Object key) {
int h;
return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
}
(h = key.hashCode()) ^ (h >>> 16):h >>> 16是将hashCode右移16位的意思,然后将hashCode自身和它右移16位后的结果进行异或,使得hashCode的高16位和低16均参与hash的计算,使得key的hash值更加随机化,也就是让整个hash表更加散列化。
下标的计算(n - 1) & hash:table的长度都是2的幂,假设为16,则n-1为1111,与hash进行与操作,结果只会保留最后四位,这其实与对n取模效果是一样的,但是计算效率会比对n取模更快。这也是为什么每次扩容都要保证table的长度为2的幂的原因。
接下来看putVal
final V putVal(int hash, K key, V value, boolean onlyIfAbsent,
boolean evict) {
Node<K,V>[] tab; Node<K,V> p; int n, i;
if ((tab = table) == null || (n = tab.length) == 0)
n = (tab = resize()).length;//第一次put时table为空,一定会进行一次resize
if ((p = tab[i = (n - 1) & hash]) == null) //计算当前key的下标i = (n - 1) & hash,若该下标对应的位置为空,则说明没有冲突,直接放入数组中
tab[i] = newNode(hash, key, value, null);
else {
Node<K,V> e; K k;
if (p.hash == hash &&
((k = p.key) == key || (key != null && key.equals(k)))) //找到一个已存在的元素与当前要put的key的hash相同,key也相同,则是要覆盖这个p的value。
e = p;
else if (p instanceof TreeNode) //如果当前这个下标对应的节点已经是一个树节点,则以树的形式插入
e = ((TreeNode<K,V>)p).putTreeVal(this, tab, hash, key, value);
else { //都不满足则说明已存在冲突,但是还未将单链表转为树,在链表后面插入
for (int binCount = 0; ; ++binCount) {
if ((e = p.next) == null) {
p.next = newNode(hash, key, value, null);
if (binCount >= TREEIFY_THRESHOLD - 1) // -1 for 1st
treeifyBin(tab, hash); //若链表的长度达到了转树的条件,则将当前链表转换一颗树
break;
}
if (e.hash == hash &&
((k = e.key) == key || (key != null && key.equals(k))))
break;
p = e;
}
}
if (e != null) { // existing mapping for key,若当前key已存在,则更新value
V oldValue = e.value;
if (!onlyIfAbsent || oldValue == null)
e.value = value;
afterNodeAccess(e);
return oldValue;
}
}
++modCount;
if (++size > threshold)
resize();
afterNodeInsertion(evict);
return null;
}
下面看treeifyBin,可看出并不是长度超过8就转树,进一步判断若当前table的大小小于MIN_TREEIFY_CAPACITY则只进行扩容。
final void treeifyBin(Node<K,V>[] tab, int hash) {
int n, index; Node<K,V> e;
if (tab == null || (n = tab.length) < MIN_TREEIFY_CAPACITY)
resize();
else if ((e = tab[index = (n - 1) & hash]) != null) {
TreeNode<K,V> hd = null, tl = null;
do {
TreeNode<K,V> p = replacementTreeNode(e, null);
if (tl == null)
hd = p;
else {
p.prev = tl;
tl.next = p;
}
tl = p;
} while ((e = e.next) != null);
if ((tab[index] = hd) != null)
hd.treeify(tab);
}
}
4、扩容
当第一次put或者size超过阈值,或者某条冲突的链表超过8但是数组总数未超过MIN_TREEIFY_CAPACITY时会进行扩容resize
final Node<K,V>[] resize() {
Node<K,V>[] oldTab = table;
int oldCap = (oldTab == null) ? 0 : oldTab.length;
int oldThr = threshold;
int newCap, newThr = 0;
if (oldCap > 0) {
if (oldCap >= MAXIMUM_CAPACITY) { //当扩容前的大小已经达到MAXIMUM_CAPACITY时,则将阈值设置为Integer的最大值,但是table没有改变,仅改变了阈值。
threshold = Integer.MAX_VALUE;
return oldTab;
}
else if ((newCap = oldCap << 1) < MAXIMUM_CAPACITY &&
oldCap >= DEFAULT_INITIAL_CAPACITY) //当旧容量扩大两倍后还未超过MAXIMUM_CAPACITY,且旧容量大于等于初始容量16时,将阈值设置为原来的两倍。
newThr = oldThr << 1; // double threshold
}
else if (oldThr > 0) // initial capacity was placed in threshold,第一次put时可能oldCap为0,若就的阈值不为0是,将新容量设置为当前阈值。
newCap = oldThr;
else { // zero initial threshold signifies using defaults,oldCap和oldThr都为0时,将newCap设置为16,newThr设置为16*0.75=12
newCap = DEFAULT_INITIAL_CAPACITY;
newThr = (int)(DEFAULT_LOAD_FACTOR * DEFAULT_INITIAL_CAPACITY);
}
if (newThr == 0) {
float ft = (float)newCap * loadFactor;
newThr = (newCap < MAXIMUM_CAPACITY && ft < (float)MAXIMUM_CAPACITY ?
(int)ft : Integer.MAX_VALUE);
}
threshold = newThr;
@SuppressWarnings({"rawtypes","unchecked"})
Node<K,V>[] newTab = (Node<K,V>[])new Node[newCap];
table = newTab;
if (oldTab != null) {
for (int j = 0; j < oldCap; ++j) { //复制原数组
Node<K,V> e;
if ((e = oldTab[j]) != null) {
oldTab[j] = null;
if (e.next == null) //没有冲突,直接复制,复制时重新根据newCap计算下标
newTab[e.hash & (newCap - 1)] = e;
else if (e instanceof TreeNode)
((TreeNode<K,V>)e).split(this, newTab, j, oldCap);
else { // preserve order
Node<K,V> loHead = null, loTail = null;
Node<K,V> hiHead = null, hiTail = null;
Node<K,V> next;
do {
next = e.next;
if ((e.hash & oldCap) == 0) {//判断hash的高一位是否为1
if (loTail == null)
loHead = e;
else
loTail.next = e;
loTail = e;
}
else {
if (hiTail == null)
hiHead = e;
else
hiTail.next = e;
hiTail = e;
}
} while ((e = next) != null);
if (loTail != null) {
loTail.next = null;
newTab[j] = loHead;
}
if (hiTail != null) {
hiTail.next = null;
newTab[j + oldCap] = hiHead;
}
}
}
}
}
return newTab;
}
例如将原大小为16的扩容为32:
原下标为5的可能101&1111=5也可能是10101&1111=5
扩容时重新计算下标101&11111=5,而10101&11111=21
当然处理下标为j,旧容量为oldCap,也就是说当处理j这个位置对应的链表时,这些Node要么还是在j这个下标不变,要么放到j+oldCap,只有这两种情况。
resize中直接将hash和oldCap进行与操作,101&10000=0,10101&10000=10000,简单直接得判断出是否需要对当前节点改变为位置。
原位置若是链表直接这样分割即可,但若是树就比较复杂了。
/**
* Splits nodes in a tree bin into lower and upper tree bins,
* or untreeifies if now too small. Called only from resize;
* see above discussion about split bits and indices.
*
* @param map the map
* @param tab the table for recording bin heads
* @param index the index of the table being split
* @param bit the bit of hash to split on
*/
final void split(HashMap<K,V> map, Node<K,V>[] tab, int index, int bit) {
TreeNode<K,V> b = this;
// Relink into lo and hi lists, preserving order
TreeNode<K,V> loHead = null, loTail = null;
TreeNode<K,V> hiHead = null, hiTail = null;
int lc = 0, hc = 0;
for (TreeNode<K,V> e = b, next; e != null; e = next) {
next = (TreeNode<K,V>)e.next;
e.next = null;
if ((e.hash & bit) == 0) {
if ((e.prev = loTail) == null)
loHead = e;
else
loTail.next = e;
loTail = e;
++lc;
}
else {
if ((e.prev = hiTail) == null)
hiHead = e;
else
hiTail.next = e;
hiTail = e;
++hc;
}
}
if (loHead != null) {
if (lc <= UNTREEIFY_THRESHOLD)
tab[index] = loHead.untreeify(map);
else {
tab[index] = loHead;
if (hiHead != null) // (else is already treeified)
loHead.treeify(tab);
}
}
if (hiHead != null) {
if (hc <= UNTREEIFY_THRESHOLD)
tab[index + bit] = hiHead.untreeify(map);
else {
tab[index + bit] = hiHead;
if (loHead != null)
hiHead.treeify(tab);
}
}
}
TreeNode是继承自LinkedHashMap.Entry的,依然保留有链表的特点。split先按照链表的处理方式重新计算下标分割高低位 。若最终剩下的该下标位的节点数量小于等于UNTREEIFY_THRESHOLD,进行树转链表的操作untreeify,否则再次进行转树的操作treeify。
5、链表转树与树转链表
链表转树
前面已经说过链表转树之前会先判断table的大小,来决定是扩容还是转树。
final void treeifyBin(Node<K,V>[] tab, int hash) {
int n, index; Node<K,V> e;
if (tab == null || (n = tab.length) < MIN_TREEIFY_CAPACITY)
resize();
else if ((e = tab[index = (n - 1) & hash]) != null) {
TreeNode<K,V> hd = null, tl = null;
do {
TreeNode<K,V> p = replacementTreeNode(e, null);
if (tl == null)
hd = p;
else {
p.prev = tl;
tl.next = p;
}
tl = p;
} while ((e = e.next) != null);
if ((tab[index] = hd) != null)
hd.treeify(tab);
}
}
先将链表的Node变成TreeNode,其实这时候还是保留着链表的特点,然后调用TreeNode的treeify方法进行真正的转树操作。
final void treeify(Node<K,V>[] tab) {
TreeNode<K,V> root = null;
//该方法是TreeNode的,因此这里this对象就是当前的树节点
for (TreeNode<K,V> x = this, next; x != null; x = next) {
next = (TreeNode<K,V>)x.next;
x.left = x.right = null;
//root为空,则就把当前接节点当成根节点,根节点为黑色
if (root == null) {
x.parent = null;
x.red = false;
root = x;
}
else {
K k = x.key;
int h = x.hash;
Class<?> kc = null;
//每次从根节点开始找插入位置
for (TreeNode<K,V> p = root;;) {
int dir, ph;
K pk = p.key;
//当前节点在p的左边
if ((ph = p.hash) > h)
dir = -1;
//当前节点在p的右边
else if (ph < h)
dir = 1;
else if ((kc == null &&
(kc = comparableClassFor(k)) == null) ||
(dir = compareComparables(kc, k, pk)) == 0)
dir = tieBreakOrder(k, pk);
TreeNode<K,V> xp = p;
if ((p = (dir <= 0) ? p.left : p.right) == null) {
x.parent = xp;
if (dir <= 0)
xp.left = x;
else
xp.right = x;
root = balanceInsertion(root, x);
break;
}
}
}
}
moveRootToFront(tab, root);
}
众所周知,红黑树是一颗搜索树,节点之间是可比较大小的,才能以logn的效率进行搜索,这里其实是在以key的hash值进行排序,若hash值一样则判断key或者key所有实现的接口中是否有Comparable,若是则调用其compareTo方法;若是连Comparable接口都没有实现或者campareTo结果为0则
static int tieBreakOrder(Object a, Object b) {
int d;
if (a == null || b == null ||
(d = a.getClass().getName().
compareTo(b.getClass().getName())) == 0)
d = (System.identityHashCode(a) <= System.identityHashCode(b) ?
-1 : 1);
return d;
}
每个key在hashmap中都是唯一的,所以dir只能大于0或小于0,绝对不能出现0。tieBreakOrder先比较两个对象的类名,类名是字符串对象,就按字符串的比较规则。如果两个对象是同一个类型,那么调用本地方法为两个对象生成hashCode值,再进行比较,hashCode相等的话也返回-1。
插入当前节点x后,红黑树的特性可能被破坏,因此需要进行一些变色、左旋、右旋的操作让树重新成为一颗红黑树。
static <K,V> TreeNode<K,V> balanceInsertion(TreeNode<K,V> root,
TreeNode<K,V> x) {
x.red = true;
for (TreeNode<K,V> xp, xpp, xppl, xppr;;) {
if ((xp = x.parent) == null) {
x.red = false;
return x;
}
else if (!xp.red || (xpp = xp.parent) == null)
return root;
if (xp == (xppl = xpp.left)) {
if ((xppr = xpp.right) != null && xppr.red) {
xppr.red = false;
xp.red = false;
xpp.red = true;
x = xpp;
}
else {
if (x == xp.right) {
root = rotateLeft(root, x = xp);
xpp = (xp = x.parent) == null ? null : xp.parent;
}
if (xp != null) {
xp.red = false;
if (xpp != null) {
xpp.red = true;
root = rotateRight(root, xpp);
}
}
}
}
else {
if (xppl != null && xppl.red) {
xppl.red = false;
xp.red = false;
xpp.red = true;
x = xpp;
}
else {
if (x == xp.left) {
root = rotateRight(root, x = xp);
xpp = (xp = x.parent) == null ? null : xp.parent;
}
if (xp != null) {
xp.red = false;
if (xpp != null) {
xpp.red = true;
root = rotateLeft(root, xpp);
}
}
}
}
}
}
红黑树原理参考
树转链表就比较简单了,直接将TreeNode变成Node即可。
final Node<K,V> untreeify(HashMap<K,V> map) {
Node<K,V> hd = null, tl = null;
for (Node<K,V> q = this; q != null; q = q.next) {
Node<K,V> p = map.replacementNode(q, null);
if (tl == null)
hd = p;
else
tl.next = p;
tl = p;
}
return hd;
}
6、get方法
先计算key的hash值
public V get(Object key) {
Node<K,V> e;
return (e = getNode(hash(key), key)) == null ? null : e.value;
}
getNode
final Node<K,V> getNode(int hash, Object key) {
Node<K,V>[] tab; Node<K,V> first, e; int n; K k;
if ((tab = table) != null && (n = tab.length) > 0 &&
(first = tab[(n - 1) & hash]) != null) {
if (first.hash == hash && // always check first node
((k = first.key) == key || (key != null && key.equals(k)))) //若用当前key取到的数组上的元素key正好是要获取的key时,直接返回
return first;
if ((e = first.next) != null) {
if (first instanceof TreeNode) //若是树结构,则按红黑树进行搜索,时间复杂度O(logn)
return ((TreeNode<K,V>)first).getTreeNode(hash, key);
do { //否则按照单链表结构一个一个往下查,时间复杂度O(n)
if (e.hash == hash &&
((k = e.key) == key || (key != null && key.equals(k))))
return e;
} while ((e = e.next) != null);
}
}
return null;
}
也就是说在冲突较多时,可以使用红黑树提高查询效率。
