FFmpeg推流器

《音视频应用开发系列文章目录》

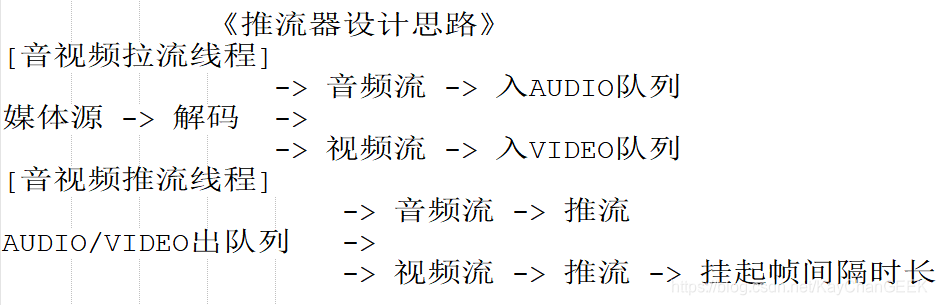

推流器设计思路

生产者-消费者模式。一个线程负责拉取原始音视频流然后存储在队列，一个线程负责从音视频流队列获取流然后推送，视频帧需要按照实际的帧率间隔发送，否则服务器可能会受不了

设计AvPusher类

AvPusher.h

#ifndef _AV_PUSHER_H_
#define _AV_PUSHER_H_

/***********************************************************
**	Author:kaychan
**	Data:2019-11-04
**	Mail:[email protected]
**	Explain:a audio/video pusher
***********************************************************/

#include "AvCommon.h"

// 错误回调函数
typedef void(*on_error)(std::string error, void *priv);

typedef struct AvPusherParamters_S {

public:
	void *priv = NULL;
	std::string istream = "";
	std::string ostream = "";
	bool run = true;
	AVFormatContext *ifmt_ctx = NULL;
	AVFormatContext *ofmt_ctx = NULL;
	int64_t video_udelay = 0;
	int64_t cache_packets_size = 0;
	int stream_mapping_size;
	int *stream_mapping = NULL;
	int video_index = -1;
	AvPacketSafeQueue av_packets;
	int64_t flowrate = 0;
	on_error av_on_error;
}AvPusherParamters;

class AvPusher {

public:
	AvPusher();
	// 启动推流器
	// istream：拉流地址
	// ostream：推流地址支持RTMP和UDP
	// av_on_error：错误回调函数
	// priv：回调函数入参
	void start(const std::string istream, const std::string ostream, on_error av_on_error, void *priv = NULL);
	// 停止推流器
	void stop();
	// 获取推流流量
	int64_t flowrate();

private:
	std::thread tsk_pull_;
	std::thread tsk_push_;
	AvPusherParamters paramters_;
};

#endif

AvPusher.cpp

#include "AvPusher.h"

static inline void emit_error(int errcode, AvPusherParamters &paramters) {

	paramters.run = false;
	char error[256];
	av_strerror(errcode, error, 256);
	paramters.av_on_error(error, paramters.priv);
}

void AvPusher_pull(AvPusherParamters &paramters) {

	// deal with input stream
	AVInputFormat *ifmt = NULL;
	AVDictionary *dict = NULL;
	av_dict_set(&dict, "stimeout", "2000000", 0);
	av_dict_set(&dict, "buffer_size", "4096000", 0);
	av_dict_set(&dict, "recv_buffer_size", "4096000", 0);
	int r = avformat_open_input(&paramters.ifmt_ctx, paramters.istream.c_str(), ifmt, &dict);
	if (r != 0) {

		emit_error(r, paramters);
		return;
	}
	r = avformat_find_stream_info(paramters.ifmt_ctx, NULL);
	if (r < 0) {

		emit_error(r, paramters);
		return;
	}
	// deal with output stream
	char *ofmt_name = "flv"; // default is rtmp
	std::string::size_type st = paramters.ostream.find("udp://"); // judge udp or not
	if (st != std::string::npos) ofmt_name = "mpegts";
	r = avformat_alloc_output_context2(&paramters.ofmt_ctx, NULL, ofmt_name, paramters.ostream.c_str());
	if (r < 0) {

		emit_error(r, paramters);
		return;
	}
	paramters.stream_mapping_size = paramters.ifmt_ctx->nb_streams;
	paramters.stream_mapping = (int *)av_mallocz_array(paramters.stream_mapping_size, sizeof(int));
	if (!paramters.stream_mapping) {

		emit_error(-1, paramters);
		return;
	}
	int stream_index = 0;
	for (int ii = 0; ii < paramters.ifmt_ctx->nb_streams; ii++) {

		AVStream *istream = paramters.ifmt_ctx->streams[ii];
		enum AVMediaType mt = istream->codecpar->codec_type;
		if (mt != AVMEDIA_TYPE_AUDIO && mt != AVMEDIA_TYPE_VIDEO) {

			paramters.stream_mapping[ii] = -1;
			continue;
		}
		paramters.stream_mapping[ii] = stream_index++;
		AVStream *ostream = NULL;
		ostream = avformat_new_stream(paramters.ofmt_ctx, NULL);
		if (ostream) {

			r = avcodec_parameters_copy(ostream->codecpar, istream->codecpar);
			if (r < 0) {

				emit_error(r, paramters);
				return;
			}
			ostream->codecpar->codec_tag = 0;
		}
		// if video, calc push delay
		if (mt == AVMEDIA_TYPE_VIDEO) {

			paramters.video_index = ii;
			AVRational frame_rate = av_guess_frame_rate(paramters.ifmt_ctx, istream, NULL);
			AVRational reciprocal = { frame_rate.den, frame_rate.num };
			double duration = (reciprocal.num && reciprocal.den) ? av_q2d(reciprocal) : (0);
			paramters.video_udelay = (int64_t)(duration * AV_TIME_BASE);
		}
	}
	// if flags AVFMT_NOFILE is set, AVIOContext *pb will be NULL
	// should open first, otherwise is opened.
	if (!(paramters.ofmt_ctx->oformat->flags & AVFMT_NOFILE)) {

		r = avio_open(&paramters.ofmt_ctx->pb, paramters.ostream.c_str(), AVIO_FLAG_WRITE);
		if (r < 0) {

			emit_error(r, paramters);
			return;
		}
	}

	// start pull
	while (paramters.run) {

		AVPacket packet;
		paramters.cache_packets_size = paramters.av_packets.size();
		if (paramters.cache_packets_size < 1 * MB) {

			r = av_read_frame(paramters.ifmt_ctx, &packet);
			if (r >= 0) {

				if (packet.stream_index >= paramters.stream_mapping_size ||
					paramters.stream_mapping[packet.stream_index] < 0) {

					av_packet_unref(&packet);
					continue;
				}
				paramters.av_packets.eq(packet);
			}
			else {

				// maybe rtsp/rtmp has disconnected
				// maybe file is eof
				break;
			}
		}
		else CPP11_MSLEEP(30);
	}
}

void AvPusher_push(AvPusherParamters &paramters) {

	// start push
	while (!paramters.ofmt_ctx) {

		if (!paramters.run) return;
		CPP11_MSLEEP(30);
	}
	int r = avformat_write_header(paramters.ofmt_ctx, NULL);
	if (r >= 0) {

		while (paramters.run) {

			if (!paramters.av_packets.empty()) {

				AVPacket p = paramters.av_packets.dq();
				paramters.flowrate += p.size;
				AVStream *istream, *ostream;
				istream = paramters.ifmt_ctx->streams[p.stream_index];
				if (p.stream_index == paramters.video_index) {

					av_usleep(paramters.video_udelay);
				}
				p.stream_index = paramters.stream_mapping[p.stream_index];
				ostream = paramters.ofmt_ctx->streams[p.stream_index];
				// update packet timestamp
				av_packet_rescale_ts(&p, istream->time_base, ostream->time_base);
				p.pos = -1;
				r = av_interleaved_write_frame(paramters.ofmt_ctx, &p);
				if (r < 0) break;
				av_packet_unref(&p);
			}
			else CPP11_MSLEEP(30);
		}
		av_write_trailer(paramters.ofmt_ctx);
	}
}

AvPusher::AvPusher() {


}

void AvPusher::start(const std::string istream, const std::string ostream, on_error av_on_error, void *priv) {

	paramters_.istream = istream;
	paramters_.ostream = ostream;
	paramters_.av_on_error = av_on_error;
	paramters_.priv = priv;
	paramters_.flowrate = 0;
	paramters_.run = true;
	tsk_pull_ = std::thread(AvPusher_pull, std::ref(paramters_));
	tsk_push_ = std::thread(AvPusher_push, std::ref(paramters_));
}

void AvPusher::stop() {

	paramters_.run = false;
	if (tsk_pull_.joinable()) tsk_pull_.join();
	if (tsk_push_.joinable()) tsk_push_.join();
	paramters_.av_packets.clear();
	if (paramters_.ofmt_ctx && !(paramters_.ofmt_ctx->oformat->flags & AVFMT_NOFILE)) {

		avio_closep(&paramters_.ofmt_ctx->pb);
	}
	if (paramters_.ifmt_ctx) {

		avformat_close_input(&paramters_.ifmt_ctx);
		paramters_.ifmt_ctx = NULL;
	}
	if (paramters_.ofmt_ctx) {

		avformat_free_context(paramters_.ofmt_ctx);
		paramters_.ofmt_ctx = NULL;
	}
	if (paramters_.stream_mapping) {

		av_freep(&paramters_.stream_mapping);
		paramters_.stream_mapping = NULL;
	}
}

int64_t AvPusher::flowrate() {

	return paramters_.flowrate;
}
