1.需求
1.1显示所有员工信息
- URI:emps
- 请求方式:GET
1.2添加员工
显示添加页面
- URI
- 请求方式:GET
添加员工信息
- URI:emp
- 请求方式:POST
- 显示效果:完成添加,重定向到list页面
1.3删除操作
- URI:emp/{id}
- 请求方式:DELETE
1.4修改操作:lastName不可修改
显示修改页面
- URI:emp/{id}
- 请求方式:GET
- 显示效果:回显表单
修改员工信息
- URI:emp
- 请求方式:PUT
- 显示效果:完成修改,重定向到list页面
2.开发

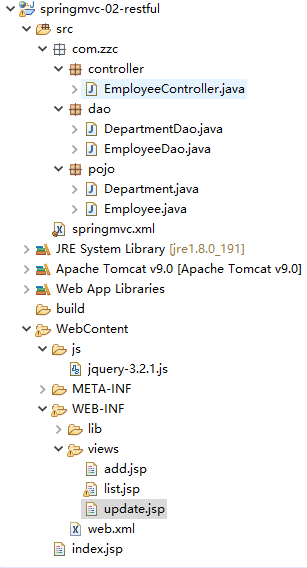

项目结构图:
步骤:
【第一步】、创建一个web工程。如:springmvc-02-restful
【第二步】、配置web.xml文件:
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
id="WebApp_ID" version="4.0">
<!-- 配置前端控制器 -->
<servlet>
<servlet-name>springDispatcherServlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<!-- 配置springmvc.xml配置文件的位置和名称。如果不指定,默认为:/WEB-INF/${servlet-name}-servlet.xml -->
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:springmvc.xml</param-value>
</init-param>
<!-- springDispatcherServlet在当前应用被加载时创建,而不是在第一次请求时创建 -->
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>springDispatcherServlet</servlet-name>
<!-- 拦截所有请求 -->
<url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>
【第三步】、创建springmvc.xml文件
在src目录下创建springmvc.xml
【第四步】、配置浏览器支持restful风格
在web.xml中添加如下内容:
...
...
<!-- 配置HiddenHttpMethodFilter 可以把POST请求转换为DELETE请求/POST请求 -->
<filter>
<filter-name>hiddenHttpMethodFilter</filter-name>
<filter-class>org.springframework.web.filter.HiddenHttpMethodFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>hiddenHttpMethodFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>
【第五步】、配置springmvc.xml配置文件
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-4.0.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">
<!-- 配置自动扫描包 -->
<context:component-scan base-package="com.zzc"></context:component-scan>
<!-- 配置视图解析器:如何把 handler 方法返回值解析为实际的物理视图 -->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/views/" ></property>
<property name="suffix" value=".jsp"></property>
</bean>
</beans>
【第六步】、创建包和类
pojo层
在src目录下创建com.zzc.pojo包,其下创建Employee类和Department类
Employee.java
public class Employee {
private Integer id;
private String lastName;
private String email;
private Integer sex;
private Department department;
public Employee() {
}
...
}
Department.java
public class Department {
private Integer id;
private String name;
...
}
dao层
没有连接数据库
在src目录下创建com.zzc.dao包,其下创建EmployeeDao类和DepartmentDao类
DepartmentDao.java
@Repository
public class DepartmentDao {
private static Map<Integer, Department> departments = null;
static {
departments = new HashMap<Integer, Department>();
departments.put(1001, new Department(10001, "测试部"));
departments.put(1002, new Department(10002, "开发部"));
departments.put(1003, new Department(10003, "销售部"));
departments.put(1004, new Department(10004, "人事部"));
departments.put(1005, new Department(10005, "财务部"));
}
/**
* 获取全部departments
*
* @return
*/
public Collection<Department> getDepartments(){
return departments.values();
}
/**
* 获取指定的department
*
* @param id
* @return
*/
public Department getDepartment(Integer id){
return departments.get(id);
}
}
EmployeeDao.java
@Repository
public class EmployeeDao {
private static Integer initId = 106;
private static Map<Integer, Employee> employees = null;
@Autowired
private DepartmentDao departmentDao;
static {
employees = new HashMap<Integer, Employee>();
employees.put(101, new Employee(101, "zzc", "[email protected]", 1, new Department(10002, "开发部")));
employees.put(102, new Employee(102, "zhangsan", "[email protected]", 1, new Department(10004, "人事部")));
employees.put(103, new Employee(103, "lisi", "[email protected]", 0, new Department(10001, "测试部")));
employees.put(104, new Employee(104, "wangwu", "[email protected]", 0, new Department(10005, "财务部")));
employees.put(105, new Employee(105, "zhaoliu", "[email protected]", 1, new Department(10003, "销售部")));
}
/**
* 添加员工
*
* @param employee
*/
public void save(Employee employee) {
if(null == employee.getId()) {
employee.setId(initId++);
}
employee.setDepartment(departmentDao.getDepartment(employee.getDepartment().getId()));
employees.put(employee.getId(), employee);
}
/**
* 获取所有员工
*
* @return
*/
public Collection<Employee> getAll(){
return employees.values();
}
/**
* 获取指定员工
*
* @param id
* @return
*/
public Employee get(Integer id) {
return employees.get(id);
}
/**
* 删除员工
*
* @param id
*/
public void delete(Integer id) {
employees.remove(id);
}
}
【第七步】、创建页面
在WebContent目录下创建index.jsp,其内容为;
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8" isErrorPage="true"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>springmvc入门</title>
</head>
<body>
<a href="emps">List All Employees</a>
</body>
</html>
访问所有员工信息
【第八步】、创建控制器、页面
在src目录下创建com.zzc.controller包,其下创建EmployeeController类
EmployeeController.java
@Controller
public class EmployeeController {
@Autowired
private EmployeeDao employeeDao;
@Autowired
private DepartmentDao departmentDao;
@ModelAttribute
public void getEmployee(Map<String, Object> map,
@RequestParam(value="id", required=false)Integer id) {
if(null != id) {
map.put("employee", employeeDao.get(id));
}
}
@RequestMapping(value="/emp", method=RequestMethod.PUT)
public String updateOpt(Employee employee) {
employeeDao.save(employee);
return "redirect:/emps";
}
/**
* 跳转到更新员工信息页面
*
* @param id
* @param map
* @return
*/
@RequestMapping(value="/emp/{id}", method=RequestMethod.GET)
public String update(@PathVariable("id") Integer id, Map<String, Object> map) {
map.put("employee", employeeDao.get(id));
map.put("departments", departmentDao.getDepartments());
return "update";
}
/**
* 删除员工
*
* @return
*/
@RequestMapping(value="/emp/{id}", method=RequestMethod.DELETE)
public String delete(@PathVariable("id") Integer id) {
employeeDao.delete(id);
return "redirect:/emps";
}
/**
* 执行添加员工操作
*
* @param employee
* @return
*/
@RequestMapping(value="/emp", method=RequestMethod.POST)
public String addOpt(Employee employee) {
System.out.println(employee);
employeeDao.save(employee);
return "redirect:/emps";
}
/**
* 跳转到添加页面
*
* @param map
* @return
*/
@RequestMapping(value="/emp", method=RequestMethod.GET)
public String add(Map<String, Object> map) {
map.put("departments", departmentDao.getDepartments());
map.put("employee", new Employee());
return "add";
}
/**
* 查询所有员工信息
*
* @param map
* @return
*/
@RequestMapping("/emps")
public String list(Map<String, Object> map) {
map.put("employees", employeeDao.getAll());
return "list";
}
}
list.jsp
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>员工列表</title>
<script type="text/javascript" src="/springmvc-02-restful/js/jquery-3.2.1.js"></script>
<script type="text/javascript">
$(function(){
$(".delete").click(function(){
var href = $(this).attr("href")
$("form").attr("action", href).submit()
return false
})
})
</script>
</head>
<body>
<form action="" method="post">
<input type="hidden" name="_method" value="DELETE" />
</form>
<c:if test="${empty requestScope.employees }">
没有任何员工信息
</c:if>
<c:if test="${!empty requestScope.employees }">
<table border="1" cellpadding="10" cellspacing="0">
<tr>
<th>ID</th>
<th>LastName</th>
<th>Email</th>
<th>Sex</th>
<th>Department</th>
<th>Edit</th>
<th>Delete</th>
</tr>
<c:forEach items="${requestScope.employees }" var="emp">
<tr>
<td>${emp.id }</td>
<td>${emp.lastName }</td>
<td>${emp.email }</td>
<td>${emp.sex == 0 ? "女" : "男" }</td>
<td>${emp.department.name }</td>
<td>
<a href="emp/${emp.id}">Edit</a>
</td>
<td>
<a class="delete" href="emp/${emp.id}">Delete</a>
</td>
</tr>
</c:forEach>
</table>
</c:if>
<br><br>
<a href="emp">Add Employee</a>
</body>
</html>
update.jsp
<%@ page language="java" import="java.util.*" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="form" uri="http://www.springframework.org/tags/form" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>添加员工</title>
</head>
<body>
<!-- 使用spring的form标签 -->
<form:form action="${pageContext.request.contextPath}/emp" method="POST" modelAttribute="employee">
<c:if test="${employee.id == null }">
<!-- path对应html中的name属性 -->
LastName:<form:input path="lastName" /><br>
</c:if>
<c:if test="${employee.id != null }">
<form:hidden path="id"/>
<input type="hidden" name="_method" value="PUT" />
</c:if>
Email:<form:input path="Email" /><br>
<%
Map<String, String> sexs = new HashMap<String, String>();
sexs.put("0", "女");
sexs.put("1", "男");
request.setAttribute("sexs", sexs);
%>
Sex:<form:radiobuttons path="sex" items="${sexs }"/><br>
Department:<form:select path="department.id" items="${departments }"
itemLabel="name" itemValue="id"></form:select>
<input type="submit" value="添加" />
</form:form>
</body>
</html>
【第九步】、完成需求
查询所有员工
修改EmployeeController.java
@Controller
public class EmployeeController {
@Autowired
private EmployeeDao employeeDao;
/**
* 查询所有员工信息
*
* @param map
* @return
*/
@RequestMapping("/emps")
public String list(Map<String, Object> map) {
map.put("employees", employeeDao.getAll());
return "list";
}
}
Map中添加了一个key为employees,value为所有员工信息。
在WEB-INF目录下面创建views目录,并创建list.jsp,其内容为:
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>员工列表</title>
</head>
<body>
<c:if test="${empty requestScope.employees }">
没有任何员工信息
</c:if>
<c:if test="${!empty requestScope.employees }">
<table border="1" cellpadding="10" cellspacing="0">
<tr>
<th>ID</th>
<th>LastName</th>
<th>Email</th>
<th>Sex</th>
<th>Department</th>
<th>Edit</th>
<th>Delete</th>
</tr>
<c:forEach items="${requestScope.employees }" var="emp">
<tr>
<td>${emp.id }</td>
<td>${emp.lastName }</td>
<td>${emp.email }</td>
<td>${emp.sex == 0 ? "女" : "男" }</td>
<td>${emp.department.name }</td>
<td>
<a href="">Edit</a>
</td>
<td>
<a href="">Delete</a>
</td>
</tr>
</c:forEach>
</table>
</c:if>
</body>
</html>
添加员工
list.jsp,添加如下链接来添加员工
...
...
</c:forEach>
</table>
</c:if>
<br><br>
<a href="emp">Add Employee</a>
</body>
</html>
点击上面那个链接就会跳转到添加员工页面
EmployeeController.java,添加跳转添加页面方法:
/**
* 跳转到添加页面
*
* @param map
* @return
*/
@RequestMapping(value="/emp", method=RequestMethod.GET)
public String add(Map<String, Object> map) {
map.put("departments", departmentDao.getDepartments());
map.put("employee", new Employee());
return "add";
}
由于要在添加员工页面中显示部门信息,所以要先查询,再放入请求域中。
在views目录下创建add.jsp,其内容为:
<%@ page language="java" import="java.util.*" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="form" uri="http://www.springframework.org/tags/form" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>添加员工</title>
</head>
<body>
<!-- 使用spring的form标签 -->
<form:form action="emp" method="POST" modelAttribute="employee">
<!-- path对应html中的name属性 -->
LastName:<form:input path="lastName" /><br>
Email:<form:input path="Email" /><br>
<%
Map<String, String> sexs = new HashMap<String, String>();
sexs.put("0", "女");
sexs.put("1", "男");
request.setAttribute("sexs", sexs);
%>
Sex:<form:radiobuttons path="sex" items="${sexs }"/><br>
Department:<form:select path="department.id" items="${departments }"
itemLabel="name" itemValue="id"></form:select>
<input type="submit" value="添加" />
</form:form>
</body>
</html>
使用的是spring中的form表单提交
后台执行添加员工操作(EmployeeController.java添加 如下方法):
/**
* 执行添加员工操作
*
* @param employee
* @return
*/
@RequestMapping(value="/emp", method=RequestMethod.POST)
public String addOpt(Employee employee) {
System.out.println(employee);
employeeDao.save(employee);
return "redirect:/emps";
}
添加完毕后,重定向到员工列表页面
删除员工
修改list.jsp
<c:forEach items="${requestScope.employees }" var="emp">
<tr>
<td>${emp.id }</td>
<td>${emp.lastName }</td>
<td>${emp.email }</td>
<td>${emp.sex == 0 ? "女" : "男" }</td>
<td>${emp.department.name }</td>
<td>
<a href="">Edit</a>
</td>
<td>
<a href="emp/${emp.id}">Delete</a>
</td>
</tr>
</c:forEach>
后台:
/**
* 删除员工
*
* @return
*/
@RequestMapping(value="/emp/{id}", method=RequestMethod.DELETE)
public String delete(@PathVariable("id") Integer id) {
employeeDao.delete(id);
return "redirect:/emps";
}
由于是DELETE请求,即使配置了HiddenHttpMethodFilter,但它的作用:可以把POST请求转换为DELETE请求/POST请求,但删除员工的链接是GET请求,所以,不能直接完成,需要求助js才能完成
在list.jsp中引入jquery
【注意】:要在springmvc.xml中配置不拦截静态资源
<!-- 不拦截静态资源 -->
<mvc:default-servlet-handler/>
作用:
静态资源若没有经过映射请求,则交给WEB应用服务器默认的servlet处理;否则,交给springmvc前端控制器处理
有了上述配置之后,可以访问js文件,但是原有的url(/emps)都会失效。此时还需要添加一个配置
<mvc:annotation-driven />
需要两个以上的配置即可,此配置需要放在 视图解析器后面
更新员工
修改list.jsp
<c:forEach items="${requestScope.employees }" var="emp">
<tr>
<td>${emp.id }</td>
<td>${emp.lastName }</td>
<td>${emp.email }</td>
<td>${emp.sex == 0 ? "女" : "男" }</td>
<td>${emp.department.name }</td>
<td>
<a href="emp/${emp.id}">Edit</a>
</td>
<td>
<a class="delete" href="emp/${emp.id}">Delete</a>
</td>
</tr>
</c:forEach>
后台:
跳转到更新页面
/**
* 跳转到更新员工信息页面
*
* @param id
* @param map
* @return
*/
@RequestMapping(value="/emp/{id}", method=RequestMethod.GET)
public String update(@PathVariable("id") Integer id, Map<String, Object> map) {
map.put("employee", employeeDao.get(id));
map.put("departments", departmentDao.getDepartments());
return "update";
}
由于更新页面与添加页面基本没什么差异,只不过更新页面需要把数据进行回显而已。所以,这里就把更新页面与添加页面合在一起了(可以把之前Controller类中的方法的“add”修改为“update”,也可以不修改)
update.jsp
<%@ page language="java" import="java.util.*" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="form" uri="http://www.springframework.org/tags/form" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>添加员工</title>
</head>
<body>
<!-- 使用spring的form标签 -->
<form:form action="${pageContext.request.contextPath}/emp" method="POST" modelAttribute="employee">
<c:if test="${employee.id == null }">
<!-- path对应html中的name属性 -->
LastName:<form:input path="lastName" /><br>
</c:if>
<c:if test="${employee.id != null }">
<form:hidden path="id"/>
<input type="hidden" name="_method" value="PUT" />
</c:if>
Email:<form:input path="Email" /><br>
<%
Map<String, String> sexs = new HashMap<String, String>();
sexs.put("0", "女");
sexs.put("1", "男");
request.setAttribute("sexs", sexs);
%>
Sex:<form:radiobuttons path="sex" items="${sexs }"/><br>
Department:<form:select path="department.id" items="${departments }"
itemLabel="name" itemValue="id"></form:select>
<input type="submit" value="添加" />
</form:form>
</body>
</html>
后台:
更新员工操作
@ModelAttribute
public void getEmployee(Map<String, Object> map,
@RequestParam(value="id", required=false)Integer id) {
if(null != id) {
map.put("employee", employeeDao.get(id));
}
}
/**
* 更新员工
*
* @param employee
* @return
*/
@RequestMapping(value="/emp", method=RequestMethod.PUT)
public String updateOpt(Employee employee) {
employeeDao.save(employee);
return "redirect:/emps";
}
由于lastName不需要修改,所以需要添加@ModelAttribute注解
