SpringBoot 自动事务管理原理

Spring 自动事务管理的实现

SpringBoot @Transactional 注解未生效 阐述了Spring 自动事务管理的实现基础为 AOP，而 Spring 对事务的处理流程可概括为以下几步：

1. 获取事务属性，即解析@Transactional注解中的参数
2. 获取事务管理器，就是在@Transactional注解中的transactionManager参数
3. 收集事务信息，当前线程的事务状态，开启事务，并在当前线程中设置事务相关参数，标注当前线程是运行在事务中的
4. 执行被拦截的方法业务代码，即被@Transactional注解标注的方法
5. 如果方法执行出现异常，做相关处理，可能会执行回滚操作或者设置回滚标志位
6. 清理事务环境，将设置到Threadlocal中的相关变量清除
7. 提交事务

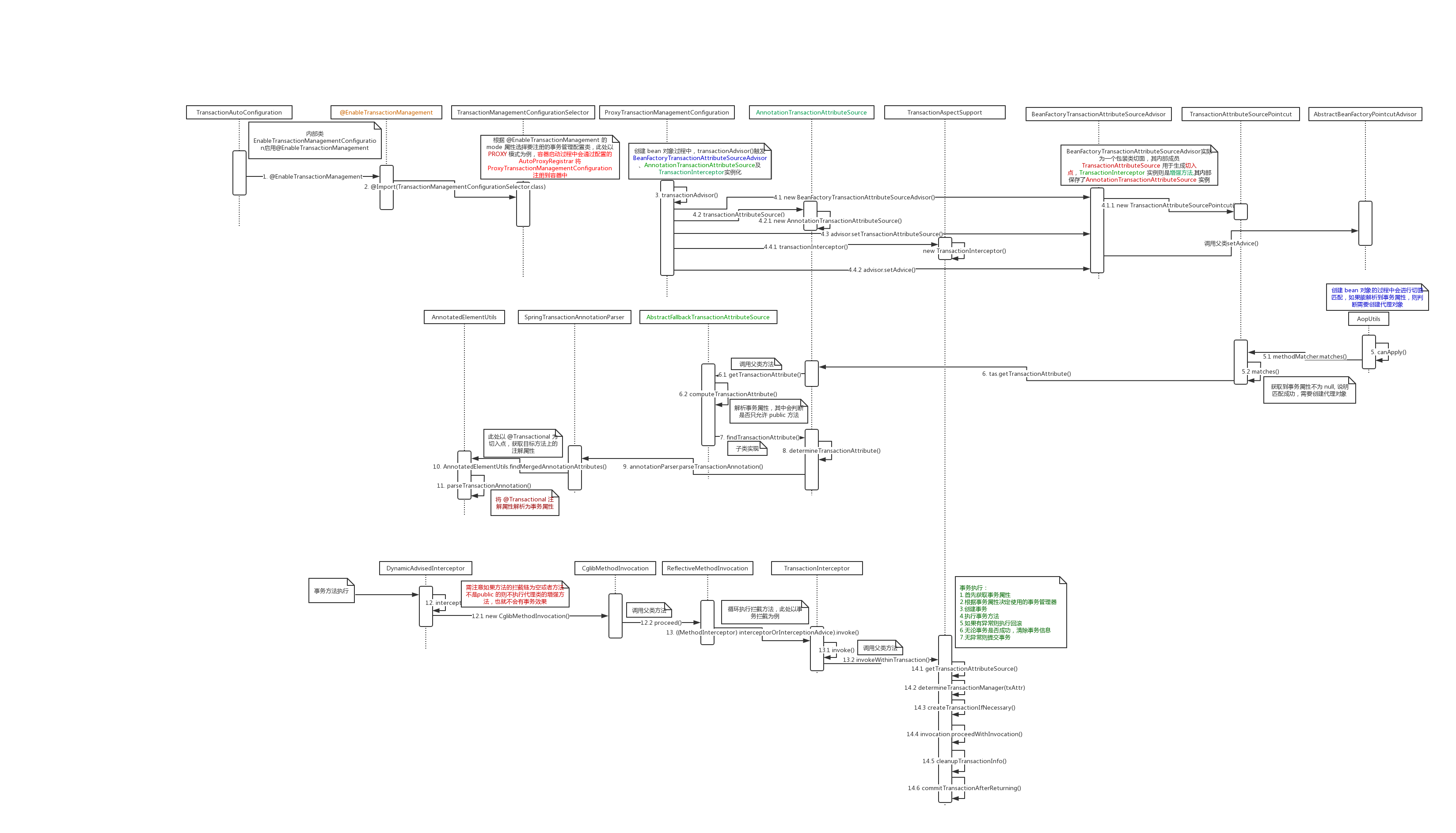

在具体分析时，结合 SpringBoot 的自动配置机制，可以将 Spring 事务的实现分为两个部分，即事务注解 Bean 的创建 与 事务执行的流程

1. 事务注解 Bean 的创建

1. 事务自动配置类TransactionAutoConfiguration在程序启动时会被加载，其内部类 EnableTransactionManagementConfiguration启用了注解@EnableTransactionManagement，从而开启了注解事务自动管理

   public static class EnableTransactionManagementConfiguration {

    	@Configuration
    	@EnableTransactionManagement(proxyTargetClass = false)
    	@ConditionalOnProperty(prefix = "spring.aop", name = "proxy-target-class", havingValue = "false", matchIfMissing = false)
    	public static class JdkDynamicAutoProxyConfiguration {

    	}

    	@Configuration
    	@EnableTransactionManagement(proxyTargetClass = true)
    	@ConditionalOnProperty(prefix = "spring.aop", name = "proxy-target-class", havingValue = "true", matchIfMissing = true)
    	public static class CglibAutoProxyConfiguration {

    	}

    }


2. @EnableTransactionManagement 通过@Import(TransactionManagementConfigurationSelector.class) 导入了配置选择者 TransactionManagementConfigurationSelector

   @Target(ElementType.TYPE)
   @Retention(RetentionPolicy.RUNTIME)
   @Documented
   @Import(TransactionManagementConfigurationSelector.class)
   public @interface EnableTransactionManagement {

       boolean proxyTargetClass() default false;

       AdviceMode mode() default AdviceMode.PROXY;

       int order() default Ordered.LOWEST_PRECEDENCE;
   }


3. TransactionManagementConfigurationSelector#selectImports() 根据 @EnableTransactionManagement 配置的增强模式 AdviceMode 来决定使用哪种事务管理配置类，通常默认采用 PROXY代理模式。以代理模式为例，容器启动过程中会通过配置的 注册者AutoProxyRegistrar将 ProxyTransactionManagementConfiguration 注册到容器中，从而使配置生效

   public class TransactionManagementConfigurationSelector extends AdviceModeImportSelector<EnableTransactionManagement> {

    /**
     * Returns {@link ProxyTransactionManagementConfiguration} or
     * {@code AspectJ(Jta)TransactionManagementConfiguration} for {@code PROXY}
     * and {@code ASPECTJ} values of {@link EnableTransactionManagement#mode()},
     * respectively.
     */
    @Override
    protected String[] selectImports(AdviceMode adviceMode) {
    	switch (adviceMode) {
    		case PROXY:
    			return new String[] {AutoProxyRegistrar.class.getName(),
    					ProxyTransactionManagementConfiguration.class.getName()};
    		case ASPECTJ:
    			return new String[] {determineTransactionAspectClass()};
    		default:
    			return null;
    	}
    }
   ......

   }



4. ProxyTransactionManagementConfiguration 作为代理模式事务管理的配置类，其内配置了对事务管理举足轻重的三个 bean。其中 BeanFactoryTransactionAttributeSourceAdvisor 作为事务增强的切面，切面内包含了TransactionInterceptor 实例作为增强，而 AnnotationTransactionAttributeSource 实例则是用于生成匹配目标 bean 的切入点

   @Configuration
   public class ProxyTransactionManagementConfiguration extends  AbstractTransactionManagementConfiguration {

    @Bean(name = TransactionManagementConfigUtils.TRANSACTION_ADVISOR_BEAN_NAME)
    @Role(BeanDefinition.ROLE_INFRASTRUCTURE)
    public BeanFactoryTransactionAttributeSourceAdvisor transactionAdvisor() {
    	BeanFactoryTransactionAttributeSourceAdvisor advisor = new BeanFactoryTransactionAttributeSourceAdvisor();
    	advisor.setTransactionAttributeSource(transactionAttributeSource());
    	advisor.setAdvice(transactionInterceptor());
    	if (this.enableTx != null) {
    		advisor.setOrder(this.enableTx.<Integer>getNumber("order"));
    	}
    	return advisor;
    }

    @Bean
    @Role(BeanDefinition.ROLE_INFRASTRUCTURE)
    public TransactionAttributeSource transactionAttributeSource() {
    	return new AnnotationTransactionAttributeSource();
    }

    @Bean
    @Role(BeanDefinition.ROLE_INFRASTRUCTURE)
    public TransactionInterceptor transactionInterceptor() {
    	TransactionInterceptor interceptor = new TransactionInterceptor();
    	interceptor.setTransactionAttributeSource(transactionAttributeSource());
    	if (this.txManager != null) {
    		interceptor.setTransactionManager(this.txManager);
    	}
    	return interceptor;
    }

   }


5. BeanFactoryTransactionAttributeSourceAdvisor 内部保存了切入点成员变量 pointcut，可以看到该成员变量实例为 TransactionAttributeSourcePointcut，这个切入点变量的作用就是匹配目标 bean

   public class BeanFactoryTransactionAttributeSourceAdvisor extends AbstractBeanFactoryPointcutAdvisor {

   @Nullable
   private TransactionAttributeSource transactionAttributeSource;

   private final TransactionAttributeSourcePointcut pointcut = new TransactionAttributeSourcePointcut() {
   	@Override
   	@Nullable
   	protected TransactionAttributeSource getTransactionAttributeSource() {
   		return transactionAttributeSource;
   	}
   };


   /**
    * Set the transaction attribute source which is used to find transaction
    * attributes. This should usually be identical to the source reference
    * set on the transaction interceptor itself.
    * @see TransactionInterceptor#setTransactionAttributeSource
    */
   public void setTransactionAttributeSource(TransactionAttributeSource transactionAttributeSource) {
   	this.transactionAttributeSource = transactionAttributeSource;
   }

   /**
    * Set the {@link ClassFilter} to use for this pointcut.
    * Default is {@link ClassFilter#TRUE}.
    */
   public void setClassFilter(ClassFilter classFilter) {
   	this.pointcut.setClassFilter(classFilter);
   }

   @Override
   public Pointcut getPointcut() {
   	return this.pointcut;
   }

   }



6. 通过以上步骤事务方法的切面就配置完成了，接下来就是切面与目标 bean 的匹配。这部分详细流程参考 Spring AOP 创建代理对象源码分析 可知匹配的最终过程是在 AopUtils#canApply()方法中完成的，此处以事务增强的例子着重分析具体的匹配过程。首先进入 AopUtils#canApply()，可看到该方法中首先通过 pc.getMethodMatcher() 获取到切入点中的方法匹配者MethodMatcher对象，之后调用其 matches() 方法将切面中的增强方法与目标 bean 进行匹配

   public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {
    ......

    MethodMatcher methodMatcher = pc.getMethodMatcher();

    ......

    for (Class<?> clazz : classes) {
    	Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);
    	for (Method method : methods) {
    		if (introductionAwareMethodMatcher != null ?
    				introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions) :
    				methodMatcher.matches(method, targetClass)) {
    			return true;
    		}
    	}
    }
    return false;
    }


7. 从 步骤5 可知，事务增强的切入点对象实例为 TransactionAttributeSourcePointcut，查看其matchs()方法实现，可知其根据 TransactionAttributeSource#getTransactionAttribute() 方法去获取事务属性，如果不为空即可匹配成功。而从 步骤4 又可知TransactionAttributeSource的实现实例为 AnnotationTransactionAttributeSource

   @Override
    public boolean matches(Method method, Class<?> targetClass) {
    	if (TransactionalProxy.class.isAssignableFrom(targetClass) ||
    			PlatformTransactionManager.class.isAssignableFrom(targetClass) ||
    			PersistenceExceptionTranslator.class.isAssignableFrom(targetClass)) {
    		return false;
    	}
    	TransactionAttributeSource tas = getTransactionAttributeSource();
    	return (tas == null || tas.getTransactionAttribute(method, targetClass) != null);
    }


8. AnnotationTransactionAttributeSource 继承自AbstractFallbackTransactionAttributeSource，getTransactionAttribute()方法的实现其实是在AbstractFallbackTransactionAttributeSource 中，其内部会调用computeTransactionAttribute()方法去计算解析事务属性，这个方法的核心为调用 findTransactionAttribute()，需注意方法内会判断目标方法的访问修饰符，如果不是public 直接返回 null

   public TransactionAttribute getTransactionAttribute(Method method, @Nullable Class<?> targetClass) {
   // Don't allow no-public methods as required.
    	if (allowPublicMethodsOnly() && !Modifier.isPublic(method.getModifiers())) {
    		return null;
    	}
    	......
    		// We need to work it out.
    		TransactionAttribute txAttr = computeTransactionAttribute(method, targetClass);
    	......
    		return txAttr;
    	}
    }


9. findTransactionAttribute()方法的实现在 AnnotationTransactionAttributeSource 中，其核心流程为调用内部的determineTransactionAttribute()方法解析目标方法，核心的解析类为 TransactionAnnotationParser接口的子类

   protected TransactionAttribute findTransactionAttribute(Method method) {
    	return determineTransactionAttribute(method);
    }

   protected TransactionAttribute determineTransactionAttribute(AnnotatedElement element) {
    	for (TransactionAnnotationParser annotationParser : this.annotationParsers) {
    		TransactionAttribute attr = annotationParser.parseTransactionAnnotation(element);
    		if (attr != null) {
    			return attr;
    		}
    	}
    	return null;
    }


10. TransactionAnnotationParser接口的实现类有 3 个，其中以@Transactional注解的事务方法由 SpringTransactionAnnotationParser#parseTransactionAnnotation() 解析，经过该步骤会将@Transactional的注解属性解析为事务属性 TransactionAttribute。至此，根据是否能够从目标方法上解析出事务属性，就能够判断事务切面与目标 bean 是否匹配，从而决定是否要创建目标 bean 的事务代理对象

    public TransactionAttribute parseTransactionAnnotation(AnnotatedElement element) {
    	AnnotationAttributes attributes = AnnotatedElementUtils.findMergedAnnotationAttributes(
    			element, Transactional.class, false, false);
    	if (attributes != null) {
    		return parseTransactionAnnotation(attributes);
    	}
    	else {
    		return null;
    	}
    }


2. 事务执行的流程

2.1 事务拦截器拦截方法的触发

1. 事务注解的 bean 的代理对象被创建后，事务方法被调用时则触发 aop 方法拦截， DynamicAdvisedInterceptor#intercept()方法被调用，需注意如果方法的拦截链为空(类内部调用)并且方法是 public 的则不执行代理类的增强方法，也就不会有事务效果。不满足该条件则先创建 CglibMethodInvocation 对象，并调用对象的proceed()方法

   public Object intercept(Object proxy, Method method, Object[] args, MethodProxy methodProxy) throws Throwable {
    		Object oldProxy = null;
    		boolean setProxyContext = false;
    		Object target = null;
    		TargetSource targetSource = this.advised.getTargetSource();
    		try {
    			if (this.advised.exposeProxy) {
    				// Make invocation available if necessary.
    				oldProxy = AopContext.setCurrentProxy(proxy);
    				setProxyContext = true;
    			}
    			// Get as late as possible to minimize the time we "own" the target, in case it comes from a pool...
    			target = targetSource.getTarget();
    			Class<?> targetClass = (target != null ? target.getClass() : null);
    			List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);
    			Object retVal;
    			// Check whether we only have one InvokerInterceptor: that is,
    			// no real advice, but just reflective invocation of the target.
    			if (chain.isEmpty() && Modifier.isPublic(method.getModifiers())) {
    				// We can skip creating a MethodInvocation: just invoke the target directly.
    				// Note that the final invoker must be an InvokerInterceptor, so we know
    				// it does nothing but a reflective operation on the target, and no hot
    				// swapping or fancy proxying.
    				Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
    				retVal = methodProxy.invoke(target, argsToUse);
    			}
    			else {
    				// We need to create a method invocation...
    				retVal = new CglibMethodInvocation(proxy, target, method, args, targetClass, chain, methodProxy).proceed();
    			}
    			retVal = processReturnType(proxy, target, method, retVal);
    			return retVal;
    		}
    		finally {
    			if (target != null && !targetSource.isStatic()) {
    				targetSource.releaseTarget(target);
    			}
    			if (setProxyContext) {
    				// Restore old proxy.
    				AopContext.setCurrentProxy(oldProxy);
    			}
    		}
    	}


2. proceed()方法的实现实际是在 CglibMethodInvocation 的父类ReflectiveMethodInvocation 中。该方法会被递归调用，直到拦截裢最后一个拦截器的拦截方法通过 invokeJoinpoint() 真正执行，递归开始收束，整个拦截链上的拦截方法都会被执行。对于事务场景，此处调用事务拦截器TransactionInterceptor#invoke() 方法

    public Object proceed() throws Throwable {

    	......

    	else {
    		// It's an interceptor, so we just invoke it: The pointcut will have
    		// been evaluated statically before this object was constructed.
    		return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
    	}
    }


3. TransactionInterceptor#invoke() 方法其实只是调用了其父类TransactionAspectSupport的 invokeWithinTransaction()方法，这个方法中执行@Transcational修饰的方法的事务操作

   protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass,
    		final InvocationCallback invocation) throws Throwable {

    	// If the transaction attribute is null, the method is non-transactional.
    	// 1. 获取事务的属性
    	TransactionAttributeSource tas = getTransactionAttributeSource();
    	final TransactionAttribute txAttr = (tas != null ? tas.getTransactionAttribute(method, targetClass) : null);
    	// 2. 获取事务管理器
    	final PlatformTransactionManager tm = determineTransactionManager(txAttr);
    	final String joinpointIdentification = methodIdentification(method, targetClass, txAttr);
        // Spring 自动管理的声明式事务
    	if (txAttr == null || !(tm instanceof CallbackPreferringPlatformTransactionManager)) {
    		// Standard transaction demarcation with getTransaction and commit/rollback calls.

            // 3. 解析事务属性，状态，开启事务，在Threadlocal中设置相关变量
    		TransactionInfo txInfo = createTransactionIfNecessary(tm, txAttr, joinpointIdentification);

    		Object retVal;
    		try {
    			// This is an around advice: Invoke the next interceptor in the chain.
    			// This will normally result in a target object being invoked.
    			// 4. 执行被@Transactional注解标注的业务方法
    			retVal = invocation.proceedWithInvocation();
    		}
    		catch (Throwable ex) {
    			// target invocation exception
    			// 5. 如果允许出现异常，执行处理，如回滚操作
    			completeTransactionAfterThrowing(txInfo, ex);
    			throw ex;
    		}
    		finally {
    		    // 6.清理事务环境，将第3步中 ThreadLocal 中设置的变量清除
    			cleanupTransactionInfo(txInfo);
    		}
    		// 7.提交事务
    		commitTransactionAfterReturning(txInfo);
    		return retVal;
    	}
       // 手动管理的事务
    	else {
    		......
    		}
    }


2.2 事务执行的详细流程

2.2.1 获取事务属性

tas.getTransactionAttribute()方法获取事务属性 TransactionAttribute，该部分与事务 bean 创建中的步骤8完全相同。通常情况下，在 bean 创建的时候已经扫描@Transactional然后把属性存到缓存中，因此这里会从缓存里取，这样不用每次调用这个方法时都去解析一遍

2.2.2 获取事务管理器

determineTransactionManager()方法获取PlatformTransactionManager 事务管理器。事务管理器保存着当前的数据源DataSource，一个事务管理器对应一个数据源，它对外提供对该数据源的事务提交回滚等操作接口，以其子类实现 DataSourceTransactionManager为例，其中提供了许多事务相关的操作方法。事务管理器的获取有两种途径：[1].首先从注解中解析获得 [2].如果注解中没有标明，则从容器中找到一个实现了PlatformTransactionManager接口的Bean，如果这种接口的bean有多个，同时没有使用@Primary标注的话，就会报错，具体可参考 DefaultListableBeanFactory#resolveNamedBean()方法的实现。所以在写@Transactional注解时尽量指定 transactionManager 参数，以便开启指定数据库的事务，否则当程序中有多个数据源时，如果使用了错误的事务管理器，事务显然是不会生效的

protected PlatformTransactionManager determineTransactionManager(@Nullable TransactionAttribute txAttr) {
 	// Do not attempt to lookup tx manager if no tx attributes are set
 	if (txAttr == null || this.beanFactory == null) {
 		return getTransactionManager();
 	}

 	String qualifier = txAttr.getQualifier();
 	if (StringUtils.hasText(qualifier)) {
 		return determineQualifiedTransactionManager(this.beanFactory, qualifier);
 	}
 	else if (StringUtils.hasText(this.transactionManagerBeanName)) {
 		return determineQualifiedTransactionManager(this.beanFactory, this.transactionManagerBeanName);
 	}
 	else {
 		PlatformTransactionManager defaultTransactionManager = getTransactionManager();
 		if (defaultTransactionManager == null) {
 			defaultTransactionManager = this.transactionManagerCache.get(DEFAULT_TRANSACTION_MANAGER_KEY);
 			if (defaultTransactionManager == null) {
 				defaultTransactionManager = this.beanFactory.getBean(PlatformTransactionManager.class);
 				this.transactionManagerCache.putIfAbsent(
 						DEFAULT_TRANSACTION_MANAGER_KEY, defaultTransactionManager);
 			}
 		}
 		return defaultTransactionManager;
 	}
 }

2.2.3 开启事务

1. createTransactionIfNecessary() 方法是事务开启的入口，其核心为调用 tm.getTransaction() 去开启事务

   protected TransactionInfo createTransactionIfNecessary(@Nullable PlatformTransactionManager tm,
   		@Nullable TransactionAttribute txAttr, final String joinpointIdentification) {

   	......

   	TransactionStatus status = null;
   	if (txAttr != null) {
   		if (tm != null) {
   			status = tm.getTransaction(txAttr);
   		}
   		else {
   			if (logger.isDebugEnabled()) {
   				logger.debug("Skipping transactional joinpoint [" + joinpointIdentification +
   						"] because no transaction manager has been configured");
   			}
   		}
   	}
   	return prepareTransactionInfo(tm, txAttr, joinpointIdentification, status);
   }


2. tm.getTransaction() 方法有两种实现，此处以AbstractPlatformTransactionManager#getTransaction()分析，可以看到其大致处理流程：

   [1]. 获得事务对象DataSourceTransactionObject
   [2]. 判断当前线程是否已经在事务中
   [3]. 如果已经在一个事务中，则调用 handleExistingTransaction,根据不同的传播级别进行不同的操作
   [4]. 如果不在一个事务中，则新建事务状态，并开启事务


   public final TransactionStatus getTransaction(@Nullable TransactionDefinition definition) throws TransactionException {
    	// 1. 获取事务对象
    	Object transaction = doGetTransaction();

    	.....

    	// 2. 判断是否已经存在事务
    	if (isExistingTransaction(transaction)) {
    		// Existing transaction found -> check propagation behavior to find out how to behave.
    		// 3. 已经开启事务，根据不同传播级别执行不同操作
    		return handleExistingTransaction(definition, transaction, debugEnabled);
    	}

    	......
    	// No existing transaction found -> check propagation behavior to find out how to proceed.
    	if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_MANDATORY) {
    		throw new IllegalTransactionStateException(
    				"No existing transaction found for transaction marked with propagation 'mandatory'");
    	}
    	else if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRED ||
    			definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW ||
    			definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_NESTED) {
    		// 空挂起操作
    		SuspendedResourcesHolder suspendedResources = suspend(null);
    		......
    		try {
    			boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
    			// 3. 新建事务状态
    			DefaultTransactionStatus status = newTransactionStatus(
    					definition, transaction, true, newSynchronization, debugEnabled, suspendedResources);
    			// 4. 开启事务
    			doBegin(transaction, definition);
    			prepareSynchronization(status, definition);
    			return status;
    		}
    		catch (RuntimeException | Error ex) {
    			resume(null, suspendedResources);
    			throw ex;
    		}
    	}
    	......
    }


3. doGetTransaction() 的实现以DataSourceTransactionManager#doGetTransaction()为例，可以看到其方法体首先新建了数据源事务对象 DataSourceTransactionObject，之后以当前数据源 DataSource 为 key 从TransactionSynchronizationManager中获取到数据源的数据库连接，并将其设置到数据源事务对象中。需注意TransactionSynchronizationManager这个类是每个线程事务同步管理的代理中心，用来管理事务用到的相关资源

   protected Object doGetTransaction() {
    	DataSourceTransactionObject txObject = new DataSourceTransactionObject();
    	txObject.setSavepointAllowed(isNestedTransactionAllowed());
    	ConnectionHolder conHolder =
    			(ConnectionHolder) TransactionSynchronizationManager.getResource(obtainDataSource());
    	txObject.setConnectionHolder(conHolder, false);
    	return txObject;
    }


4. DataSourceTransactionManager#isExistingTransaction() 判断当前线程是否已经存在事务的逻辑很简单，就是通过数据源事务对象 DataSourceTransactionObject获取其数据库连接，判断该连接上的标识位 transactionActive 是否为 true

   protected boolean isExistingTransaction(Object transaction) {
    	DataSourceTransactionObject txObject = (DataSourceTransactionObject) transaction;
    	return (txObject.hasConnectionHolder() && txObject.getConnectionHolder().isTransactionActive());
    }


5. 如果当前线程已经有事务存在了，就需要调用AbstractPlatformTransactionManager#handleExistingTransaction()处理事务传播问题。以传播级别PROPAGATION_REQUIRES_NEW 为例，可以看到 Spring 会执行一个suspend()操作清空线程中保存的当前事务属性并将其存储到 SuspendedResourcesHolder 对象中用于异常恢复，然后创建一个新的TransactionStatus对象用于doBegin()开启事务，整个过程也就是挂起当前事务开启一个新事务。之后对于REQUIRED的传播级别，则是直接返回，没有挂起和doBegin()的操作。

   private TransactionStatus handleExistingTransaction(
    		TransactionDefinition definition, Object transaction, boolean debugEnabled)
    		throws TransactionException {

    	......
    	if (definition.getPropagationBehavior() == TransactionDefinition.PROPAGATION_REQUIRES_NEW) {

    		......

            // 挂起事务
    		SuspendedResourcesHolder suspendedResources = suspend(transaction);
    		try {
    			boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
    			// 新建事务状态对象
    			DefaultTransactionStatus status = newTransactionStatus(
    					definition, transaction, true, newSynchronization, debugEnabled, suspendedResources);
    			doBegin(transaction, definition);
    			prepareSynchronization(status, definition);
    			return status;
    		}
    		catch (RuntimeException | Error beginEx) {
    			resumeAfterBeginException(transaction, suspendedResources, beginEx);
    			throw beginEx;
    		}
    	}

       ......
       // Assumably PROPAGATION_SUPPORTS or PROPAGATION_REQUIRED.
       ......
    	boolean newSynchronization = (getTransactionSynchronization() != SYNCHRONIZATION_NEVER);
    	return prepareTransactionStatus(definition, transaction, false, newSynchronization, debugEnabled, null);
    }


6. 如果当前线程不存在事务，就调用AbstractPlatformTransactionManager#newTransactionStatus()方法新建DefaultTransactionStatus事务状态对象，再调用doBegin()开启事务。这里可以看到开启事务的具体操作con.setAutoCommit(false);，其实就是原生JDBC开启事务的方式，获取数据库连接再将其自动提交关闭

   protected void doBegin(Object transaction, TransactionDefinition definition) {
    	DataSourceTransactionObject txObject = (DataSourceTransactionObject) transaction;
    	Connection con = null;

    	......
    	    // 获取数据库连接
    		con = txObject.getConnectionHolder().getConnection();

    		Integer previousIsolationLevel = DataSourceUtils.prepareConnectionForTransaction(con, definition);
    		txObject.setPreviousIsolationLevel(previousIsolationLevel);

    		// Switch to manual commit if necessary. This is very expensive in some JDBC drivers,
    		// so we don't want to do it unnecessarily (for example if we've explicitly
    		// configured the connection pool to set it already).
    		if (con.getAutoCommit()) {
    			txObject.setMustRestoreAutoCommit(true);
    			if (logger.isDebugEnabled()) {
    				logger.debug("Switching JDBC Connection [" + con + "] to manual commit");
    			}
    			// 开启数据库事务
    			con.setAutoCommit(false);
    		}

    		prepareTransactionalConnection(con, definition);
    		txObject.getConnectionHolder().setTransactionActive(true);
    		......

    }


2.2.4 异常回滚事务及清理事务信息

1. 回到TransactionAspectSupport#invokeWithinTransaction()事务主流程， @Transactionl注解的业务方法执行之后，就需要根据方法的执行结果来进行事务的提交或回滚。当业务方法发生异常时，Spring 会捕获该异常，并调用TransactionAspectSupport#completeTransactionAfterThrowing()方法来决定是否回滚事务。可以看到txInfo.transactionAttribute.rollbackOn(ex)决定来是否要进入回滚流程，真正的回滚操作由 txInfo.getTransactionManager().rollback(txInfo.getTransactionStatus()) 完成

   protected void completeTransactionAfterThrowing(@Nullable TransactionInfo txInfo, Throwable ex) {
    	if (txInfo != null && txInfo.getTransactionStatus() != null) {

    		if (txInfo.transactionAttribute != null && txInfo.transactionAttribute.rollbackOn(ex)) {
    			try {
    				txInfo.getTransactionManager().rollback(txInfo.getTransactionStatus());
    			}
    			catch (TransactionSystemException ex2) {
    				logger.error("Application exception overridden by rollback exception", ex);
    				ex2.initApplicationException(ex);
    				throw ex2;
    			}
    			catch (RuntimeException | Error ex2) {
    				logger.error("Application exception overridden by rollback exception", ex);
    				throw ex2;
    			}
    		}
    		else {
    			// We don't roll back on this exception.
    			// Will still roll back if TransactionStatus.isRollbackOnly() is true.
    			try {
    				txInfo.getTransactionManager().commit(txInfo.getTransactionStatus());
    			}
    			......
    		}
    	}
    }


2. txInfo.getTransactionManager().rollback(txInfo.getTransactionStatus()) 实际调用到了AbstractPlatformTransactionManager#rollback() 方法，其核心为调用 processRollback()方法，总共有三种情况：

   1、如果有保存点会回滚到保存点，这种对应着 NESTED 传播级别，利用了mysql的savepoint来实现
   2、如果是一个新的事务，则真正执行回滚操作
   3、如果是加入一个其他事务的话，则设置回滚标志位，交由父事务执行回滚操作


   据此可以知道 Spring 会通过回滚标志位来影响事务的提交和回滚。有时候方法并没有抛出异常也会回滚，比如对于 REQUIRED 传播级别，A方法调用B方法，B方法抛出异常后设置了回滚标志位，若A方法捕获此异常并不再抛出异常，看起来A方法会正常执行commit()步骤，其实由于回滚标志位的存在，A方法对应的事务依旧会回滚

   private void processRollback(DefaultTransactionStatus status, boolean unexpected) {
    	try {
    		boolean unexpectedRollback = unexpected;

    		try {
    			triggerBeforeCompletion(status);
                // 如果有保存点，则回滚到保存点
    			if (status.hasSavepoint()) {
    				if (status.isDebug()) {
    					logger.debug("Rolling back transaction to savepoint");
    				}
    				status.rollbackToHeldSavepoint();
    			}
    			// 如果是新建事务，则直接执行回滚操作
    			else if (status.isNewTransaction()) {
    				if (status.isDebug()) {
    					logger.debug("Initiating transaction rollback");
    				}
    				doRollback(status);
    			}
    			// 以上情况都不符，则是加入了其他的事务，这时不执行回滚操作，而是设置回滚标志位
    			else {
    				// Participating in larger transaction
    				if (status.hasTransaction()) {
    					if (status.isLocalRollbackOnly() || isGlobalRollbackOnParticipationFailure()) {
    						if (status.isDebug()) {
    							logger.debug("Participating transaction failed - marking existing transaction as rollback-only");
    						}
    						doSetRollbackOnly(status);
    					}
    		......
    }


3. 不管事务都执行结果如何，都会在 finally中执行cleanupTransactionInfo(txInfo)，将此次事务相关信息从当前线程中清除

2.2.5 正常提交事务

1. @Transactionl注解的业务方法执行成功，此时需要调用TransactionAspectSupport#commitTransactionAfterReturning()方法进行事务的提交，这个方法的核心是txInfo.getTransactionManager().commit(txInfo.getTransactionStatus())调用事务管理器的提交方法commit()

protected void commitTransactionAfterReturning(@Nullable TransactionInfo txInfo) {
		if (txInfo != null && txInfo.getTransactionStatus() != null) {
			if (logger.isTraceEnabled()) {
				logger.trace("Completing transaction for [" + txInfo.getJoinpointIdentification() + "]");
			}
			txInfo.getTransactionManager().commit(txInfo.getTransactionStatus());
		}
	}

2. 与回滚类似，实际调用到了AbstractPlatformTransactionManager#commit() 方法，最终调用到processCommit()方法。此时也并不一定会执行提交操作，而是首先判断是否有savepoint保存点。有保存点，说明是内嵌在其他事务中的子事务，此时释放保存点，不会真正提交。其次判断是否是一个新的事务，如果是新事务直接执行提交。至此，Spring 事务执行流程全部完成

   private void processCommit(DefaultTransactionStatus status) throws TransactionException {
    	try {
    		boolean beforeCompletionInvoked = false;

    		try {
    			......
    			// 有保存点，说明是内嵌在其他事务中的子事务，释放保存点，不会真正提交
    			if (status.hasSavepoint()) {
    				if (status.isDebug()) {
    					logger.debug("Releasing transaction savepoint");
    				}
    				unexpectedRollback = status.isGlobalRollbackOnly();
    				status.releaseHeldSavepoint();
    			}
    			// 是新事务直接执行提交
    			else if (status.isNewTransaction()) {
    				if (status.isDebug()) {
    					logger.debug("Initiating transaction commit");
    				}
    				unexpectedRollback = status.isGlobalRollbackOnly();
    				doCommit(status);
    			}
    			else if (isFailEarlyOnGlobalRollbackOnly()) {
    				unexpectedRollback = status.isGlobalRollbackOnly();
    			}

    			// Throw UnexpectedRollbackException if we have a global rollback-only
    			// marker but still didn't get a corresponding exception from commit.
    			if (unexpectedRollback) {
    				throw new UnexpectedRollbackException(
    						"Transaction silently rolled back because it has been marked as rollback-only");
    			}
    		}
    		......
    }
