MyBatis(三)MyBatis基本流程源码分析

MyBatis源码解读和工作原理

我们可以从MyBatis最基本的使用着手看源码

@Test
public void Test() throws IOException {
        String resource = "mybatis-config.xml";
        InputStream inputStream = Resources.getResourceAsStream(resource);
        //1.通过SqlSessionFactoryBuilder解析配置文件创建工厂类SqlSessionFactory
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
        //2.通过SqlSessionFactory创建SqlSession
        SqlSession session = sqlSessionFactory.openSession();
        try {
            //3.获得一个Mapper对象
            BlogMapper mapper = session.getMapper(BlogMapper.class);
            //4.执行对应的方法
            Blog blog = mapper.selectBlogById(1);
            System.out.println(blog);
        } finally {
            session.close();
        }
    }

配置解析

 public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
        SqlSessionFactory var5;
        try {
            //MyBatis有各种各样的XMLXXXBuilder,ConfigBuilder用来解析mybatis-config.xml,还有XMLMapperBuilder,XMLStatementBuilder等
            //它们都继承自抽象父类BaseBuilder
            XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
            var5 = this.build(parser.parse());
        } catch (Exception var14) {
            throw ExceptionFactory.wrapException("Error building SqlSession.", var14);
        } finally {
            ErrorContext.instance().reset();
            try {
                inputStream.close();
            } catch (IOException var13) {
            }

        }
        return var5;
    }

 public Configuration parse() {
        //如果解析过配置文件就不会报错，MyBatis的配置文件只在启动的时候解析一次就够了
        if (this.parsed) {
            throw new BuilderException("Each XMLConfigBuilder can only be used once.");
        } else {
            this.parsed = true;
            //真正解析配置文件的方法，从根节点configuration开始解析mybatis-config.xml
            this.parseConfiguration(this.parser.evalNode("/configuration"));
            return this.configuration;
        }
    }

//解析mybatis-config.xml里的各种标签
private void parseConfiguration(XNode root) {
        try {
            this.propertiesElement(root.evalNode("properties"));
            Properties settings = this.settingsAsProperties(root.evalNode("settings"));
            this.loadCustomVfs(settings);
            this.loadCustomLogImpl(settings);
            this.typeAliasesElement(root.evalNode("typeAliases"));
            this.pluginElement(root.evalNode("plugins"));
            this.objectFactoryElement(root.evalNode("objectFactory"));
            this.objectWrapperFactoryElement(root.evalNode("objectWrapperFactory"));
            this.reflectorFactoryElement(root.evalNode("reflectorFactory"));
            this.settingsElement(settings);
            this.environmentsElement(root.evalNode("environments"));
            this.databaseIdProviderElement(root.evalNode("databaseIdProvider"));
            //解析TypeHandler，最后存储在Map<Type, Map<JdbcType, TypeHandler<?>>> 的嵌套Map里
            this.typeHandlerElement(root.evalNode("typeHandlers"));
            this.mapperElement(root.evalNode("mappers"));
        } catch (Exception var3) {
            throw new BuilderException("Error parsing SQL Mapper Configuration. Cause: " + var3, var3);
        }
    }


private void propertiesElement(XNode context) throws Exception {
        //解析Properties标签的时候会获取子标签和属性字段
        if (context != null) {
            Properties defaults = context.getChildrenAsProperties();
            String resource = context.getStringAttribute("resource");
            String url = context.getStringAttribute("url");
            if (resource != null && url != null) {
                throw new BuilderException("The properties element cannot specify both a URL and a resource based property file reference.  Please specify one or the other.");
            }

            if (resource != null) {
                defaults.putAll(Resources.getResourceAsProperties(resource));
            } else if (url != null) {
                defaults.putAll(Resources.getUrlAsProperties(url));
            }

            Properties vars = this.configuration.getVariables();
            if (vars != null) {
                defaults.putAll(vars);
            }
            //把解析得到的Properties对象defaults赋值给XPathParser和configuration对象
            this.parser.setVariables(defaults);
            this.configuration.setVariables(defaults);
        }

    }

 private void typeAliasesElement(XNode parent) {
        if (parent != null) {
            Iterator var2 = parent.getChildren().iterator();

            while(var2.hasNext()) {
                XNode child = (XNode)var2.next();
                String alias;
                if ("package".equals(child.getName())) {
                    alias = child.getStringAttribute("name");
                    this.configuration.getTypeAliasRegistry().registerAliases(alias);
                } else {
                    alias = child.getStringAttribute("alias");
                    String type = child.getStringAttribute("type");

                    try {
                        Class<?> clazz = Resources.classForName(type);
                        if (alias == null) {
                            this.typeAliasRegistry.registerAlias(clazz);
                        } else {
                            //会把配置的别名和类型注册到typeAliasRegistry里
                            this.typeAliasRegistry.registerAlias(alias, clazz);
                        }
                    } catch (ClassNotFoundException var7) {
                        throw new BuilderException("Error registering typeAlias for '" + alias + "'. Cause: " + var7, var7);
                    }
                }
            }
        }


 //解析对应的plugins标签，保存到InterceptorChain的Interceptor集合里
 private void pluginElement(XNode parent) throws Exception {
        if (parent != null) {
            Iterator var2 = parent.getChildren().iterator();

            while(var2.hasNext()) {
                XNode child = (XNode)var2.next();
                String interceptor = child.getStringAttribute("interceptor");
                Properties properties = child.getChildrenAsProperties();
                Interceptor interceptorInstance = (Interceptor)this.resolveClass(interceptor).newInstance();
                interceptorInstance.setProperties(properties);
                this.configuration.addInterceptor(interceptorInstance);
            }
        }

    }


 public void addInterceptor(Interceptor interceptor) {
        this.interceptorChain.addInterceptor(interceptor);
    }

//对于settings标签的子标签的处理
//二级标签里面有很多的配置，比如二级缓存，延迟加载等。之前提到的所有的默认值，都是在这里赋值的
private void settingsElement(Properties props) {
        this.configuration.setAutoMappingBehavior(AutoMappingBehavior.valueOf(props.getProperty("autoMappingBehavior", "PARTIAL")));
        this.configuration.setAutoMappingUnknownColumnBehavior(AutoMappingUnknownColumnBehavior.valueOf(props.getProperty("autoMappingUnknownColumnBehavior", "NONE")));
        this.configuration.setCacheEnabled(this.booleanValueOf(props.getProperty("cacheEnabled"), true));
        this.configuration.setProxyFactory((ProxyFactory)this.createInstance(props.getProperty("proxyFactory")));
        this.configuration.setLazyLoadingEnabled(this.booleanValueOf(props.getProperty("lazyLoadingEnabled"), false));
        this.configuration.setAggressiveLazyLoading(this.booleanValueOf(props.getProperty("aggressiveLazyLoading"), false));
        this.configuration.setMultipleResultSetsEnabled(this.booleanValueOf(props.getProperty("multipleResultSetsEnabled"), true));
        this.configuration.setUseColumnLabel(this.booleanValueOf(props.getProperty("useColumnLabel"), true));
        this.configuration.setUseGeneratedKeys(this.booleanValueOf(props.getProperty("useGeneratedKeys"), false));
        this.configuration.setDefaultExecutorType(ExecutorType.valueOf(props.getProperty("defaultExecutorType", "SIMPLE")));
        this.configuration.setDefaultStatementTimeout(this.integerValueOf(props.getProperty("defaultStatementTimeout"), (Integer)null));
        this.configuration.setDefaultFetchSize(this.integerValueOf(props.getProperty("defaultFetchSize"), (Integer)null));
        this.configuration.setMapUnderscoreToCamelCase(this.booleanValueOf(props.getProperty("mapUnderscoreToCamelCase"), false));
        this.configuration.setSafeRowBoundsEnabled(this.booleanValueOf(props.getProperty("safeRowBoundsEnabled"), false));
        this.configuration.setLocalCacheScope(LocalCacheScope.valueOf(props.getProperty("localCacheScope", "SESSION")));
        this.configuration.setJdbcTypeForNull(JdbcType.valueOf(props.getProperty("jdbcTypeForNull", "OTHER")));
        this.configuration.setLazyLoadTriggerMethods(this.stringSetValueOf(props.getProperty("lazyLoadTriggerMethods"), "equals,clone,hashCode,toString"));
        this.configuration.setSafeResultHandlerEnabled(this.booleanValueOf(props.getProperty("safeResultHandlerEnabled"), true));
        this.configuration.setDefaultScriptingLanguage(this.resolveClass(props.getProperty("defaultScriptingLanguage")));
        this.configuration.setDefaultEnumTypeHandler(this.resolveClass(props.getProperty("defaultEnumTypeHandler")));
        this.configuration.setCallSettersOnNulls(this.booleanValueOf(props.getProperty("callSettersOnNulls"), false));
        this.configuration.setUseActualParamName(this.booleanValueOf(props.getProperty("useActualParamName"), true));
        this.configuration.setReturnInstanceForEmptyRow(this.booleanValueOf(props.getProperty("returnInstanceForEmptyRow"), false));
        this.configuration.setLogPrefix(props.getProperty("logPrefix"));
        this.configuration.setConfigurationFactory(this.resolveClass(props.getProperty("configurationFactory")));
    }
...对于其他的标签就不一一解释了

再分析下关于Mapper的解析

//如果Mapper引入的时候使用的Mapper的class,会调用addMapper注册到MapperRegistry里，保存在
Map<Class<?>, MapperProxyFactory<?>>容器里
//如果引入使用的mapper.xml,会通过XMLMapperBuilder来解析mapper配置文件
 private void mapperElement(XNode parent) throws Exception {
        if (parent != null) {
            Iterator var2 = parent.getChildren().iterator();

            while(true) {
                while(var2.hasNext()) {
                    XNode child = (XNode)var2.next();
                    String resource;
                    if ("package".equals(child.getName())) {
                        resource = child.getStringAttribute("name");
                        this.configuration.addMappers(resource);
                    } else {
                        resource = child.getStringAttribute("resource");
                        String url = child.getStringAttribute("url");
                        String mapperClass = child.getStringAttribute("class");
                        //通过XMLMapperBuilder来解析Mapper
                        XMLMapperBuilder mapperParser;
                        InputStream inputStream;
                        if (resource != null && url == null && mapperClass == null) {
                            ErrorContext.instance().resource(resource);
                            inputStream = Resources.getResourceAsStream(resource);
                            mapperParser = new XMLMapperBuilder(inputStream, this.configuration, resource, this.configuration.getSqlFragments());
                            mapperParser.parse();
                        } else if (resource == null && url != null && mapperClass == null) {
                            ErrorContext.instance().resource(url);
                            inputStream = Resources.getUrlAsStream(url);
                            mapperParser = new XMLMapperBuilder(inputStream, this.configuration, url, this.configuration.getSqlFragments());
                            mapperParser.parse();
                        } else {
                            if (resource != null || url != null || mapperClass == null) {
                                throw new BuilderException("A mapper element may only specify a url, resource or class, but not more than one.");
                            }

                            Class<?> mapperInterface = Resources.classForName(mapperClass);
                            this.configuration.addMapper(mapperInterface);
                        }
                    }
                }

                return;
            }
        }
    }


//XMLMapperBuilder的解析过程
public void parse() {
        if (!this.configuration.isResourceLoaded(this.resource)) {
            //解析所有的子标签,其中buildStatementFromContext()会获得MappedStatement对象
            this.configurationElement(this.parser.evalNode("/mapper"));
            this.configuration.addLoadedResource(this.resource);
            //通过namespace把mapper.xml和Mapper类绑定起来，会调用Configuration的addMapper方法
            this.bindMapperForNamespace();
        }

        this.parsePendingResultMaps();
        this.parsePendingCacheRefs();
        this.parsePendingStatements();
    }

public <T> void addMapper(Class<T> type) {
        if (type.isInterface()) {
            if (this.hasMapper(type)) {
                throw new BindingException("Type " + type + " is already known to the MapperRegistry.");
            }

            boolean loadCompleted = false;

            try {
                this.knownMappers.put(type, new MapperProxyFactory(type));
                MapperAnnotationBuilder parser = new MapperAnnotationBuilder(this.config, type);
                parser.parse();
                loadCompleted = true;
            } finally {
                if (!loadCompleted) {
                    this.knownMappers.remove(type);
                }

            }
        }

    }

public void parse() {
        String resource = this.type.toString();
        if (!this.configuration.isResourceLoaded(resource)) {
            this.loadXmlResource();
            this.configuration.addLoadedResource(resource);
            this.assistant.setCurrentNamespace(this.type.getName());
            this.parseCache();
            this.parseCacheRef();
            Method[] methods = this.type.getMethods();
            Method[] var3 = methods;
            int var4 = methods.length;

            for(int var5 = 0; var5 < var4; ++var5) {
                Method method = var3[var5];

                try {
                    if (!method.isBridge()) {
                        this.parseStatement(method);
                    }
                } catch (IncompleteElementException var8) {
                    this.configuration.addIncompleteMethod(new MethodResolver(this, method));
                }
            }
        }

        this.parsePendingMethods();
    }

在addMapper里，会创建一个MapperAnnotationBuilder对象来对注解进行处理
parseCache() 和 parseCacheRef() 方 法 其 实 是 对 @CacheNamespace 和@CacheNamespaceRef这两个注解的处理。
parseStatement()方法里也都是对注解的解析，比如@Options，@SelectKey，@ResultMap等。
最后同样会解析成 MappedStatement 对象

解析完成后的build方法会使用Configuration创建一个DefaultSqlSessionFactory对象

public SqlSessionFactory build(InputStream inputStream, String environment, Properties properties) {
        SqlSessionFactory var5;
        try {
            XMLConfigBuilder parser = new XMLConfigBuilder(inputStream, environment, properties);
            var5 = this.build(parser.parse());
        } catch (Exception var14) {
            throw ExceptionFactory.wrapException("Error building SqlSession.", var14);
        } finally {
            ErrorContext.instance().reset();

            try {
                inputStream.close();
            } catch (IOException var13) {
            }

        }

        return var5;
}

public SqlSessionFactory build(Configuration config) {
        return new DefaultSqlSessionFactory(config);
}

会话创建过程

//这里创建DefaultSqlSession会先通过configuration里的environment创建一个事务工厂
//再通过事务和定义的执行器类型创建对应的Executor,这是真正执行SQL的核心类
private SqlSession openSessionFromDataSource(ExecutorType execType, TransactionIsolationLevel level, boolean autoCommit) {
        Transaction tx = null;

        DefaultSqlSession var8;
        try {
            Environment environment = this.configuration.getEnvironment();
            TransactionFactory transactionFactory = this.getTransactionFactoryFromEnvironment(environment);
            tx = transactionFactory.newTransaction(environment.getDataSource(), level, autoCommit);
            Executor executor = this.configuration.newExecutor(tx, execType);
            var8 = new DefaultSqlSession(this.configuration, executor, autoCommit);
        } catch (Exception var12) {
            this.closeTransaction(tx);
            throw ExceptionFactory.wrapException("Error opening session.  Cause: " + var12, var12);
        } finally {
            ErrorContext.instance().reset();
        }

        return var8;
    }

//根据不同的executorType创建对应的Executor,默认是Simple
public Executor newExecutor(Transaction transaction, ExecutorType executorType) {
        executorType = executorType == null ? this.defaultExecutorType : executorType;
        executorType = executorType == null ? ExecutorType.SIMPLE : executorType;
        Object executor;
        if (ExecutorType.BATCH == executorType) {
            executor = new BatchExecutor(this, transaction);
        } else if (ExecutorType.REUSE == executorType) {
            executor = new ReuseExecutor(this, transaction);
        } else {
            executor = new SimpleExecutor(this, transaction);
        }
        //如果配置了开启二级缓存(默认cacheEnabled = true),会使用CachingExecutor装饰executor---装饰器模式
        if (this.cacheEnabled) {
            executor = new CachingExecutor((Executor)executor);
        }
        //这里通过配置的plugin插件对executor进行处理包装  具体的原理后面说明
        Executor executor = (Executor)this.interceptorChain.pluginAll(executor);
        return executor;
    }

三种不同的Executor:

SimpleExecutor：每执行一次update或select，就开启一个Statement对象，用完立刻关闭Statement对象。
ReuseExecutor：会重复使用Statement对象。使用完之后，不关闭 Statement 对象，而是存储在 Map 内，供下一次使用
BatchExecutor：支持批处理的Executor 。

获得Mapper对象

我们通过SqlSession调用getMapper接口最终会通过mapperRegistry根据type和当前会话获取Mapper

public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
        return this.mapperRegistry.getMapper(type, sqlSession);
}

public <T> T getMapper(Class<T> type, SqlSession sqlSession) {
        MapperProxyFactory<T> mapperProxyFactory = (MapperProxyFactory)this.knownMappers.get(type);
        if (mapperProxyFactory == null) {
            throw new BindingException("Type " + type + " is not known to the MapperRegistry.");
        } else {
            try {
                return mapperProxyFactory.newInstance(sqlSession);
            } catch (Exception var5) {
                throw new BindingException("Error getting mapper instance. Cause: " + var5, var5);
            }
        }
}

-------MapperProxyFactory

 protected T newInstance(MapperProxy<T> mapperProxy) {
        return Proxy.newProxyInstance(this.mapperInterface.getClassLoader(), new Class[]{this.mapperInterface}, mapperProxy);
 }

    public T newInstance(SqlSession sqlSession) {
        MapperProxy<T> mapperProxy = new MapperProxy(sqlSession, this.mapperInterface, this.methodCache);
        return this.newInstance(mapperProxy);
    }

从上面的源码不难看出，我们获取到的Mapper实际是根据解析配置时注册的MapperProxyFactory通过动态代理生成的代理对象，这样就解释了为什么我们可以不需要创建Mapper的实现类就可以直接调用方法，因为MyBatis帮我们返回了代理对象。而我们使用Mapper只是为了根据接口类型+方法的名称，找到对应namespace下的Statement ID，所以不需要实现类，在 MapperProxy 里面直接执行SQL就可以。

执行SQL

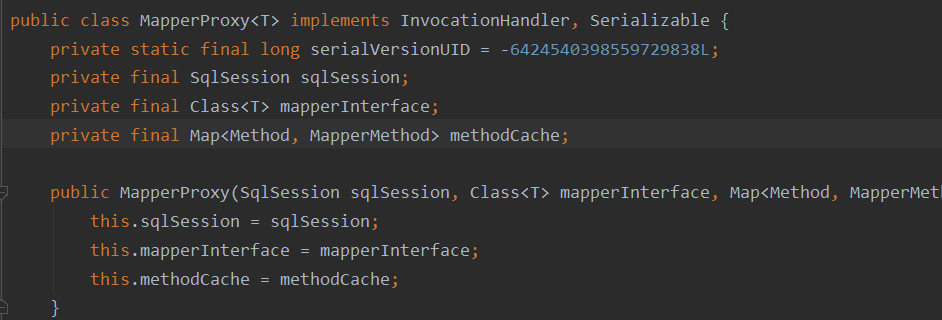

由于所有的 Mapper 都是使用 MapperProxy 增强的代理对象，所以执行任何方法其实真实执行的都是MapperProxy的invoke()方
法。

 public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        try {
            //Object本身的方法和Java 8中接口的默认方法不需要去执行SQL,直接执行原来的方法即可
            if (Object.class.equals(method.getDeclaringClass())) {
                return method.invoke(this, args);
            }
            //判断是否是默认方法(Java 8 接口中新增了默认方法)
            if (this.isDefaultMethod(method)) {
                return this.invokeDefaultMethod(proxy, method, args);
            }
        } catch (Throwable var5) {
            throw ExceptionUtil.unwrapThrowable(var5);
        }
        //获取方法缓存，这是为了提升效率，MyBatis一旦启动，方法对应的SQL也就确定了
        MapperMethod mapperMethod = this.cachedMapperMethod(method);
               //mapperMethod的execute是真正执行SQL的方法
        return mapperMethod.execute(this.sqlSession, args);
    }

------MapperMethod 对于不同类型的SQL执行不同的方法

public Object execute(SqlSession sqlSession, Object[] args) {
        Object result;
        Object param;
        switch(this.command.getType()) {
        case INSERT:
            //将方法的参数转化成SQL的参数
            param = this.method.convertArgsToSqlCommandParam(args);
            //调用sqlSession的方法来执行SQL
            result = this.rowCountResult(sqlSession.insert(this.command.getName(), param));
            break;
        case UPDATE:
            param = this.method.convertArgsToSqlCommandParam(args);
            result = this.rowCountResult(sqlSession.update(this.command.getName(), param));
            break;
        case DELETE:
            param = this.method.convertArgsToSqlCommandParam(args);
            result = this.rowCountResult(sqlSession.delete(this.command.getName(), param));
            break;
        case SELECT:
            if (this.method.returnsVoid() && this.method.hasResultHandler()) {
                this.executeWithResultHandler(sqlSession, args);
                result = null;
            } else if (this.method.returnsMany()) {
                result = this.executeForMany(sqlSession, args);
            } else if (this.method.returnsMap()) {
                result = this.executeForMap(sqlSession, args);
            } else if (this.method.returnsCursor()) {
                result = this.executeForCursor(sqlSession, args);
            } else {
                param = this.method.convertArgsToSqlCommandParam(args);
                result = sqlSession.selectOne(this.command.getName(), param);
                if (this.method.returnsOptional() && (result == null || !this.method.getReturnType().equals(result.getClass()))) {
                    result = Optional.ofNullable(result);
                }
            }
            break;
        case FLUSH:
            result = sqlSession.flushStatements();
            break;
        default:
            throw new BindingException("Unknown execution method for: " + this.command.getName());
        }

        if (result == null && this.method.getReturnType().isPrimitive() && !this.method.returnsVoid()) {
            throw new BindingException("Mapper method '" + this.command.getName() + " attempted to return null from a method with a primitive return type (" + this.method.getReturnType() + ").");
        } else {
            return result;
        }
    }

以select举例来说,之后都会执行到DefaultSqlSession的selectList方法

 public <E> List<E> selectList(String statement, Object parameter, RowBounds rowBounds) {
        List var5;
        try {
            //先通过对应的Statement ID 即command name从configuration中获得MappedStatement
            //MappedStatement包含SQL上所有的参数id,resultMap,parameterMap等
            MappedStatement ms = this.configuration.getMappedStatement(statement);
            //使用sqlSession的executor执行query方法
            var5 = this.executor.query(ms, this.wrapCollection(parameter), rowBounds, Executor.NO_RESULT_HANDLER);
        } catch (Exception var9) {
            throw ExceptionFactory.wrapException("Error querying database.  Cause: " + var9, var9);
        } finally {
            ErrorContext.instance().reset();
        }

        return var5;
}

执行query之后会先调用BaseExecutor的query()方法，最后会执行具体的执行器的doQuery方法(模板模式)

创建StatementHandler

 public <E> List<E> doQuery(MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
        Statement stmt = null;

        List var9;
        try {
            Configuration configuration = ms.getConfiguration();
            //先创建对应的StatementHandler
            StatementHandler handler = configuration.newStatementHandler(this.wrapper, ms, parameter, rowBounds, resultHandler, boundSql);
            //通过handler创建对应的Statement
            stmt = this.prepareStatement(handler, ms.getStatementLog());
            var9 = handler.query(stmt, resultHandler);
        } finally {
            this.closeStatement(stmt);
        }

        return var9;
    }

----------RoutingStatementHandler
在创建StatementHandler的时候会根据 MappedStatement 里面的 statementType 决定
StatementHandler的类型默认是PREPARED，包含ParameterHandler和ResultHandler,这里是在BaseStatementHandler(StatementHandler实现类的抽象父类)初始化的时候创建的

 public RoutingStatementHandler(Executor executor, MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) {
        switch(ms.getStatementType()) {
        case STATEMENT:
            this.delegate = new SimpleStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
            break;
        case PREPARED:
            this.delegate = new PreparedStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
            break;
        case CALLABLE:
            this.delegate = new CallableStatementHandler(executor, ms, parameter, rowBounds, resultHandler, boundSql);
            break;
        default:
            throw new ExecutorException("Unknown statement type: " + ms.getStatementType());
        }

    }

通过StatementHandler创建Statement

 private Statement prepareStatement(StatementHandler handler, Log statementLog) throws SQLException {
        Connection connection = this.getConnection(statementLog);
        Statement stmt = handler.prepare(connection, this.transaction.getTimeout());
        //对statement进行预编译，处理参数
        handler.parameterize(stmt);
        return stmt;
    }

public void parameterize(Statement statement) throws SQLException {
        this.parameterHandler.setParameters((PreparedStatement)statement);
    }

最后一步:执行SQL

public <E> List<E> query(Statement statement, ResultHandler resultHandler) throws SQLException {
        PreparedStatement ps = (PreparedStatement)statement;
        ps.execute();
        return this.resultSetHandler.handleResultSets(ps);
    }

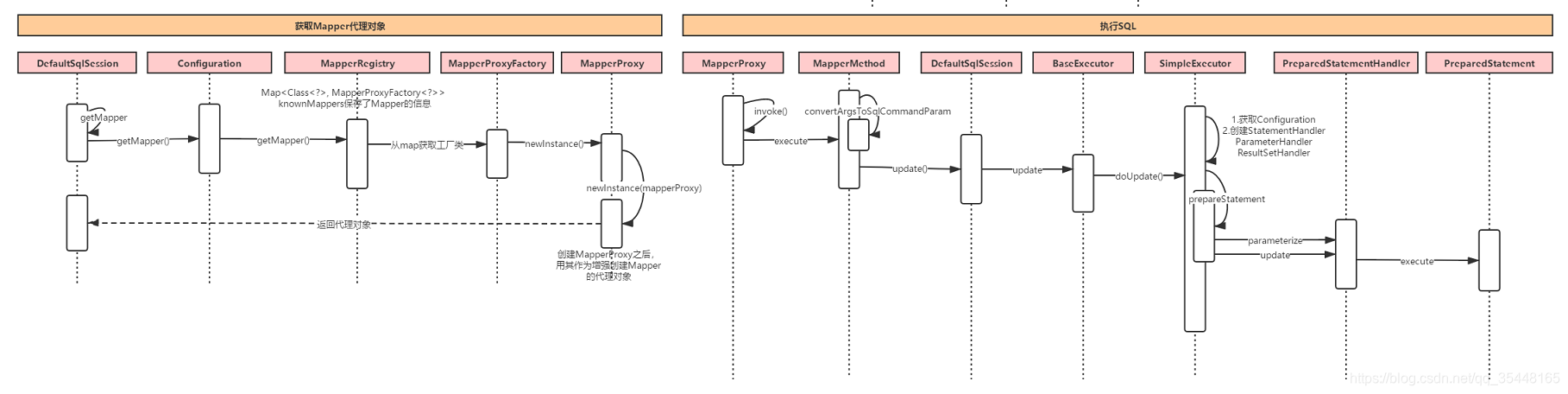

画了下时序图，这里的SQL执行画的是update:
