SpringSecurity重构登录逻辑

其他 2020-02-15 11:31:20 阅读次数: 0

将前面写的用户名密码登录、短信登录、第三方账户登录整合成OAuth2协议生成token的模式
在这里插入图片描述
AuthenticationSuccessHandler调用AuthorizationServerTokenServices返回令牌，AuthenticationSuccessHandler中含有Authentication信息，缺少OAuth2Request信息，组装OAuth2Request信息需要ClientDetails以及TokenRequest信息

用户名密码登录

  • 从请求头中获取clientId

    package com.cong.security.app.authentication;

import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.commons.collections.MapUtils;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.security.oauth2.common.OAuth2AccessToken;
import org.springframework.security.oauth2.common.exceptions.UnapprovedClientAuthenticationException;
import org.springframework.security.oauth2.provider.ClientDetails;
import org.springframework.security.oauth2.provider.ClientDetailsService;
import org.springframework.security.oauth2.provider.OAuth2Authentication;
import org.springframework.security.oauth2.provider.OAuth2Request;
import org.springframework.security.oauth2.provider.TokenRequest;
import org.springframework.security.oauth2.provider.token.AuthorizationServerTokenServices;
import org.springframework.security.web.authentication.SavedRequestAwareAuthenticationSuccessHandler;
import org.springframework.security.web.authentication.www.BasicAuthenticationConverter;
import org.springframework.stereotype.Component;
import com.fasterxml.jackson.databind.ObjectMapper;
import lombok.extern.slf4j.Slf4j;

/**
 * 成功处理函数
 */
@Slf4j
@Component("myAuthenticationSuccessHandler")
public class MyAuthenticationSuccessHandler extends SavedRequestAwareAuthenticationSuccessHandler {

    /**
     * 工具类，将authentication转换成为json
     */
    @Autowired
    private ObjectMapper objectMapper;

    // 读取信息
    @Autowired
    private ClientDetailsService clientDetailsService;

    @Autowired
    private AuthorizationServerTokenServices authorizationServerTokenServices;

    private BasicAuthenticationConverter authenticationConverter = new BasicAuthenticationConverter();

    /**
     * Authentication封装认证信息
     */
    @Override
    public void onAuthenticationSuccess(HttpServletRequest request, HttpServletResponse response,
                                        Authentication authentication) throws IOException, ServletException {
        // 验证clientId及secret，SpringSecurity升级之后将方法抽取出来了，所以就不需要拷贝代码了
        UsernamePasswordAuthenticationToken authRequest = this.authenticationConverter.convert(request);
        if (authRequest == null) {
            log.info("从请求头中未获取到client信息");
            throw new UnapprovedClientAuthenticationException("请求头参数不合法,不予处理");
        }
        String clientId = authRequest.getName();
        // 从请求中获取ClientId,利用ClientDetailsService接口获取到ClientDetails对象
        ClientDetails client = clientDetailsService.loadClientByClientId(clientId);
        // 简单的校验
        if (client == null) {
            log.info("clientId:[{}]不存在", clientId);
            throw new UnapprovedClientAuthenticationException("clientId     " + clientId + "    不存在");
        } else if (!StringUtils.equals(authRequest.getCredentials().toString(), client.getClientSecret())) {
            // 判断密码是否匹配
            log.info("用户输入的clientId:[{}]对应的clientSecret:[{}]与系统存储的secret:[{}]不匹配", clientId, client.getClientSecret(), authRequest.getCredentials().toString());
            throw new UnapprovedClientAuthenticationException("clientSecret不匹配");
        }
        // ClientDetails信息无误，开始new TokenRequest
        // authentication已经有信息，不需要重复获取
        TokenRequest tokenRequest = new TokenRequest(MapUtils.EMPTY_MAP, clientId, client.getScope(), "custom");
        // 创建OAuth2Request
        OAuth2Request oAuth2Request = tokenRequest.createOAuth2Request(client);
        // 拼OAuth2Authentication
        OAuth2Authentication oAuth2Authentication = new OAuth2Authentication(oAuth2Request, authentication);
        // 生成access_token
        OAuth2AccessToken oAuth2AccessToken = authorizationServerTokenServices.createAccessToken(oAuth2Authentication);
        // 配置返回json
        response.setContentType("application/json;charset=UTF-8");
        response.getWriter().write(objectMapper.writeValueAsString(oAuth2AccessToken));
    }
}

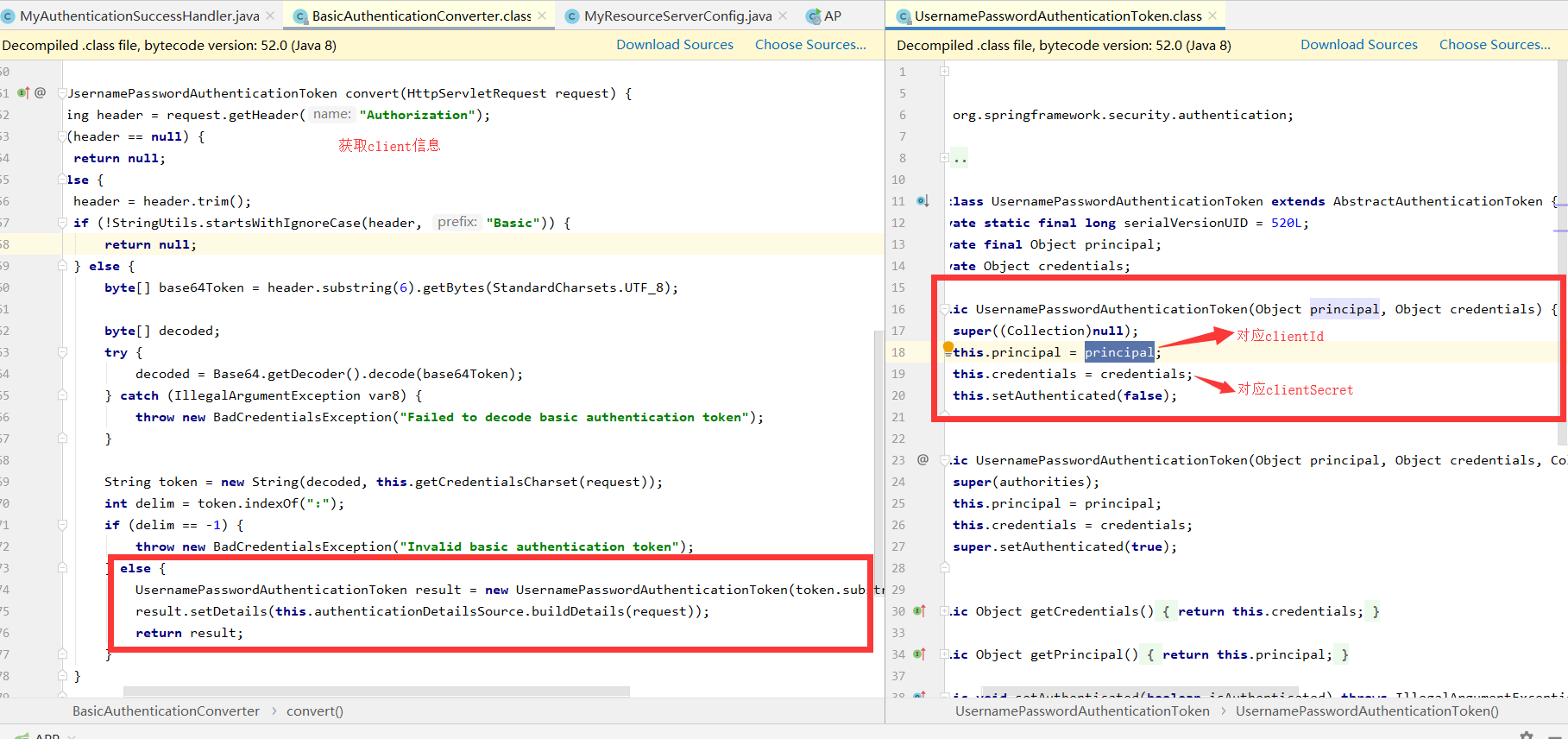

    SpringSecurity升级之后将从请求头中获取client信息的方法进行了一次封装，直接调用AuthenticationConverter接口的convert方法即可（使用BasicAuthenticationConverter实现类，如果想更改加密方式或者验证逻辑可以覆写）
    在这里插入图片描述
    配置资源服务器安全配置：

    package com.cong.security.app.authentication;

import com.cong.security.core.code.SmsCodeFilter;
import com.cong.security.core.code.sms.SmsCodeAuthenticationSecurityConfig;
import com.cong.security.core.code.sms.SmsCodeSender;
import com.cong.security.core.properties.SecurityProperties;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableResourceServer;
import org.springframework.security.oauth2.config.annotation.web.configuration.ResourceServerConfigurerAdapter;
import org.springframework.security.web.authentication.AuthenticationFailureHandler;
import org.springframework.security.web.authentication.AuthenticationSuccessHandler;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;
import org.springframework.social.connect.UsersConnectionRepository;
import org.springframework.social.security.SpringSocialConfigurer;
import org.springframework.web.cors.CorsUtils;

@Configuration
@EnableResourceServer
public class MyResourceServerConfig<AuthorizeConfigManager> extends ResourceServerConfigurerAdapter {
    // 安全配置
    @Autowired
    private SecurityProperties securityProperties;
    // 成功处理器
    @Autowired
    private AuthenticationSuccessHandler myAuthenticationSuccessHandler;
    // 失败处理器
    @Autowired
    private AuthenticationFailureHandler myAuthenticationFailureHandler;
    // 短信登录
    @Autowired
    private SmsCodeAuthenticationSecurityConfig smsCodeAuthenticationSecurityConfig;
    // 三方登录
    @Autowired
    private SpringSocialConfigurer mySocialSecurityConfig;
    // 短信发送接口
    @Autowired
    private SmsCodeSender smsCodeSender;
    // 三方账户绑定
    @Autowired
    private UsersConnectionRepository usersConnectionRepository;

    @Override
    public void configure(HttpSecurity http) throws Exception {
        SmsCodeFilter smsCodeFilter = new SmsCodeFilter();
        smsCodeFilter.setMyAuthenticationFailureHandler(myAuthenticationFailureHandler);
        smsCodeFilter.setSecurityProperties(securityProperties);
        smsCodeFilter.setSmsCodeSender(smsCodeSender);
        smsCodeFilter.setUsersConnectionRepository(usersConnectionRepository);
        // 初始化方法
        smsCodeFilter.afterPropertiesSet();

        http.authorizeRequests().antMatchers(HttpMethod.OPTIONS).permitAll();// 放行预请求

        http.formLogin()
                .loginProcessingUrl("/app/login")// 系统登陆请求路径为/app/login，此处设置目的是使用UsernamePasswordAuthenticationFilter处理此处登录请求
                .successHandler(myAuthenticationSuccessHandler)// 自定义成功处理器
                .failureHandler(myAuthenticationFailureHandler);// 自定义失败处理器
        http.addFilterBefore(smsCodeFilter, UsernamePasswordAuthenticationFilter.class)// 在用户名密码校验之前添加验证码校验
                .apply(mySocialSecurityConfig)// 三方登录
                .and().apply(smsCodeAuthenticationSecurityConfig)// 短信验证码
                .and().authorizeRequests().requestMatchers(CorsUtils::isPreFlightRequest).permitAll()// 解决浏览器端预请求直接放过,不作处理
                .and().csrf().disable();// 跨站请求访问
    }
}

    使用postman测试接口
    在这里插入图片描述
    使用返回的access_token即可获得访问资源服务器接口。

短信登录

  • 前面开发的时候短信验证码图形验证码都保存在redis中，实际项目中一般也是使用redis（无论APP还是PC端，我在开发的时候尽量抛弃session），即使修改也是修改接口实现类（保存和校验使用同一套）
  • 图形验证码我在APP模式下基本不使用（目前只在发送短信的接口可能使用，防止别人盗刷，在接口中添加客户端设备标识deviceId稍微修改一下代码逻辑即可）
  • 短信验证码发送接口就需要设备标识了（目的是实现第三方账户绑定，逻辑在社交登录中修改）
    使用postman调用短信验证码发送接口获取验证码，调用SmsCodeFilter配置的短信验证码登录接口即可实现短信验证码登录。
    在这里插入图片描述

社交登录

三方账户登录

服务提供商提供的授权码模式有两种

  • 简化模式
    第三方直接返回openId，系统可以直接根据openId进行登录，不需要拿access_token去换取openId（我本来做的APP端走的授权码模式，但是对接的前端使用QQ登录和微信登录的时候直接获取到openId）
    代码逻辑同短信验证码校验

    定义OpenIdAuthenticationToken封装登录信息：

    package com.cong.security.core.social.app;

import java.util.Collection;
import lombok.Data;
import org.springframework.security.authentication.AbstractAuthenticationToken;
import org.springframework.security.core.GrantedAuthority;
import lombok.extern.slf4j.Slf4j;
@Slf4j
@Data
public class OpenIdAuthenticationToken extends AbstractAuthenticationToken {
    private static final long serialVersionUID = 1L;
    // 用户openId
    private Object principal;
    //用户登录方式(本系统中为qq/weixin)
    private String providerId;
    //设备标识(未绑定情况)
    private String clientId;

    /**
     * 构造函数
     *
     * @param openId     用户openId
     * @param clientId   客户端设备编号
     * @param providerId 用户登录方式
     */
    public OpenIdAuthenticationToken(String openId, String clientId, String providerId) {
        super(null);
        // 用户openId
        this.principal = openId;
        this.clientId = clientId;
        log.info("当前用户[{}]在设备[{}]上采用[{}]模式登录系统", openId, clientId, providerId);
        // 是哪一个服务提供商的
        this.providerId = providerId;
        setAuthenticated(false);
    }

    public OpenIdAuthenticationToken(Object principal, Collection<? extends GrantedAuthority> authorities) {
        super(authorities);
        this.principal = principal;
        super.setAuthenticated(true);
    }

    public void setAuthenticated(boolean isAuthenticated) throws IllegalArgumentException {
        if (isAuthenticated) {
            throw new IllegalArgumentException(
                    "Cannot set this token to trusted - use constructor which takes a GrantedAuthority list instead");
        }
        super.setAuthenticated(false);
    }

    @Override
    public Object getCredentials() {
        return null;
    }

    @Override
    public Object getPrincipal() {
        return this.principal;
    }
}

    OpenIdAuthenticationFilter过滤器拦截请求封装OpenIdAuthenticationToken

    package com.cong.security.core.social.app;

import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import com.cong.security.core.constant.SecurityConstant;
import org.springframework.security.authentication.AuthenticationServiceException;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.authentication.AbstractAuthenticationProcessingFilter;
import org.springframework.security.web.util.matcher.AntPathRequestMatcher;
import lombok.extern.slf4j.Slf4j;

@Slf4j
public class OpenIdAuthenticationFilter extends AbstractAuthenticationProcessingFilter {

    //默认openId参数名
    private String openIdParameter = SecurityConstant.DEFAULT_PARAMETER_NAME_OPENID;
    //默认clientId参数名(设备编号,解决用户未绑定手机号时根据设备编号在缓存中临时存储第三方信息)
    private String deviceIdParameter = SecurityConstant.DEFAULT_PARAMETER_NAME_DEVICEID;
    //默认登录方式参数名
    private String providerIdParameter = SecurityConstant.DEFAULT_PARAMETER_NAME_PROVIDERID;

    private boolean postOnly = true;

    protected OpenIdAuthenticationFilter() {
        super(new AntPathRequestMatcher(SecurityConstant.DEFAULT_LOGIN_PROCESSING_URL_OPENID, "POST"));
    }

    @Override
    public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response)
            throws AuthenticationException, IOException, ServletException {
        if (postOnly && !request.getMethod().equals("POST")) {
            throw new AuthenticationServiceException("Authentication method not supported: " + request.getMethod());
        }
        String openId = obtainOpenId(request);
        String deviceId = obtainDeviceId(request);
        String providerId = obtainProviderId(request);
        log.info("封装三方[{}]用户[{}]来源于[{}]的信息", providerId, openId, deviceId);
        OpenIdAuthenticationToken authRequest = new OpenIdAuthenticationToken(openId, deviceId, providerId);
        // Allow subclasses to set the "details" property
        setDetails(request, authRequest);
        return this.getAuthenticationManager().authenticate(authRequest);
    }

    /**
     * 获取clientId
     */
    protected String obtainDeviceId(HttpServletRequest request) {
        String deviceId = request.getParameter(deviceIdParameter);
        if (deviceId == null) {
            deviceId = "";
        }
        return deviceId.trim();
    }

    /**
     * 获取openId
     */
    protected String obtainOpenId(HttpServletRequest request) {
        String openId = request.getParameter(openIdParameter);
        if (openId == null) {
            openId = "";
        }
        return openId.trim();
    }

    /**
     * 获取providerId
     */
    protected String obtainProviderId(HttpServletRequest request) {
        String providerId = request.getParameter(providerIdParameter);
        if (providerId == null) {
            providerId = "";
        }
        return providerId.trim();
    }

    protected void setDetails(HttpServletRequest request, OpenIdAuthenticationToken authRequest) {
        authRequest.setDetails(authenticationDetailsSource.buildDetails(request));
    }
}

    OpenIdAuthenticationProvider验证OpenIdAuthenticationToken

    package com.cong.security.core.social.app;

import java.util.HashSet;
import java.util.Set;
import org.apache.commons.collections.CollectionUtils;
import org.springframework.security.authentication.AuthenticationProvider;
import org.springframework.security.authentication.InternalAuthenticationServiceException;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.social.connect.UsersConnectionRepository;
import org.springframework.social.security.SocialUserDetailsService;
import lombok.extern.slf4j.Slf4j;

@Slf4j
public class OpenIdAuthenticationProvider implements AuthenticationProvider {
	private SocialUserDetailsService userDetailsService;
	// UserConnection表
	private UsersConnectionRepository usersConnectionRepository;
	@Override
	public Authentication authenticate(Authentication authentication) throws AuthenticationException {
		OpenIdAuthenticationToken openIdAuthenticationToken = (OpenIdAuthenticationToken) authentication;
		Set<String> providerUserIds = new HashSet<>();
		// 获取到用户登陆的openId
		providerUserIds.add((String) authentication.getPrincipal());
		// 用户选择的登录方式
		String providerId = openIdAuthenticationToken.getProviderId();
		log.info("用户[{}]登录方式为[{}]", providerUserIds, providerId);
		// 数据库中是否有记录
		Set<String> userIds = usersConnectionRepository.findUserIdsConnectedTo(providerId, providerUserIds);
		log.info("匹配到的用户信息ID为[{}]", userIds);// 理论上只能拿到一个,一个系统账号可以绑定多个社交账号,但是一个社交账号只能绑定一个系统账号
		if (CollectionUtils.isEmpty(userIds) || userIds.size() != 1) {
			throw new InternalAuthenticationServiceException("该账户尚未绑定至系统账号,提示用户执行绑定操作");
		}
		// 根据社交账号查出来的用户的唯一标识
		String userId = userIds.iterator().next();
		UserDetails user = userDetailsService.loadUserByUserId(userId);
		if (user == null) {
			// 绑定的用户标识无法从本系统中查询到用户信息,主动抛出异常
			throw new InternalAuthenticationServiceException("无法获取用户信息");
		}
		// 构建用户以及用户权限信息
		OpenIdAuthenticationToken openIdAuthenticationResult = new OpenIdAuthenticationToken(user,
				user.getAuthorities());
		// UserDetails或者SocialDetails用户信息
		openIdAuthenticationResult.setDetails(openIdAuthenticationToken.getDetails());
		// 返回封装的token信息,上层进行JWT-token生成
		return openIdAuthenticationResult;
	}

	@Override
	public boolean supports(Class<?> authentication) {
		return OpenIdAuthenticationToken.class.isAssignableFrom(authentication);
	}

	public void setUserDetailsService(SocialUserDetailsService userDetailsService) {
		this.userDetailsService = userDetailsService;
	}

	public void setUsersConnectionRepository(UsersConnectionRepository usersConnectionRepository) {
		this.usersConnectionRepository = usersConnectionRepository;
	}
}

    OpenIdAuthenticationSecurityConfig配置类

    package com.cong.security.core.social.app;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.SecurityConfigurerAdapter;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.web.DefaultSecurityFilterChain;
import org.springframework.security.web.authentication.AuthenticationFailureHandler;
import org.springframework.security.web.authentication.AuthenticationSuccessHandler;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;
import org.springframework.social.connect.UsersConnectionRepository;
import org.springframework.social.security.SocialUserDetailsService;
import org.springframework.stereotype.Component;

/**
 * 当前配置为APP端登录,和浏览器端没有任何关系,可以单独修改,不会共用当前配置
 */
@Component
public class OpenIdAuthenticationSecurityConfig
		extends SecurityConfigurerAdapter<DefaultSecurityFilterChain, HttpSecurity> {

	@Autowired
	private AuthenticationSuccessHandler myAuthenticationSuccessHandler;

	@Autowired
	private AuthenticationFailureHandler myAuthenticationFailureHandler;

	@Autowired
	private SocialUserDetailsService userDetailsService;

	@Autowired
	private UsersConnectionRepository usersConnectionRepository;

	@Override
	public void configure(HttpSecurity http) throws Exception {

		OpenIdAuthenticationFilter openIdAuthenticationFilter = new OpenIdAuthenticationFilter();
		openIdAuthenticationFilter.setAuthenticationManager(http.getSharedObject(AuthenticationManager.class));
		// 成功失败处理器
		openIdAuthenticationFilter.setAuthenticationSuccessHandler(myAuthenticationSuccessHandler);
		openIdAuthenticationFilter.setAuthenticationFailureHandler(myAuthenticationFailureHandler);

		OpenIdAuthenticationProvider openIdAuthenticationProvider = new OpenIdAuthenticationProvider();
		openIdAuthenticationProvider.setUserDetailsService(userDetailsService);
		openIdAuthenticationProvider.setUsersConnectionRepository(usersConnectionRepository);
		http.authenticationProvider(openIdAuthenticationProvider).addFilterAfter(openIdAuthenticationFilter,
				UsernamePasswordAuthenticationFilter.class);

	}
}

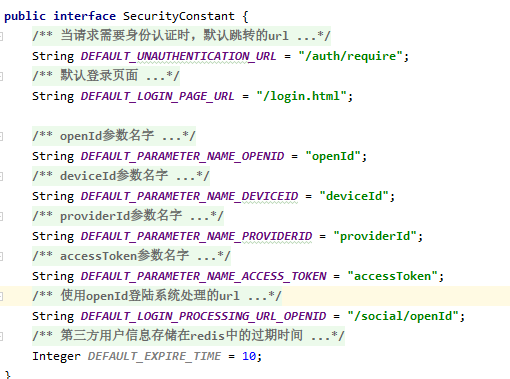

    上述配置相关常量：
    在这里插入图片描述
    在资源服务器上添加OpenId配置类
    在这里插入图片描述
    postman测试
    在这里插入图片描述

  • 授权码模式
    APP模式使用简化模式，授权码模式PC端使用即可，绝大多数用户执行第三方绑定之后一般都使用三方账户登录，使用授权码模式反而麻烦，直接使openId登录更简单。

三方账户注册
  • 用户未绑定情况下（本文不使用默认注册逻辑，目前的互联网项目开发基本都需要用户实名制，隐式注册基本不会使用，纯粹刷用户量不算，而且隐式注册之后后面的账号整合也是问题）
  • 视频中提供的账户注册逻辑此处不使用
    三方账户注册需要和手机号进行绑定，需要发送短信验证码，逻辑写在短信验证码登录的过滤器中，后面文章编写。
single_cong
发布了43 篇原创文章 · 获赞 25 · 访问量 9万+
私信 关注

猜你喜欢

转载自blog.csdn.net/single_cong/article/details/104221707
今日推荐
基于大语言模型的开源知识库问答系统 MaxKB GitHub Star 数量突破 5,000 个！
美国拟限制 AI 大模型出口中国和俄罗斯
苹果将与 OpenAI 达成协议，将 ChatGPT 应用于 iPhone
openKylin 社区生态委员会第六次会议圆满召开
阿里云正式发布通义千问 2.5
Python 3.13 发布首个 Beta：实验性自由线程模式和 JIT、改进交互式解释器
Stack Overflow 拿我的代码去训练 AI 大模型，还封了我的账号
Pop!_OS 的 COSMIC 桌面完成 App Store 上架工作
《2024 年一季度互联网投融资运行情况》研究报告
报告：Django 仍然是 74% 开发者的首选
15 年前上了“FFmpeg 耻辱柱”，今天他还得谢谢咱——腾讯QQPlayer一雪前耻？
TIOBE 5 月榜单：Fortran “复活”进入 Top 10
周排行
记一下去大梅沙的准备（2018-05-26）
Spring 注解 事务
基于HTTP协议的客户端缓存
阿里云rds 备份和还原
[PHP] 几个拖慢 PHP 程序/API 运行速度的点
python 代码风格------------PEP8规则
js控制json生成菜单——自制菜单（一）
将字符串: 'k:1|k1:2|k2:3|k3:4 ' ,处理成 python 字典: {'k':1, 'k1':2, ...}
微信小程序转支付宝小程序
Qt551.窗口滚动条
每日归档
更多
2024-05-13(18)
2024-05-12(0)
2024-05-11(38)
2024-05-10(38)
2024-05-09(35)
2024-05-08(42)
2024-05-07(14)
2024-05-06(40)
2024-05-05(0)
2024-05-04(7)

代码天地 © 2018 codetd.com

境外服务器   最新电视剧2022
