Spring Batch入门实例

在对Spring Batch深入学习前，先写一个小的demo，增加对Spring Batch的了解

相关信息

开发环境：
JDK 1.8.0_201
apache-maven-3.3.9
IntelliJ IDEA 2019.2.1 (Community Edition)

版本信息
Spring Batch 3.0.10.RELEASE
Spring test 4.3.21.RELEASE

相关概念

领域对象	描述
Job Repository	作业仓库，负责Job,Step执行过程中的状态保存
Job launcher	作业调度器，提供执行Job的入口
Job	作业，由多个Step组成，封装整个批处理操作
Step	作业步，Job的一个执行环节，由多个或者一个Step组装成Job
Tasklet	Step中具体执行逻辑的操作，可以重复执行，可以设置具体的同步、异步操作等
Chunk	给定数量Item的集合，可以定义对Chunk的读操作、处理操作、写操作，提交间隔等，这是Spring Batch框架的一个重要特征
Item	一条数据记录
ItemReader	从数据源（文件系统、数据库、队列等）中读取Item
ItemProcessor	在Item写入数据源之前，对数据进行处理（如：数据清洗、数据转换、数据过滤、数据校验等）
ItemWriter	将Item批量写入数据源（文件系统、数据库、队列等）

demo背景

通过Spring Batch来读取csv文件，读完后再将读到的数据写入另一个csv文件

代码展示

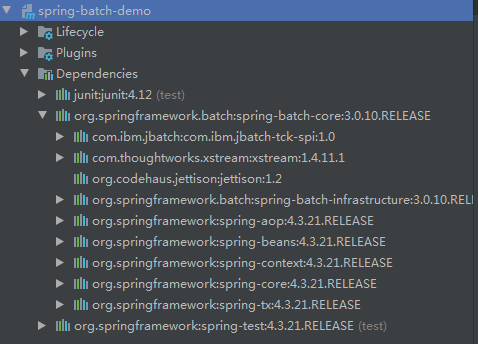

项目结构

配置pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.et</groupId>
    <artifactId>spring-batch-demo</artifactId>
    <version>1.0-SNAPSHOT</version>

    <name>spring-batch-demo</name>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.batch</groupId>
            <artifactId>spring-batch-core</artifactId>
            <version>3.0.10.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>4.3.21.RELEASE</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
            <plugins>
                <!-- clean lifecycle, see https://maven.apache.org/ref/current/maven-core/lifecycles.html#clean_Lifecycle -->
                <plugin>
                    <artifactId>maven-clean-plugin</artifactId>
                    <version>3.1.0</version>
                </plugin>
                <!-- default lifecycle, jar packaging: see https://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_jar_packaging -->
                <plugin>
                    <artifactId>maven-resources-plugin</artifactId>
                    <version>3.0.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-compiler-plugin</artifactId>
                    <version>3.8.0</version>
                </plugin>
                <plugin>
                    <artifactId>maven-surefire-plugin</artifactId>
                    <version>2.22.1</version>
                </plugin>
                <plugin>
                    <artifactId>maven-jar-plugin</artifactId>
                    <version>3.0.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-install-plugin</artifactId>
                    <version>2.5.2</version>
                </plugin>
                <plugin>
                    <artifactId>maven-deploy-plugin</artifactId>
                    <version>2.8.2</version>
                </plugin>
                <!-- site lifecycle, see https://maven.apache.org/ref/current/maven-core/lifecycles.html#site_Lifecycle -->
                <plugin>
                    <artifactId>maven-site-plugin</artifactId>
                    <version>3.7.1</version>
                </plugin>
                <plugin>
                    <artifactId>maven-project-info-reports-plugin</artifactId>
                    <version>3.0.0</version>
                </plugin>
            </plugins>
        </pluginManagement>
    </build>
</project>

因为Spring batch自己的pom中有依赖很多Spring核心包，所以在pom中没有配置。

定义领域对象

根据要需求定义相关对象

public class StudentInfo {
    private String name;
    private int age;
    private String gender;
    private String birthday;
    private String address;

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int age) {
        this.age = age;
    }

    public String getGender() {
        return gender;
    }

    public void setGender(String gender) {
        this.gender = gender;
    }

    public String getBirthday() {
        return birthday;
    }

    public void setBirthday(String birthday) {
        this.birthday = birthday;
    }

    public String getAddress() {
        return address;
    }

    public void setAddress(String address) {
        this.address = address;
    }
}

配置job

在Spring配置文件中定义批处理任务。
需要在xml文件头添加spring batch相关申明

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:batch="http://www.springframework.org/schema/batch"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                    http://www.springframework.org/schema/beans/spring-beans.xsd
                    http://www.springframework.org/schema/context
                    http://www.springframework.org/schema/context/spring-context.xsd
                    http://www.springframework.org/schema/batch
                    http://www.springframework.org/schema/batch/spring-batch-3.0.xsd">

定义job基础配置

<!--采用了内存方式记录job执行期产生的状态信息-->
    <bean id="jobRepository"
          class="org.springframework.batch.core.repository.support.MapJobRepositoryFactoryBean"></bean>

    <!--作业调度器，用来启动Job-->
    <bean id="jobLauncher" class="org.springframework.batch.core.launch.support.SimpleJobLauncher">
        <property name="jobRepository" ref="jobRepository"/>
    </bean>

    <bean id="transactionManager"
          class="org.springframework.batch.support.transaction.ResourcelessTransactionManager"></bean>

定义job

<batch:job id="studentJob">
        <batch:step id="studentStep">
            <batch:tasklet transaction-manager="transactionManager">
                <!--commit-interval=2 表示提交间隔的大小，即每处理2条数据，进行一次写操作-->
                <batch:chunk reader="csvItemReader" writer="csvItemWriter" processor="studentProcessor"
                             commit-interval="2"></batch:chunk>
            </batch:tasklet>
        </batch:step>
    </batch:job>

配置ItemReader

<bean id="csvItemReader" class="org.springframework.batch.item.file.FlatFileItemReader" scope="step">
        <property name="resource" value="classpath:basic/test.csv"/>
        <property name="lineMapper">
            <bean class="org.springframework.batch.item.file.mapping.DefaultLineMapper">
                <property name="lineTokenizer" ref="lineTokenizer"/>
                <property name="fieldSetMapper">
                    <bean class="org.springframework.batch.item.file.mapping.BeanWrapperFieldSetMapper">
                        <property name="prototypeBeanName" value="studentInfo"/>
                    </bean>
                </property>
            </bean>
        </property>
    </bean>

    <bean id="lineTokenizer" class="org.springframework.batch.item.file.transform.DelimitedLineTokenizer">
        <property name="delimiter" value=","/>
        <property name="names">
            <list>
                <value>name</value>
                <value>age</value>
                <value>gender</value>
                <value>birthday</value>
                <value>address</value>
            </list>
        </property>
    </bean>

配置ItemProcessor

<bean id="studentProcessor" scope="step" class="com.et.basic.StudentInfoProcessor"></bean>

新建java类，实现process功能

import org.springframework.batch.item.ItemProcessor;

public class StudentInfoProcessor implements ItemProcessor<StudentInfo, StudentInfo> {
    @Override
    public StudentInfo process(StudentInfo studentInfo) throws Exception {
        System.out.println(studentInfo.toString());
        return studentInfo;
    }
}

配置ItemWriter

<bean id="csvItemWriter" class="org.springframework.batch.item.file.FlatFileItemWriter" scope="step">
        <property name="resource" value="file:target/basic/outputFile.csv"/>
        <property name="lineAggregator">
            <bean class="org.springframework.batch.item.file.transform.DelimitedLineAggregator">
                <property name="delimiter" value=","/>
                <property name="fieldExtractor">
                    <bean class="org.springframework.batch.item.file.transform.BeanWrapperFieldExtractor">
                        <property name="names" value="name,age,gender,birthday,address"/>
                    </bean>
                </property>
            </bean>
        </property>
    </bean>

执行job

准备好测试文件，就可以通过下面的方式进行测试，同时需要观察console框中的输出信息。

java调用

import org.springframework.batch.core.Job;
import org.springframework.batch.core.JobExecution;
import org.springframework.batch.core.JobParameters;
import org.springframework.batch.core.launch.JobLauncher;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public class JobLaunch {
    public static void main(String[] args) {
        ApplicationContext context = new ClassPathXmlApplicationContext("basic/job.xml");
        JobLauncher launcher = (JobLauncher) context.getBean("jobLauncher");
        Job job = (Job) context.getBean("studentJob");

        try {
            JobExecution result = launcher.run(job, new JobParameters());
            System.out.println(result.toString());
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

JUnit单元测试

import org.junit.After;
import org.junit.Before;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.batch.core.Job;
import org.springframework.batch.core.JobExecution;
import org.springframework.batch.core.JobParameters;
import org.springframework.batch.core.launch.JobLauncher;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = ("/basic/job.xml"))
public class JobLaunchTest {
    @Autowired
    private JobLauncher jobLauncher;
    @Autowired
    @Qualifier("studentJob")
    private Job job;

    @Before
    public void setUp() throws Exception {
    }

    @After
    public void tearDown() throws Exception {
    }

    @Test
    public void batchTest() throws Exception {
        JobExecution result = jobLauncher.run(job, new JobParameters());
        System.out.println(result.toString());
    }
}

总结

从代码上看，整个过程，我认为还是挺清楚地，所以没有做太多的解释。
参考链接：

Spring Batch 3.0.x Introduction

完整的案例，已经上传至github。
