FastDFs实现图片上传

目录



创建一个Maven项目

项目目录结构

完整的pom文件如下

新建引导类UploadApplication

引入配置类

配置application.yml文件

新建CorsConfiguration配置类，解决跨域问题

新建Swagger2类，方便测试，当然也可以不写，用postman测试

通过SwitchHosts程序配置hosts文件

创建FastDFSTest测试类

测试文件上传：

通过域名访问：

新建UploadController类

新建UploadService类

swagger进行测试

---

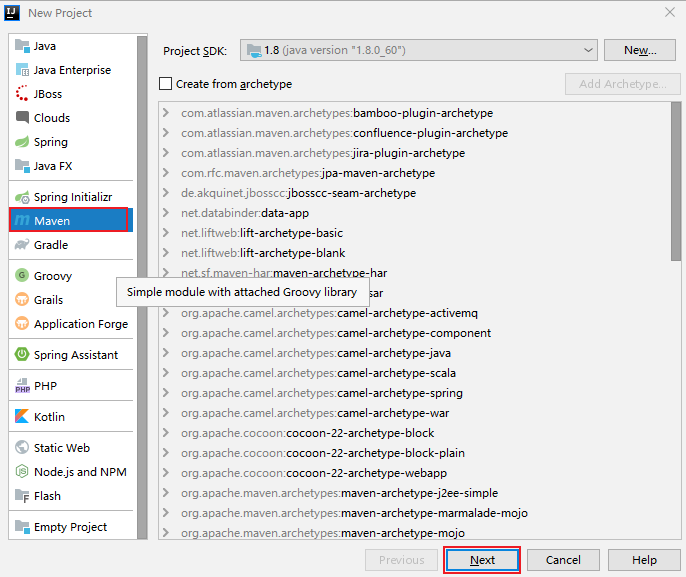

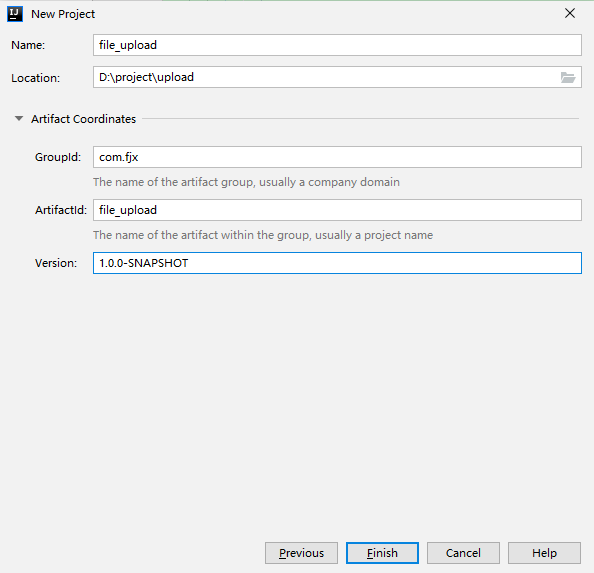

创建一个Maven项目

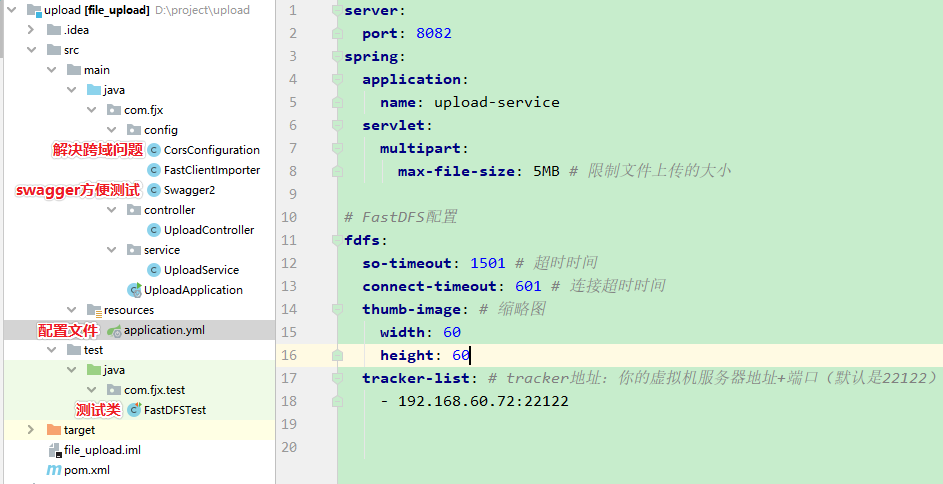

项目目录结构

完整的pom文件如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.fjx</groupId>
    <artifactId>file_upload</artifactId>
    <version>1.0.0-SNAPSHOT</version>
    <packaging>jar</packaging>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.0.6.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <fastDFS.client.version>1.26.1-RELEASE</fastDFS.client.version>
        <spring-boot.version>2.0.7.RELEASE</spring-boot.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>${spring-boot.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <version>${spring-boot.version}</version>
        </dependency>
        <!-- FastDFS客户端 -->
        <dependency>
            <groupId>com.github.tobato</groupId>
            <artifactId>fastdfs-client</artifactId>
            <version>${fastDFS.client.version}</version>
        </dependency>
        <!--swagger文档注释，方便测试-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.7.0</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.7.0</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

新建引导类UploadApplication

package com.fjx;/*
 @author Jason
 @DESCRIPTION ：启动接口
 @create 2019-12-24
*/

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class UploadApplication {

    public static void main(String[] args) {
        SpringApplication.run(UploadApplication.class);
    }
}

引入配置类

package com.fjx.config;/*
 @author Jason
 @DESCRIPTION
 @create 2019-12-21
*/

import com.github.tobato.fastdfs.FdfsClientConfig;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.EnableMBeanExport;
import org.springframework.context.annotation.Import;
import org.springframework.jmx.support.RegistrationPolicy;

@Configuration
@Import(FdfsClientConfig.class)
// 解决jmx重复注册bean的问题
@EnableMBeanExport(registration = RegistrationPolicy.IGNORE_EXISTING)
public class FastClientImporter {
}

配置application.yml文件

server:
  port: 8082
spring:
  application:
    name: upload-service
  servlet:
    multipart:
      max-file-size: 5MB # 限制文件上传的大小

# FastDFS配置
fdfs:
  so-timeout: 1501 # 超时时间
  connect-timeout: 601 # 连接超时时间
  thumb-image: # 缩略图
    width: 60
    height: 60
  tracker-list: # tracker地址：你的虚拟机服务器地址+端口（默认是22122）
    - 192.168.60.72:22122

新建CorsConfiguration配置类，解决跨域问题

package com.fjx.config;/*
 @author Jason
 @DESCRIPTION 解决跨域问题
 @create 2019-12-24
*/

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.cors.UrlBasedCorsConfigurationSource;
import org.springframework.web.filter.CorsFilter;

@Configuration
public class CorsConfiguration {
    @Bean
    public CorsFilter corsFilter() {
        //1.添加CORS配置信息，用来初始化Cors配置对象
        org.springframework.web.cors.CorsConfiguration config = new org.springframework.web.cors.CorsConfiguration();

        //1) 添加允许的跨域域名,如果携带cookie，则不可以写* *，表示所有的域名都可以跨域访问
        config.addAllowedOrigin("http://manage.leyou.com");
        //2) 是否允许携带发送Cookie信息，true表示允许迭代cookie信息
        config.setAllowCredentials(true);
        //3) 允许的请求方式,*代表所有的请求方法，包括GET
        // config.addAllowedMethod("*");
        config.addAllowedMethod("OPTIONS");
        config.addAllowedMethod("HEAD");
        config.addAllowedMethod("GET");
        config.addAllowedMethod("PUT");
        config.addAllowedMethod("POST");
        config.addAllowedMethod("DELETE");
        config.addAllowedMethod("PATCH");
        // 4）允许的头信息
        config.addAllowedHeader("*");

        //2.添加映射路径，我们拦截一切请求，初始化cors配置源对象
        UrlBasedCorsConfigurationSource configSource = new UrlBasedCorsConfigurationSource();
        configSource.registerCorsConfiguration("/**", config);
        //3.返回新的CorsFilter实例，参数为：cors配置源对象
        return new CorsFilter(configSource);
    }
}

新建Swagger2类，方便测试，当然也可以不写，用postman测试

package com.fjx.config;/*
 @author Jason
 @DESCRIPTION
 @create 2019-12-19
*/

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class Swagger2 {
    //@Profile({"dev", "test"})

    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                .apis(RequestHandlerSelectors.basePackage("com.fjx.controller"))
                .paths(PathSelectors.any())
                .build();
    }

    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                .title("upload-service RESTful APIs")
                .description("")
                .termsOfServiceUrl("")
                .version("1.0")
                .build();
    }
}

通过SwitchHosts程序配置hosts文件

创建FastDFSTest测试类

注意：代码中有图片路径，换成自己电脑中的一张图片路径

package com.fjx.test;/*
 @author Jason
 @DESCRIPTION
 @create 2019-12-24
*/
import com.github.tobato.fastdfs.domain.StorePath;
import com.github.tobato.fastdfs.domain.ThumbImageConfig;
import com.github.tobato.fastdfs.service.FastFileStorageClient;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

import java.io.File;
import java.io.FileInputStream;
import java.io.FileNotFoundException;

@SpringBootTest
@RunWith(SpringRunner.class)
public class FastDFSTest {
    @Autowired
    private FastFileStorageClient storageClient;
    @Autowired
    private ThumbImageConfig thumbImageConfig;

    @Test
    public void testUpload() throws FileNotFoundException {
        // 要上传的文件，找一个图片路径
        File file = new File("D:\\project\\hm49\\image\\1.jpeg");
        // 上传并保存图片，参数：1-上传的文件流 2-文件的大小 3-文件的后缀 4-可以不管他
        StorePath storePath = this.storageClient.uploadFile(
                new FileInputStream(file), file.length(), "jpg", null);
        // 带分组的路径
        System.out.println(storePath.getFullPath());
        // 不带分组的路径
        System.out.println(storePath.getPath());
    }

    @Test
    public void testUploadAndCreateThumb() throws FileNotFoundException {
        File file = new File("D:\\project\\hm49\\image\\2.jpeg");
        // 上传并且生成缩略图
        StorePath storePath = this.storageClient.uploadImageAndCrtThumbImage(
                new FileInputStream(file), file.length(), "png", null);
        // 带分组的路径
        System.out.println(storePath.getFullPath());
        // 不带分组的路径
        System.out.println(storePath.getPath());
        // 获取缩略图路径
        String path = thumbImageConfig.getThumbImagePath(storePath.getPath());
        System.out.println(path);
    }
}

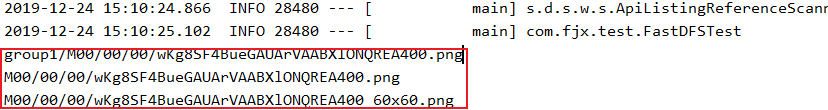

测试文件上传：

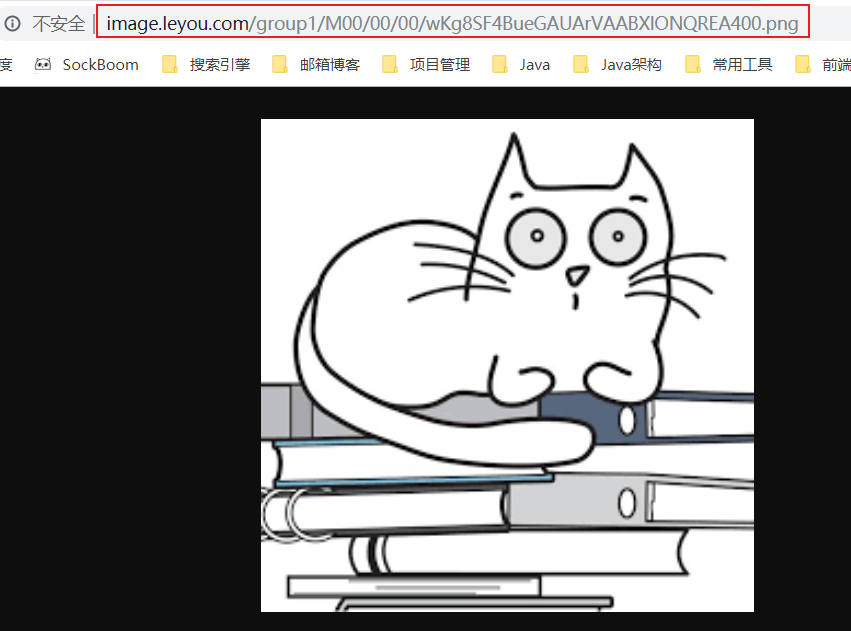

通过域名访问：

新建UploadController类

package com.fjx.controller;/*
 @author 天赋吉运-Jason
 @DESCRIPTION
 @create 2019-12-21
*/


import com.fjx.service.UploadService;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.multipart.MultipartFile;


@Controller
@RequestMapping("upload")
public class UploadController {
    @Autowired
    private UploadService uploadService;

    /**
     * 图片上传
     * @param file
     * @return
     */
    @PostMapping("image")
    public ResponseEntity<String> uploadImage(@RequestParam("file") MultipartFile file){
        String url = this.uploadService.upload(file);
        if (StringUtils.isBlank(url)) {
            return ResponseEntity.badRequest().build();
        }
        return ResponseEntity.status(HttpStatus.CREATED).body(url);
    }
}

新建UploadService类

package com.fjx.service;/*
 @author 天赋吉运-Jason
 @DESCRIPTION
 @create 2019-12-24
*/
import com.github.tobato.fastdfs.domain.StorePath;
import com.github.tobato.fastdfs.service.FastFileStorageClient;
import org.apache.commons.lang3.StringUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.web.multipart.MultipartFile;

import javax.imageio.ImageIO;
import java.awt.image.BufferedImage;
import java.io.IOException;

@Service
public class UploadService {
    public static  String FILE_FORMAT = "WEBP、BMP、PCX、TIF、GIF、JPEG、TGA、EXIF、FPX、" +
            "SVG、PSD、CDR、PCD、DXF、UFO、EPS、AI、PNG、HDRI、RAW、WMF、FLIC、EMF、ICO、JPG、JPEG、PNG、GIF";
    private static final Logger LOGGER = LoggerFactory.getLogger(UploadService.class);

    @Autowired
    private FastFileStorageClient storageClient;

    public String upload(MultipartFile file) {
        String originalFilename = file.getOriginalFilename();
        // 校验文件的类型,file.getContentType()表示获取文件类型
        String contentType = file.getOriginalFilename().substring(file.getOriginalFilename().lastIndexOf('.') + 1).toUpperCase();
        if (!FILE_FORMAT.contains(contentType)) {
            // 文件类型不合法，直接返回null
            LOGGER.info("文件类型不合法：{}", originalFilename);
            return null;
        }
        try {
            // 校验文件的内容，ImageIO是一个工具类
            BufferedImage bufferedImage = ImageIO.read(file.getInputStream());
            if (bufferedImage == null) {
                LOGGER.info("文件内容不合法：{}", originalFilename);
                return null;
            }
            // 保存到服务器
            String ext = StringUtils.substringAfterLast(originalFilename, ".");
            StorePath storePath = this.storageClient.uploadFile(file.getInputStream(), file.getSize(), ext, null);
            // 生成url地址，进行回显
            return "http://image.leyou.com/" + storePath.getFullPath();
        } catch (IOException e) {
            LOGGER.info("服务器内部错误：{}", originalFilename);
            e.printStackTrace();
        }
        return null;
    }
}

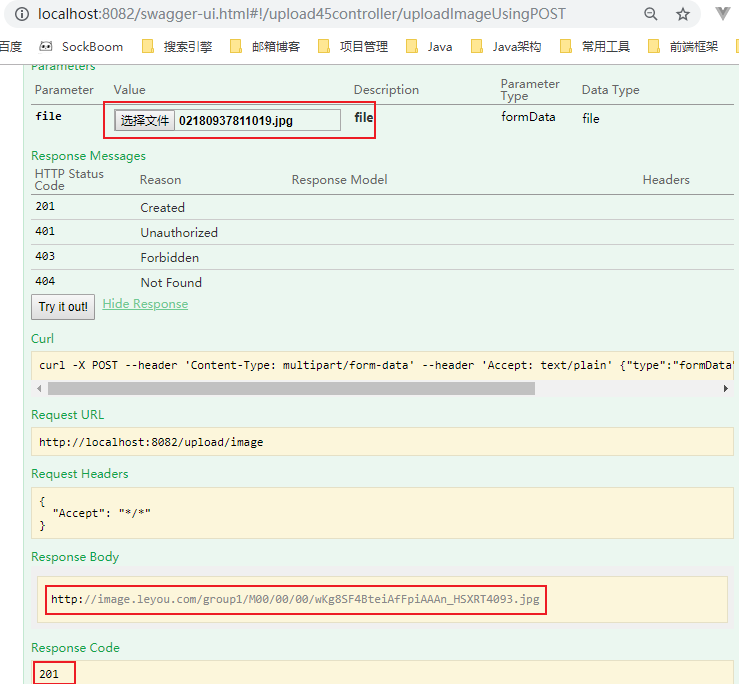

swagger进行测试

github地址：https://github.com/Jason1627/FastDFS-.git

关于FastDFS文件上传封装完成，欢迎评论讨论！
