一、简介
ArrayList 位于java.util包中,使我们经常使用到的一个集合对象。
- ArrayList是可调整大小的数组列表接口。实现所有可选的列表操作,并允许所有元素,元素也可以重复,包括null;
- 除了实现List接口外,这个类还提供了操作数组大小的方法,该数组在内部用于存储列表;
- ArrayList类似Vector,只是是非同步的;
- 当元素被添加到ArrayList中时,容量自动增长(自动扩容机制);
- 防止意外对列表的非同步访问: List list = Collections.synchronizedList(new ArrayList(...));
- ArrayList继承了AbstractList<E>抽象类,实现了 List<E>, RandomAccess随机访问接口 ,Cloneable克隆接口, java.io.Serializable序列化接口;
public class ArrayList<E> extends AbstractList<E>
implements List<E>, RandomAccess, Cloneable, java.io.Serializable{
}
- 初始容量大小
//初始容量为10
private static final int DEFAULT_CAPACITY = 10;
//空数组,在用户指定容量为 0 时返回
private static final Object[] EMPTY_ELEMENTDATA = {};
//空数组,默认返回
private static final Object[] DEFAULTCAPACITY_EMPTY_ELEMENTDATA = {};
//对象数组,集合元素存放在该数组中。用于非私有以简化嵌套类访问
//ArrayList基于数组实现,用该数组保存数据,
//ArrayList 的容量就是该数组的长度
transient Object[] elementData; // non-private to simplify nested class access
//ArrayList实际存储的数据数量
private int size;
- 构造方法
//构造具有指定初始容量的空列表。
public ArrayList(int initialCapacity) {
if (initialCapacity > 0) {
//直接new一个指定容量的对象数组
this.elementData = new Object[initialCapacity];
} else if (initialCapacity == 0) {
//空对象数组
this.elementData = EMPTY_ELEMENTDATA;
} else {
//如果initialCapacity < 0则抛出异常
throw new IllegalArgumentException("Illegal Capacity: "+
initialCapacity);
}
}
//构造一个初始容量为10的空列表。
//当元素第一次被加入时,扩容至默认容量 10
public ArrayList() {
this.elementData = DEFAULTCAPACITY_EMPTY_ELEMENTDATA;
}
//根据集合对象构造ArrayList集合
public ArrayList(Collection<? extends E> c) {
//将集合对象转换为对象数组
elementData = c.toArray();
//把转化后的Object[]数组长度赋值给当前ArrayList的size,并判断是否为0
if ((size = elementData.length) != 0) {
// c.toArray might (incorrectly) not return Object[] (see 6260652)
//判断是否是对象数组类型
if (elementData.getClass() != Object[].class)
//如果不是Object[]类型,则转换为Object[]类型
elementData = Arrays.copyOf(elementData, size, Object[].class);
} else {
// replace with empty array.
this.elementData = EMPTY_ELEMENTDATA;
}
}
- 自动扩容
//自动扩容
public void ensureCapacity(int minCapacity) {
//计算最小扩充的容量
int minExpand = (elementData != DEFAULTCAPACITY_EMPTY_ELEMENTDATA)
// 判断是不是空的ArrayList,如果是空则最小扩充容量为10,否则最小扩充量为0
? 0
// 默认扩充容量为10
: DEFAULT_CAPACITY;
// 若用户指定的最小容量 > 最小扩充的容量,则以用户指定的为准
if (minCapacity > minExpand) {
ensureExplicitCapacity(minCapacity);
}
}
private void ensureCapacityInternal(int minCapacity) {
if (elementData == DEFAULTCAPACITY_EMPTY_ELEMENTDATA) {
minCapacity = Math.max(DEFAULT_CAPACITY, minCapacity);
}
ensureExplicitCapacity(minCapacity);
}
private void ensureExplicitCapacity(int minCapacity) {
modCount++;
// 防止溢出代码:确保指定的最小容量 > 数组缓冲区当前的长度
if (minCapacity - elementData.length > 0)
grow(minCapacity);
}
//数组缓冲区最大存储容量
private static final int MAX_ARRAY_SIZE = Integer.MAX_VALUE - 8;
//增加容量(扩容),以确保它至少可以容纳由最小容量参数minCapacity指定的元素数量
private void grow(int minCapacity) {
// overflow-conscious code
int oldCapacity = elementData.length;
//新容量 = 旧容量 + (旧容量 / 2)
int newCapacity = oldCapacity + (oldCapacity >> 1);
if (newCapacity - minCapacity < 0)
newCapacity = minCapacity;
if (newCapacity - MAX_ARRAY_SIZE > 0)
newCapacity = hugeCapacity(minCapacity);
// minCapacity is usually close to size, so this is a win:
elementData = Arrays.copyOf(elementData, newCapacity);
}
//大容量分配
private static int hugeCapacity(int minCapacity) {
if (minCapacity < 0) // overflow
//OutOfMemoryError内存溢出
throw new OutOfMemoryError();
//最大容量分配为:Integer.MAX_VALUE
return (minCapacity > MAX_ARRAY_SIZE) ?
Integer.MAX_VALUE :
MAX_ARRAY_SIZE;
}
二、常用API:
【a】size()、isEmpty()、contains()、indexOf()、lastIndexOf()
//返回ArrayList实际存储的元素数量
public int size() {
return size;
}
//判断元素是否为空
public boolean isEmpty() {
//实际上判断长度是否等于0
return size == 0;
}
//判断是否包含某个元素
public boolean contains(Object o) {
//根据indexOf()来实现,下标>=0表示存在,-1表示否则不存在
return indexOf(o) >= 0;
}
//找出对应元素在集合中第一次出现的下标
public int indexOf(Object o) {
if (o == null) {
for (int i = 0; i < size; i++)
if (elementData[i]==null)
return i;
} else {
for (int i = 0; i < size; i++)
//正序循环遍历elementData对象数组,一个一个比较
if (o.equals(elementData[i]))
return i;
}
return -1;
}
////找出对应元素在集合中最后一次出现的下标
public int lastIndexOf(Object o) {
if (o == null) {
for (int i = size-1; i >= 0; i--)
if (elementData[i]==null)
return i;
} else {
for (int i = size-1; i >= 0; i--)
//倒序循环遍历elementData对象数组,一个一个比较
if (o.equals(elementData[i]))
return i;
}
return -1;
}
【b】clone()、toArray()
//返回此ArrayList实例的浅拷贝。(不会复制元素本身。)
public Object clone() {
try {
ArrayList<?> v = (ArrayList<?>) super.clone();
v.elementData = Arrays.copyOf(elementData, size);
v.modCount = 0;
return v;
} catch (CloneNotSupportedException e) {
// this shouldn't happen, since we are Cloneable
throw new InternalError(e);
}
}
//返回一个包含列表中所有元素的数组,返回新的对象数组
public Object[] toArray() {
return Arrays.copyOf(elementData, size);
}
@SuppressWarnings("unchecked")
public <T> T[] toArray(T[] a) {
if (a.length < size)
// Make a new array of a's runtime type, but my contents:
//创建一个新的数组的运行时类型
return (T[]) Arrays.copyOf(elementData, size, a.getClass());
System.arraycopy(elementData, 0, a, 0, size);
if (a.length > size)
a[size] = null;
return a;
}
【c】elementData()
//根据下标,返回集合中某个元素
@SuppressWarnings("unchecked")
E elementData(int index) {
return (E) elementData[index];
}
//根据下标,返回集合中某个元素
public E get(int index) {
//首先检查下标是否越界
rangeCheck(index);
//根据下标返回数组对应下标的元素
return elementData(index);
}
//检查给定的索引是否在范围内
private void rangeCheck(int index) {
if (index >= size)
//抛出IndexOutOfBoundsException数组越界异常
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}
【d】set()
//将此列表中指定位置的元素替换为指定的元素
public E set(int index, E element) {
//首先检查下标是否越界
rangeCheck(index);
//获取旧下标对应的值
E oldValue = elementData(index);
//更新数组中对应下标的值为element
elementData[index] = element;
//返回更新前的值
return oldValue;
}
【e】add()
//将指定的元素追加到此列表的末尾
public boolean add(E e) {
//扩容
ensureCapacityInternal(size + 1); // Increments modCount!!
//增加size,然后新增一个数组元素,下标为(size + 1)
elementData[size++] = e;
return true;
}
//扩容操作
private void ensureCapacityInternal(int minCapacity) {
if (elementData == DEFAULTCAPACITY_EMPTY_ELEMENTDATA) {
minCapacity = Math.max(DEFAULT_CAPACITY, minCapacity);
}
ensureExplicitCapacity(minCapacity);
}
//将指定元素插入其中的指定位置列表。
public void add(int index, E element) {
//判断下标是否越界
rangeCheckForAdd(index);
//判断是否需要扩容
//保证资源空间不浪费,要存多少元素,就只分配多少空间
ensureCapacityInternal(size + 1); // Increments modCount!!
//数组拷贝
System.arraycopy(elementData, index, elementData, index + 1,
size - index);
//将元素插入到指定位置下标的数组中
elementData[index] = element;
//更新size长度加1
size++;
}
private void rangeCheckForAdd(int index) {
if (index > size || index < 0)
throw new IndexOutOfBoundsException(outOfBoundsMsg(index));
}

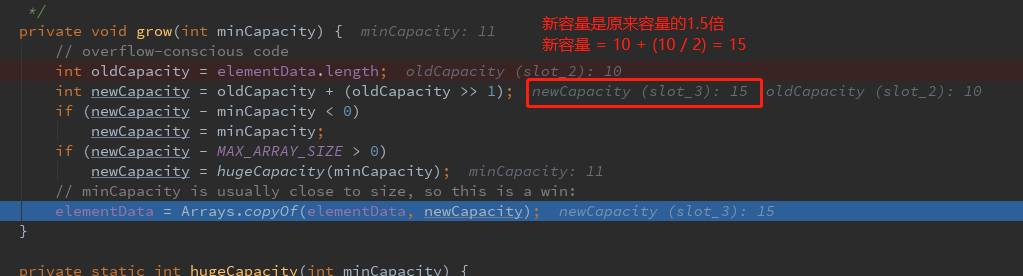

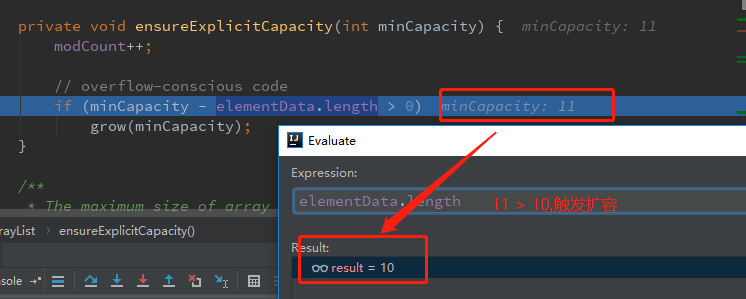

我们通过简单的代码分析一下自动扩容的流程:
List<String> list = new ArrayList<>();
list.add("1");
list.add("2");
list.add("3");
list.add("4");
list.add("5");
list.add("6");
list.add("7");
list.add("8");
list.add("9");
list.add("10");
//添加到11这个元素的时候开始扩容
//minCapacity = 11 此时elementData.length=10 ,由于11>10达到扩容条件,进入grow()进行扩容
// 新容量 = 旧容量 + (旧容量 / 2) = 10 + (10 / 2) = 15
list.add("11");
System.out.println(list);
//[1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11]
【f】remove()
//删除列表中指定位置的元素
public E remove(int index) {
//判断下标是否越界
rangeCheck(index);
modCount++;
//获取数组下标对应的值
E oldValue = elementData(index);
//需要移动的长度
int numMoved = size - index - 1;
if (numMoved > 0)
System.arraycopy(elementData, index+1, elementData, index,
numMoved);
//将最后一个元素置空,方便GC垃圾回收
elementData[--size] = null; // clear to let GC do its work
//返回删除后的元素值
return oldValue;
}
//从列表中删除指定元素的第一个匹配项,如果它存在。如果列表不包含该元素,则不变
public boolean remove(Object o) {
if (o == null) {
//循环判断数组元素,挨个判断是否为null
for (int index = 0; index < size; index++)
if (elementData[index] == null) {
fastRemove(index);
return true;
}
} else {
for (int index = 0; index < size; index++)
//循环判断数组元素,挨个判断是否与传入的参数相同
if (o.equals(elementData[index])) {
fastRemove(index);
return true;
}
}
return false;
}
//私有删除方法,跳过检查,不返回被删除的值
private void fastRemove(int index) {
modCount++;
//需要移动的次数
int numMoved = size - index - 1;
if (numMoved > 0)
System.arraycopy(elementData, index+1, elementData, index,
numMoved);
//将最后一个元素置空,方便GC垃圾回收
elementData[--size] = null; // clear to let GC do its work
}
【g】clear()
//从列表中删除所有元素。将列表调用返回后为空。
//将数组缓冲区所以元素置为null
public void clear() {
modCount++;
// clear to let GC do its work
for (int i = 0; i < size; i++)
//将数组每个元素都置为null,方便GC垃圾回收
elementData[i] = null;
//更新长度为0
size = 0;
}
【h】addAll()
//将指定集合中的所有元素追加到列表中
//ArrayList 是线程不安全的,如果同时有两个线程,一个线程向list中新增元素,一个线程修改list中元素,可能会存在线程安全问题
public boolean addAll(Collection<? extends E> c) {
//将集合对象转换为对象数组
Object[] a = c.toArray();
//需要增加的元素的个数
int numNew = a.length;
//扩容,增量modCount
ensureCapacityInternal(size + numNew); // Increments modCount
//数组拷贝,将需要添加的对象数组拷贝到elementData中
System.arraycopy(a, 0, elementData, size, numNew);
//更新size
size += numNew;
return numNew != 0;
}
//将指定集合中的所有元素插入列表,从指定位置开始。
//原本index位置的元素及后面的元素都往右移动
public boolean addAll(int index, Collection<? extends E> c) {
//判断下标是否越界
rangeCheckForAdd(index);
Object[] a = c.toArray();
int numNew = a.length;
ensureCapacityInternal(size + numNew); // Increments modCount
//需要移动的个数
int numMoved = size - index;
if (numMoved > 0)
System.arraycopy(elementData, index, elementData, index + numNew,
numMoved);
//拷贝下标从0至index下标的元素
System.arraycopy(a, 0, elementData, index, numNew);
//更新size
size += numNew;
return numNew != 0;
}
【i】removeRange()
//从该列表中删除其索引位于之间的所有元素,将后面的元素往前面移动
//需要将toIndex之后(包括toIndex)的元素都向前移动(toIndex-fromIndex)个位置
protected void removeRange(int fromIndex, int toIndex) {
modCount++;
//需要移动的次数
int numMoved = size - toIndex;
System.arraycopy(elementData, toIndex, elementData, fromIndex,
numMoved);
// clear to let GC do its work
int newSize = size - (toIndex-fromIndex);
for (int i = newSize; i < size; i++) {
//将删除之后的元素置空,方便GC垃圾回收
elementData[i] = null;
}
size = newSize;
}

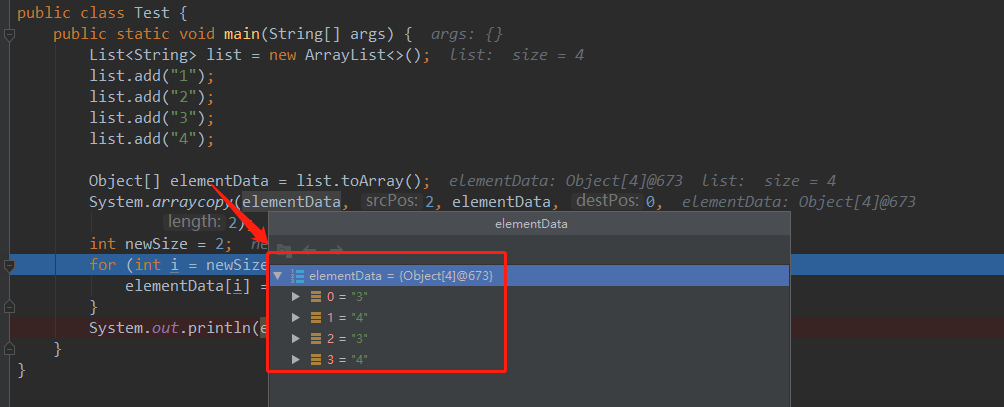

详细可以参考下图debug:System.arraycopy数组拷贝后:
【j】removeAll()
//元素中包含的所有元素从该列表中移除指定的集合。
public boolean removeAll(Collection<?> c) {
//判断是否为null,如果为null抛出NullPointerException空指针异常
Objects.requireNonNull(c);
return batchRemove(c, false);
}
//从这个列表中删除所有不包含在指定集合中的元素。
public boolean retainAll(Collection<?> c) {
Objects.requireNonNull(c);
return batchRemove(c, true);
}
//批量移除集合元素
//complement: 是否是补集
//complement: true:移除list中除了c集合中的所有元素;
//complement: false:移除list中c集合中的元素;
private boolean batchRemove(Collection<?> c, boolean complement) {
final Object[] elementData = this.elementData;
int r = 0, w = 0;
boolean modified = false;
try {
for (; r < size; r++)
if (c.contains(elementData[r]) == complement)
elementData[w++] = elementData[r];
} finally {
// Preserve behavioral compatibility with AbstractCollection,
// even if c.contains() throws.
if (r != size) {
System.arraycopy(elementData, r,
elementData, w,
size - r);
w += size - r;
}
if (w != size) {
// clear to let GC do its work
for (int i = w; i < size; i++)
elementData[i] = null;
modCount += size - w;
size = w;
modified = true;
}
}
return modified;
}
【k】writeObject()、readObject()
//将ArrayList实例的状态保存到流中is,序列化它
private void writeObject(java.io.ObjectOutputStream s)
throws java.io.IOException{
// Write out element count, and any hidden stuff
int expectedModCount = modCount;
s.defaultWriteObject();
// Write out size as capacity for behavioural compatibility with clone()
s.writeInt(size);
// 以合适的顺序写入所有的元素
for (int i=0; i<size; i++) {
s.writeObject(elementData[i]);
}
if (modCount != expectedModCount) {
throw new ConcurrentModificationException();
}
}
//从流中反序列化重新构造ArrayList实例
private void readObject(java.io.ObjectInputStream s)
throws java.io.IOException, ClassNotFoundException {
elementData = EMPTY_ELEMENTDATA;
// Read in size, and any hidden stuff
s.defaultReadObject();
// Read in capacity
s.readInt(); // ignored
if (size > 0) {
// be like clone(), allocate array based upon size not capacity
//就像clone(),根据大小而不是容量来分配数组
ensureCapacityInternal(size);
Object[] a = elementData;
// Read in all elements in the proper order.
//按适当的顺序读取所有的元素
for (int i=0; i<size; i++) {
a[i] = s.readObject();
}
}
}
【l】iterator()
//适当的顺序对列表中的元素返回一个迭代器。
public Iterator<E> iterator() {
return new Itr();
}
//Itr是私有内部类
private class Itr implements Iterator<E> {
//游标,下一个要返回的元素的索引
int cursor; // index of next element to return
//最后一个返回元素的索引;-1如没有
int lastRet = -1; // index of last element returned; -1 if no such
int expectedModCount = modCount;
//判断是否还有下一个元素
public boolean hasNext() {
//即判断游标是否到了list的最大长度
return cursor != size;
}
//返回下一个元素
@SuppressWarnings("unchecked")
public E next() {
checkForComodification();
//i为游标,即当前元素的索引
int i = cursor;
if (i >= size)
throw new NoSuchElementException();
Object[] elementData = ArrayList.this.elementData;
if (i >= elementData.length)
//检查list中数量是否发生变化
throw new ConcurrentModificationException();
//游标往后移动一位,也是下一个元素的索引
cursor = i + 1;
//最后一个元素返回的索引
return (E) elementData[lastRet = i];
}
//移除集合中的元素
public void remove() {
if (lastRet < 0)
throw new IllegalStateException();
checkForComodification();
try {
ArrayList.this.remove(lastRet);
cursor = lastRet;
//将最后一个元素返回的索引重置为-1
lastRet = -1;
expectedModCount = modCount;
} catch (IndexOutOfBoundsException ex) {
throw new ConcurrentModificationException();
}
}
@Override
@SuppressWarnings("unchecked")
public void forEachRemaining(Consumer<? super E> consumer) {
Objects.requireNonNull(consumer);
final int size = ArrayList.this.size;
int i = cursor;
if (i >= size) {
return;
}
final Object[] elementData = ArrayList.this.elementData;
if (i >= elementData.length) {
throw new ConcurrentModificationException();
}
while (i != size && modCount == expectedModCount) {
consumer.accept((E) elementData[i++]);
}
// update once at end of iteration to reduce heap write traffic
cursor = i;
lastRet = i - 1;
checkForComodification();
}
final void checkForComodification() {
//在迭代list集合时元素数量发生变化时会造成modCount和expectedModCount不相等
//当expectedModCount和modCount不相等时,就抛出ConcurrentModificationException
if (modCount != expectedModCount)
throw new ConcurrentModificationException();
}
}
【m】sort()
//排序,可以传入比较器接口实现自定义排序
@Override
@SuppressWarnings("unchecked")
public void sort(Comparator<? super E> c) {
final int expectedModCount = modCount;
//底层根据Arrays.sort()实现
Arrays.sort((E[]) elementData, 0, size, c);
if (modCount != expectedModCount) {
throw new ConcurrentModificationException();
}
modCount++;
}
ArrayList底层实际上都是在操作对象数组来完成的,用的比较多的就是数组的拷贝System.arraycopy:
public static native void arraycopy(Object src, int srcPos,
Object dest, int destPos,
int length);
其中:src表示源数组,srcPos表示源数组要复制的起始位置,desc表示目标数组,length表示要复制的长度。

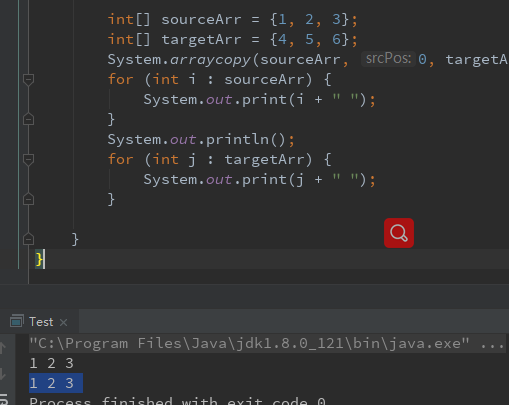

示例:
int[] sourceArr = {1, 2, 3};
int[] targetArr = {4, 5, 6};
System.arraycopy(sourceArr, 0, targetArr, 0, sourceArr.length);
for (int i : sourceArr) {
System.out.print(i + " ");
}
System.out.println();
for (int j : targetArr) {
System.out.print(j + " ");
}
