当训练好一个caffemodel, 我们需要用这个model对一张图片进行分类时,caffe提供了下面的命令接口(即c++接口)
./build/examples/cpp_classification/classification.bin \ # 调用接口
deploy.prorotxt \ # 网络模型的描述文件
caffemodel \ # 训练好的model
mean.binaryproto \ # 训练时加载的均值文件
synset_words.txt \ # 标签对应的类别名,比如2类猫狗分类问题,可以是第一行 0 cat 第二行 1 dog
运行上述命令后会打印出top5的标签以及对应的置信度。现在,我们分析该接口是怎么运作的,也就是看它的源文件,该文件在caffe根目录下的examples/cpp_classification/classification.cpp
先看主函数:
int main(int argc, char** argv) {
if (argc != 6) {
std::cerr << "Usage: " << argv[0]
<< " deploy.prototxt network.caffemodel"
<< " mean.binaryproto labels.txt img.jpg" << std::endl;
return 1;
}
::google::InitGoogleLogging(argv[0]);
string model_file = argv[1]; // 网络模型描述文件
string trained_file = argv[2]; // 训练好的model
string mean_file = argv[3]; // 训练时加载的均值文件
string label_file = argv[4]; // 标签标注文件
Classifier classifier(model_file, trained_file, mean_file, label_file); // 核心的分类器,由上述4个文件标注
string file = argv[5]; // 要进行分类的图片路径
std::cout << "---------- Prediction for "<< file << " ----------" << std::endl;
cv::Mat img = cv::imread(file, -1);
CHECK(!img.empty()) << "Unable to decode image " << file;
std::vector<Prediction> predictions = classifier.Classify(img); // 进行预测,返回top5的<标签号,可信度>
/* Print the top N predictions. */
for (size_t i = 0; i < predictions.size(); ++i) { // 简单的打印结果
Prediction p = predictions[i];
std::cout << std::fixed << std::setprecision(4) << p.second << " - \""
<< p.first << "\"" << std::endl;
}
}
上面的代码,是将一张图片输入到网络,进行前向传播,然后将网络的输出返回,也就是将一张图片映射成一个特征向量(这个特征向量正好就是网络最后一层softmax层的输出值);比如猫狗2分类,猫的标签是0,狗的标签是1,输入网络的是猫的图片,得到的特征向量就是[1,0].
接下来看其他内容

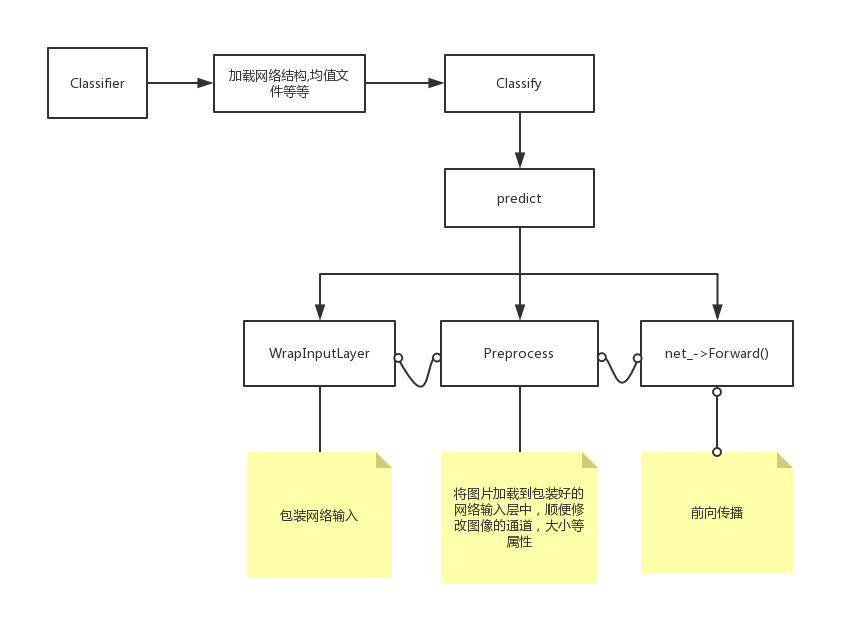

在classification.cpp中包含一个Classifier类,该类中包含:
Classifer函数:根据模型的配置文件.prototxt,训练好的模型文件.caffemodel,建立模型,得到net_;
处理均值文件,得到mean_;
读入labels文件,得到labels_;
classify函数:调用Predict函数对图像img进行分类,返回std::pair<std::string, float>形式预测结果。
私有函数: 仅供classifier函数和classify函数使用,包括:
setmean函数:将均值文件读入,转换为一张均值图像mean_
Predict函数: 调用Process函数将图像输入到网络中,使用net_->Forward()函数进行预测;将输出层的输出结果保存到vector容 器中并返回。
Preprocess函数:对图像的通道数,大小,数据形式进行改变,减去均值mean_, 在写入到net_的输入层中。
私有变量:
net_:模型变量;
input_geometry:输入层的图像大小;
num_channels:输入层的通道数;
mean_:均值文件处理得到的均值图像;
labels_:标签文件,输出的结果表示的含义。
WrapInputLayer:对输入层数据进行包装,方便后续操作。
这里重点解析Predict函数:
std::vector<float> Classifier::Predict(const cv::Mat& img) {
Blob<float>* input_layer = net_->input_blobs()[0]; // 这是网络数据输入层
// 调整输入层的尺寸,使之符合输入图片的尺寸,比如1*3*227*227, 也就是一张图片,三个通道,图片尺寸是227*227
input_layer->Reshape(1, num_channels_, input_geometry_.height, input_geometry_.width);
/* Forward dimension change to all layers. */
/* 整个网络,根据输入层,以及构造函数中的deploy.prototxt等文件的参数(比如卷积核个数卷积核大小等等)一层一层的开辟空间,
为接下来的计算做好准备 */
net_->Reshape();
/* 接下来的三行,将测试图片img送入网络的数据输入层,并做了一些列的处理,归一化,缩放操作等等,
具体的,可以看函数的实现细节,这里就不讲了 */
std::vector<cv::Mat> input_channels;
WrapInputLayer(&input_channels);
Preprocess(img, &input_channels);
// 图片送入网络,进行一次前向传播
net_->Forward();
/* Copy the output layer to a std::vector */
// 网络的输出层,比如imagenet中是1000类,则该层的输出层的维度是1*1000
Blob<float>* output_layer = net_->output_blobs()[0];
// 下面三行代码,就是取出网络的输出层的N维向量(比如imagenet中是1000维),然后返回
const float* begin = output_layer->cpu_data();
const float* end = begin + output_layer->channels();
return std::vector<float>(begin, end);
}
关键函数如上述,classification.cpp中的其他函数很好理解了。
