SpringCloud Eureka源码分析

一：注册服务 源码：

先从服务注册开始梳理，Eureka Client启动的时候就去Eureka Server注册服务。通过在启动类上添加@EnableDiscoveryClient这个注解，来声明这是一个Eureka Client。
以下是启动类代码：

package com.example.eurekaclient;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

//开启服务注册于发现
@EnableDiscoveryClient
@SpringBootApplication
public class EurekaClientApplication {

	public static void main(String[] args) {
		SpringApplication.run(EurekaClientApplication.class, args);
	}

}

点击@EnableDiscoveryClient ，进到这个注解中，该注解代码如下：

/*
 * Copyright 2013-2015 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package org.springframework.cloud.client.discovery;

import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Inherited;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

import org.springframework.context.annotation.Import;

/**
 * Annotation to enable a DiscoveryClient implementation.
 * @author Spencer Gibb
 */
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@Import(EnableDiscoveryClientImportSelector.class)
public @interface EnableDiscoveryClient {

	/**
	 * If true, the ServiceRegistry will automatically register the local server.
	 */
	boolean autoRegister() default true;
}

这个注解上方有注释，通过翻译，说这个注解是为了开启一个DiscoveryClient的实例。
接着我们搜索 DiscoveryClient 这个类，可以看到以后注释：

package com.netflix.discovery;

/**
 * The class that is instrumental for interactions with <tt>Eureka Server</tt>.
 *
 * <p>
 * <tt>Eureka Client</tt> is responsible for a) <em>Registering</em> the
 * instance with <tt>Eureka Server</tt> b) <em>Renewal</em>of the lease with
 * <tt>Eureka Server</tt> c) <em>Cancellation</em> of the lease from
 * <tt>Eureka Server</tt> during shutdown
 * <p>
 * d) <em>Querying</em> the list of services/instances registered with
 * <tt>Eureka Server</tt>
 * <p>
 *
 * <p>
 * <tt>Eureka Client</tt> needs a configured list of <tt>Eureka Server</tt>
 * {@link java.net.URL}s to talk to.These {@link java.net.URL}s are typically amazon elastic eips
 * which do not change. All of the functions defined above fail-over to other
 * {@link java.net.URL}s specified in the list in the case of failure.
 * </p>
 *
 * @author Karthik Ranganathan, Greg Kim
 * @author Spencer Gibb
 *
 */
@Singleton
public class DiscoveryClient implements EurekaClient {

大体意思是：
这个类用于帮助与Eureka Server互相协作。
Eureka C巨ent负责下面的任务：
－向Eureka Server注册服务实例
－向Eureka Server服务租约
－ 当服务关闭期间， 向Eureka Server取消租约
－查询Eureka Server中的服务实例列表
Eureka Client还需要配置一个Eureka Server的 URL列表。

我们先看看在哪里对 Eureka Server的URL列表进行配置。就是我们配置文件中的属性名eureka.client.serviceUrl.defaultZone, 这个地址就是Eureka Server的地址，服务注册、服务续约以及其他的操作，都是向这个地址发送请求的。

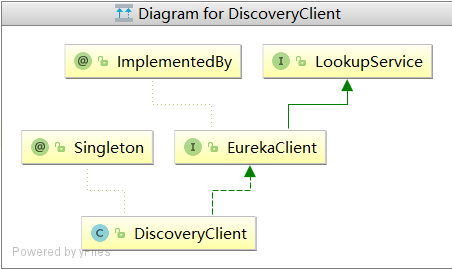

接着看下这个类的类图关系：

这个类实现了EurekaClient接口，并且它是单例模式，而EurekaClient又继承了LookupService接口。点击进去EurekaClient 这个接口，可以看到：

/**
 * Define a simple interface over the current DiscoveryClient implementation.
 *
 * This interface does NOT try to clean up the current client interface for eureka 1.x. Rather it tries
 * to provide an easier transition path from eureka 1.x to eureka 2.x.
 *
 * EurekaClient API contracts are:
 *  - provide the ability to get InstanceInfo(s) (in various different ways)
 *  - provide the ability to get data about the local Client (known regions, own AZ etc)
 *  - provide the ability to register and access the healthcheck handler for the client
 *
 * @author David Liu
 */
@ImplementedBy(DiscoveryClient.class)
public interface EurekaClient extends LookupService {

根据注释，我们可以得知这个接口的大体作用
EurekaClient API合同包括：
-提供获取InstanceInfo的能力（以各种不同的方式）
-提供获取本地客户数据的能力（已知地区、自有AZ等）
-提供为客户端注册和访问healthcheck处理程序的能力
看第三条可以知道 DiscoveryClient 类主要就是发现服务的。

因为是单例的，所有Eureka Client需要一开始先初始化DiscoveryClient实例，那就看下DiscoveryClient的构造方法。

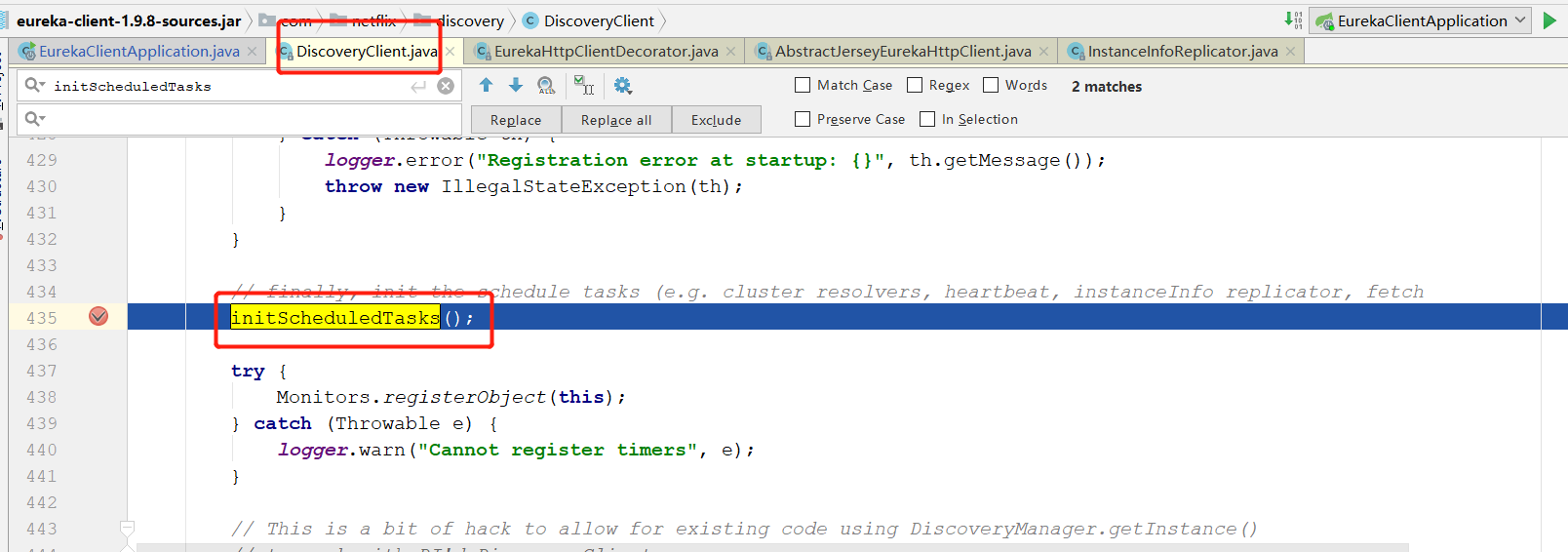

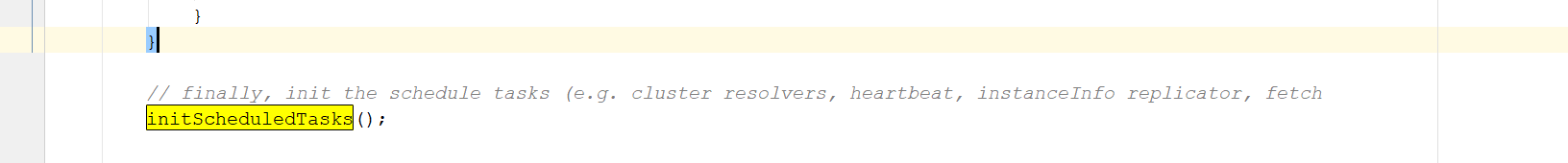

DiscoveryClient的构造方法还是挺长的，里面初始化了一大堆的对象，不过可以观察到在new了这么一大堆对象之后，调用了initScheduledTasks();这个方法，所以，点进initScheduledTasks()方法里面看下。

/**
     * Initializes all scheduled tasks.
     */
    private void initScheduledTasks() {
        if (clientConfig.shouldFetchRegistry()) {
            //获取注册表信息
            // registry cache refresh timer
            int registryFetchIntervalSeconds = clientConfig.getRegistryFetchIntervalSeconds();
            int expBackOffBound = clientConfig.getCacheRefreshExecutorExponentialBackOffBound();
            scheduler.schedule(
                    new TimedSupervisorTask(
                            "cacheRefresh",
                            scheduler,
                            cacheRefreshExecutor,
                            registryFetchIntervalSeconds,
                            TimeUnit.SECONDS,
                            expBackOffBound,
                            new CacheRefreshThread()
                    ),
                    registryFetchIntervalSeconds, TimeUnit.SECONDS);
        }

        if (clientConfig.shouldRegisterWithEureka()) {
            int renewalIntervalInSecs = instanceInfo.getLeaseInfo().getRenewalIntervalInSecs();
            int expBackOffBound = clientConfig.getHeartbeatExecutorExponentialBackOffBound();
            logger.info("Starting heartbeat executor: " + "renew interval is: {}", renewalIntervalInSecs);

            //服务续约
            // Heartbeat timer
            scheduler.schedule(
                    new TimedSupervisorTask(
                            "heartbeat",
                            scheduler,
                            heartbeatExecutor,
                            renewalIntervalInSecs,
                            TimeUnit.SECONDS,
                            expBackOffBound,
                            new HeartbeatThread()
                    ),
                    renewalIntervalInSecs, TimeUnit.SECONDS);

            // InstanceInfo replicator
            instanceInfoReplicator = new InstanceInfoReplicator(
                    this,
                    instanceInfo,
                    clientConfig.getInstanceInfoReplicationIntervalSeconds(),
                    2); // burstSize

            statusChangeListener = new ApplicationInfoManager.StatusChangeListener() {
                @Override
                public String getId() {
                    return "statusChangeListener";
                }

                @Override
                public void notify(StatusChangeEvent statusChangeEvent) {
                    if (InstanceStatus.DOWN == statusChangeEvent.getStatus() ||
                            InstanceStatus.DOWN == statusChangeEvent.getPreviousStatus()) {
                        // log at warn level if DOWN was involved
                        logger.warn("Saw local status change event {}", statusChangeEvent);
                    } else {
                        logger.info("Saw local status change event {}", statusChangeEvent);
                    }
                    instanceInfoReplicator.onDemandUpdate();
                }
            };

            if (clientConfig.shouldOnDemandUpdateStatusChange()) {
                applicationInfoManager.registerStatusChangeListener(statusChangeListener);
            }

            instanceInfoReplicator.start(clientConfig.getInitialInstanceInfoReplicationIntervalSeconds());
        } else {
            logger.info("Not registering with Eureka server per configuration");
        }
    }

在initScheduledTasks方法中，初始化了几个任务。
一开始有个if判断，判断是否需要从Eureka Server获取数据，如果为真，则初始化一个服务获取的定时任务。
还有有个if (clientConfig.shouldRegisterWithEureka())的判断，所以，当Eureka Client配置这个为true时，就会执行这个if语句里面的逻辑。if语句中，会初始化一个Heartbeat timer和InstanceInfoReplicator。Heartbeat timer就是不断的发送请求来维持心跳的，也就是服务续约的任务。而InstanceInfoReplicator类是注册时客户端给服务端的服务的元数据，它实现了Runnable接口，所以需要看下InstanceInfoReplicator类中的run方法。

 public void run() {
        try {
            discoveryClient.refreshInstanceInfo();

            Long dirtyTimestamp = instanceInfo.isDirtyWithTime();
            if (dirtyTimestamp != null) {
                discoveryClient.register();
                instanceInfo.unsetIsDirty(dirtyTimestamp);
            }
        } catch (Throwable t) {
            logger.warn("There was a problem with the instance info replicator", t);
        } finally {
            Future next = scheduler.schedule(this, replicationIntervalSeconds, TimeUnit.SECONDS);
            scheduledPeriodicRef.set(next);
        }
    }

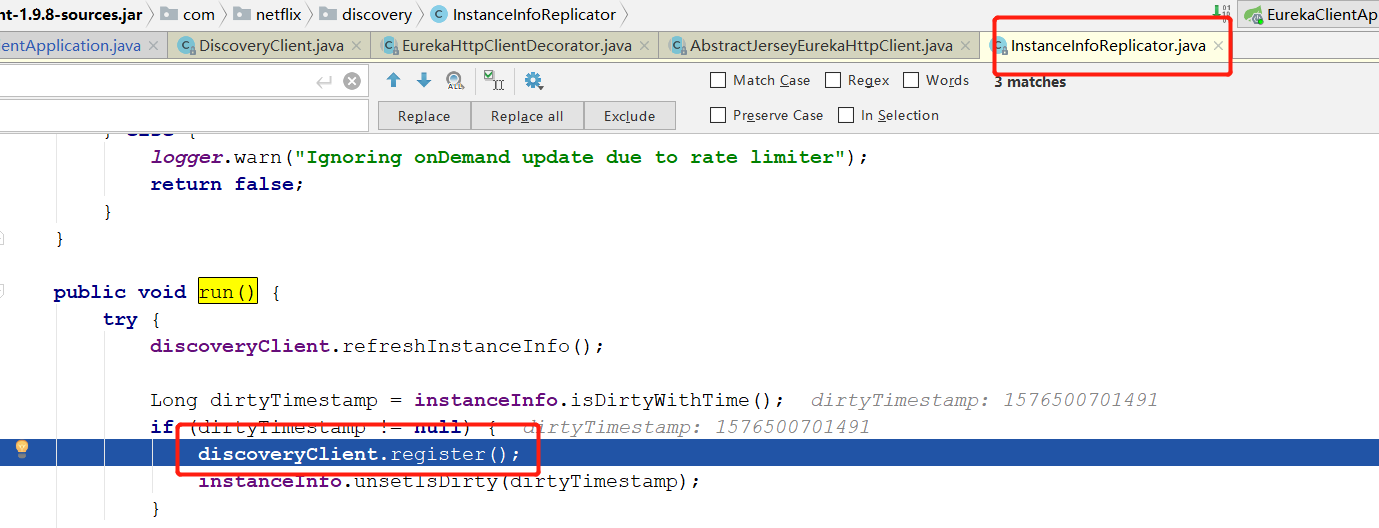

可以发现了中discoveryClient.register () ; 这一行，真正触发调用注册的
地方就在这里。 继续查看 register ()的实现内容， 如下所示：

    /**
     * Register with the eureka service by making the appropriate REST call.
     */
    boolean register() throws Throwable {
        logger.info(PREFIX + "{}: registering service...", appPathIdentifier);
        EurekaHttpResponse<Void> httpResponse;
        try {
            httpResponse = eurekaTransport.registrationClient.register(instanceInfo);
        } catch (Exception e) {
            logger.warn(PREFIX + "{} - registration failed {}", appPathIdentifier, e.getMessage(), e);
            throw e;
        }
        if (logger.isInfoEnabled()) {
            logger.info(PREFIX + "{} - registration status: {}", appPathIdentifier, httpResponse.getStatusCode());
        }
        return httpResponse.getStatusCode() == Status.NO_CONTENT.getStatusCode();
    }

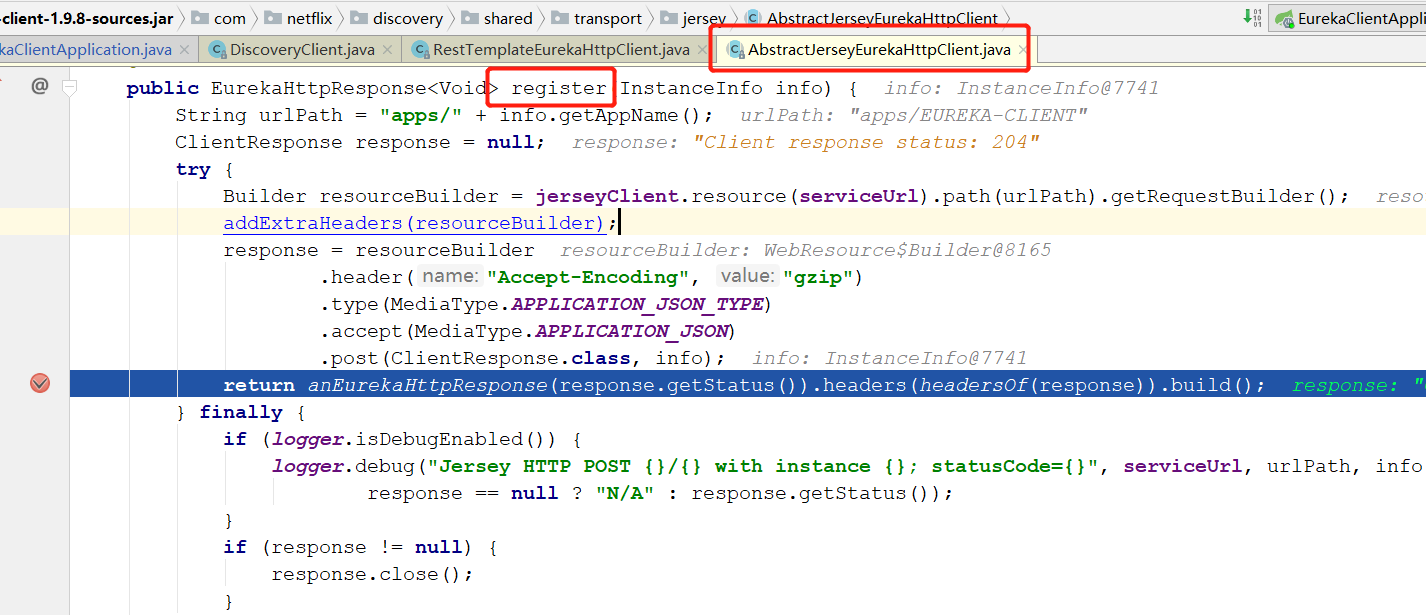

register()方法，就会把instanceInfo信息，通过REST请求发送给Eureka Server。instanceInfo就是客服端服务的元数据。

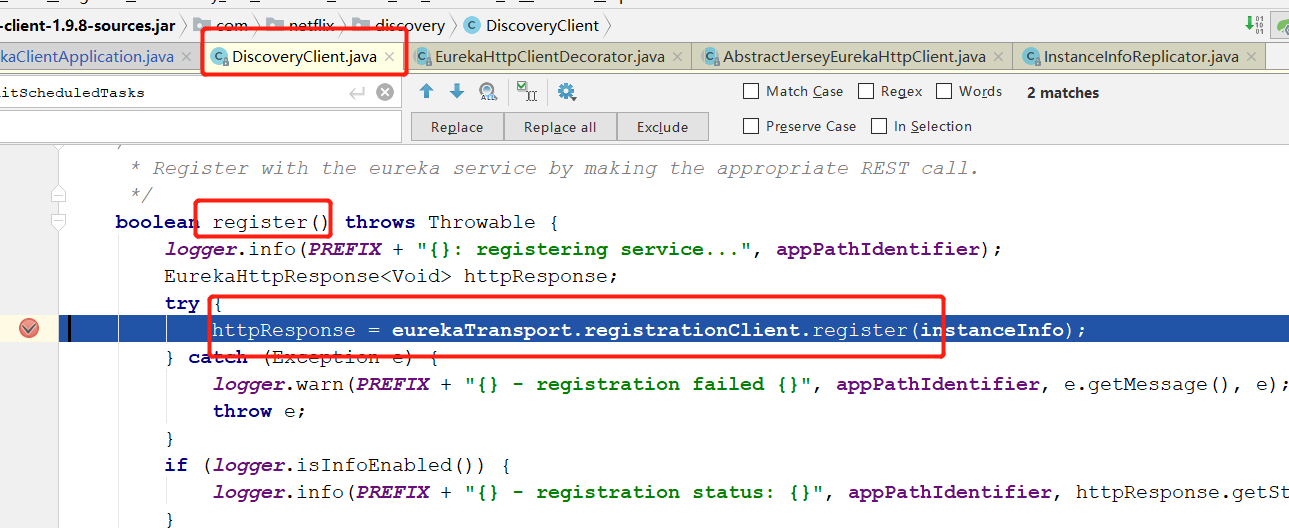

Debug 图：

二：获取服务注册列表 和续约 源码

顺着上面的思路， 我们继续来看 DiscoveryC巨ent 的江itScheduledTasks 函数， 不难发现在其中还有两个定时任务， 分别是 “服务获取 ” registry cache refresh timer 和“服务续约" Heartbeat timer :

 private void initScheduledTasks() {
        if (clientConfig.shouldFetchRegistry()) {
            //获取注册表信息
            // registry cache refresh timer
            int registryFetchIntervalSeconds = clientConfig.getRegistryFetchIntervalSeconds();
            int expBackOffBound = clientConfig.getCacheRefreshExecutorExponentialBackOffBound();
            scheduler.schedule(
                    new TimedSupervisorTask(
                            "cacheRefresh",
                            scheduler,
                            cacheRefreshExecutor,
                            registryFetchIntervalSeconds,
                            TimeUnit.SECONDS,
                            expBackOffBound,
                            new CacheRefreshThread()
                    ),
                    registryFetchIntervalSeconds, TimeUnit.SECONDS);
        }

        if (clientConfig.shouldRegisterWithEureka()) {
            int renewalIntervalInSecs = instanceInfo.getLeaseInfo().getRenewalIntervalInSecs();
            int expBackOffBound = clientConfig.getHeartbeatExecutorExponentialBackOffBound();
            logger.info("Starting heartbeat executor: " + "renew interval is: {}", renewalIntervalInSecs);

            //服务续约
            // Heartbeat timer
            scheduler.schedule(
                    new TimedSupervisorTask(
                            "heartbeat",
                            scheduler,
                            heartbeatExecutor,
                            renewalIntervalInSecs,
                            TimeUnit.SECONDS,
                            expBackOffBound,
                            new HeartbeatThread()
                    ),
                    renewalIntervalInSecs, TimeUnit.SECONDS);

1.点击CacheRefreshThread(),可以看到：

 /**
     * The task that fetches the registry information at specified intervals.
     *
     */
    class CacheRefreshThread implements Runnable {
        public void run() {
            refreshRegistry();
        }
    }

从注释可以看出 它的作用是 按指定间隔获取注册表信息的任务。

2.点击HeartbeatThread(),可以看到：

  /**
     * The heartbeat task that renews the lease in the given intervals.
     */
    private class HeartbeatThread implements Runnable {

        public void run() {
            if (renew()) {
                lastSuccessfulHeartbeatTimestamp = System.currentTimeMillis();
            }
        }
    }

从注释可以看出 它的作用是 续约（心跳）。

另外，服务续约有两个参数是可以配置的 ，即Eureka Client 发送续约心跳的时间参数和Eureka Server 在多长时间内没有收到心跳将实例剔除的时间参数。
在默认情况下，这两个参数分别为30秒和90秒，官方的建议是不要修改，如有需要，只需要在Eureka Client 和 Eureka Server的配置文件中 加以下的配置：
eureka.instance.leaseRenewalIntervalInseconds
eureka.instance.leaseExpirationDurationInseconds

参考：https://blog.csdn.net/chayangdz/article/details/82012937
https://blog.csdn.net/qq_30062125/article/details/83833006
