网关是什么就不用多说了,网关最大的作用就是隐藏我们内部服务器的IP地址,外界通过网管访问,由网管决定请求是否可以进入内部服务,因此网管也可以做权限检验,网关还具备动态路由,负载均衡等功能。
搭建zuul模块
pom文件
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-zuul</artifactId>
</dependency>
启动类上加上@EnableZuulProxy开启网关
@SpringBootApplication
@EnableZuulProxy
public class ZuulDemoApplication {
public static void main(String[] args) {
SpringApplication.run(ZuulDemoApplication.class, args);
}
}
application.yml
server:
port: 8087
spring:
application:
name: zuul-demo
eureka:
client:
service-url:
defaultZone: http://localhost:8081/eureka/,http://localhost:8082/eureka/
zuul:
routes:
#可以任意,一般都会和服务名相同
eureka-client:
#访问路径
path: /eureka-client/**
#会映射到这个服务上
serviceId: eureka-client
#也可以直接映射到某个ip,一般不会这么做
#url: http://localhost:8080
接着我们启动网关,通过网关去访问eureka客户端

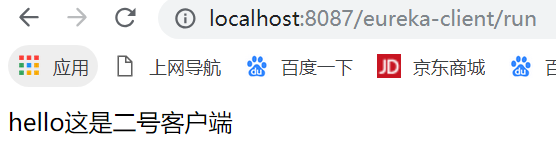

我们可以看出网关具备负载均衡的功能。
接下来我们测试一下Zuul的过滤器功能
public class IdFilter extends ZuulFilter {
//决定过滤器类型
@Override
public String filterType() {
return "pre";
}
//决定过滤器的执行顺序
@Override
public int filterOrder() {
return 0;
}
//决定过滤器是否生效
@Override
public boolean shouldFilter() {
return true;
}
@Override
public Object run() throws ZuulException {
RequestContext requestContext = RequestContext.getCurrentContext();
HttpServletRequest request = requestContext.getRequest();
//这里校验的是如果id为空,就不通过
String id = request.getParameter("id");
if (id == null){
//设置网关不通过
requestContext.setSendZuulResponse(false);
requestContext.setResponseStatusCode(401);
requestContext.setResponseBody("id is null");
}
//通过id访问数据库之类的操作
return null;
}
}
在启动类上配置过滤器
@Bean
public IdFilter idFilter(){
return new IdFilter();
}

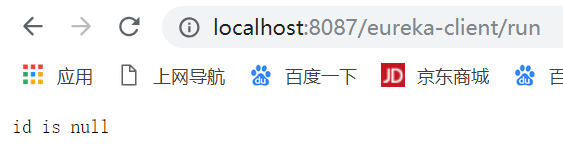

接下来我们启动程序,我们发现没有传id属性的时候,zuul网关会拦截请求

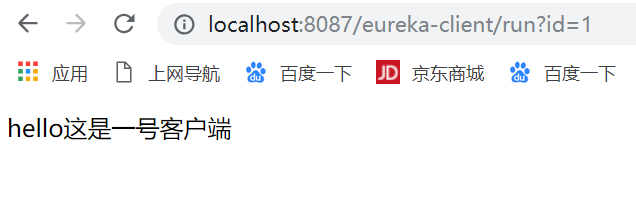

带上id后,就可以正常访问
filterType:返回一个字符串代表过滤器的类型,在zuul中定义了四种不同生命周期的过滤器类型,具体如下:
1.pre:可以在请求被路由之前调用,用在路由映射的阶段是寻找路由映射表的
2.route:在路由请求时候被调用,具体的路由转发过滤器是在routing路由器具体的请求转发的时候会调用
3.error:处理请求时发生错误时被调用
4.post:当routing,error运行完后才会调用该过滤器,是在最后阶段的
最后说几个zuul的配置参数:
zuul.ignored-services 忽略的服务
zuul.ignored-patterns 忽略的路径
zuul.prefix= /api/**
配置前缀 可以看到那么你访问的服务都必须要加/api/前缀,例如/api/hello-service/**
zuul.sensitive-headers=: cookie 设置不禁用的请求头,cookie默认是禁用的
//禁用过滤器
zuul.IdFilter.pre.disable=true; 禁用这个过滤器
IdFilter:是类名
pre:是过滤器类型
