1、MessagePack 介绍

1、编解码高效、性能高；

2、序列化之后的码流小；

3、支持跨语言。

<!-- https://mvnrepository.com/artifact/org.msgpack/msgpack -->
<dependency>
    <groupId>org.msgpack</groupId>
    <artifactId>msgpack</artifactId>
    <version>0.6.12</version>
</dependency>

MessagePack 编解码代码

package com.netty.codec.msgpack;

import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.MessageToByteEncoder;
import org.msgpack.MessagePack;

public class MsgPackEncoder extends MessageToByteEncoder<Object> {
    @Override
    protected void encode(ChannelHandlerContext channelHandlerContext, Object o, ByteBuf byteBuf) throws Exception {
        // Object编译成 byte 数组，然后写入到 ByteBuf中
        MessagePack pack = new MessagePack();
        byte[] raw = pack.write(o);
        byteBuf.writeBytes(raw);
    }
}

package com.netty.codec.msgpack;

import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.MessageToMessageDecoder;
import org.msgpack.MessagePack;

import java.util.List;

public class MsgPackDecoder extends MessageToMessageDecoder<ByteBuf> {

    @Override
    protected void decode(ChannelHandlerContext channelHandlerContext, ByteBuf byteBuf, List<Object> list) throws Exception {
        final byte[] array;
        final int length = byteBuf.readableBytes();
        array = new byte[length];
        byteBuf.getBytes(byteBuf.readerIndex(), array, 0, length);
        MessagePack pack = new MessagePack();
        list.add(pack.read(array));
    }
}

pojo

package com.netty.codec.pojo;

import org.msgpack.annotation.Message;

@Message
public class UserInfo{
    private String name;
    private int age;

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public int getAge() {
        return age;
    }

    public void setAge(int age) {
        this.age = age;
    }

    @Override
    public String toString() {
        return "User [name=" + name + ", age=" + age + "]";
    }
}

服务端代码：

package com.netty.codec.msgpack;

import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelOption;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.codec.LengthFieldBasedFrameDecoder;
import io.netty.handler.codec.LengthFieldPrepender;
import io.netty.handler.codec.LineBasedFrameDecoder;
import io.netty.handler.codec.string.StringDecoder;
import io.netty.handler.logging.LogLevel;
import io.netty.handler.logging.LoggingHandler;

public class MsgPackEchoServer {
    public void bind(int port) throws Exception {
        // 配置服务端的 NIO 线程组
        EventLoopGroup bossGroup = new NioEventLoopGroup();
        EventLoopGroup workerGroup = new NioEventLoopGroup();
        try {
            ServerBootstrap b = new ServerBootstrap();
            b.group(bossGroup, workerGroup)
                    .channel(NioServerSocketChannel.class)
                    .option(ChannelOption.SO_BACKLOG, 1024)
                    .childHandler(new ChannelInitializer<SocketChannel>() {

                        @Override
                        protected void initChannel(SocketChannel channel) throws Exception {
                            // 解决粘包问题
                            channel.pipeline().addLast("frameDecoder",new LengthFieldBasedFrameDecoder(65535, 0, 2,0,2));
                            channel.pipeline().addLast("msgpack decoder", new MsgPackDecoder());
                            // 解决粘包问题
                            channel.pipeline().addLast("frameEncoder",new LengthFieldPrepender(2));
                            channel.pipeline().addLast("msgpack encoder", new MsgPackEncoder());
                            channel.pipeline().addLast(new MsgPackEchoServerHandler());
                        }
                    });
            // 绑定端口，同步等待成功
            ChannelFuture f = b.bind(port).sync();

            // 等待服务端监听端口关闭
            f.channel().closeFuture().sync();
        } finally {
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }
    }

    public static void main(String[] args) throws Exception {
        int port = 8080;
        new MsgPackEchoServer().bind(port);
    }
}

package com.netty.codec.msgpack;


import io.netty.channel.ChannelHandlerAdapter;
import io.netty.channel.ChannelHandlerContext;

public class MsgPackEchoServerHandler extends ChannelHandlerAdapter {

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        ctx.close();
    }

    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        System.out.println("Server receive the msgpack message : " + msg);
        ctx.write(msg);
    }

    @Override
    public void channelReadComplete(ChannelHandlerContext ctx) throws Exception {
        ctx.flush();
    }
}

客户端代码：

package com.netty.codec.msgpack;

import io.netty.bootstrap.Bootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelOption;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;
import io.netty.handler.codec.LengthFieldBasedFrameDecoder;
import io.netty.handler.codec.LengthFieldPrepender;
import io.netty.handler.codec.LineBasedFrameDecoder;
import io.netty.handler.codec.string.StringDecoder;

public class MsgPackEchoClient {
    public void connect(int port, String host, int sendNumber) throws Exception {
        EventLoopGroup group = new NioEventLoopGroup();
        try {
            Bootstrap b = new Bootstrap();
            b.group(group).channel(NioSocketChannel.class)
                    .option(ChannelOption.TCP_NODELAY, true)
                    .handler(new ChannelInitializer<SocketChannel>() {
                        @Override
                        protected void initChannel(SocketChannel channel) throws Exception {
                            // 解决粘包问题
                            channel.pipeline().addLast("frameDecoder",new LengthFieldBasedFrameDecoder(65535, 0, 2,0,2));
                            channel.pipeline().addLast("msgpack decoder", new MsgPackDecoder());
                            // 解决粘包问题
                            channel.pipeline().addLast("frameEncoder",new LengthFieldPrepender(2));
                            channel.pipeline().addLast("msgpack encoder", new MsgPackEncoder());
                            channel.pipeline().addLast(new MsgPackEchoClientHandler(sendNumber));
                        }
                    });
            // 发起异步连接操作
            ChannelFuture f = b.connect(host, port).sync();

            // 等待客户端链路关闭
            f.channel().closeFuture().sync();
        } finally {
            group.shutdownGracefully();
        }
    }

    public static void main(String[] args) throws Exception {
        int port = 8080;
        new MsgPackEchoClient().connect(port, "127.0.0.1", 1000);

    }
}

package com.netty.codec.msgpack;

import com.netty.codec.pojo.UserInfo;
import io.netty.channel.ChannelHandlerAdapter;
import io.netty.channel.ChannelHandlerContext;

public class MsgPackEchoClientHandler extends ChannelHandlerAdapter {

    private int sendNumber;

    public MsgPackEchoClientHandler(int sendNumber) {
        this.sendNumber = sendNumber;
    }

    /**
     * 构建长度为userNum的User对象数组
     * @param userNum
     * @return
     */
    private UserInfo[] getUserArray(int userNum) {
        UserInfo[] users = new UserInfo[userNum];
        UserInfo user = null;
        for(int i = 0; i < userNum; i++) {
            user = new UserInfo();
            user.setName("ABCDEFG --->" + i);
            user.setAge(i);
            users[i] = user;
        }
        return users;
    }

    @Override
    public void channelActive(ChannelHandlerContext ctx) {
        UserInfo[] users = getUserArray(sendNumber);
        for (UserInfo user : users) {
            ctx.writeAndFlush(user);
        }
    }

    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        System.out.println("Client receive the msgpack message : " + msg);
    }

    @Override
    public void channelReadComplete(ChannelHandlerContext ctx) throws Exception {
        ctx.flush();
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        ctx.close();
    }
}

LengthFieldBasedFrameDecoder 和 LengthFieldPrepender 解决了粘包问题。

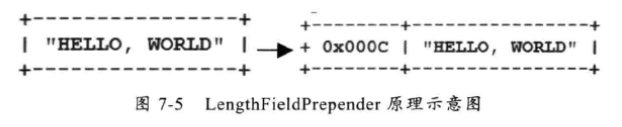

LengthFieldPrepender 在MessagePack编码器编码前增加了两个字节的消息长度字段，

LengthFieldBasedFrameDecoder 在MessagePack 解码器解码前可以读取到消息长度字段，这样解码器永远接到的都是整包。

Netty学习之七—— MessagePack 编解码

1、MessagePack 介绍

MessagePack 编解码代码

服务端代码：

客户端代码：

LengthFieldBasedFrameDecoder 和 LengthFieldPrepender 解决了粘包问题。

总结：在消息头中增加报文长度字段，利用该字段进行半包的编解码，解决粘包/半包问题。
