接着昨天的来 实体类和service都放到了公共包里边 在模块中引入
dubbo 和 zookeeper的jar包也引入了
service和实现类也写好了
剩下的就是跟dubbo结合了 也就是写配置文件或加上相关的注解
1. 将服务提供者注册到注册中心
1)
创建provider.xml 可以参考官方文档
http://dubbo.apache.org/zh-cn/docs/user/quick-start.html
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.3.xsd http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd">
<!-- 提供方应用信息,用于计算依赖关系 相同服务相同名字 不与其他服务重名-->
<dubbo:application name="hello-world-app" />
<!-- 使用zookeeper注册中心 这也是dubbo官方推荐的 2中配置都可以-->
<!--<dubbo:registry address="zookeeper://127.0.0.1:2181" />-->
<dubbo:registry protocol="zookeeper" address="127.0.0.1:2181"></dubbo:registry>
<!-- 用dubbo协议在20880端口暴露服务 非常重要!! 消费者调用的时候就是从这个端口进行通信-->
<dubbo:protocol name="dubbo" port="20880" />
<!-- 声明需要暴露的服务接口 暴露的服务在消费端就能使用 ref指明接口真正的实现! -->
<dubbo:service interface="com.test.mall.service.UserService" ref="userServiceImpl" />
<!-- 服务的实现 和本地bean一样实现服务 -->
<bean id="userServiceImpl" class="com.test.mall.service.impl.UserServiceImpl" />
</beans>
2)测试 记得呀 zookeeper一定不能停止 我今天忘记启动了 所以会报错
package com.test.mall;
import java.io.IOException;
import org.springframework.context.support.ClassPathXmlApplicationContext;
public class MainApplication {
public static void main(String[] args) throws IOException {
ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext(new String[] { "provider.xml" });
context.start();
System.in.read(); // 按任意键退出
}
}

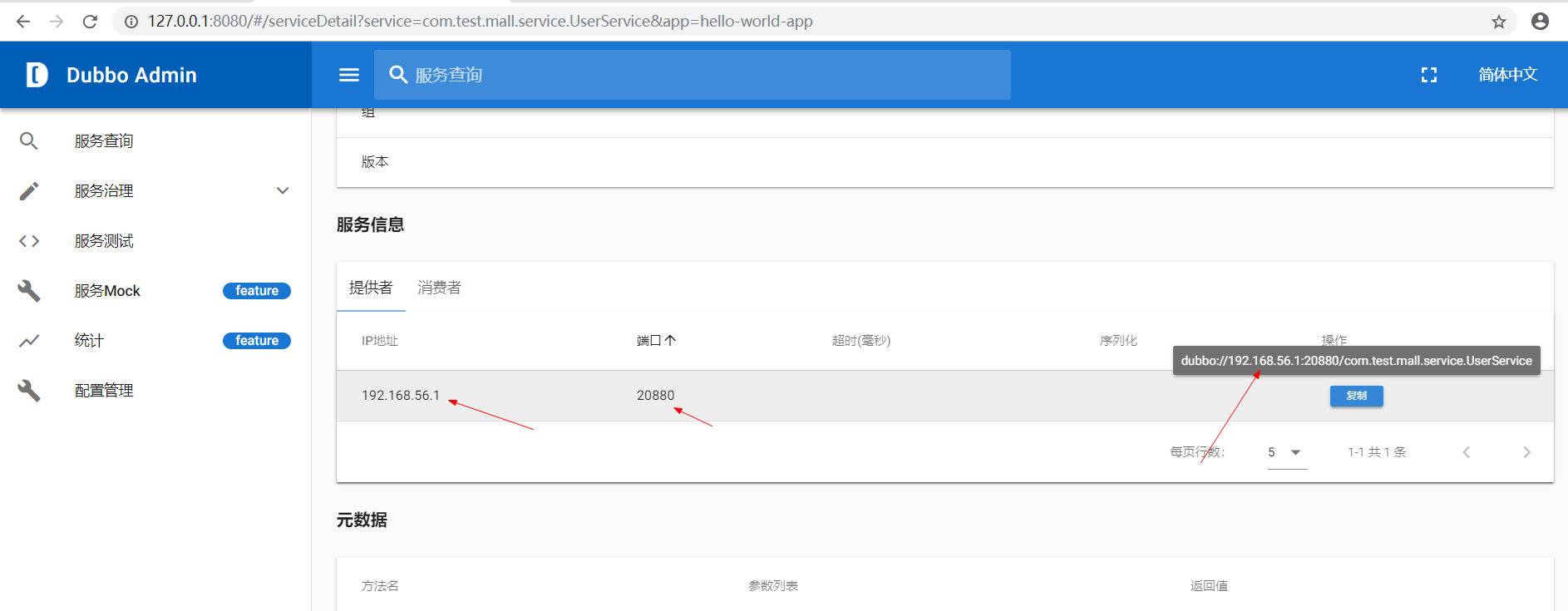

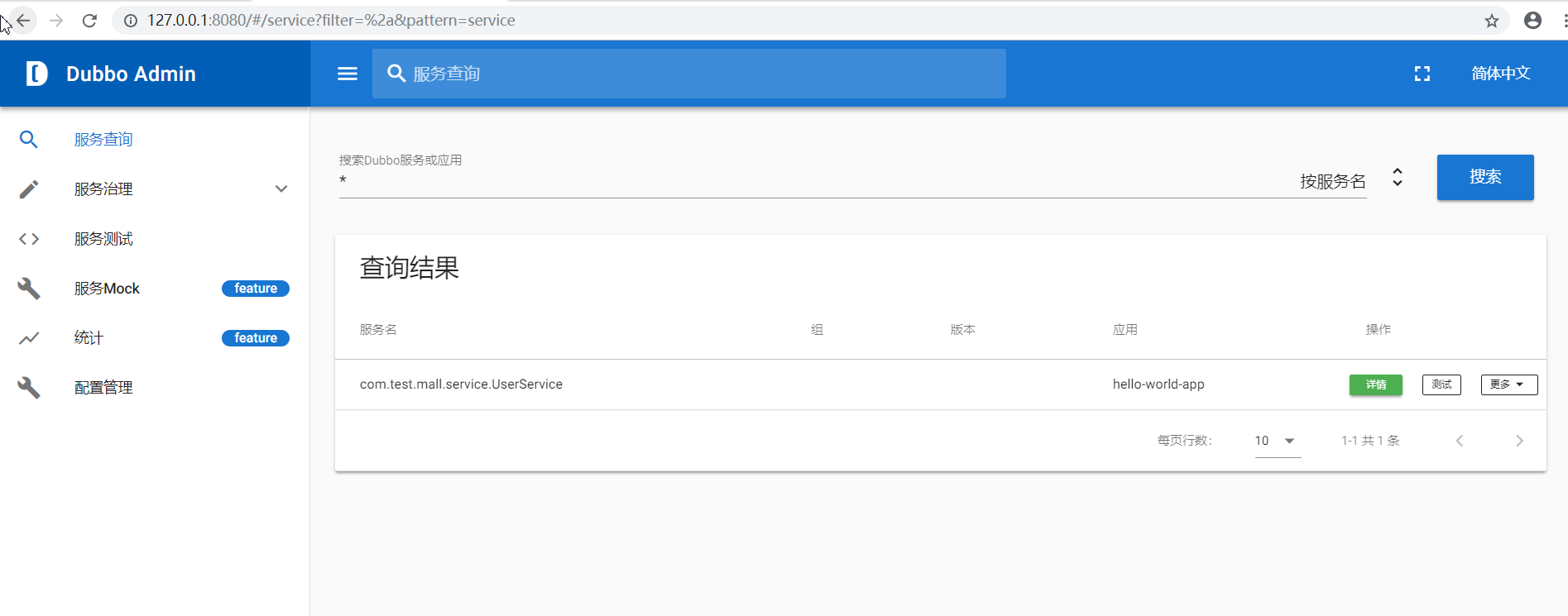

3 )去管理页面查看 已经有注册的服务了 这个管理页面就是昨天安装的dubbo-admin
192.168.56.1 就是本机地址
2. 服务消费者
1 ) 引入jar包
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.test.mall</groupId>
<artifactId>user-service-consumer</artifactId>
<version>0.0.1-SNAPSHOT</version>
<dependencies>
<dependency>
<!--common的pom.xml 开头就是这个配置 直接复制过来groupId artifactId version -->
<groupId>com.test.mall</groupId>
<artifactId>mall-common</artifactId>
<version>0.0.1-SNAPSHOT</version>
</dependency>
<!-- https://mvnrepository.com/artifact/com.alibaba/dubbo -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>dubbo</artifactId>
<version>2.6.2</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.apache.curator/curator-framework -->
<dependency>
<groupId>org.apache.curator</groupId>
<artifactId>curator-framework</artifactId>
<version>2.12.0</version>
</dependency>
</dependencies>
</project>
2 )配置文件 consumer.xml 这个文件名随意~~
官方配置demo: http://dubbo.apache.org/zh-cn/docs/user/quick-start.html
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:dubbo="http://dubbo.apache.org/schema/dubbo"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd
http://dubbo.apache.org/schema/dubbo http://dubbo.apache.org/schema/dubbo/dubbo.xsd
http://code.alibabatech.com/schema/dubbo http://code.alibabatech.com/schema/dubbo/dubbo.xsd">
<!-- 为了让注解生效 需要配置扫描包 -->
<context:component-scan base-package="com.test.mall.service.impl"></context:component-scan>
<!-- 消费方应用名,用于计算依赖关系,不是匹配条件,不要与提供方一样 不同消费者名称不能重复-->
<dubbo:application name="user-service-consumer" />
<!-- 使用zookeeper注册中心 也是2中配置方式 这里就只写一种了 -->
<dubbo:registry address="zookeeper://127.0.0.1:2181" />
<!-- 生成远程服务代理,可以和本地bean一样使用userService provider暴露了userService 所以这里就可以引用userService -->
<dubbo:reference id="userService" interface="com.test.mall.service.UserService" />
</beans>
3 ) userService 经过上边的配置 它已经在容器中了 所以我们可以在代码中使用了
package com.test.mall.service.impl;
import java.util.List;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import com.test.mall.bean.UserAddress;
import com.test.mall.service.OrderService;
import com.test.mall.service.UserService;
/**
*
*/
@Service
public class OrderServiceImpl implements OrderService {
@Autowired
UserService userService;
public void initOrder(String userId) {
//查询用户收货地址
List<UserAddress> addList = userService.getUserAddressList(userId);
System.out.println(addList);
}
}
4 )测试文件
package com.test.mall;
import java.io.IOException;
import java.util.List;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.test.mall.bean.UserAddress;
import com.test.mall.service.UserService;
public class MainApplication {
public static void main(String[] args) throws IOException {
ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext(new String[] {"consumer.xml"});
context.start();
UserService demoService = context.getBean(UserService.class); // 获取远程服务代理
List<UserAddress> lidt= demoService.getUserAddressList("1"); //执行远程方法
// 显示调用结果
for (UserAddress ua :lidt) {
System.out.println(ua.getUserAddress());
}
//让他停止一下 可以在控制台查看一下消费者的服务
System.in.read();
}
}

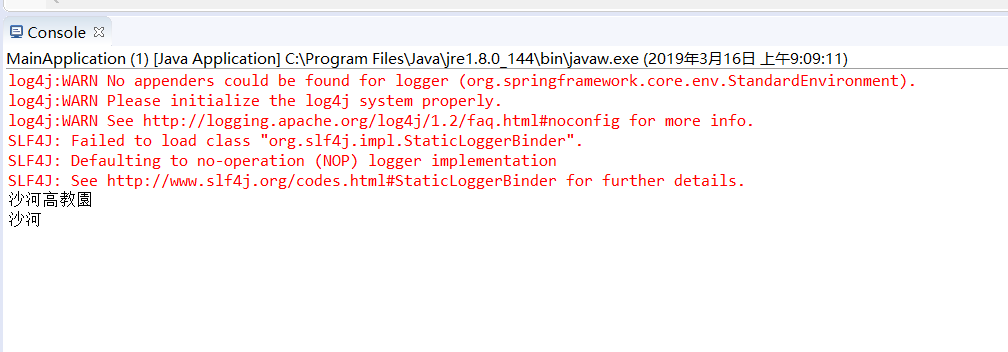

5 ) 有输出结果 说明调用成功啦

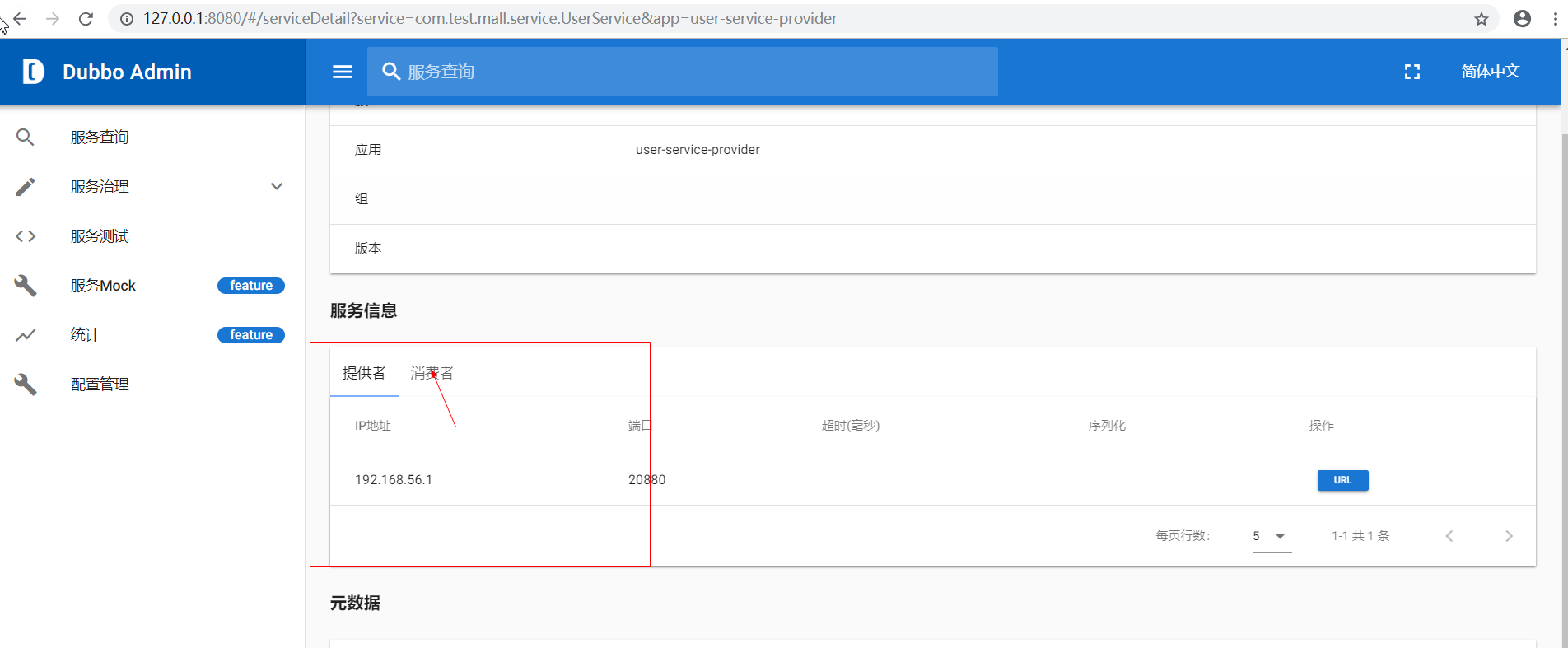

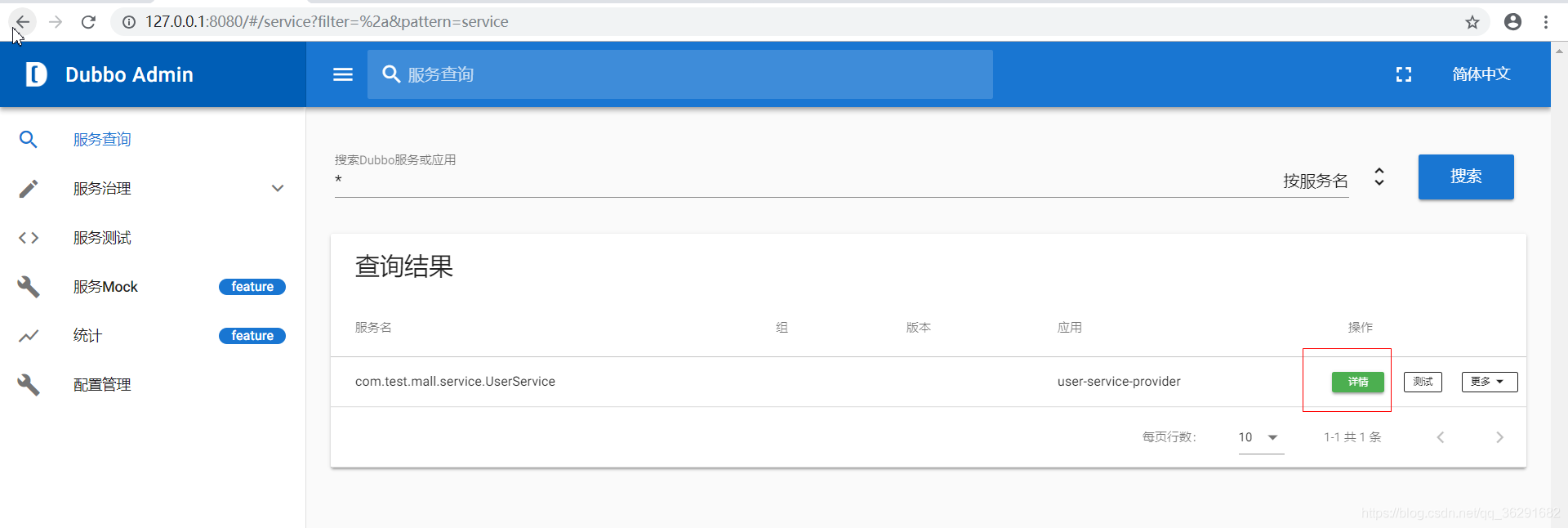

6 ) 去dubbo-admin 点击服务者的详情按钮 暂时没有方法信息 2.7版本之后会添加方法信息
哎呦 监控中心还没有个搞好呢 睡了个觉 一天又快过去了
Dubbo 源码:https://github.com/apache/incubator-dubbo/
Dubbo 版本历史:https://github.com/apache/incubator-dubbo/releases
我下载的是incubator-dubbo-dubbo-2.6.0.zip (https://codeload.github.com/apache/incubator-dubbo/zip/dubbo-2.6.0 )不知道为什么高于这个版本的好像有变动 有一些问题 不是代码问题 是我搞不懂 所以用了这个旧版本
解压 maven 打包 配置 启动

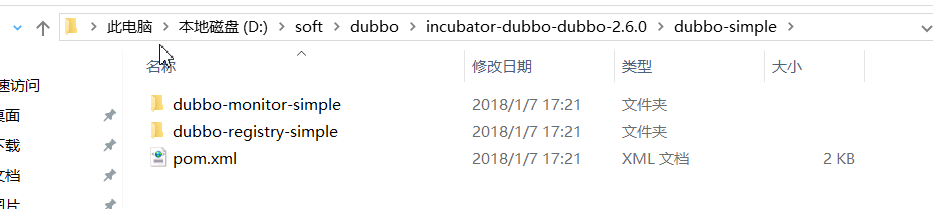

解压:

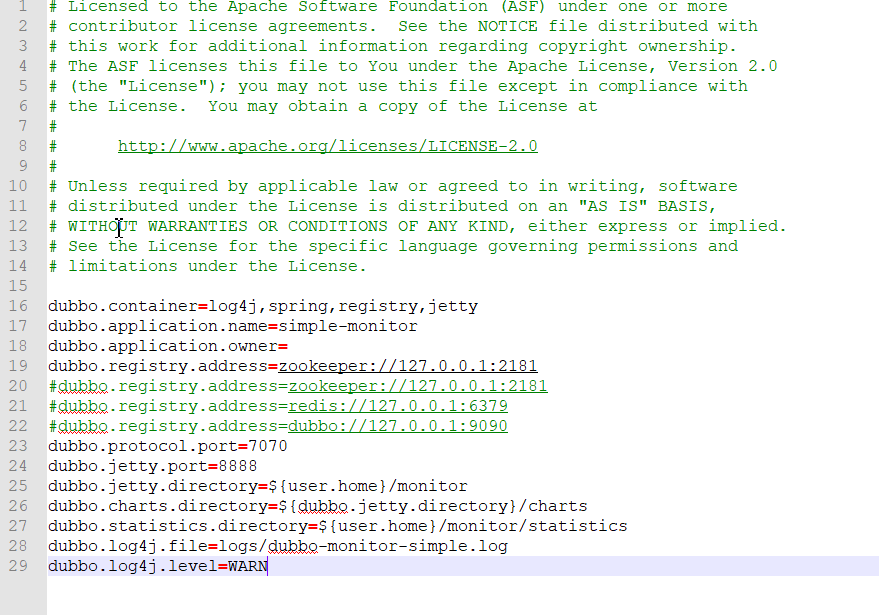

配置文件:
D:\soft\dubbo\incubator-dubbo-dubbo-2.6.0\dubbo-simple\dubbo-monitor-simple\src\main\assembly\conf\dubbo.properties

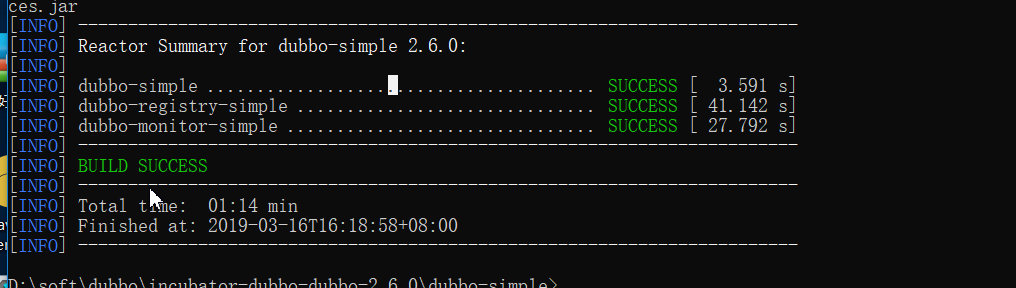

maven打包:
启动:
D:\soft\dubbo\incubator-dubbo-dubbo-2.6.0\dubbo-simple\dubbo-monitor-simple\target\dubbo-monitor-simple-2.6.0-assembly.tar.gz
解压这个文件
D:\soft\dubbo\incubator-dubbo-dubbo-2.6.0\dubbo-simple\dubbo-monitor-simple\target\dubbo-monitor-simple-2.6.0-assembly\dubbo-monitor-simple-2.6.0\bin\start.bat

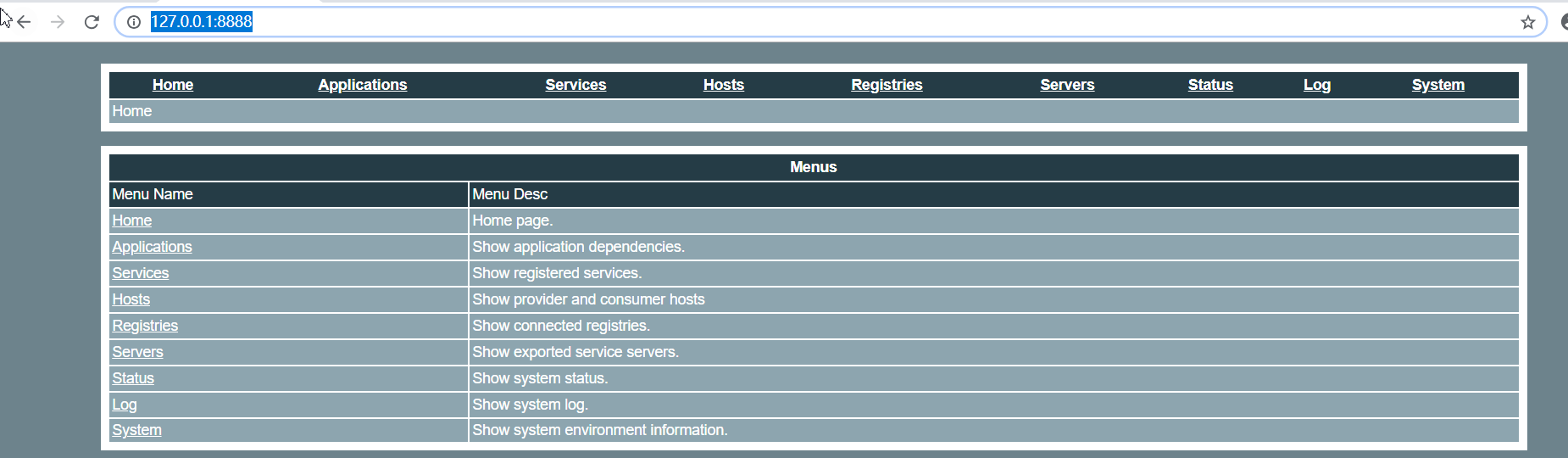

访问:127.0.0.1::8888

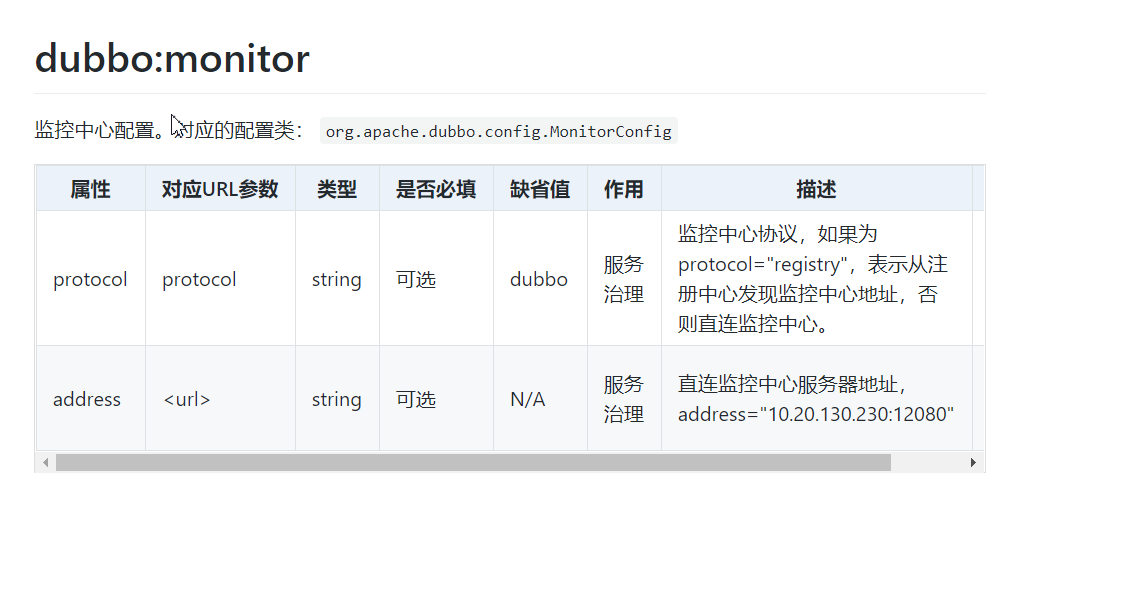

7 ) 要监控中心发现 还需要做一些配置

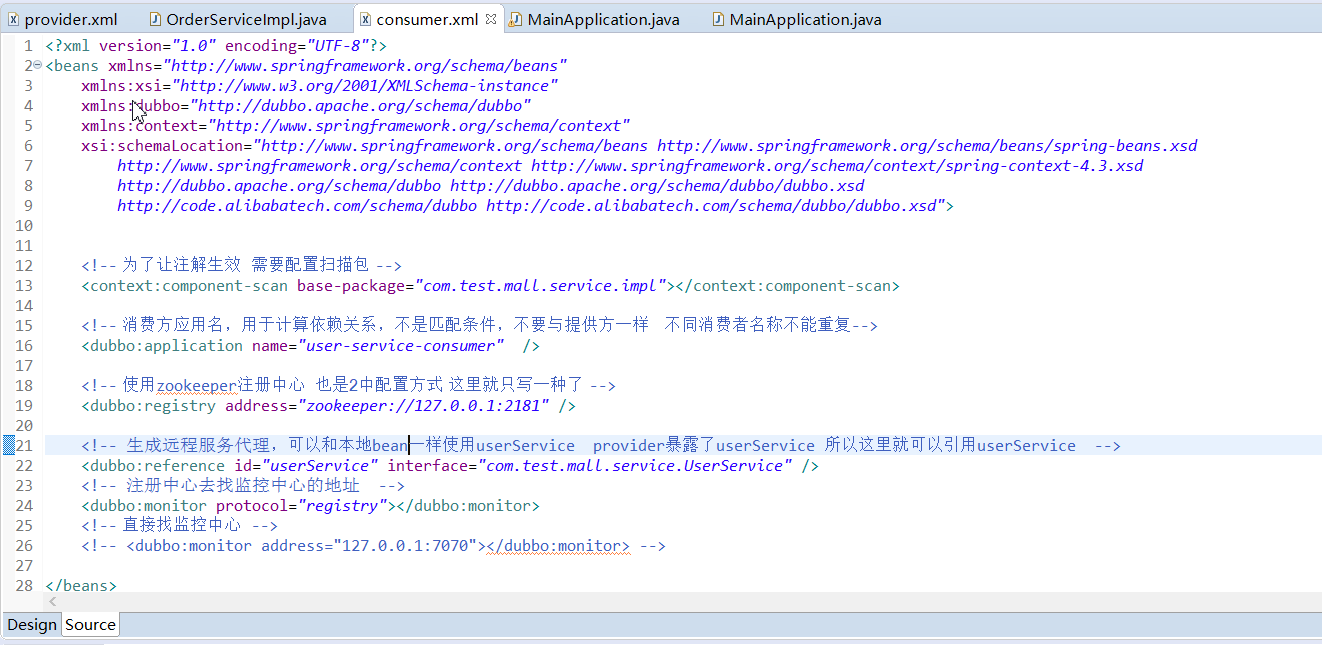

consumer项目中:
<!-- 注册中心去找监控中心的地址 -->
<dubbo:monitor protocol="registry"></dubbo:monitor>
<!-- 直接找监控中心 -->
<!-- <dubbo:monitor address="127.0.0.1:7070"></dubbo:monitor> -->
provider项目:
8 ) 启动服务端 消费端 看监控中心是否有
上边那个是test 当时打包的时候没有过滤掉test 失误~
应该是 mvn install -Dmaven.test.skip=true
