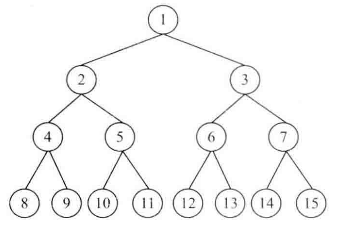

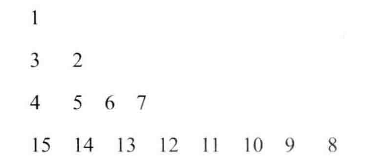

有一颗二叉树如上图,按照“之”字形输出,那么它的输出如下:
测试用例:
功能测试:完全二叉树,只含左孩子的二叉树,只含右孩子的二叉树
特殊值测试:根节点为空,只有一个节点的二叉树
#include<iostream>
#include<string.h>
#include<stack>
#include<vector>
using namespace std;
struct TreeNode{
int Val;
TreeNode* LeftNode;
TreeNode* RightNode;
TreeNode(int i=0)
{
Val=i;
LeftNode=nullptr;
RightNode=nullptr;
}
};
void PrintBinaryTree(TreeNode* root)
{
if(root==nullptr)return;
stack<TreeNode*> Outstack[2];
int current=0;
int next=1;
Outstack[0].push(root);
while(!Outstack[0].empty()||!Outstack[1].empty())
{
TreeNode* Node=Outstack[current].top();
Outstack[current].pop();
cout<<Node->Val<<' ';
if(current==0)
{
if(Node->LeftNode)
{
Outstack[next].push(Node->LeftNode);
}
if(Node->RightNode)
{
Outstack[next].push(Node->RightNode);
}
}
else
{
if(Node->RightNode)
{
Outstack[next].push(Node->RightNode);
}
if(Node->LeftNode)
{
Outstack[next].push(Node->LeftNode);
}
}
if(Outstack[current].empty())
{
cout<<endl;
current=1-current;
next=1-next;
}
}
}
void createtree(TreeNode* &root)
{
int c;
cin >> c;
if ( c == -1 )
root = nullptr;
else
{
root = new TreeNode(c);
createtree(root->LeftNode);
createtree(root->RightNode);
}
}
int main()
{
TreeNode* root=nullptr;
createtree(root);
PrintBinaryTree(root);
}
在创建二叉树是用的前序的方式创建,当输入 -1 时表示为空节点。
仔细观察输出,发现它的输出满足先进后出,所以可以用栈来保存节点,每次打印当前行的时候,需要保存一下下一行入栈,当左孩子先入栈右孩子后入栈时,是从右向左打印,反之,是从左向右打印。
