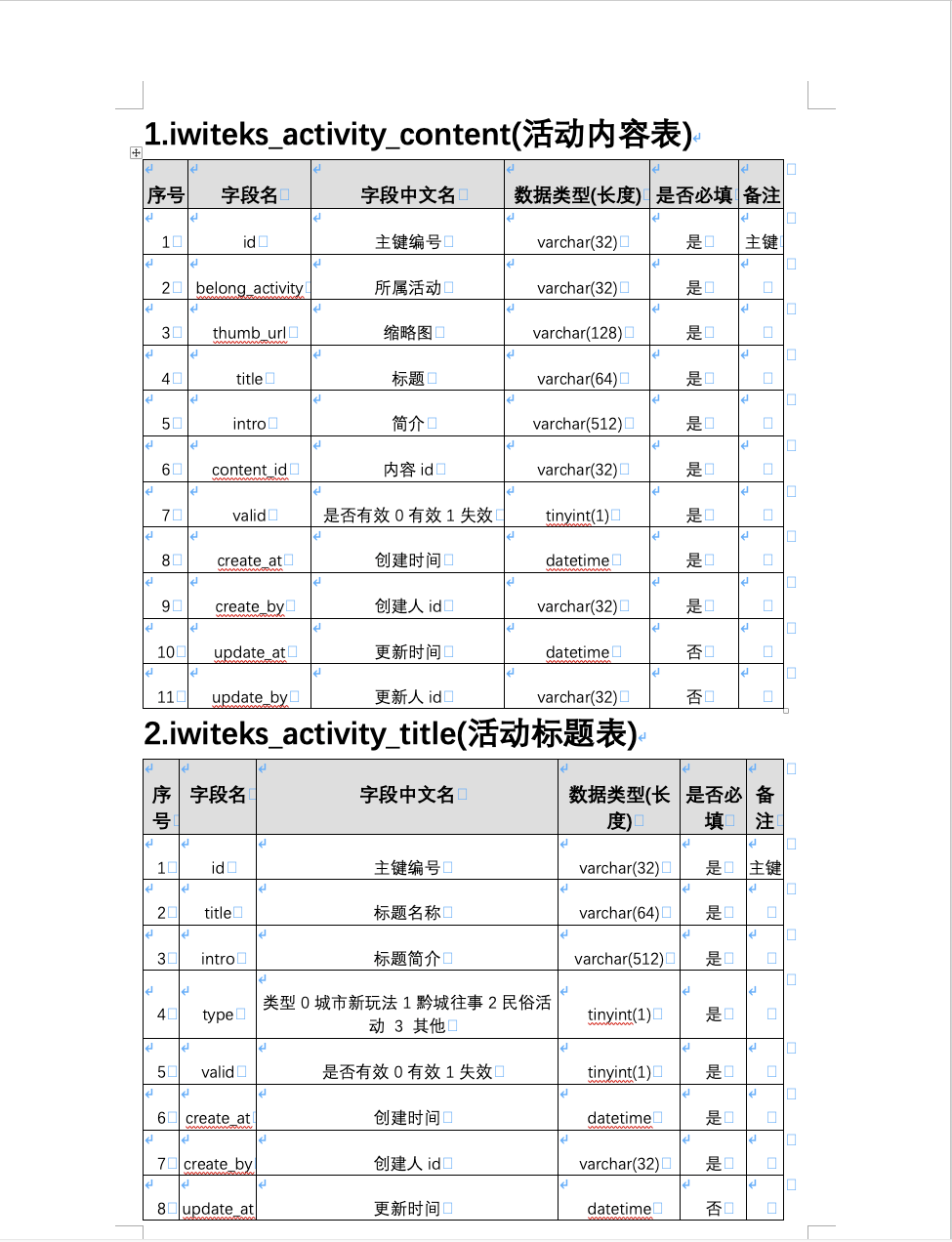

前言：最近老大急需出一份数据库设计文档，急到只有半天时间，然后呢，几十上百张表，不知道要写到什么时候，想了想有没有什么方式偷懒一波，又想了一下，数据库表设计的时候，每张表和字段都是加了注释了的，对！就是这个好习惯，于是，我有办法，废话少说，上步骤和代码，基础思路是springboot+mybatis+POI(吐槽一下，网上烂大街的博客，基本没见到POI代码标识版本的，看到就窝火，因为POI版本经常性的不向下兼容)

1.使用idea创建一个springboot，依赖和构建使用的是gradle；

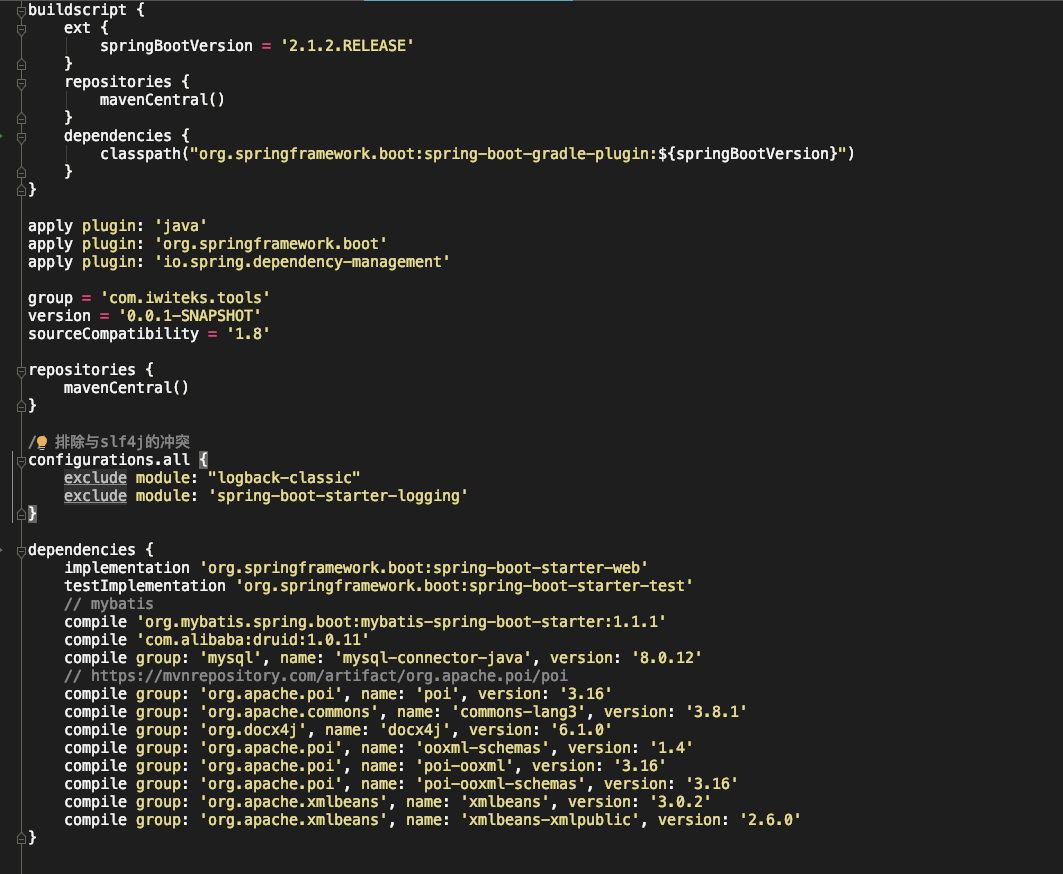

2.创建完成后的，gradle依赖如下：

compile 'org.mybatis.spring.boot:mybatis-spring-boot-starter:1.1.1'
compile group: 'mysql', name: 'mysql-connector-java', version: '8.0.12'
compile group: 'org.apache.poi', name: 'poi', version: '3.16'
compile group: 'org.apache.commons', name: 'commons-lang3', version: '3.8.1'
compile group: 'org.docx4j', name: 'docx4j', version: '6.1.0'
compile group: 'org.apache.poi', name: 'ooxml-schemas', version: '1.4'
compile group: 'org.apache.poi', name: 'poi-ooxml', version: '3.16'
compile group: 'org.apache.poi', name: 'poi-ooxml-schemas', version: '3.16'
compile group: 'org.apache.xmlbeans', name: 'xmlbeans', version: '3.0.2'
compile group: 'org.apache.xmlbeans', name: 'xmlbeans-xmlpublic', version: '2.6.0'

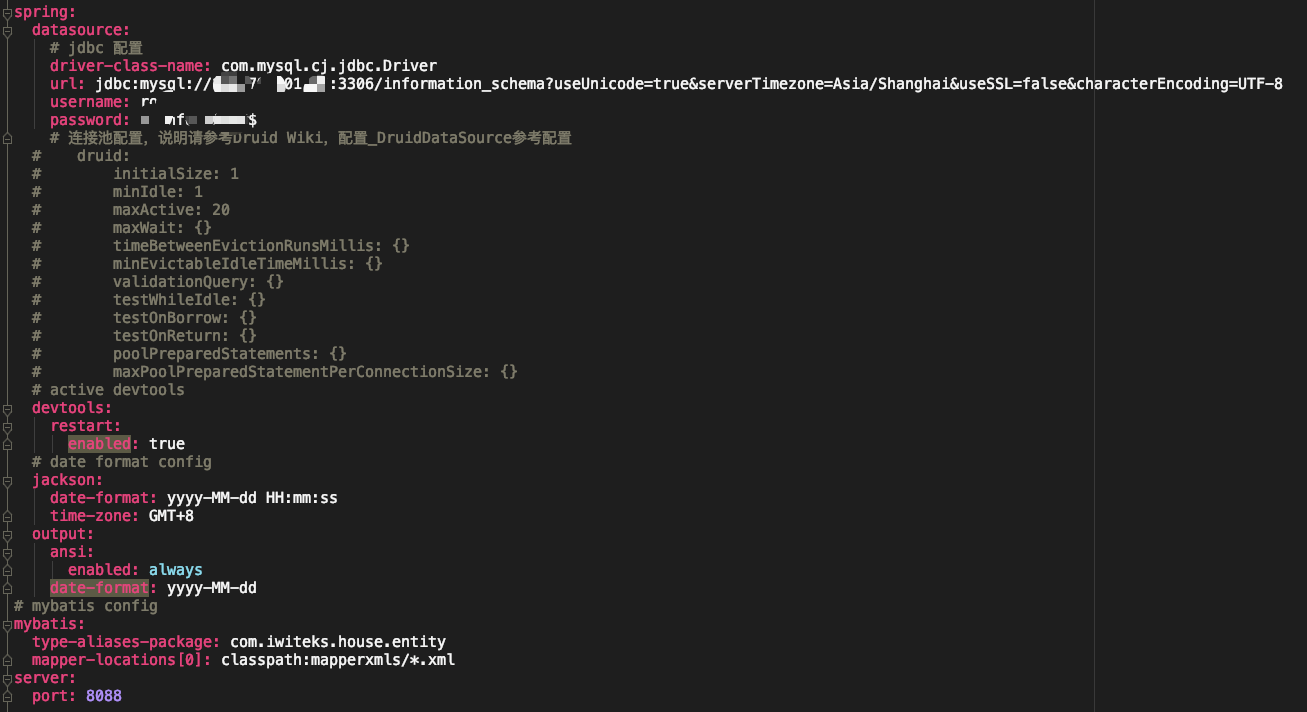

3.将resources文件夹下的application.properties后缀名更改为yml，然后在yml文件中添加如下信息：

spring:
  datasource:
    # jdbc 配置
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://您数据库的IP地址:端口/information_schema?useUnicode=true&serverTimezone=Asia/Shanghai&useSSL=false&characterEncoding=UTF-8
    username: 用户名
    password: 密码
    # 连接池配置，说明请参考Druid Wiki，配置_DruidDataSource参考配置
  #    druid:
  #        initialSize: 1
  #        minIdle: 1
  #        maxActive: 20
  #        maxWait: {}
  #        timeBetweenEvictionRunsMillis: {}
  #        minEvictableIdleTimeMillis: {}
  #        validationQuery: {}
  #        testWhileIdle: {}
  #        testOnBorrow: {}
  #        testOnReturn: {}
  #        poolPreparedStatements: {}
  #        maxPoolPreparedStatementPerConnectionSize: {}
  # active devtools
  devtools:
    restart:
      enabled: true
  # date format config
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
    time-zone: GMT+8
  output:
    ansi:
      enabled: always
    date-format: yyyy-MM-dd
# mybatis config
mybatis:
  type-aliases-package: com.iwiteks.house.entity # 指的是实体所在的包名
  mapper-locations[0]: classpath:mapperxmls/*.xml
server:
  port: 8088

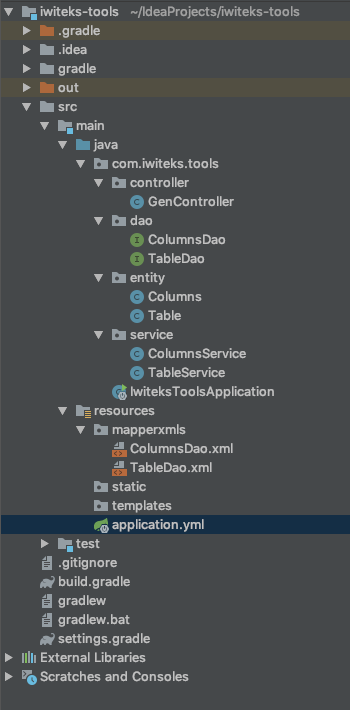

4.先上工程结构图，避免乱了看博客的人的思路

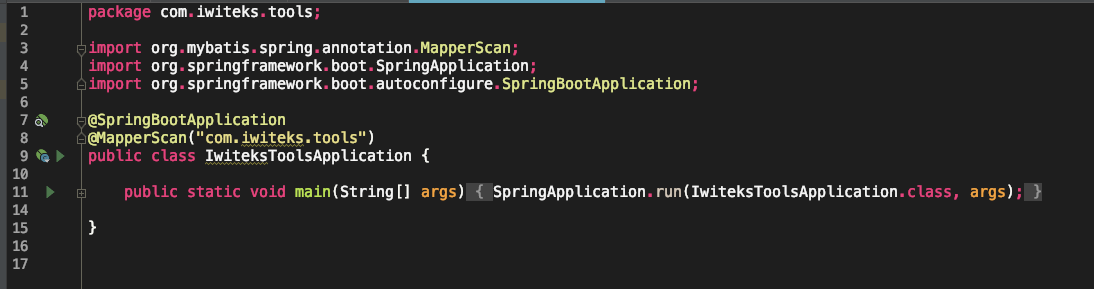

4.1启动类添加mybatis扫描：

@MapperScan("com.iwiteks.tools")

完整代码如下：

package com.iwiteks.tools;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
@MapperScan("com.iwiteks.tools")
public class IwiteksToolsApplication {

    public static void main(String[] args) {
        SpringApplication.run(IwiteksToolsApplication.class, args);
    }

}

4.2先编写mybatis xml sql

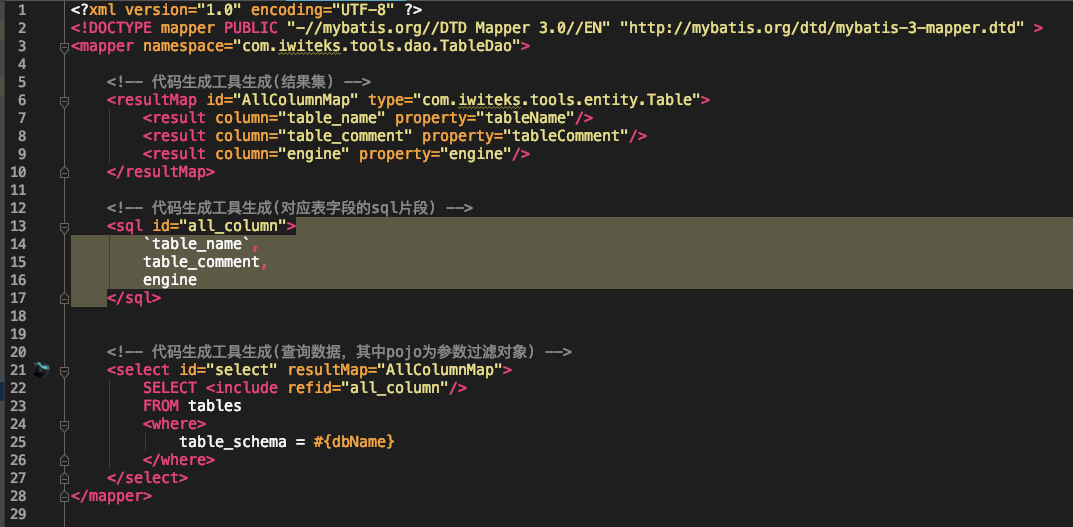

TableDao.xml文件内容如下：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.iwiteks.tools.dao.TableDao">

    <!-- 代码生成工具生成(结果集) -->
    <resultMap id="AllColumnMap" type="com.iwiteks.tools.entity.Table">
        <result column="table_name" property="tableName"/>
        <result column="table_comment" property="tableComment"/>
        <result column="engine" property="engine"/>
    </resultMap>

    <!-- 代码生成工具生成(对应表字段的sql片段) -->
    <sql id="all_column">
        `table_name`,
        table_comment,
        engine
    </sql>


    <!-- 代码生成工具生成(查询数据，其中pojo为参数过滤对象) -->
    <select id="select" resultMap="AllColumnMap">
        SELECT <include refid="all_column"/>
        FROM tables
        <where>
            table_schema = #{dbName}
        </where>
    </select>
</mapper>

ColumnsDao.xml文件内容如下：

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.iwiteks.tools.dao.TableDao">

    <!-- 代码生成工具生成(结果集) -->
    <resultMap id="AllColumnMap" type="com.iwiteks.tools.entity.Table">
        <result column="table_name" property="tableName"/>
        <result column="table_comment" property="tableComment"/>
        <result column="engine" property="engine"/>
    </resultMap>

    <!-- 代码生成工具生成(对应表字段的sql片段) -->
    <sql id="all_column">
        `table_name`,
        table_comment,
        engine
    </sql>


    <!-- 代码生成工具生成(查询数据，其中pojo为参数过滤对象) -->
    <select id="select" resultMap="AllColumnMap">
        SELECT <include refid="all_column"/>
        FROM tables
        <where>
            table_schema = #{dbName}
        </where>
    </select>
</mapper>

4.3dao层两个文件代码如下：

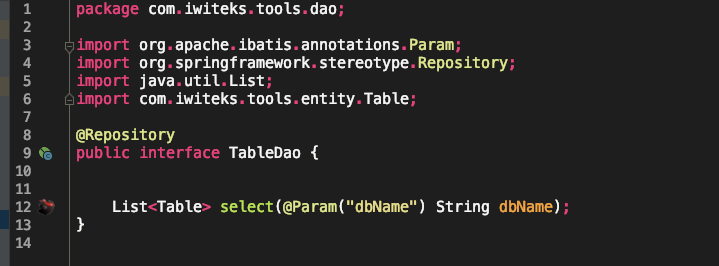

TableDao.java代码如下：
package com.iwiteks.tools.dao;

import org.apache.ibatis.annotations.Param;
import org.springframework.stereotype.Repository;
import java.util.List;
import com.iwiteks.tools.entity.Table;

@Repository
public interface TableDao {


    List<Table> select(@Param("dbName") String dbName);
}

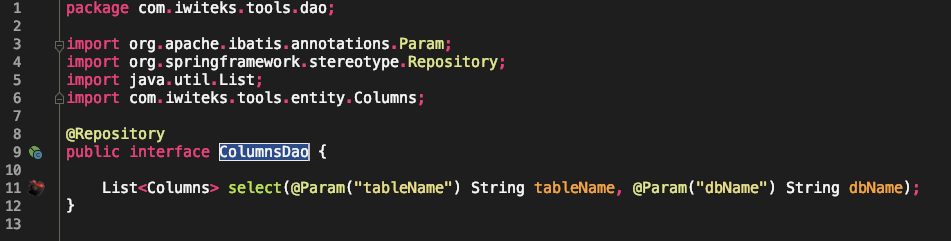

ColumnsDao.java代码如下：
package com.iwiteks.tools.dao;

import org.apache.ibatis.annotations.Param;
import org.springframework.stereotype.Repository;
import java.util.List;
import com.iwiteks.tools.entity.Columns;

@Repository
public interface ColumnsDao {

    List<Columns> select(@Param("tableName") String tableName, @Param("dbName") String dbName);
}

4.4service层两个文件如下如下：

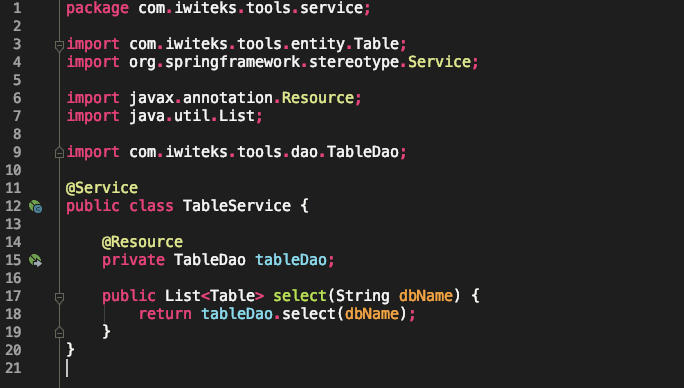

TableService.java代码如下：
package com.iwiteks.tools.service;

import com.iwiteks.tools.entity.Table;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.List;

import com.iwiteks.tools.dao.TableDao;

@Service
public class TableService {

    @Resource
    private TableDao tableDao;

    public List<Table> select(String dbName) {
        return tableDao.select(dbName);
    }
}


ColumnsService.java文件代码如下：
package com.iwiteks.tools.service;

import com.iwiteks.tools.entity.Columns;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.List;

import com.iwiteks.tools.dao.ColumnsDao;

@Service
public class ColumnsService {

    @Resource
    private ColumnsDao columnsDao;


    public List<Columns> select(String tableName, String dbName) {
        return columnsDao.select(tableName, dbName);
    }
}

4.5两个实体类的代码如下：

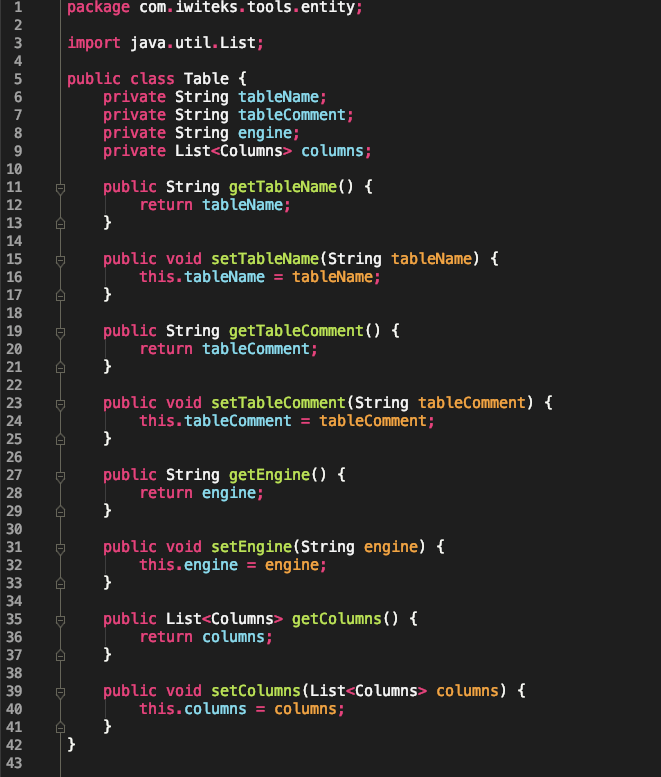

Table.java文件代码如下：
package com.iwiteks.tools.entity;

import java.util.List;

public class Table {
    private String tableName;
    private String tableComment;
    private String engine;
    private List<Columns> columns;

    public String getTableName() {
        return tableName;
    }

    public void setTableName(String tableName) {
        this.tableName = tableName;
    }

    public String getTableComment() {
        return tableComment;
    }

    public void setTableComment(String tableComment) {
        this.tableComment = tableComment;
    }

    public String getEngine() {
        return engine;
    }

    public void setEngine(String engine) {
        this.engine = engine;
    }

    public List<Columns> getColumns() {
        return columns;
    }

    public void setColumns(List<Columns> columns) {
        this.columns = columns;
    }
}

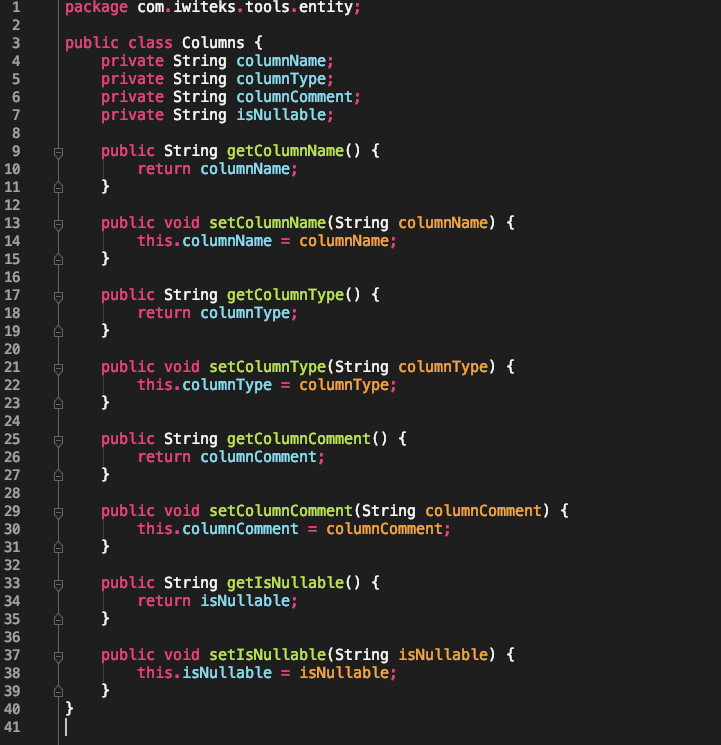

Columns.java文件代码如下：
package com.iwiteks.tools.entity;

public class Columns {
    private String columnName;
    private String columnType;
    private String columnComment;
    private String isNullable;

    public String getColumnName() {
        return columnName;
    }

    public void setColumnName(String columnName) {
        this.columnName = columnName;
    }

    public String getColumnType() {
        return columnType;
    }

    public void setColumnType(String columnType) {
        this.columnType = columnType;
    }

    public String getColumnComment() {
        return columnComment;
    }

    public void setColumnComment(String columnComment) {
        this.columnComment = columnComment;
    }

    public String getIsNullable() {
        return isNullable;
    }

    public void setIsNullable(String isNullable) {
        this.isNullable = isNullable;
    }
}

备注：Columns.java属于Table.java的子集数据

4.6controller层代码如下(代码实在截图不下了，也懒得弄了，直接贴代码吧)：

package com.iwiteks.tools.controller;

import com.iwiteks.tools.entity.Columns;
import com.iwiteks.tools.entity.Table;
import com.iwiteks.tools.service.ColumnsService;
import com.iwiteks.tools.service.TableService;
import org.apache.poi.xwpf.usermodel.*;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTTblPr;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.CTTblWidth;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.STTblWidth;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import javax.servlet.http.HttpServletResponse;
import java.io.File;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.OutputStream;
import java.math.BigInteger;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.List;

@RestController
@RequestMapping(value = "/api/gen")
public class GenController {

    @Autowired
    private TableService tableService;
    @Autowired
    private ColumnsService columnsService;

    @GetMapping(value = "/start")
    public List<Table> gen(@RequestParam(value = "dbName") String dbName) {
        List<Table> results = tableService.select(dbName);
        if (results != null) {
            List<Columns> columnsList = null;
            for (int i = 0, len = results.size(); i < len; i++) {
                columnsList = columnsService.select(results.get(i).getTableName(), dbName);
                results.get(i).setColumns(columnsList);
            }

            return results;
        } else {
            return null;
        }
    }

    /**
     * 导出
     * @param dbName
     * @param response
     * @throws IOException
     */
    @GetMapping(value = "/exportDocument")
    public void exportTable(@RequestParam(value = "dbName") String dbName, HttpServletResponse response) throws IOException {
        List<Table> results = tableService.select(dbName);
        if (results == null) {
            return;
        } else {
            if (results.size() == 0) {
                return;
            }
        }

        List<Columns> columnsList = null;
        for (int i = 0, len = results.size(); i < len; i++) {
            columnsList = columnsService.select(results.get(i).getTableName(), dbName);
            results.get(i).setColumns(columnsList);
        }

        // 创建空白文档
        XWPFDocument document = new XWPFDocument();

        //基础对象
        // 段落
        XWPFParagraph titleParag = null;
        // 标题
        XWPFRun titleRun = null;
        // 表格
        XWPFTable table = null;
        // 表格属性
        CTTblPr tablePr = null;
        // 表格宽度
        CTTblWidth width = null;

        // 表头行
        XWPFTableRow headRow = null;
        XWPFTableCell headCell0 = null;
        XWPFTableCell headCell1 = null;
        XWPFTableCell headCell2 = null;
        XWPFTableCell headCell3 = null;
        XWPFTableCell headCell4 = null;
        XWPFTableCell headCell5 = null;

        XWPFRun headRun0 = null;
        XWPFRun headRun1 = null;
        XWPFRun headRun2 = null;
        XWPFRun headRun3 = null;
        XWPFRun headRun4 = null;
        XWPFRun headRun5 = null;

        // 行
        XWPFTableRow contentRow = null;
        XWPFTableCell cell0 = null;
        XWPFTableCell cell1 = null;
        XWPFTableCell cell2 = null;
        XWPFTableCell cell3 = null;
        XWPFTableCell cell4 = null;
        XWPFTableCell cell5 = null;

        XWPFRun pRun0 = null;
        XWPFRun pRun1 = null;
        XWPFRun pRun2 = null;
        XWPFRun pRun3 = null;
        XWPFRun pRun4 = null;
        XWPFRun pRun5 = null;

        for (int i = 0, len = results.size(); i < len; i++) {
            //创建标题段落
            titleParag = document.createParagraph();
            titleRun = titleParag.createRun();
            titleRun.setText(String.valueOf(i + 1) + "." + results.get(i).getTableName() + "(" + results.get(i).getTableComment() + ")");
            titleRun.setFontSize(20);
            titleRun.setBold(true);//字体是否加粗
            titleParag.setAlignment(ParagraphAlignment.LEFT);//段落居左

            table = document.createTable(results.get(i).getColumns().size() + 1, 6);
            tablePr = table.getCTTbl().addNewTblPr();
            width = tablePr.addNewTblW();
            width.setW(BigInteger.valueOf(8000));
            //设置表格宽度为非自动
            width.setType(STTblWidth.DXA);

            //表头行
            headRow = table.getRow(0);
            headCell0 = headRow.getCell(0);
            headCell1 = headRow.getCell(1);
            headCell2 = headRow.getCell(2);
            headCell3 = headRow.getCell(3);
            headCell4 = headRow.getCell(4);
            headCell5 = headRow.getCell(5);

            // 0
            titleParag = headCell0.addParagraph();
            headRun0 = titleParag.createRun();
            headRun0.setText("序号");
            headRun0.setFontSize(12);
            headRun0.setBold(true);//是否粗体
            headCell0.setColor("DEDEDE");
            titleParag.setVerticalAlignment(TextAlignment.CENTER);//垂直居中
            titleParag.setAlignment(ParagraphAlignment.CENTER);//水平居中

            // 1
            titleParag = headCell1.addParagraph();
            headRun1 = titleParag.createRun();
            headRun1.setText("字段名");
            headRun1.setFontSize(12);
            headRun1.setBold(true);
            headCell1.setColor("DEDEDE");
            titleParag.setVerticalAlignment(TextAlignment.CENTER);//垂直居中
            titleParag.setAlignment(ParagraphAlignment.CENTER);//水平居中

            // 2
            titleParag = headCell2.addParagraph();
            headRun2 = titleParag.createRun();
            headRun2.setFontSize(12);
            headRun2.setText("字段中文名");
            headRun2.setBold(true);
            headCell2.setColor("DEDEDE");
            titleParag.setVerticalAlignment(TextAlignment.CENTER);//垂直居中
            titleParag.setAlignment(ParagraphAlignment.CENTER);//水平居中

            // 3
            titleParag = headCell3.addParagraph();
            headRun3 = titleParag.createRun();
            headRun3.setFontSize(12);
            headRun3.setText("数据类型(长度)");
            headRun3.setBold(true);
            headCell3.setColor("DEDEDE");
            titleParag.setVerticalAlignment(TextAlignment.CENTER);//垂直居中
            titleParag.setAlignment(ParagraphAlignment.CENTER);//水平居中

            // 4
            titleParag = headCell4.addParagraph();
            headRun4 = titleParag.createRun();
            headRun4.setFontSize(12);
            headRun4.setText("是否必填");
            headRun4.setBold(true);
            headCell4.setColor("DEDEDE");
            titleParag.setVerticalAlignment(TextAlignment.CENTER);//垂直居中
            titleParag.setAlignment(ParagraphAlignment.CENTER);//水平居中

            // 5
            titleParag = headCell5.addParagraph();
            headRun5 = titleParag.createRun();
            headRun5.setFontSize(12);
            headRun5.setText("备注");
            headRun5.setBold(true);
            headCell5.setColor("DEDEDE");
            titleParag.setVerticalAlignment(TextAlignment.CENTER);//垂直居中
            titleParag.setAlignment(ParagraphAlignment.CENTER);//水平居中

            //表主体行
            for (int j = 0; j < results.get(i).getColumns().size(); j++) {
                contentRow = table.getRow(j + 1);
                cell0 = contentRow.getCell(0);
                cell1 = contentRow.getCell(1);
                cell2 = contentRow.getCell(2);
                cell3 = contentRow.getCell(3);
                cell4 = contentRow.getCell(4);
                cell5 = contentRow.getCell(5);

                // 0
                titleParag = cell0.addParagraph();
                pRun0 = titleParag.createRun();
                pRun0.setText(String.valueOf(j + 1));
                cell0.setVerticalAlignment(XWPFTableCell.XWPFVertAlign.CENTER);//垂直居中
                titleParag.setAlignment(ParagraphAlignment.CENTER);//水平居中

                // 1
                titleParag = cell1.addParagraph();
                pRun1 = titleParag.createRun();
                pRun1.setText(results.get(i).getColumns().get(j).getColumnName());
                cell1.setVerticalAlignment(XWPFTableCell.XWPFVertAlign.CENTER);//垂直居中
                titleParag.setAlignment(ParagraphAlignment.CENTER);//水平居中

                // 2
                titleParag = cell2.addParagraph();
                pRun2 = titleParag.createRun();
                pRun2.setText(results.get(i).getColumns().get(j).getColumnComment());
                cell2.setVerticalAlignment(XWPFTableCell.XWPFVertAlign.CENTER);//垂直居中
                titleParag.setAlignment(ParagraphAlignment.CENTER);//水平居中

                // 3
                titleParag = cell3.addParagraph();
                pRun3 = titleParag.createRun();
                pRun3.setText(results.get(i).getColumns().get(j).getColumnType());
                cell3.setVerticalAlignment(XWPFTableCell.XWPFVertAlign.CENTER);//垂直居中
                titleParag.setAlignment(ParagraphAlignment.CENTER);//水平居中

                // 4
                titleParag = cell4.addParagraph();
                pRun4 = titleParag.createRun();
                pRun4.setText(results.get(i).getColumns().get(j).getIsNullable().equals("NO") ? "是" : "否");
                cell4.setVerticalAlignment(XWPFTableCell.XWPFVertAlign.CENTER);//垂直居中
                titleParag.setAlignment(ParagraphAlignment.CENTER);//水平居中

                // 5
                titleParag = cell5.addParagraph();
                pRun5 = titleParag.createRun();
                pRun5.setText(j == 0 ? "主键" : "");
                cell5.setVerticalAlignment(XWPFTableCell.XWPFVertAlign.CENTER);//垂直居中
                titleParag.setAlignment(ParagraphAlignment.CENTER);//水平居中
            }
        }

        // 导出操作
        OutputStream output = response.getOutputStream();
        //生成word文件的文件名
        String fileName= new String((dbName + new SimpleDateFormat("-yyyy-MM-dd").format(new Date()) +".docx").getBytes("UTF-8"),"iso-8859-1");
        response.setHeader("Content-disposition", "attachment; filename=" + fileName);
        //把word文档写到输出流
        document.write(output);
    }
}

至此，所有代码都已经编写完毕，直接请求controller层的/api/gen/exportDocument就能导出word文档了，不过呢，如果数据库设计的sql脚本您公司没有必须加comment，那么，文档也是缺失注释这块的，思路就是，通过infomation-scema表先获取指定数据库下的所有表名称+表注释，然后再遍历每张表去拉取列中隶属表的所有列的属性，然后输出到word中，效果截图如下：

有什么问题不清楚的，您可以通过qq：[email protected]联系我，本博客只是了记录一下，如果您有更好的解决方案，大家可以一起交流一下。

猜你喜欢

转载自blog.csdn.net/qq_30729829/article/details/86484926
今日推荐
中国码农的“35岁魔咒”
蘭雅 CorelDRAW 插件 2024.5.1 国际劳动节版，免费下载
Arc Browser for Windows 1.0 正式 GA
90后程序员开发视频搬运软件、不到一年获利超 700 万，结局很刑！
《美国对全球网络空间安全与发展的威胁和破坏》报告发布
周排行
Java基础复习_day13_Collection集合
2018.11.16 c语言学习经验
且看Java内置四大核心函数式接口
小程序云开发中数据库的数据分段和显示图片
python的函数
Web-JS进阶
【干货】C++常用代码积累笔记大全
Spring的ioc操作 与 IOC底层原理
构建之法20191121-11 Scrum立会报告+燃尽图 07
Spring boot之Hello World访问404
每日归档
更多
2024-05-05(0)
2024-05-04(7)
2024-05-03(19)
2024-05-02(0)
2024-05-01(4)
2024-04-30(1)
2024-04-29(40)
2024-04-28(0)
2024-04-27(56)
2024-04-26(39)

代码天地 © 2018 codetd.com

境外服务器   最新电视剧2022
