Mybatis参考
http://www.mybatis.org/mybatis-3/zh/index.html
Idea
idea ultimate 2018.2

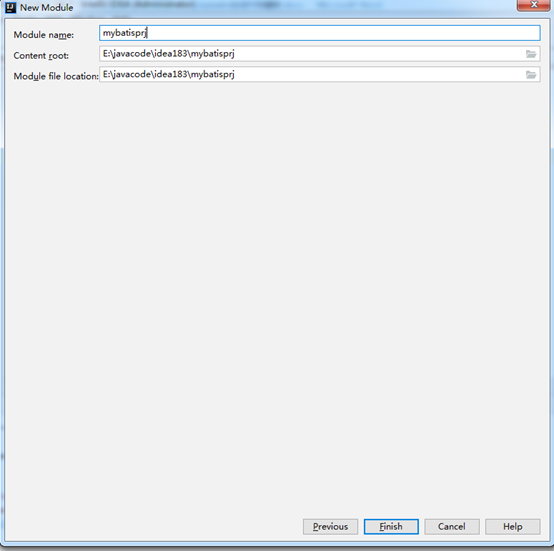

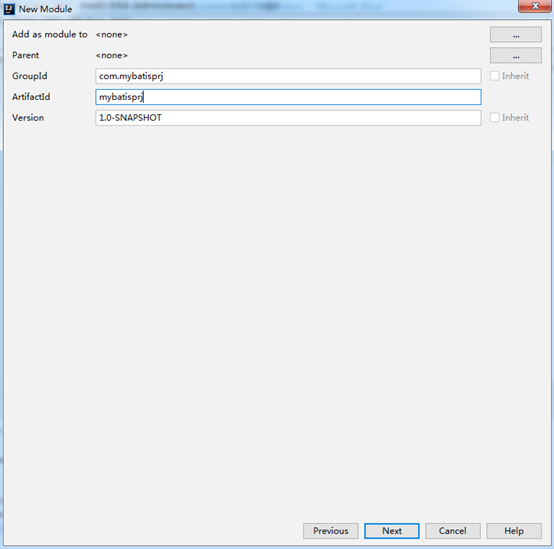

创建Maven工程
编辑pom.xml添加生成插件
<plugin> <groupId>org.mybatis.generator</groupId> <artifactId>mybatis-generator-maven-plugin</artifactId> <version>1.3.2</version> <configuration> <verbose>true</verbose> <overwrite>true</overwrite> </configuration> </plugin>
创建资源文件夹resources
创建生成规则配置文件generatorConfig.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
"http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
<!--导入属性配置 -->
<properties resource="generator.properties"></properties>
<!--指定特定数据库的jdbc驱动jar包的位置 -->
<classPathEntry location="${jdbc.driverLocation}"/>
<context id="default" targetRuntime="MyBatis3">
<!-- optional,旨在创建class时,对注释进行控制 -->
<commentGenerator>
<property name="suppressDate" value="true" />
</commentGenerator>
<!--jdbc的数据库连接 -->
<jdbcConnection driverClass="${jdbc.driverClass}" connectionURL="${jdbc.connectionURL}" userId="${jdbc.userId}" password="${jdbc.password}">
</jdbcConnection>
<!-- 非必需,类型处理器,在数据库类型和java类型之间的转换控制-->
<javaTypeResolver >
<property name="forceBigDecimals" value="false" />
</javaTypeResolver>
<!-- Model模型生成器,用来生成含有主键key的类,记录类 以及查询Example类
targetPackage 指定生成的model生成所在的包名
targetProject 指定在该项目下所在的路径
-->
<javaModelGenerator targetPackage="com.mybatisprj.po" targetProject="src/main/java">
<property name="enableSubPackages" value="true" />
<property name="trimStrings" value="true" />
</javaModelGenerator>
<!--Mapper映射文件生成所在的目录 为每一个数据库的表生成对应的SqlMap文件 -->
<sqlMapGenerator targetPackage="com.mybatisprj.domain" targetProject="src/main/java">
<property name="enableSubPackages" value="true" />
</sqlMapGenerator>
<!-- 客户端代码,生成易于使用的针对Model对象和XML配置文件 的代码
type="ANNOTATEDMAPPER",生成Java Model 和基于注解的Mapper对象
type="MIXEDMAPPER",生成基于注解的Java Model 和相应的Mapper对象
type="XMLMAPPER",生成SQLMap XML文件和独立的Mapper接口
-->
<javaClientGenerator targetPackage="com.mybatisprj.dao" targetProject="src/main/java" type="MIXEDMAPPER">
<property name="enableSubPackages" value="true" />
</javaClientGenerator>
<table schema="ncdb" tableName="zp" domainObjectName="Zp" >
<property name="useActualColumnNames" value="true"/>
</table>
</context>
</generatorConfiguration>
连接数据库信息generator.properties
jdbc.driverLocation=F:\\mysql-connector-java-5.1.12-bin.jar jdbc.driverClass=com.mysql.jdbc.Driver jdbc.connectionURL=jdbc:mysql://localhost:3306/ncdb jdbc.userId=root jdbc.password=

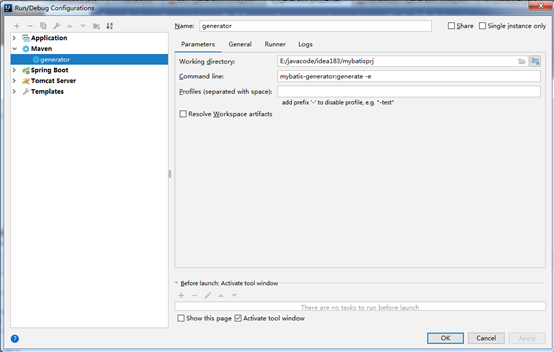

配置生成
运行生成模板
运行工程
将创建数据库连接工程放到相应的包MyBatisDAOUtil.java
package com.mybatisprj.dao; import org.apache.ibatis.io.Resources; import org.apache.ibatis.session.SqlSessionFactory; import org.apache.ibatis.session.SqlSessionFactoryBuilder; import java.io.IOException; import java.io.Reader; /** * @author karthy * */ public class MyBatisDAOUtil { private static SqlSessionFactory factory; private MyBatisDAOUtil() { } static { Reader reader = null; try { reader = Resources.getResourceAsReader("mybatis-config.xml"); } catch (IOException e) { throw new RuntimeException(e.getMessage()); } factory = new SqlSessionFactoryBuilder().build(reader); } public static SqlSessionFactory getSqlSessionFactory() { return factory; } }
将相关配置放到resources下
mybatis-config.xml
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd"> <configuration> <properties resource="./db.properties" /> <typeAliases> <!--<typeAlias type="com.ibatis.model.User" alias="User"></typeAlias>--> </typeAliases> <environments default="development"> <environment id="development"> <transactionManager type="JDBC" /> <dataSource type="POOLED"> <property name="driver" value="${jdbc.driverClassName}" /> <property name="url" value="${jdbc.url}" /> <property name="username" value="${jdbc.username}" /> <property name="password" value="${jdbc.password}" /> </dataSource> </environment> </environments> <mappers> <mapper resource="./ZpMapper.xml" /> </mappers> </configuration>
db.properties
jdbc.driverClassName=com.mysql.jdbc.Driver jdbc.url=jdbc:mysql://localhost:3306/ncdb jdbc.username=root jdbc.password=
ZpMapper.xml
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" > <mapper namespace="com.mybatisprj.dao.ZpMapper" > <resultMap id="BaseResultMap" type="com.mybatisprj.po.Zp" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> <id column="xh" property="xh" jdbcType="INTEGER" /> <result column="xm" property="xm" jdbcType="CHAR" /> <result column="xs" property="xs" jdbcType="REAL" /> <result column="xb" property="xb" jdbcType="CHAR" /> <result column="nl" property="nl" jdbcType="INTEGER" /> </resultMap> <sql id="Example_Where_Clause" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> <where > <foreach collection="oredCriteria" item="criteria" separator="or" > <if test="criteria.valid" > <trim prefix="(" suffix=")" prefixOverrides="and" > <foreach collection="criteria.criteria" item="criterion" > <choose > <when test="criterion.noValue" > and ${criterion.condition} </when> <when test="criterion.singleValue" > and ${criterion.condition} #{criterion.value} </when> <when test="criterion.betweenValue" > and ${criterion.condition} #{criterion.value} and #{criterion.secondValue} </when> <when test="criterion.listValue" > and ${criterion.condition} <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," > #{listItem} </foreach> </when> </choose> </foreach> </trim> </if> </foreach> </where> </sql> <sql id="Update_By_Example_Where_Clause" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> <where > <foreach collection="example.oredCriteria" item="criteria" separator="or" > <if test="criteria.valid" > <trim prefix="(" suffix=")" prefixOverrides="and" > <foreach collection="criteria.criteria" item="criterion" > <choose > <when test="criterion.noValue" > and ${criterion.condition} </when> <when test="criterion.singleValue" > and ${criterion.condition} #{criterion.value} </when> <when test="criterion.betweenValue" > and ${criterion.condition} #{criterion.value} and #{criterion.secondValue} </when> <when test="criterion.listValue" > and ${criterion.condition} <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," > #{listItem} </foreach> </when> </choose> </foreach> </trim> </if> </foreach> </where> </sql> <sql id="Base_Column_List" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> xh, xm, xs, xb, nl </sql> <select id="selectByExample" resultMap="BaseResultMap" parameterType="com.mybatisprj.po.ZpExample" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> select <if test="distinct" > distinct </if> <include refid="Base_Column_List" /> from zp <if test="_parameter != null" > <include refid="Example_Where_Clause" /> </if> <if test="orderByClause != null" > order by ${orderByClause} </if> </select> <delete id="deleteByExample" parameterType="com.mybatisprj.po.ZpExample" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> delete from zp <if test="_parameter != null" > <include refid="Example_Where_Clause" /> </if> </delete> <insert id="insertSelective" parameterType="com.mybatisprj.po.Zp" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> insert into zp <trim prefix="(" suffix=")" suffixOverrides="," > <if test="xh != null" > xh, </if> <if test="xm != null" > xm, </if> <if test="xs != null" > xs, </if> <if test="xb != null" > xb, </if> <if test="nl != null" > nl, </if> </trim> <trim prefix="values (" suffix=")" suffixOverrides="," > <if test="xh != null" > #{xh,jdbcType=INTEGER}, </if> <if test="xm != null" > #{xm,jdbcType=CHAR}, </if> <if test="xs != null" > #{xs,jdbcType=REAL}, </if> <if test="xb != null" > #{xb,jdbcType=CHAR}, </if> <if test="nl != null" > #{nl,jdbcType=INTEGER}, </if> </trim> </insert> <select id="countByExample" parameterType="com.mybatisprj.po.ZpExample" resultType="java.lang.Integer" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> select count(*) from zp <if test="_parameter != null" > <include refid="Example_Where_Clause" /> </if> </select> <update id="updateByExampleSelective" parameterType="map" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> update zp <set > <if test="record.xh != null" > xh = #{record.xh,jdbcType=INTEGER}, </if> <if test="record.xm != null" > xm = #{record.xm,jdbcType=CHAR}, </if> <if test="record.xs != null" > xs = #{record.xs,jdbcType=REAL}, </if> <if test="record.xb != null" > xb = #{record.xb,jdbcType=CHAR}, </if> <if test="record.nl != null" > nl = #{record.nl,jdbcType=INTEGER}, </if> </set> <if test="_parameter != null" > <include refid="Update_By_Example_Where_Clause" /> </if> </update> <update id="updateByExample" parameterType="map" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> update zp set xh = #{record.xh,jdbcType=INTEGER}, xm = #{record.xm,jdbcType=CHAR}, xs = #{record.xs,jdbcType=REAL}, xb = #{record.xb,jdbcType=CHAR}, nl = #{record.nl,jdbcType=INTEGER} <if test="_parameter != null" > <include refid="Update_By_Example_Where_Clause" /> </if> </update> <update id="updateByPrimaryKeySelective" parameterType="com.mybatisprj.po.Zp" > <!-- WARNING - @mbggenerated This element is automatically generated by MyBatis Generator, do not modify. --> update zp <set > <if test="xm != null" > xm = #{xm,jdbcType=CHAR}, </if> <if test="xs != null" > xs = #{xs,jdbcType=REAL}, </if> <if test="xb != null" > xb = #{xb,jdbcType=CHAR}, </if> <if test="nl != null" > nl = #{nl,jdbcType=INTEGER}, </if> </set> where xh = #{xh,jdbcType=INTEGER} </update> </mapper>
运行代码
public class App { public static void main( String[] args ) { System.out.println("Hello World!"); SqlSession sqlSession = MyBatisDAOUtil.getSqlSessionFactory() .openSession(); ZpExample zpExmp=new ZpExample(); ZpExample.Criteria c= zpExmp.createCriteria(); c.andXhBetween(1005, 1006); c.andNlEqualTo(20); System.out.println( sqlSession.selectList("com.mybatisprj.dao.ZpMapper.selectByExample", zpExmp).size() ); } }
