为 RecyclerView 的列表条目 item 添加动画

首先感谢启舰前辈，他的 Android自定义控件三部曲真的很经典，推荐大家去看，本篇文章也是借鉴他的自定义控件三部曲之动画篇(十三)——实现ListView Item进入动画完成的。

一.找到为 item 添加动画的合适位置

二.使用 Animation 创建 item 动画

一.找到为 item 添加动画的合适合适位置

想为 item 添加入场动画，就要在 RecyclerView 的 adapter 中做文章。

我希望列表 item 能够在每次进入屏幕可见区域的时候都执行动画，而不是只在进入列表界面的时候有动画（像BaseRecyclerViewAdapterHelper那样的item入场动画），那就去 RecyclerView.Adapter 下找一找有没有和 item 可见性相关的方法。那就是 onViewAttachedToWindow(VH holder) 方法。

/**
 * Called when a view created by this adapter has been attached to a window.
 *
 * <p>This can be used as a reasonable signal that the view is about to be seen
 * by the user. If the adapter previously freed any resources in
 * {@link #onViewDetachedFromWindow(RecyclerView.ViewHolder) onViewDetachedFromWindow}
 * those resources should be restored here.</p>
 *
 * @param holder Holder of the view being attached
 */
public void onViewAttachedToWindow(@NonNull VH holder) {

}

注释翻译大意：该方法在 adapter 创建的 view 依附到 window 中时调用，这能用作 view 刚好对用户可见的合理信号。

通过 VH holder 可以获取 itemView，进而为 itemView 添加动画。

二.使用 Animation 创建 item 动画

1.创建 item 的布局 xml

item_layout.xml：

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="200dp"
    android:orientation="vertical">

    <TextView
        android:id="@+id/item_tv"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:background="@android:color/holo_blue_dark"
        android:foreground="?selectableItemBackground"
        android:gravity="center"
        android:text="This is item 0"
        android:textColor="@android:color/white"
        android:textSize="18sp"
        android:textStyle="bold" />
</LinearLayout>

2.adapter 类

package com.leading.recyclerviewitemsanimationtest;

import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.view.animation.Animation;
import android.view.animation.AnimationUtils;
import android.widget.TextView;

import java.util.ArrayList;

import androidx.annotation.NonNull;
import androidx.recyclerview.widget.RecyclerView;

public class CustomRecyclerViewAdapter extends RecyclerView.Adapter<CustomRecyclerViewAdapter.CustomViewHolder> {
    private static final String TAG = "CustomRecyclerViewAdapt";
    private ArrayList<String> mData;
    private RecyclerView mRecyclerView;

    /**
     * RecyclerView 是否正在向上滚动
     */
    private boolean isPullingUp = false;

    /**
     * RecyclerView 是否正在向下滚动
     */
    private boolean isPullDown = false;

    /**
     * RecyclerView item的入场动画
     */
    private Animation bottomInAnim;
    private Animation topInAnim;

    public CustomRecyclerViewAdapter(ArrayList<String> mData, final RecyclerView mRecyclerView) {
        this.mData = mData;
        this.mRecyclerView = mRecyclerView;
        bottomInAnim = AnimationUtils.loadAnimation(mRecyclerView.getContext(), R.anim.bottom_up_in_anim);
        topInAnim = AnimationUtils.loadAnimation(mRecyclerView.getContext(), R.anim.top_down_in_anim);

        /**
         * 为RecyclerView设置滚动监听
         */
        mRecyclerView.addOnScrollListener(new RecyclerView.OnScrollListener() {
            @Override
            public void onScrollStateChanged(@NonNull RecyclerView recyclerView, int newState) {
                super.onScrollStateChanged(recyclerView, newState);
            }

            @Override
            public void onScrolled(@NonNull RecyclerView recyclerView, int dx, int dy) {
                super.onScrolled(recyclerView, dx, dy);
                isPullingUp = (dy > 0);
                isPullDown = (dy < 0);
            }
        });
    }

    @Override
    public void onViewAttachedToWindow(@NonNull final CustomViewHolder holder) {
        super.onViewAttachedToWindow(holder);

        //清除当前显示区域中所有item的动画
        int childCount = mRecyclerView.getChildCount();
        Log.e(TAG, "onViewAttachedToWindow: childCount--> " + childCount);
        for (int i = 0; i < childCount; i++) {
            View child = mRecyclerView.getChildAt(i);
            if (child != null) {
                child.clearAnimation();
            }
        }

        //然后给当前item添加上动画
        if (isPullDown) {
            holder.itemView.startAnimation(topInAnim);
        }

        if (isPullingUp) {
            holder.itemView.startAnimation(bottomInAnim);
        }
    }

    @NonNull
    @Override
    public CustomViewHolder onCreateViewHolder(@NonNull ViewGroup parent, int viewType) {
        View v = LayoutInflater.from(parent.getContext())
                .inflate(R.layout.layout_recyclerview_item, parent, false);
        return new CustomViewHolder(v);
    }

    @Override
    public void onBindViewHolder(@NonNull CustomViewHolder holder, int position) {
        holder.textView.setText(mData.get(position));
    }

    @Override
    public int getItemCount() {
        return mData == null ? 0 : mData.size();
    }

    static class CustomViewHolder extends RecyclerView.ViewHolder {
        private final TextView textView;

        CustomViewHolder(@NonNull View itemView) {
            super(itemView);
            textView = itemView.findViewById(R.id.item_tv);
        }
    }

}

在构造方法中传入列表数据源 ArrayList<String> mData 和RecyclerView 对象 RecyclerView mRecyclerView。我想要 item 在列表向上或向下滚动时都有动画，那就需要监听 RecyclerView的滚动了，

/**
 * 为RecyclerView设置滚动监听
 */
mRecyclerView.addOnScrollListener(new RecyclerView.OnScrollListener() {
    @Override
    public void onScrollStateChanged(@NonNull RecyclerView recyclerView, int newState) {
        super.onScrollStateChanged(recyclerView, newState);
    }

    @Override
    public void onScrolled(@NonNull RecyclerView recyclerView, int dx, int dy) {
        super.onScrolled(recyclerView, dx, dy);
        isPullingUp = (dy > 0);
        isPullDown = (dy < 0);
    }
});

让我们来看下 RecyclerView.OnScrollListener 的源码

/**
 * An OnScrollListener can be added to a RecyclerView to receive messages when a scrolling event
 * has occurred on that RecyclerView.
 * <p>
 * @see RecyclerView#addOnScrollListener(OnScrollListener)
 * @see RecyclerView#clearOnChildAttachStateChangeListeners()
 *
 */
 public abstract static class OnScrollListener {
     /**
      * Callback method to be invoked when RecyclerView's scroll state changes.
      *
      * @param recyclerView The RecyclerView whose scroll state has changed.
      * @param newState     The updated scroll state. One of {@link #SCROLL_STATE_IDLE},
      *                     {@link #SCROLL_STATE_DRAGGING} or {@link #SCROLL_STATE_SETTLING}.
      */
      public void onScrollStateChanged(@NonNull RecyclerView recyclerView, int newState){}

      /**
       * Callback method to be invoked when the RecyclerView has been scrolled. This will be
       * called after the scroll has completed.
       * <p>
       * This callback will also be called if visible item range changes after a layout
       * calculation. In that case, dx and dy will be 0.
       *
       * @param recyclerView The RecyclerView which scrolled.
       * @param dx The amount of horizontal scroll.
       * @param dy The amount of vertical scroll.
       */
       public void onScrolled(@NonNull RecyclerView recyclerView, int dx, int dy){}
    }

重点看下这个抽象类中的 onScrolled() 方法，注释翻译大意为：当 RecyclerView 被滚动时调用的回调方法，该方法将在滚动完成后调用。如果在布局计算后可见 item 的范围发生变化，也将调用此回调，在这种情况下，dX和dY将是0。

我们知道 android 中视图的坐标是以左上角为圆点的，x轴向右为正，y轴向下为正，所以 dy>0 时是列表向上滚动，dy<0 时列表向下滚动，所以在 onScrolled 方法中通过dy的正负就可以知道列表向上还是向下滚动了，可以设置两个 flag成员变量来记录并在adapter 的 onViewAttachedToWindow() 方法中为 item 添加不同的动画。

3.从 xml 中加载 item 的动画

anim/bottom_up_in_anim.xml

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android"
    android:duration="800">
    <translate
        android:fromYDelta="100%"
        android:toYDelta="0" />
    <alpha
        android:fromAlpha="0"
        android:toAlpha="1" />
</set>

，

anim/top_down_in_anim.xml

<?xml version="1.0" encoding="utf-8"?>
<set xmlns:android="http://schemas.android.com/apk/res/android"
    android:duration="800">
    <translate
        android:fromYDelta="-100%"
        android:toYDelta="0" />
    <alpha
        android:fromAlpha="0"
        android:toAlpha="1" />
</set>

使用 AnimationUtils 的 loadAnimation 方法来从 xml 中加载动画。

在 adapter 的 onViewAttachedToWindow() 方法中，当列表向上滑动时，我们为当前刚刚显示到屏幕可见区域的 item 添加从 bottom_up_in_anim.xml 加载得到的动画；当列表向下滑动时，我们为当前刚刚显示到屏幕可见区域的 item 添加从 top_down_in_anim.xml 加载得到的动画。

这样操作，当快速滑动列表时，多个 item 会在较短的时间内同时呈现在屏幕上，这些 item 都会执行动画。为了在向下或向上滑动列表时，只让屏幕第一个可见的或最后一个可见的 item 执行动画，在为 item 添加动画之前，需要遍历清除其他 item 的动画。

//清除当前显示区域中所有item的动画
int childCount = mRecyclerView.getChildCount();
Log.e(TAG, "onViewAttachedToWindow: childCount--> " + childCount);
for (int i = 0; i < childCount; i++) {
    View child = mRecyclerView.getChildAt(i);
    if (child != null) {
        child.clearAnimation();
    }
}

清除之后，再为当前 item 添加动画

//然后给当前item添加上动画
if (isPullDown) {
    holder.itemView.startAnimation(topInAnim);
}
if (isPullingUp) {
    holder.itemView.startAnimation(bottomInAnim);
}

4.主界面 MainActivity

布局 layout/activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <androidx.recyclerview.widget.RecyclerView
        android:id="@+id/recycler_view"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

</androidx.constraintlayout.widget.ConstraintLayout>

MainActivity.class

package com.leading.recyclerviewitemsanimationtest;

import android.os.Bundle;

import java.util.ArrayList;

import androidx.appcompat.app.AppCompatActivity;
import androidx.recyclerview.widget.LinearLayoutManager;
import androidx.recyclerview.widget.RecyclerView;

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        RecyclerView recyclerView = findViewById(R.id.recycler_view);

        SpacesItemDecoration spacesItemDecoration = new SpacesItemDecoration(20);
        recyclerView.addItemDecoration(spacesItemDecoration);

        recyclerView.setLayoutManager(new LinearLayoutManager(this));

        CustomRecyclerViewAdapter customRecyclerViewAdapter = new CustomRecyclerViewAdapter(getData(), recyclerView);
        recyclerView.setAdapter(customRecyclerViewAdapter);
    }

    private ArrayList<String> getData() {
        ArrayList<String> data = new ArrayList<>();
        for (int i = 0; i < 20; i++) {
            data.add("This is Item " + i);
        }
        return data;
    }
}

这里给 RecyclerView 设置了 ItemDecoration 来为 item 添加间距。

SpacesItemDecoration.class

package com.leading.recyclerviewitemsanimationtest;

import android.graphics.Rect;
import android.view.View;

import androidx.recyclerview.widget.RecyclerView;

public class SpacesItemDecoration extends RecyclerView.ItemDecoration {
    private int space;

    public SpacesItemDecoration(int space) {
        this.space = space;
    }

    @Override
    public void getItemOffsets(Rect outRect, View view,
                               RecyclerView parent, RecyclerView.State state) {
        outRect.left = space;
        outRect.right = space;
        outRect.bottom = space;

        // Add top margin only for the first item to avoid double space between items
        if (parent.getChildAdapterPosition(view) == 0) {
            outRect.top = space;
        }
    }
}

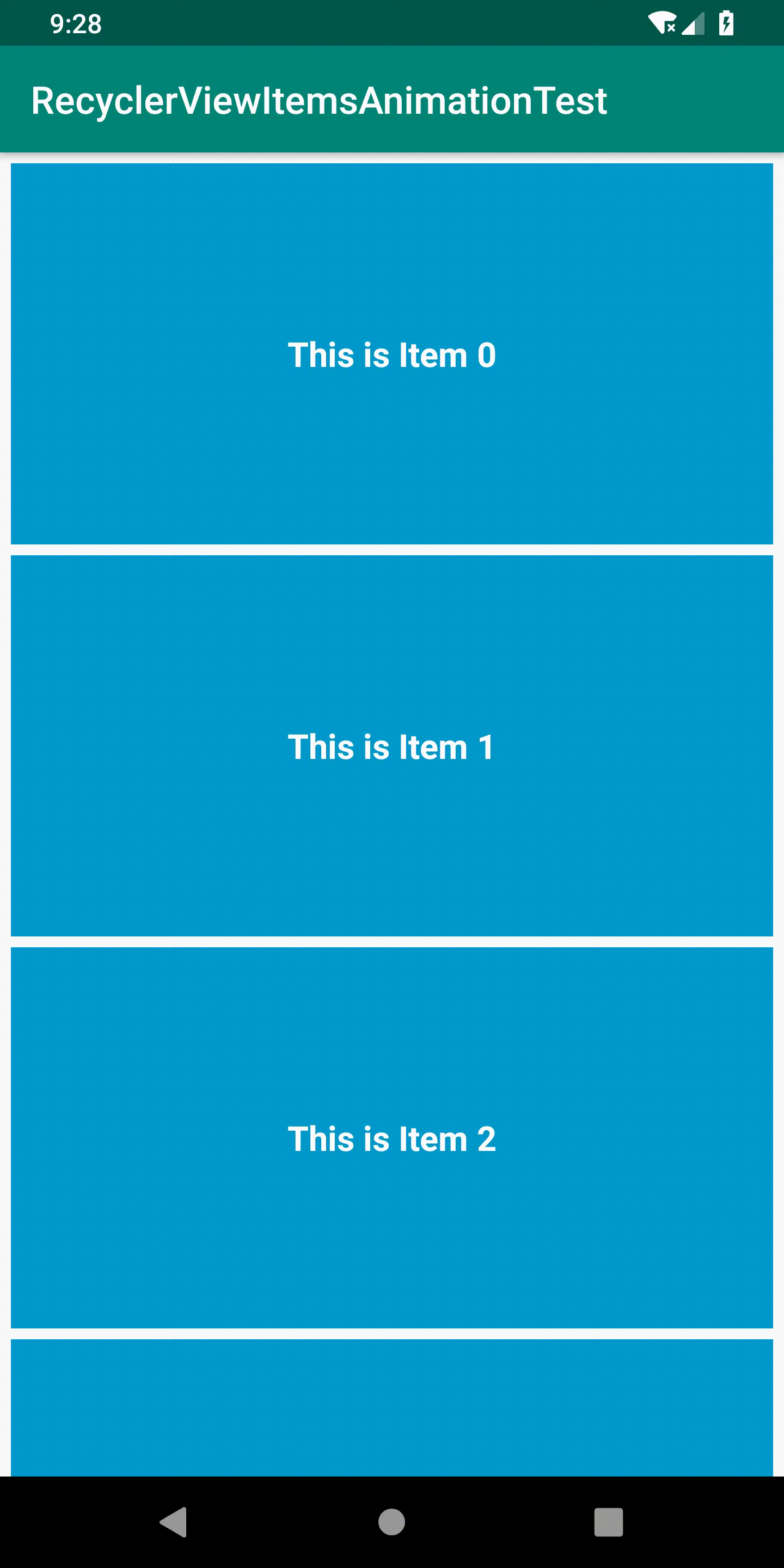

5.效果

运行效果
