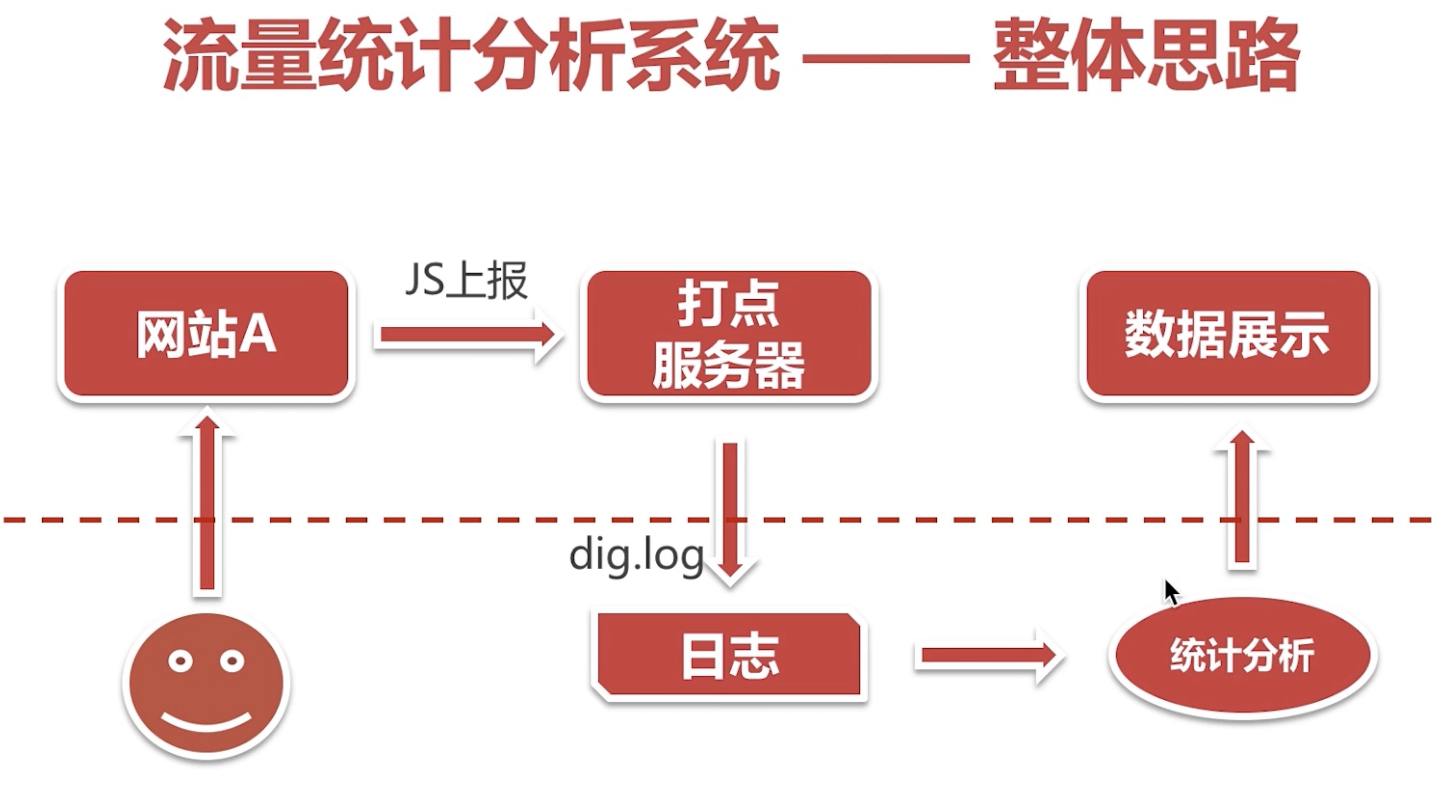

总体流程

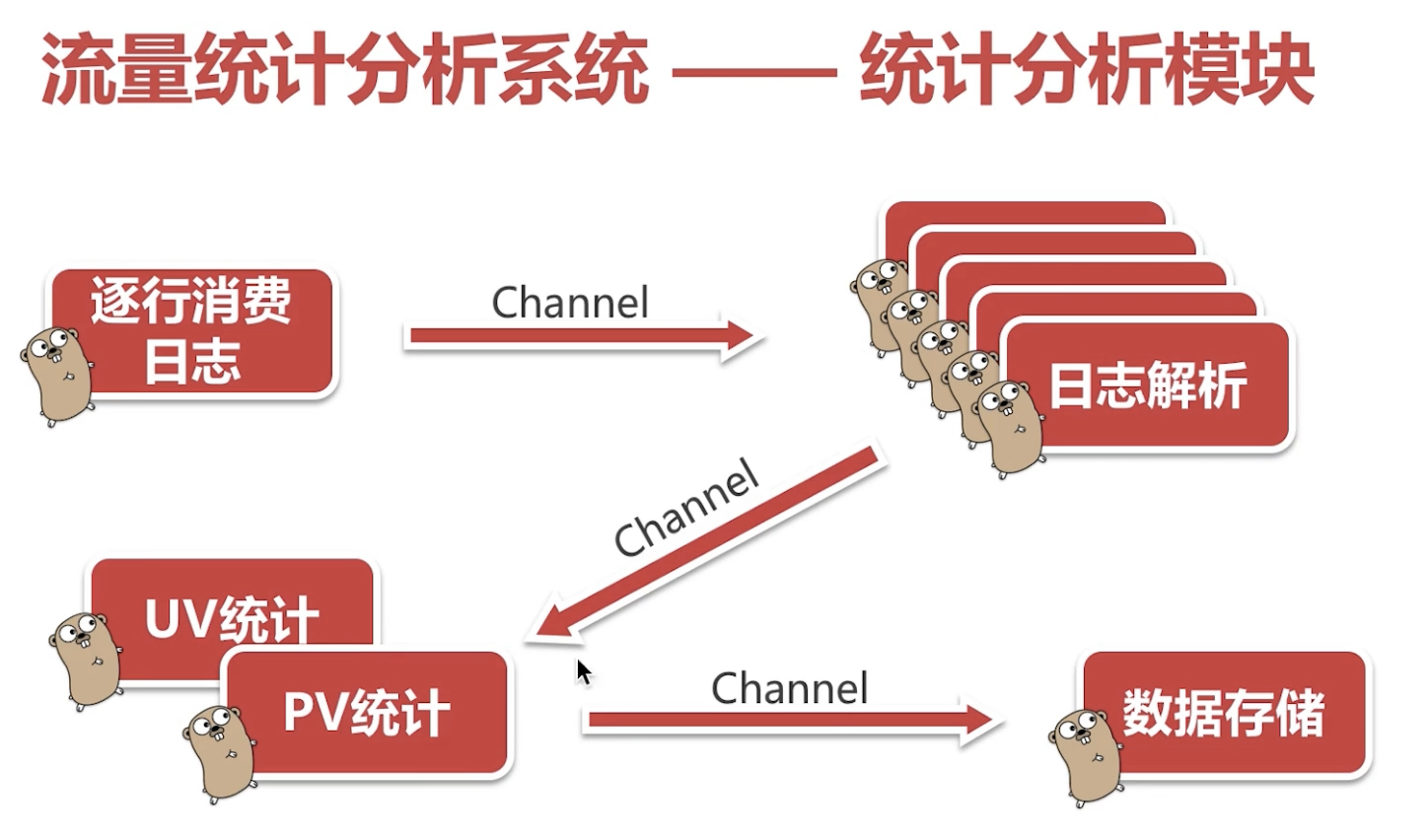

解析用户访问行为日志部分
代码实现:
package main
import (
"bufio"
"crypto/md5"
"encoding/hex"
"flag"
"github.com/mediocregopher/radix.v2/pool"
"github.com/mgutz/str"
"github.com/sirupsen/logrus"
"io"
"net/url"
"os"
"strconv"
"strings"
"time"
)
const HANDLE_DIG = " /dig?"
const HANDLE_MOVIE = "/movie/"
const HANDLE_LIST = "/list/"
const HANDLE_HTML = ".html"
// 收集命令行参数的结构体
type cmdParams struct{
logFilePath string
routineNum int
}
// 用于存储一条访问日志信息解析后的关键内容
type digData struct {
time string
url string
refer string
ua string
}
// 用于存储用户的访问行为
type urlData struct{
data digData
uid string
unode urlNode
}
// 要记录的数据节点,类似于数据库中的单条数据
type urlNode struct{
unType string // 详情页 或者 列表页 或者 首页
unRid int // Resource ID 资源id
unUrl string // 当前这个页面的url
unTime string // 当前访问这个页面的时间
}
// 存储一条pv/uv统计数据
type storageBlock struct{
counterType string
storageModel string
unode urlNode
}
var log = logrus.New()
//var redisCli redis.Client
func init(){
log.Out = os.Stdout
log.SetLevel( logrus.DebugLevel)
/*
redisCli,err := redis.Dial("tcp","localhost:6379")
if err != nil{
log.Fatalln("Redis connect failed")
} else {
defer redisCli.Close()
}
*/
}
func main() {
// 获取参数
logFilePath := flag.String("logFilePath","/User/Pangee/Public/nginx/log/dig.log","target log file path")
routineNum := flag.Int("routineNum",5,"consumer number by go routine")
l := flag.String("l","/tmp/log","runtime log file")
flag.Parse()
params := cmdParams{*logFilePath, *routineNum}
// 打日志
logFd, err := os.OpenFile( *l ,os.O_CREATE|os.O_WRONLY, 0644)
if (err == nil){
log.Out = logFd
defer logFd.Close()
}
log.Infoln("exec strat.")
log.Infoln("params:log filepath = %s,routineNum = %d",params.logFilePath,params.routineNum)
// 初始化一些channel,用于数据传递
var logChannel = make(chan string, 3 * params.routineNum) // 用于日志解析
var pvChannel = make(chan urlData, params.routineNum) // 用于pv统计
var uvChannel = make(chan urlData, params.routineNum) // 用户uv统计
var storageChannel = make(chan storageBlock, params.routineNum) // 用户存储统计数据
// Redis pool
redisPool, err := pool.New("tcp","localhost:6379",2*params.routineNum)
if err!=nil{
log.Fatalln("redis pool created fail")
panic(err)
} else { // 保持redis的连接不闲置
go func() {
for {
redisPool.Cmd( "PING")
time.Sleep( 3 * time.Second)
}
}()
}
// 日志消费者,往logChannel中写日志数据
go readFileLineByLine(params, logChannel)
// 创建一组日志处理,从logChannel中读数据,并将读到的数据写入到pvChannel,uvChannel
for i:=0;i<params.routineNum;i++{
go logConsumer(logChannel, pvChannel, uvChannel)
}
// 创建PV/UV 统计器,从pvChannel和uvChannel中读取数据,然后将数据写入storageChannel
go pvCounter(pvChannel, storageChannel)
go uvCounter(uvChannel, storageChannel, redisPool)
// 创建存储器
go dataStorage(storageChannel, redisPool)
// 之后会封装成daemon,但是先让程序跑起来
time.Sleep(1000 * time.Second)
}
//逐行消费日志
func readFileLineByLine(params cmdParams,logChannel chan string) error {
fd, err := os.Open(params.logFilePath)
if(err != nil){
log.Warningf("ReadFileLineByLine can't open file: %s",params.logFilePath)
return err
}
defer fd.Close()
count := 0
bufferRead := bufio.NewReader( fd )
for {
line, err := bufferRead.ReadString( '\n' )
logChannel <- line
count++
if count%(1000*params.routineNum) == 0{
log.Infof("ReadLineByLine line: %d", count)
}
if err != nil {
if err == io.EOF { //如果读文件读完了,休息一下
time.Sleep( 3*time.Second )
log.Infof("ReadFileLineByLine wait,readLine: %d", count)
} else {
log.Warningf("ReadFileLineByLine read error")
}
}
}
return nil
}
//从logChannel中读数据,并将读到的数据写入到pvChannel,uvChannel
func logConsumer(logChannel chan string, pvChannel,uvChannel chan urlData) error {
for logStr := range logChannel{
//切割日志字符串,抠出打点上报的数据
data := cutLogFetchData( logStr )
//uid,模拟生成uid,MD5(refer+ua)
hasher := md5.New()
hasher.Write( []byte( data.refer + data.ua ) )
uid := hex.EncodeToString( hasher.Sum(nil) )
//很多的解析工作都可以放到这里完成
//json等....
uData := urlData{data, uid,formatUrl(data.url,data.time)}
pvChannel<-uData
uvChannel<-uData
}
return nil
}
//截取上报信息并返回结构体
func cutLogFetchData(logStr string) digData{
logStr = strings.TrimSpace(logStr)
pos1 := str.IndexOf( logStr, HANDLE_DIG, 0)
if pos1 == -1{
return digData{}
}
pos1 += len(HANDLE_DIG) //计算偏移量
pos2 := str.IndexOf( logStr, "HTTP/", pos1)
d := str.Substr(logStr, pos1, pos2-pos1)
//将截取到的k=v&k=v的形式的字符串转换
urlInfo, err := url.Parse("http://localhost/?"+d) //要拼接成完整的网址是因为这个方法只认完整的网址才解析
if err != nil {
return digData{}
}
data := urlInfo.Query()
return digData{
data.Get("time"),
data.Get("refer"),
data.Get("url"),
data.Get("ua"),
}
}
// 统计pv,将统计到的数据放到storageBlock结构体中,然后写入到storageChannel
func pvCounter(pvChannel chan urlData, storageChannel chan storageBlock){
for data := range pvChannel{
sItem := storageBlock{"pv","ZINCRBY",data.unode}
storageChannel <- sItem
}
}
// 统计uv,使用redis的HyperLoglog去重用户,将统计到的数据放到storageBlock结构体中,然后写入到storageChannel
func uvCounter(uvChannel chan urlData, storageChannel chan storageBlock, redisPool *pool.Pool){
for data := range uvChannel {
//HyperLoglog redis 去重用户
hyperLogLogKey := "uv_hpll_"+ getTime(data.data.time, "day")
// 这行会报错,因为执行到这里时获取不到redisCli这个实例,实例是在外部声明的,在goroutine中可能获取不到
// 可以通过函数参数的形式传递进来,一般这种资源型的东西,建议使用连接池
ret,err := redisPool.Cmd("PFADD",hyperLogLogKey,data.uid,"EX",86400).Int()
if err != nil{
log.Warningln("UvCounter check redis hyperloglog failed, ",err)
}
if ret!=1 {
continue
}
sItem := storageBlock{"uv","ZINCRBY",data.unode}
storageChannel <- sItem
}
}
// 循环读取storageChannel中的内容,并使用redis进行相关数据统计
func dataStorage(storageChannel chan storageBlock, redisPool *pool.Pool){
for block := range storageChannel {
prefix := block.counterType + "_"
//逐层加洋葱皮,网站-大分类-小分类-终极页面,当用户访问任一级页面时,需要给其上游页面都添加相应的统计数据
// 维度:天-小时-分钟
// 层级:网站-大分类-小分类-终极页面
// 存储模型:Redis SortedSet
setKeys := []string{
prefix+"day_"+getTime(block.unode.unTime,"day"), //网站的uv、pv统计
prefix+"hour_"+getTime(block.unode.unTime,"hour"),
prefix+"min_"+getTime(block.unode.unTime,"min"),
prefix+block.unode.unType+"_day_"+getTime(block.unode.unTime,"day"), // 每种类型页面的统计movie、list、home
prefix+block.unode.unType+"_hour_"+getTime(block.unode.unTime,"hour"),
prefix+block.unode.unType+"_min_"+getTime(block.unode.unTime,"min"),
}
rowId := block.unode.unRid
for _,key := range setKeys{
ret, err := redisPool.Cmd( block.storageModel, key, 1, rowId).Int()
if ret<=0 || err!=nil{
log.Errorln("DataStorage redis storage error.",block.storageModel,key,rowId)
}
}
}
}
// 提取出要写进存储器的单条记录
func formatUrl(url,t string) urlNode {
// 一定从量大的着手,详情页>列表页>=首页
pos1 := str.IndexOf(url,HANDLE_MOVIE,0)
if pos1 != -1{
pos1 += len(HANDLE_MOVIE)
pos2 := str.IndexOf(url,HANDLE_HTML,pos1)
idStr := str.Substr(url,pos1,pos2-pos1)
id,_ := strconv.Atoi(idStr)
return urlNode{"movie",id,url,t}
} else {
pos1 = str.IndexOf(url,HANDLE_LIST,0)
if pos1 != -1{
pos1 += len(HANDLE_LIST)
pos2 := str.IndexOf(url,HANDLE_LIST,pos1)
idStr := str.Substr(url,pos1,pos2-pos1)
id,_ := strconv.Atoi(idStr)
return urlNode{"list",id,url,t}
} else {
return urlNode{"home",1,url,t}
} // 如果页面有很多种,就不断在这里扩展
}
}
// 根据时间类型获取时间戳
func getTime( logtime,timeType string) string {
var item string
switch timeType {
case "day":
item = "2006-01-02"
break
case "hour":
item = "2006-01-02 15"
break
case "min":
item = "2006-01-02 15:04"
break
}
t,_ := time.Parse( item,time.Now().Format(item))
return strconv.FormatInt(t.Unix(),10)
}
基本流程:
1.通过命令行收集用户输入的参数:logFilePath
(要分析的日志所在路径)、routineNum
(想要设定的用于解析日志的goroutine数目)、l
(运行时日志存放的路径),引入logrus
包进行运行时的日志记录
2.根据用户定义的routineNum,初始化一些channel,用于数据传递
logChannel
用于数据统计,pvChannel
用于pv统计,uvChannel
用于uv统计,storageChannel
用于统计数据转存redis
3.使用radix.v2/pool
包维持redis连接池,每3秒ping一下redis
4.生成一个goroutine,逐行读取日志,将读取到的内容写入logChannel
中
5.根据用户指定的routineNum
创建一组日志处理的goroutine,其将从logChannel
中读一行日志数据进行解析,解析过程包括:
- 切割日志字符串,抠出打点上报的数据(从一行日访问志中解析出time,refer,url,ua,写入digData结构体中并返回)
data := cutLogFetchData( logStr )
- uid,模拟生成uid,MD5(refer+ua),利用了
crypto/md5
,encoding/hex
这两个包
hasher := md5.New()
hasher.Write( []byte( data.refer + data.ua ) )
uid := hex.EncodeToString( hasher.Sum(nil) )
之后对digData中的url进行解析(调用formatUrl()),提取出用户访问的资源类型(‘movie’、‘list’、‘home’),并且与url的访问时间一起写入到urlNode
这个结构体中,然后将解析日志数据后返回的结构体(digData)、uid、解析url后返回的结构体(urlNode)写入urlData这个结构体中,然后将该结构体写入到pvChannel,uvChannel
uData := urlData{data, uid,formatUrl(data.url,data.time)}
pvChannel<-uData
uvChannel<-uData
6.创建一个goroutine用于pv统计,循环读取pvChannel
中的内容,将统计类型(pv),储存要用的数据类型(ZINCRBY),以及pvChannel
中的unode结构体,构造成storageBlock
结构体,并写入storageChannel
中
7.创建一个goroutine用于uv统计,循环读取uvChannel
中的内容,并根据从uvChannel
中读取到的的结构体(urlData)里面的uid,利用redis的HyperLogLog
进行用户去重,然后将统计类型(uv),储存要用的数据类型(ZINCRBY),以及uvChannel
中的unode结构体,构造成storageBlock
结构体,并写入storageChannel
中
8.创建一个goroutine,循环读取storageChannel
中的数据,构造不同的key,然后利用redis进行统计和储存
9.最后为了让程序顺利跑起来,在主线程中设置了睡眠1000s
涉及的点
- logrus包的使用
- bufio的使用
参考连接 bufio的解析 - mgutz/str包的使用
- radix.v2/pool包的使用
- MD5生成(crypto/md5,encoding/hex)
参考连接 golang md5
hasher := md5.New()
hasher.Write( []byte( data.refer + data.ua ) )
uid := hex.EncodeToString( hasher.Sum(nil) )
这里直接对一串字符串计算MD5。其中通过md5.New()初始化一个MD5对象,其实它是一个hash.Hash对象。 函数原型为 func New() hash.Hash 。该对象实现了hash.Hash的Sum接口:计算出校验和。其函数原型 为 func Sum(data []byte) [Size]byte 这里的官方Manual对其的描述我感觉有点问题。其官方描述为: " Sum returns the MD5 checksum of the data. "
通过翻阅源码可以看到他并不是对data进行校验计算,而是对hash.Hash对象内部存储的内容进行校验和 计算然后将其追加到data的后面形成一个新的byte切片。因此通常的使用方法就是将data置为nil,sum方法描述
// Sum appends the current hash to b and returns the resulting slice.
// It does not change the underlying hash state.
Sum(b []byte) []byte
该方法返回一个Size大小的byte数组,对于MD5来说就是一个128bit的16字节byte数组。
可参考链接 Golang计算MD5
然后 encoding/hex包是实现十六进制编码和解码用的,参考连接 腾讯云
二进制是Binary,即bin
八进制是Octal,即oct
十进制为Decimal,即dec
十六进制为Hexadecimal,即hex
- golang的时间戳
import (
"fmt"
"time"
)
func main() {
t := time.Now()
fmt.Println(t)
t1 := time.Now().Format("2006-01-02 15:04:05")
fmt.Println(t1)
t2 := time.Now().Unix() //秒
fmt.Println(t2)
t3 := time.Now().UnixNano() //纳秒
fmt.Println(t3)
}
关于golang中的奇怪时间 2006-01-02 15:04:05
:
仔细观察这个日期,06年,1月2日下午3点4分5秒,查阅相关资料还有 -7时区,Monday,数字1~7都有了,而且都不重复。
其实日期为 2006-01-02T15:04:05Z07:00,每个数字都有意义
1 2 3 4 5 6 7
月 日 时 分 秒 年 时 区
道理其实跟别的语言 的 YYYY-mm-dd 一样,只不过go用了这个特殊的包含1~7的时间而已。
可以看这里 stackoverflow
以及这里 简书
- url 解析query
d := str.Substr(logStr, pos1, pos2-pos1)
//将截取到的k=v&k=v的形式的字符串转换
urlInfo, err := url.Parse("http://localhost/?"+d) //要拼接成完整的网址是因为这个方法只认完整的网址才解析
if err != nil {
return digData{}
}
data := urlInfo.Query()
return digData{
data.Get("time"),
data.Get("refer"),
data.Get("url"),
data.Get("ua"),
}
