样式就和html的css一样,是为了复用,不用每次都去写标记,而行为就如JS一样,定义好一个行为,每次直接调用就好,这样就做到了耦合不是那么高。比如,我们定义一个样式,样式写在页面,当然这样肯定不好,因为别的页面就没有办法复用这个样式了。
<Button Style="{StaticResource mystyle}" Content="Button" HorizontalAlignment="Left" Margin="182,112,0,0" VerticalAlignment="Top" Width="75"/>
<Button Style="{StaticResource mystyle}" Content="Button" HorizontalAlignment="Left" Margin="182,56,0,0" VerticalAlignment="Top" Width="75"/>
<Button Style="{StaticResource mystyle}" Content="Button" HorizontalAlignment="Left" Margin="182,182,0,0" VerticalAlignment="Top" Width="75"/>
这三个按钮的样式都是mystyle,我们不需要写多次,直接一次就可以了。样式就放在资源里面,上一节已经学到了什么是资源。
<Grid.Resources>
<Style x:Key="mystyle" TargetType="Button">
<Setter Property="Background" Value="red"></Setter>
<Style.Triggers >
<Trigger Property="Button.IsMouseOver" Value="true">
<Setter Property="Foreground" Value="Yellow"></Setter> </Trigger>
<Trigger Property="Button.IsMouseOver" Value="false">
<Setter Property="Background" Value="Pink"></Setter> </Trigger>
</Style.Triggers>
</Style>
</Grid.Resources>
样式其实更多的应该是由前端工程师来完成,但是.NET框架下的程序员,你懂的,啥都要自己搞,所以咱们就自己来弄吧。
而行为,则是对外观的进一步封装,比如我们有一个图片,图片要做到拖动,如果用事件监听,比如按钮按下,然后按钮移动,按钮提起,不断地处理,当然是没有问题,但是,如果再放一个图片,这个图片也要实现这个功能呢?那就很麻烦了,最简单的方法就是直接在Blend里面,在资产条目下有个行为,直接把MouseDragElementBehavior拖到我们的控件上面就行了。
接着,我们自定义一个图片可以缩放的功能,就采用行为来做。先定义属于咱们自己的行为类
class MyBehavior : Behavior<UIElement>
{
private Grid b_grid;
ScaleTransform sfr = new ScaleTransform();
protected override void OnAttached()
{
base.OnAttached();
AssociatedObject.MouseWheel += AssociatedObjectOnMouseWheel;
}
protected override void OnDetaching()
{
base.OnDetaching();
AssociatedObject.MouseWheel -= AssociatedObjectOnMouseWheel;
}
private void AssociatedObjectOnMouseWheel(object sender, MouseWheelEventArgs mouseWheelEventArgs)
{
Point centerPoint = mouseWheelEventArgs.GetPosition(AssociatedObject);
sfr.CenterX = centerPoint.X / 2;
sfr.CenterY = centerPoint.Y / 2;
sfr.ScaleX += (double)mouseWheelEventArgs.Delta / 1200;
sfr.ScaleY += (double)mouseWheelEventArgs.Delta / 1200;
AssociatedObject.RenderTransform = sfr;
AssociatedObject.CaptureMouse();
}
}
然后在前台直接调用 ,效果就出来啦。
<Window
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:i="http://schemas.microsoft.com/expression/2010/interactivity" xmlns:ei="http://schemas.microsoft.com/expression/2010/interactions" x:Class="WpfApplication9.MainWindow"
xmlns:local="clr-namespace:WpfApplication9"
Title="MainWindow" Height="350" Width="525">
<Grid>
<Image Margin="43,82,307.667,97.667" Source="Images\Alarm.png">
<i:Interaction.Behaviors>
<ei:MouseDragElementBehavior/>
<local:MyBehavior/>
</i:Interaction.Behaviors>
</Image>
<Image Margin="251,82,99.667,97.667" Source="Images/Alarm.png">
<i:Interaction.Behaviors>
<ei:MouseDragElementBehavior/>
<local:MyBehavior/>
</i:Interaction.Behaviors>
</Image>
</Grid>
</Window>

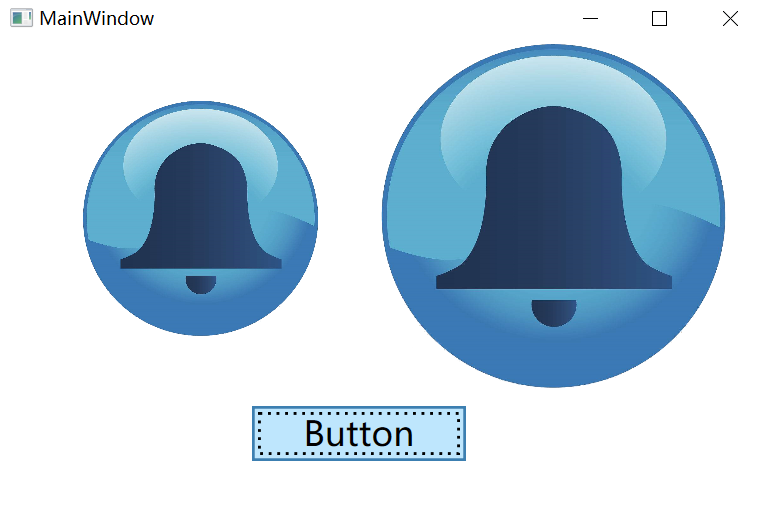

效果如下,不管是有多少控件,也不管这个控件是不是图片,比如我们再放一个按钮,让按钮具有拖动的行为,也是完全一样的。只需要放一个按钮,添加行为就行了。
<Button Content="Button" HorizontalAlignment="Left" Margin="178,245,0,0" VerticalAlignment="Top" Width="75">
<i:Interaction.Behaviors>
<local:MyBehavior/>
</i:Interaction.Behaviors>
</Button>
