后面会给出我的完整代码，先来分段看看！
转化格式
if x1y1x2y2: # x1, y1, x2, y2 = box1
b1_x1, b1_y1, b1_x2, b1_y2 = box1[0], box1[1], box1[2], box1[3]
b2_x1, b2_y1, b2_x2, b2_y2 = box2[0], box2[1], box2[2], box2[3]
else: # transform from xywh to xyxy
b1_x1, b1_x2 = box1[0] - box1[2] / 2, box1[0] + box1[2] / 2
b1_y1, b1_y2 = box1[1] - box1[3] / 2, box1[1] + box1[3] / 2
b2_x1, b2_x2 = box2[0] - box2[2] / 2, box2[0] + box2[2] / 2
b2_y1, b2_y2 = box2[1] - box2[3] / 2, box2[1] + box2[3] / 2

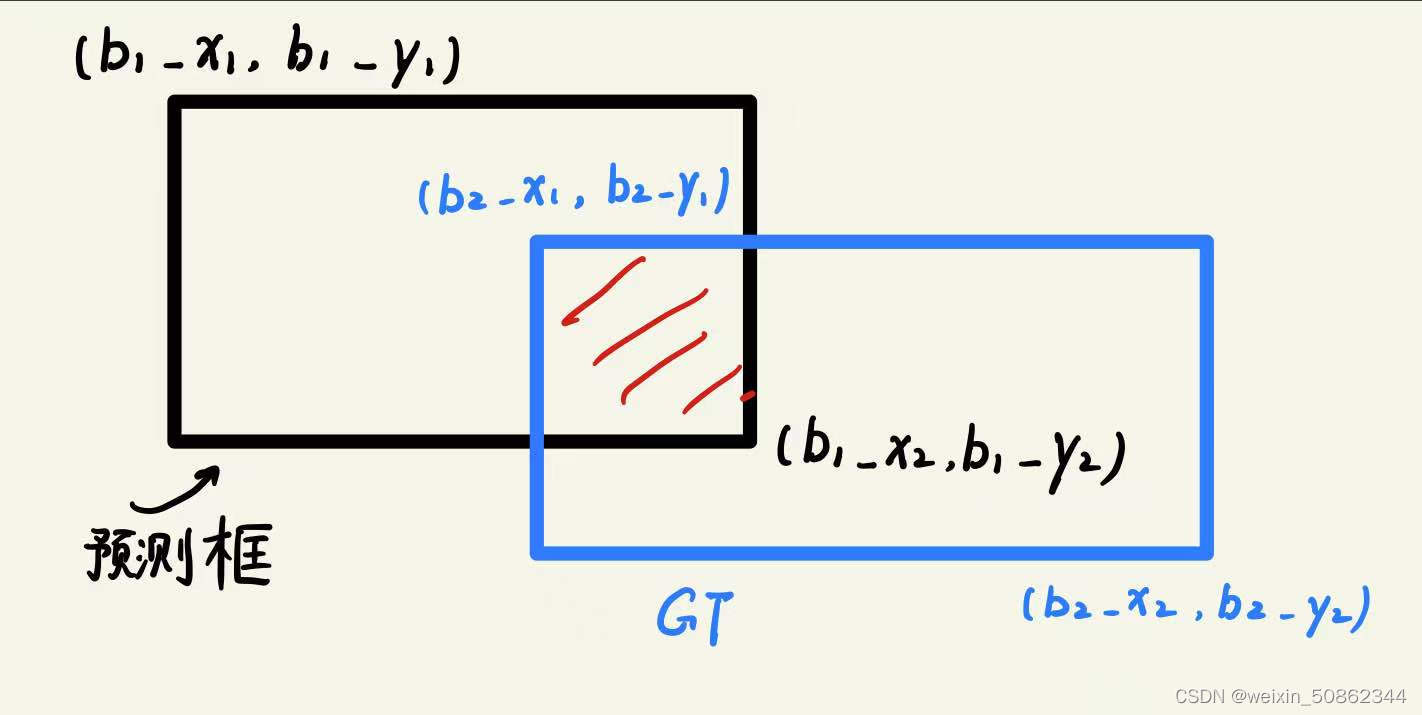

转换成这种格式：
IOU
这个应该都很熟了
inter = (torch.min(b1_x2, b2_x2) - torch.max(b1_x1, b2_x1)).clamp(0) * \
(torch.min(b1_y2, b2_y2) - torch.max(b1_y1, b2_y1)).clamp(0)
#.clamp：将小于0的元素修改为0，截断元素的取值空
# Union Area
w1, h1 = b1_x2 - b1_x1, b1_y2 - b1_y1 + eps
w2, h2 = b2_x2 - b2_x1, b2_y2 - b2_y1 + eps
union = w1 * h1 + w2 * h2 - inter + ep
iou = inter / union
clamp
def clamp(self, min: _float=-inf, max: _float=inf, *, out: Optional[Tensor]=None) -> Tensor: ...
inf：无穷大
-inf：负无穷
out：输出，默认即可，不用设定
在 yolov5的使用中，应该是截断掉小于0的部分
(torch.min(b1_x2, b2_x2) - torch.max(b1_x1, b2_x1)).clamp(0)

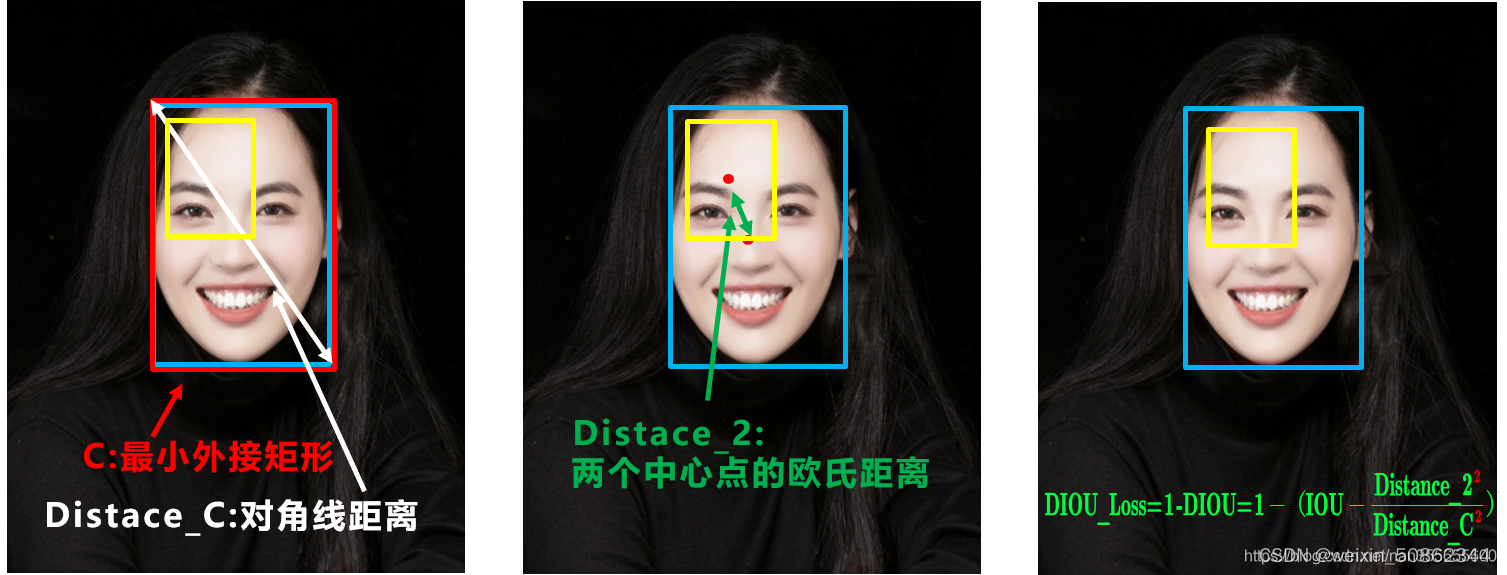

DIOU
在正式进入各种iou之前
cw = torch.max(b1_x2, b2_x2) - torch.min(b1_x1, b2_x1) # 最小包裹矩形宽度
ch = torch.max(b1_y2, b2_y2) - torch.min(b1_y1, b2_y1) # 最小包裹矩形高度
cw ：最小外包矩形宽度
ch ：最小外包矩形高度
分子部分的一次项代表：GT框和bbox框中心点的距离
c：两个框对角线的距离
考虑了重叠面积和中心点距离
c2 = cw ** 2 + ch ** 2 + eps # 勾股定理，使用两边的平方和来代替斜边的平方
rho2 = ((b2_x1 + b2_x2 - b1_x1 - b1_x2) ** 2 +
(b2_y1 + b2_y2 - b1_y1 - b1_y2) ** 2) / 4
if DIoU:
return iou - rho2 / c2 # DIoU
c2： 勾股定理，使用两边的平方和来代替斜边的平方
扫描二维码关注公众号，回复：
15187862 查看本文章

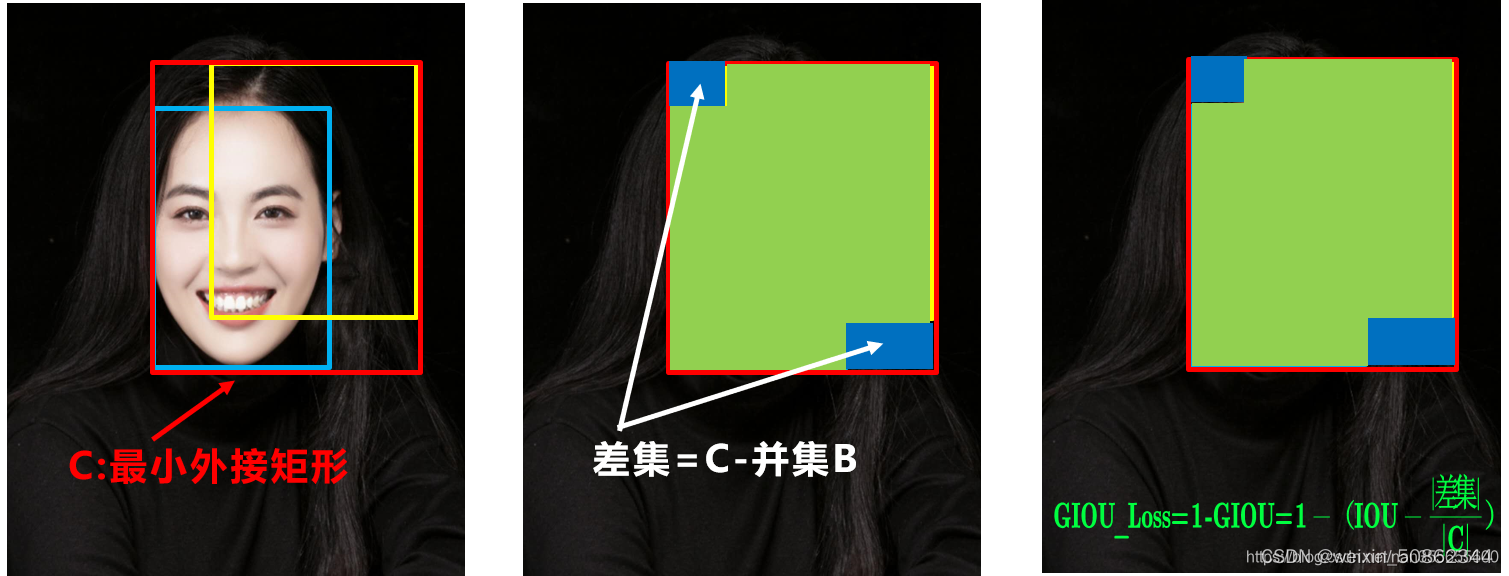

GIOU
c_area = cw * ch + eps # convex area
return iou - (c_area - union) / c_area # GIoU
CIoU

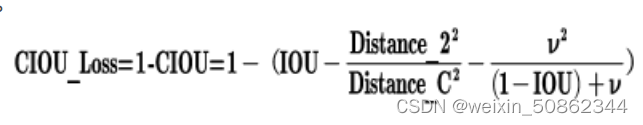

CIOU_Loss和DIOU_Loss前面的公式都是一样的，不过在此基础上还增加了一个影响因子，将预测框和目标框的长宽比都考虑了进去。
其中v是衡量长宽比一致性的参数，我们也可以定义为：
这样CIOU_Loss就将目标框回归函数应该考虑三个重要几何因素：重叠面积、中心点距离，长宽比全都考虑进去了。
elif CIoU: # https://github.com/Zzh-tju/DIoU-SSD-pytorch/blob/master/utils/box/box_utils.py#L47
v = (4 / math.pi ** 2) * torch.pow(torch.atan(w2 / h2) - torch.atan(w1 / h1), 2)
with torch.no_grad():
alpha = v / (v - iou + (1 + eps))
return iou - (rho2 / c2 + v * alpha) # CIoU
EIOU
【参考博文】IOU、GIOU、DIOU、CIOU、EIOU、Focal EIOU、alpha IOU损失函数
前两部分延续CIOU中的方法，但是宽高损失直接使目标盒与锚盒的宽度和高度之差最小，使得收敛速度更快。
该损失函数包含三个部分：重叠损失，中心距离损失，宽高损失
rho2 = ((b2_x1 + b2_x2 - b1_x1 - b1_x2) ** 2 +
(b2_y1 + b2_y2 - b1_y1 - b1_y2) ** 2) / 4 # center distance squared
elif EIoU:
w=(w1-w2)*(w1-w2)
h=(h1-h2)*(h1-h2)
return iou-(rho2/c2+w/(cw**2)+h/(ch**2))
w：宽度差的平方
h：高度差的平方
SIOU
直接看这篇的解析吧。就不重复写了
然后上一下完整代码
def bbox_iou(box1, box2, x1y1x2y2=True, GIoU=False, DIoU=False, CIoU=False, SIoU=False, EIoU = False, eps=1e-7):
# Returns the IoU of box1 to box2. box1 is 4, box2 is nx4
box2 = box2.T
# Get the coordinates of bounding boxes
if x1y1x2y2: # x1, y1, x2, y2 = box1
b1_x1, b1_y1, b1_x2, b1_y2 = box1[0], box1[1], box1[2], box1[3]
b2_x1, b2_y1, b2_x2, b2_y2 = box2[0], box2[1], box2[2], box2[3]
else: # transform from xywh to xyxy
b1_x1, b1_x2 = box1[0] - box1[2] / 2, box1[0] + box1[2] / 2
b1_y1, b1_y2 = box1[1] - box1[3] / 2, box1[1] + box1[3] / 2
b2_x1, b2_x2 = box2[0] - box2[2] / 2, box2[0] + box2[2] / 2
b2_y1, b2_y2 = box2[1] - box2[3] / 2, box2[1] + box2[3] / 2
# Intersection area
inter = (torch.min(b1_x2, b2_x2) - torch.max(b1_x1, b2_x1)).clamp(0) * \
(torch.min(b1_y2, b2_y2) - torch.max(b1_y1, b2_y1)).clamp(0)
# Union Area
w1, h1 = b1_x2 - b1_x1, b1_y2 - b1_y1 + eps
w2, h2 = b2_x2 - b2_x1, b2_y2 - b2_y1 + eps
union = w1 * h1 + w2 * h2 - inter + eps
iou = inter / union
if GIoU or DIoU or CIoU or SIoU or EIoU:
cw = torch.max(b1_x2, b2_x2) - torch.min(b1_x1, b2_x1) # convex (smallest enclosing box) width
ch = torch.max(b1_y2, b2_y2) - torch.min(b1_y1, b2_y1) # convex height
if SIoU: # SIoU Loss 2022.08.01
sigma = torch.pow(cw ** 2 + ch ** 2, 0.5)
sin_alpha_1 = ch / sigma
sin_alpha_2 = cw / sigma
threshold = pow(2, 0.5) / 2
sin_alpha = torch.where(sin_alpha_1 > threshold, sin_alpha_2, sin_alpha_1)
# angle_cost = 1 - 2 * torch.pow( torch.sin(torch.arcsin(sin_alpha) - np.pi/4), 2)
angle_cost = torch.cos(torch.arcsin(sin_alpha) * 2 - np.pi / 2)
rho_x = ((b2_x1 + b2_x2 - b1_x1 - b1_x2) / cw) ** 2
rho_y = ((b2_y1 + b2_y2 - b1_y1 - b1_y2) / ch) ** 2
gamma = 2 - angle_cost
distance_cost = 2 - torch.exp(-1 * gamma * rho_x) - torch.exp(-1 * gamma * rho_y)
omiga_w = torch.abs(w1 - w2) / torch.max(w1, w2)
omiga_h = torch.abs(h1 - h2) / torch.max(h1, h2)
shape_cost = torch.pow(1 - torch.exp(-1 * omiga_w), 4) + torch.pow(1 - torch.exp(-1 * omiga_h), 4)
return iou - 0.5 * (distance_cost + shape_cost)
elif CIoU or DIoU or EIoU: # Distance or Complete IoU https://arxiv.org/abs/1911.08287v1
c2 = cw ** 2 + ch ** 2 + eps # convex diagonal squared
rho2 = ((b2_x1 + b2_x2 - b1_x1 - b1_x2) ** 2 +
(b2_y1 + b2_y2 - b1_y1 - b1_y2) ** 2) / 4 # center distance squared
if DIoU:
return iou - rho2 / c2 # DIoU
elif CIoU: # https://github.com/Zzh-tju/DIoU-SSD-pytorch/blob/master/utils/box/box_utils.py#L47
v = (4 / math.pi ** 2) * torch.pow(torch.atan(w2 / h2) - torch.atan(w1 / h1), 2)
with torch.no_grad():
alpha = v / (v - iou + (1 + eps))
return iou - (rho2 / c2 + v * alpha) # CIoU
elif EIoU:
w=(w1-w2)*(w1-w2)
h=(h1-h2)*(h1-h2)
return iou-(rho2/c2+w/(cw**2)+h/(ch**2))#EIOU
else: # GIoU https://arxiv.org/pdf/1902.09630.pdf
c_area = cw * ch + eps # convex area
return iou - (c_area - union) / c_area # GIoU
else:
return iou # IoU
在yolov5使用方法
1.metrics.py修改一下注释掉原来的bbox_iou，复制上面的完整代码
2.loss.py中把想要使用的iou设置为True（下图以EIOU为例）
