Netty源码解析（三）之客户端的连接

在上篇文章中，我们介绍了Netty服务器启动的流程

Netty源码解析（二）之服务器启动源码_benjam1n77的博客-CSDN博客，这篇文章中，我们继续介绍客户端是如何与服务器端建立连接的。

一. 先从EventLoopGroup和EventLoop开始

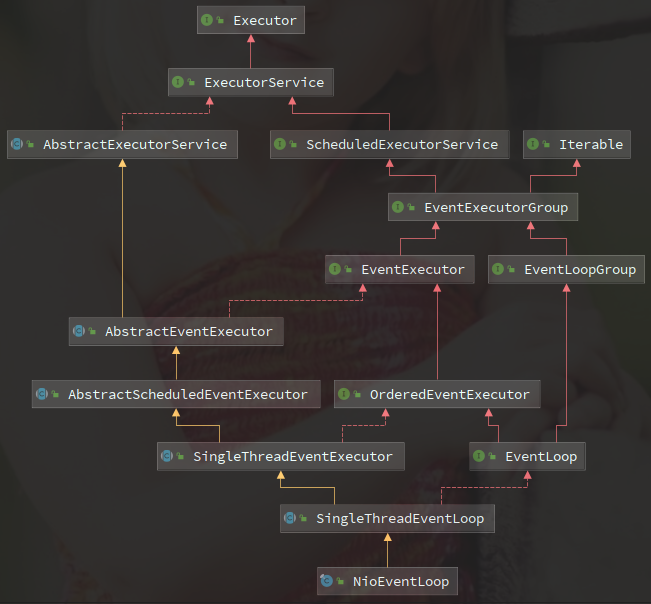

EventLoopGroup和EventLoop其实就相当于线程池（或者说线程组）和线程，下面是NioEventLoopGroup和NioEventLoop的继承类图



 可以看到不管是EventLoop还是EventLoopGroup最终都继承于JDK的Executor接口。这里我们不对这两个类多做赘述，主要是介绍他们在客户端连接过程中所起的作用。

EventLoopGroup中有一个成员变量，这个数组保存的就是线程组中的线程，EventLoopGroup会通过newChild()方法对每个EventExecutor进行初始化（对于NioEventLoopGroup来说，这个EventExecutor就是NioEventLoop）。每个NioEventLoop都会绑定一个Selector，每个绑定到这个NioEventLoop的Channel都使用这个Selector。

private final EventExecutor[] children;

//NioEventLoopGroup.java
//line 143-147
protected EventLoop newChild(Executor executor, Object... args) throws Exception {
    EventLoopTaskQueueFactory queueFactory = args.length == 4 ? (EventLoopTaskQueueFactory) args[3] : null;
    return new NioEventLoop(this, executor, (SelectorProvider) args[0],
            ((SelectStrategyFactory) args[1]).newSelectStrategy(), (RejectedExecutionHandler) args[2], queueFactory);
}



//NioEventLoop.java
//line 135-145
NioEventLoop(NioEventLoopGroup parent, Executor executor, SelectorProvider selectorProvider,
             SelectStrategy strategy, RejectedExecutionHandler rejectedExecutionHandler,
             EventLoopTaskQueueFactory queueFactory) {
    super(parent, executor, false, newTaskQueue(queueFactory), newTaskQueue(queueFactory),
            rejectedExecutionHandler);
    this.provider = ObjectUtil.checkNotNull(selectorProvider, "selectorProvider");
    this.selectStrategy = ObjectUtil.checkNotNull(strategy, "selectStrategy");
    final NioEventLoop.SelectorTuple selectorTuple = openSelector();
    this.selector = selectorTuple.selector;
    this.unwrappedSelector = selectorTuple.unwrappedSelector;
}

 二. boss NioEventLoop接收IO连接请求

ServerBootstrap的boosEventLoop会在NioServerSocketChannel启动的过程中同时启动，并且调用他的run()方法。run()方法的逻辑比较复杂，但是我们只需要关注下面这一段代码，run()方法中会调用另外两个方法processSelectedKeys()和runAllTasks()。processSelectedKeys()方法处理Selector发现的IO任务，而runAllTasks()方法则处理普通的任务。

//NioEventLoop.run()
//line 481-501
if (ioRatio == 100) {
    try {
        if (strategy > 0) {
            processSelectedKeys();
        }
    } finally {
        // Ensure we always run tasks.
        ranTasks = runAllTasks();
    }
} else if (strategy > 0) {
    final long ioStartTime = System.nanoTime();
    try {
        processSelectedKeys();
    } finally {
        // Ensure we always run tasks.
        final long ioTime = System.nanoTime() - ioStartTime;
        ranTasks = runAllTasks(ioTime * (100 - ioRatio) / ioRatio);
    }
} else {
    ranTasks = runAllTasks(0); // This will run the minimum number of tasks
}

在run()方法中，会在一个死循环中不断调用select()方法，获取当前的IO事件（上面的代码中没有贴出来），然后调用processSelectedKeys()方法处理这些IO事件。然后在processSelectedKeysOptimized()方法中通过一个循环依次处理所有的selectedKeys，如果发现有SelectionKey.OP_READ | SelectionKey.OP_ACCEPT类型的IO事件，则调用unsafe.read()来处理。

//NioEventLoop.java
//line 574-580
private void processSelectedKeys() {
    if (selectedKeys != null) {
        processSelectedKeysOptimized();
    } else {
        processSelectedKeysPlain(selector.selectedKeys());
    }
}


//NioEventLoop.java
//line 640-666
private void processSelectedKeysOptimized() {
    for (int i = 0; i < selectedKeys.size; ++i) {
        final SelectionKey k = selectedKeys.keys[i];
        // null out entry in the array to allow to have it GC'ed once the Channel close
        // See https://github.com/netty/netty/issues/2363
        selectedKeys.keys[i] = null;

        final Object a = k.attachment();

        if (a instanceof AbstractNioChannel) {
            processSelectedKey(k, (AbstractNioChannel) a);
        } else {
            @SuppressWarnings("unchecked")
            NioTask<SelectableChannel> task = (NioTask<SelectableChannel>) a;
            processSelectedKey(k, task);
        }

        if (needsToSelectAgain) {
            // null out entries in the array to allow to have it GC'ed once the Channel close
            // See https://github.com/netty/netty/issues/2363
            selectedKeys.reset(i + 1);

            selectAgain();
            i = -1;
        }
    }
}

//NioEventLoop.java
//line 668-719
private void processSelectedKey(SelectionKey k, AbstractNioChannel ch) {
    final AbstractNioChannel.NioUnsafe unsafe = ch.unsafe();
    if (!k.isValid()) {
        final EventLoop eventLoop;
        try {
            eventLoop = ch.eventLoop();
        } catch (Throwable ignored) {
            // If the channel implementation throws an exception because there is no event loop, we ignore this
            // because we are only trying to determine if ch is registered to this event loop and thus has authority
            // to close ch.
            return;
        }
        // Only close ch if ch is still registered to this EventLoop. ch could have deregistered from the event loop
        // and thus the SelectionKey could be cancelled as part of the deregistration process, but the channel is
        // still healthy and should not be closed.
        // See https://github.com/netty/netty/issues/5125
        if (eventLoop == this) {
            // close the channel if the key is not valid anymore
            unsafe.close(unsafe.voidPromise());
        }
        return;
    }

    try {
        int readyOps = k.readyOps();
        // We first need to call finishConnect() before try to trigger a read(...) or write(...) as otherwise
        // the NIO JDK channel implementation may throw a NotYetConnectedException.
        if ((readyOps & SelectionKey.OP_CONNECT) != 0) {
            // remove OP_CONNECT as otherwise Selector.select(..) will always return without blocking
            // See https://github.com/netty/netty/issues/924
            int ops = k.interestOps();
            ops &= ~SelectionKey.OP_CONNECT;
            k.interestOps(ops);

            unsafe.finishConnect();
        }

        // Process OP_WRITE first as we may be able to write some queued buffers and so free memory.
        if ((readyOps & SelectionKey.OP_WRITE) != 0) {
            // Call forceFlush which will also take care of clear the OP_WRITE once there is nothing left to write
            ch.unsafe().forceFlush();
        }

        // Also check for readOps of 0 to workaround possible JDK bug which may otherwise lead
        // to a spin loop
        if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
            unsafe.read();
        }
    } catch (CancelledKeyException ignored) {
        unsafe.close(unsafe.voidPromise());
    }
}

三. NioServerSocketChannel处理连接请求

上面的代码走到unsafe.read()这一步时，就到了下面这段代码，read()方法主要做了两件事

1. 一直调用doReadMessages(readBuf)方法，处理每个连接请求，知道所有的连接请求都处理完毕
2. NioServerSocketChannel的ChannelPipeline触发ChannelRead事件，触发的次数等于这次处理的连接请求的次数。并且在最后再触发一次ChannelReadComplete事件。

//AbstractNioMessageChannel.java
//line 63-122
public void read() {
    assert eventLoop().inEventLoop();
    final ChannelConfig config = config();
    final ChannelPipeline pipeline = pipeline();
    final RecvByteBufAllocator.Handle allocHandle = unsafe().recvBufAllocHandle();
    allocHandle.reset(config);

    boolean closed = false;
    Throwable exception = null;
    try {
        try {
            do {
                int localRead = doReadMessages(readBuf);
                if (localRead == 0) {
                    break;
                }
                if (localRead < 0) {
                    closed = true;
                    break;
                }

                allocHandle.incMessagesRead(localRead);
            } while (allocHandle.continueReading());
        } catch (Throwable t) {
            exception = t;
        }

        int size = readBuf.size();
        for (int i = 0; i < size; i++) {
            readPending = false;
            pipeline.fireChannelRead(readBuf.get(i));
        }
        readBuf.clear();
        allocHandle.readComplete();
        pipeline.fireChannelReadComplete();

        if (exception != null) {
            closed = closeOnReadError(exception);

            pipeline.fireExceptionCaught(exception);
        }

        if (closed) {
            inputShutdown = true;
            if (isOpen()) {
                close(voidPromise());
            }
        }
    } finally {
        // Check if there is a readPending which was not processed yet.
        // This could be for two reasons:
        // * The user called Channel.read() or ChannelHandlerContext.read() in channelRead(...) method
        // * The user called Channel.read() or ChannelHandlerContext.read() in channelReadComplete(...) method
        //
        // See https://github.com/netty/netty/issues/2254
        if (!readPending && !config.isAutoRead()) {
            removeReadOp();
        }
    }
}

 四. 创建并注册NioSocketChannel

doReadMessages(List<Object> buf)方法调用accept()方法获取到JDK NIO的原生SocketChannel，然后再将其包装为一个Netty自己的NioSocketChannel，并且在他的构造方法中，会将其设置为非阻塞式的。

然后，NioServerSocketChannel的ChannelPipeline会对每一个连接请求触发一次ChannelRead事件，显然，这个事件会被Pipeline的Handler所捕获，那么NioServerSocketChannel的Pipeline有哪些Handler呢？还记得在NioServerSocketChannel注册时我们为他的Pipeline添加过一个名为ServerBootstrapAcceptor的Handler吗？我们找到他的channelRead方法，在该方法中，我们为客户端NioSocketChannel添加handler，设置channelOption，并用child EventLoopGroup对其进行注册，注册的过程与NioServerSocketChannel的注册过程基本相同，这里也就不再赘述，只需要注意NioSocketChannel注册的感兴趣的IO事件为OP_READ而不是OP_ACCEPT。

到这里，客户端与服务器端的连接就完全建立起来了。客户端与服务器端的连接过程是由boss EventLoop处理，而当连接建立完成后，后续当客户端向服务器端写数据时，该IO_READ事件则会交由child EventLoop来处理，即连接的建立和数据的读写是两个不同的线程池完成的，这是完全符合Reactor设计模式的，也是为什么Netty在高并发场景下表现如此优异的原因之一。

//NioServerSocketChannel.java
//line 146-165
protected int doReadMessages(List<Object> buf) throws Exception {
    java.nio.channels.SocketChannel ch = SocketUtils.accept(javaChannel());

    try {
        if (ch != null) {
            buf.add(new NioSocketChannel(this, ch));
            return 1;
        }
    } catch (Throwable t) {
        logger.warn("Failed to create a new channel from an accepted socket.", t);

        try {
            ch.close();
        } catch (Throwable t2) {
            logger.warn("Failed to close a socket.", t2);
        }
    }

    return 0;
}


//AbstractNioChannel.java
//line 79-95
protected AbstractNioChannel(Channel parent, SelectableChannel ch, int readInterestOp) {
    super(parent);
    this.ch = ch;
    this.readInterestOp = readInterestOp;
    try {
        ch.configureBlocking(false);  //将channel设置为非阻塞式的
    } catch (IOException e) {
        try {
            ch.close();
        } catch (IOException e2) {
            logger.warn(
                    "Failed to close a partially initialized socket.", e2);
        }

        throw new ChannelException("Failed to enter non-blocking mode.", e);
    }
}


//ServerBootstrap.java
//line 209-229
public void channelRead(ChannelHandlerContext ctx, Object msg) {
    final Channel child = (Channel) msg;

    child.pipeline().addLast(childHandler);

    setChannelOptions(child, childOptions, logger);
    setAttributes(child, childAttrs);
    //对客户端NioSocketChannel进行注册，这里是注册到childGroup上，所以该Channel后续的IO事件都由childGroup处理
    try {
        childGroup.register(child).addListener(new ChannelFutureListener() {
            @Override
            public void operationComplete(ChannelFuture future) throws Exception {
                if (!future.isSuccess()) {
                    forceClose(child, future.cause());
                }
            }
        });
    } catch (Throwable t) {
        forceClose(child, t);
    }
}
