前言:今天要分享的知识是Spring框架
码字不易,点个赞
转载请说明!
开发工具:eclipse
目录
Spring框架简述
①什么是Spring框架
Spring是一个开源框架,Spring是于2003 年兴起的一个轻量级的Java 开发框架,由Rod Johnson 在其著作Expert One-On-One J2EE Development and Design中阐述的部分理念和原型衍生而来。它是为了解决企业应用开发的复杂性而创建的。框架的主要优势之一就是其分层架构,分层架构允许使用者选择使用哪一个组件,同时为 J2EE 应用程序开发提供集成的框架。Spring使用基本的JavaBean来完成以前只可能由EJB完成的事情。然而,Spring的用途不仅限于服务器端的开发。从简单性、可测试性和松耦合的角度而言,任何Java应用都可以从Spring中受益。Spring的核心是控制反转(IoC)和面向切面(AOP)。
简单来说,Spring是一个分层的JavaSE/EE full-stack(一站式) 轻量级开源框架。
②Spring框架的优点
- 方便解耦,简化开发 (高内聚低耦合)
Spring就是一个大工厂(容器),可以将所有对象创建和依赖关系维护,交给Spring管理
spring工厂是用于生成bean - AOP编程的支持
Spring提供面向切面编程,可以方便的实现对程序进行权限拦截、运行监控等功能 - 声明式事务的支持
只需要通过配置就可以完成对事务的管理,而无需手动编程 - 方便程序的测试
Spring对Junit4支持,可以通过注解方便的测试Spring程序 - 方便集成各种优秀框架
Spring不排斥各种优秀的开源框架,其内部提供了对各种优秀框架(如:Struts、Hibernate、MyBatis、Quartz等)的直接支持 - 降低JavaEE API的使用难度
Spring 对JavaEE开发中非常难用的一些API(JDBC、JavaMail、远程调用等),都提供了封装,使这些API应用难度大大降低
③Spring的体系结构
Ioc(控制反转)及案例
inversion of control,把对象创建的权力交给框架,是框架的重要特征,大幅度降低了耦合。注意不是完全的消除耦合,用白话来讲,就是由容器控制程序之间的(依赖)关系,而非传统实现中,由程序代码直接操控。这也就是所谓“控制反转”的概念所在:(依赖)控制权由应用代码中转到了外部容器,控制权的转移,是所谓反转
入门案例:实现Spring中的ioc
需求:模拟上传功能
按照以前的操做去实行,如果突然需要整改或升级
如:1、限定上传文件大小 2、限定上传文件类别
所遇到的麻烦:1、更新版本需要改动原有代码
2、相关调用此方法的模块伴随着巨大的风险
使用Ioc操作:将以前由程序员实例化对象/赋值的工作交给了spring处理
导入spring的核心配置文件spring-context.xml:一般就在该文件中进行修改,解决了以前方法操作的麻烦
①新建maven项目
②注入依赖到pom.xml文件中
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.zw</groupId>
<artifactId>zw_Spring</artifactId>
<packaging>war</packaging>
<version>0.0.1-SNAPSHOT</version>
<name>zw_Spring Maven Webapp</name>
<url>http://maven.apache.org</url>
<properties>
<spring.version>5.0.1.RELEASE</spring.version>
<javax.servlet.version>4.0.0</javax.servlet.version>
<junit.version>4.12</junit.version>
</properties>
<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>3.8.1</version>
<scope>test</scope>
</dependency>
<!-- 2、导入spring依赖 -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${spring.version}</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-aspects</artifactId>
<version>${spring.version}</version>
</dependency>
<!-- 5.1、junit -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>${junit.version}</version>
<scope>test</scope>
</dependency>
<!-- 5.2、servlet -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>javax.servlet-api</artifactId>
<version>${javax.servlet.version}</version>
<scope>provided</scope>
</dependency>
</dependencies>
<build>
<finalName>zw_Spring</finalName>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.7.0</version>
<configuration>
<source>1.8</source>
<target>1.8</target>
<encoding>UTF-8</encoding>
</configuration>
</plugin>
</plugins>
</build>
</project>
③写接口并实现接口(原始方法,以及改进的的方法)
上传功能的接口UserBiz
package com.hpw.ioc.biz;
public interface UserBiz {
public void upload();
}
实现接口UserBizImpl1 (原始版本)
package com.hpw.ioc.biz.impl;
import com.hpw.ioc.biz.UserBiz;
/**
* 功能 : 上传功能
* 提出整改: 1.限定上传文件大小 2.限定上传文件类别
*
* 总结:
* 1.更新版本需要改动原有代码
* 2.相关调用此方法的模块伴随着巨大的风险
* action1 需要加限制
* action2 不需要加限制
* @author zjjt
*
*/
public class UserBizImpl1 implements UserBiz {
@Override
public void upload() {
System.out.println("循规蹈矩把功能开发出来");
}
}
实现接口UserBizImpl2(改进后版本)
package com.hpw.ioc.biz.impl;
import com.hpw.ioc.biz.UserBiz;
/**
* 功能 : 上传功能
* 提出整改: 1.限定上传文件大小 2.限定上传文件类别
*
* 总结:
* 1.更新版本需要改动原有代码
* 2.相关调用此方法的模块伴随着巨大的风险
* action1 需要加限制
* action2 不需要加限制
* @author zjjt
*
*/
public class UserBizImpl2 implements UserBiz {
@Override
public void upload() {
System.out.println("做条件判断加限定,文件太大的不能上传");
System.out.println("循规蹈矩把功能开发出来");
}
}
如果有100个需要整改模块,那就需要改100次原有代码(繁琐);
同时,相关调用此方法的模块伴随巨大的风险
④spring写法
考入核心配置文件放到resources下(spring-context.xml)
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
<!--
本文件中配置整个项目中包含的所有的Javabean,目前在于Spring统一管理
-->
<!-- <bean class="com.hpw.ioc.biz.impl.UserBizImpl1" name="userBiz1"></bean> -->
<bean class="com.hpw.ioc.biz.impl.UserBizImpl2" name="userBiz1"></bean>
<bean class="com.hpw.ioc.biz.impl.UserBizImpl2" name="userBiz2"></bean>
<bean class="com.hpw.ioc.web.PersonAction" name="personAction">
<property name="userBiz" ref="userBiz2"></property>
</bean>
<bean class="com.hpw.ioc.web.UserAction" name="userAction">
<property name="userBiz" ref="userBiz1"></property>
</bean>
<bean class="com.hpw.ioc.web.UserAction2" name="userAction2">
<property name="userBiz" ref="userBiz1"></property>
</bean>
<bean class="com.hpw.ioc.web.UserAction3" name="userAction3">
<property name="userBiz" ref="userBiz1"></property>
</bean>
</beans>
修改PersonAction
package com.hpw.ioc.web;
import com.hpw.ioc.biz.UserBiz;
import com.hpw.ioc.biz.impl.UserBizImpl2;
public class PersonAction {
// 原始写法
// private UserBiz userBiz=new UserBizImpl2();
// spring写法
public UserBiz getUserBiz() {
return userBiz;
}
public void setUserBiz(UserBiz userBiz) {
this.userBiz = userBiz;
}
public void upload() {
userBiz.upload();
}
public static void main(String[] args) {
PersonAction personAction = new PersonAction();
personAction.upload();
}
}
测试
package com.hpw.ioc.test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.hpw.ioc.web.ParamAction;
import com.hpw.ioc.web.PersonAction;
import com.hpw.ioc.web.UserAction;
import com.hpw.ioc.web.UserAction2;
import com.hpw.ioc.web.UserAction3;
public class IocTest {
public static void main(String[] args) {
//对spring-context.xml进行建模
ApplicationContext applicationContext = new ClassPathXmlApplicationContext("/spring-context.xml");
PersonAction personAction = (PersonAction) applicationContext.getBean("personAction");
personAction.upload();
}
}
运行结果
当ref属性为userBiz2时
<bean class="com.hpw.ioc.web.PersonAction" name="personAction">
<property name="userBiz" ref="userBiz2"></property>
</bean>
当ref属性为userBiz1时
<bean class="com.hpw.ioc.web.PersonAction" name="personAction">
<property name="userBiz" ref="userBiz1"></property>
</bean>
如果是要更新版本直接将userBiz1改为userBiz2,
如果更新错误将新版本userBiz2退回上一版本userBiz1
即可,不需要改动原本代码
Spring三种传参
* 1.Set传参
* 2.构造传参
* 3.自动装配(基本不用)
论证前两种
①Set传参
ParamAction
package com.hpw.ioc.web;
import java.util.List;
public class ParamAction {
private int age;
private String name;
private List<String> hobby;
public int getAge() {
return age;
}
public void setAge(int age) {
this.age = age;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public List<String> getHobby() {
return hobby;
}
public void setHobby(List<String> hobby) {
this.hobby = hobby;
}
public void execute() {
System.out.println(this.name);
System.out.println(this.age);
System.out.println(this.hobby);
}
}
配置(spring-context.xml)
<bean class="com.hpw.ioc.web.ParamAction" name="paramAction">
<property name="name" value="张三"></property>
<property name="age" value="20"></property>
<property name="hobby">
<list>
<value>洗</value>
<value>剪</value>
<value>吹</value>
</list>
</property>
</bean>
测试及运行结果
package com.hpw.ioc.test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.hpw.ioc.web.ParamAction;
import com.hpw.ioc.web.PersonAction;
import com.hpw.ioc.web.UserAction;
import com.hpw.ioc.web.UserAction2;
import com.hpw.ioc.web.UserAction3;
public class IocTest {
public static void main(String[] args) {
ApplicationContext applicationContext = new ClassPathXmlApplicationContext("/spring-context.xml");
ParamAction paramAction = (ParamAction) applicationContext.getBean("paramAction");
paramAction.execute();
}
}
②构造传参
ParamAction
package com.hpw.ioc.web;
import java.util.List;
public class ParamAction {
private int age;
private String name;
private List<String> hobby;
public ParamAction() {
super();
}
public ParamAction(int age, String name, List<String> hobby) {
super();
this.age = age;
this.name = name;
this.hobby = hobby;
}
public void execute() {
System.out.println(this.name);
System.out.println(this.age);
System.out.println(this.hobby);
}
}
配置(spring-context.xml)
<bean class="com.hpw.ioc.web.ParamAction" name="paramAction">
<constructor-arg name="name" value="李四"></constructor-arg>
<constructor-arg name="age" value="30"></constructor-arg>
<constructor-arg name="hobby">
<list>
<value>吃</value>
<value>喝</value>
<value>睡</value>
</list>
</constructor-arg>
</bean>
测试及运行结果
package com.hpw.ioc.test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.hpw.ioc.web.ParamAction;
import com.hpw.ioc.web.PersonAction;
import com.hpw.ioc.web.UserAction;
import com.hpw.ioc.web.UserAction2;
import com.hpw.ioc.web.UserAction3;
public class IocTest {
public static void main(String[] args) {
ApplicationContext applicationContext = new ClassPathXmlApplicationContext("/spring-context.xml");
ParamAction paramAction = (ParamAction) applicationContext.getBean("paramAction");
paramAction.execute();
}
}
Spring与tomcat的整合
假如spring-context.xml中配置了几百个类,测试建模的时间过程非常久;
javabean每建一次模,时间就越久,性能就越差,所以将建模放到监听器中
①监听器
SpringLoaderListener类实现 ServletContextListener接口
package com.hpw.ioc.listener;
import javax.servlet.ServletContextEvent;
import javax.servlet.ServletContextListener;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
public class SpringLoaderListener implements ServletContextListener{
@Override
public void contextInitialized(ServletContextEvent sce) {
System.out.println("监听器方法执行......");
ApplicationContext applicationContext = new ClassPathXmlApplicationContext("/spring-context.xml");
sce.getServletContext().setAttribute("SpringContext", applicationContext);
}
}
②web.xml中配置监听器
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
version="3.1">
<display-name>Archetype Created Web Application</display-name>
<!-- 配置监听器 -->
<listener>
<listener-class>com.hpw.ioc.listener.SpringLoaderListener</listener-class>
</listener>
</web-app>

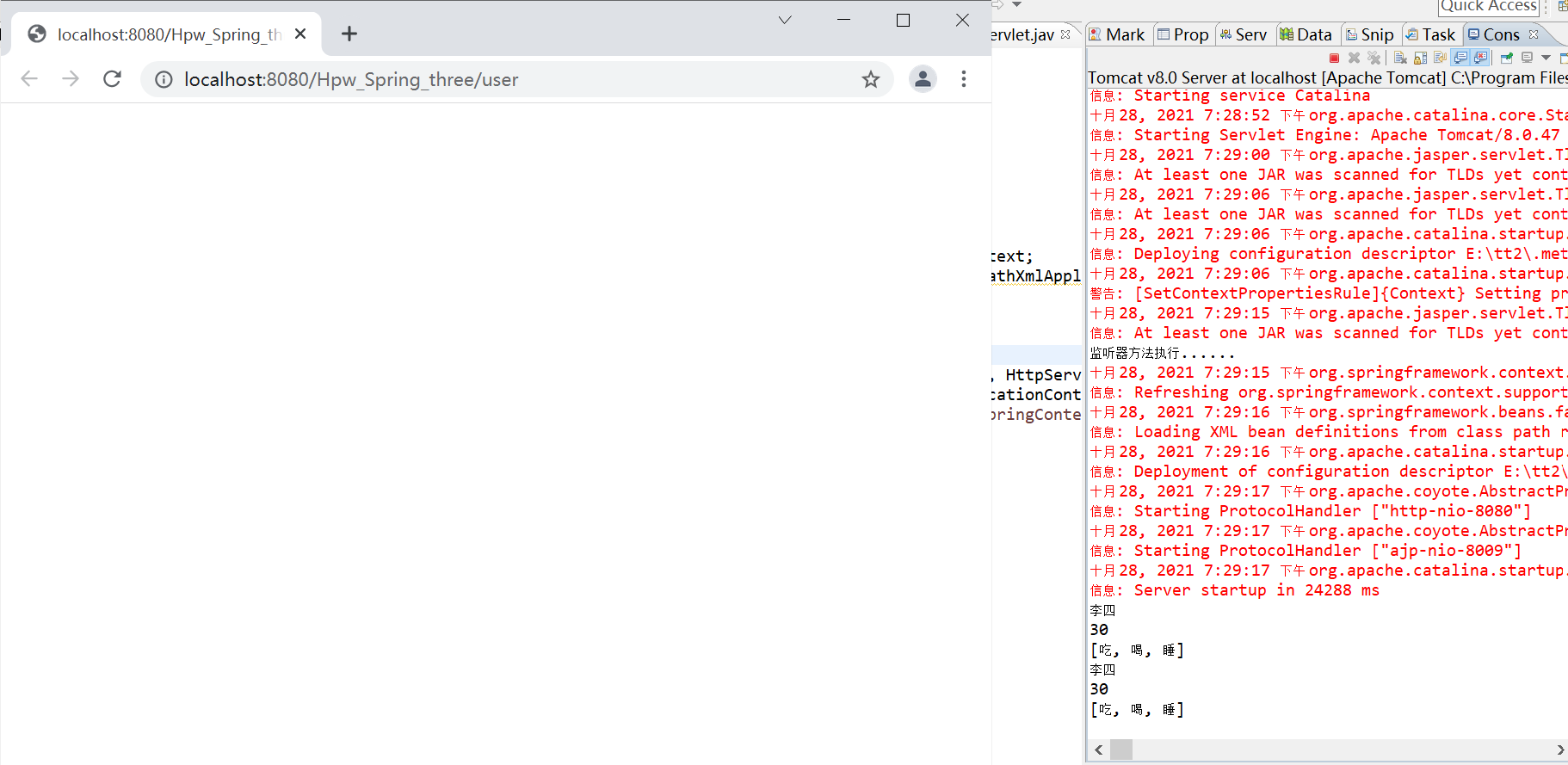

③运行结果
UserServlet
package com.hpw.ioc.web;
import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
@WebServlet("/user")
public class UserServlet extends HttpServlet {
@Override
protected void service(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
ApplicationContext springContext = (ApplicationContext) req.getServletContext().getAttribute("SpringContext");
ParamAction paramAction = (ParamAction) springContext.getBean("paramAction");
paramAction.execute();
}
}
刷新界面
结论:监听器只会执行一次,结果可执行多次
到这里就结束了,欢迎大佬指点
