Android 自带Sipdemo的使用讲解

首先感谢大神的上传分享，然后贴出转载自大神写的简书地址 https://www.jianshu.com/p/ae9cc48bd3ea

万分感谢！！我这稍作些许修改

目录

• 一：SIP 接口
• 二：注册
  • 1.初始化SipManager
  • 1. SipProfile
  • 1. 注册状态监听
• 三：打电话
• 四：接受电话
• 五：接受到对方挂电话的状态
• 六：主动挂电话
• sipDemo

---

一：SIP 接口

一： 权限

<uses-sdk android:minSdkVersion="9" />
<uses-permission android:name="android.permission.USE_SIP" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.VIBRATE" />
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
<uses-permission android:name="android.permission.WAKE_LOCK" />
<uses-permission android:name="android.permission.RECORD_AUDIO" />
<uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />

<uses-feature android:name="android.hardware.sip.voip" android:required="true" />
<uses-feature android:name="android.hardware.wifi" android:required="true" />
<uses-feature android:name="android.hardware.microphone" android:required="true" />

权限说明

<uses-sdk android:minSdkVersion="9" />

如果你开发一个用到SIP API的应用程序，记住它需要Android2.3（API9）或者更高版本的平台的支持。所以在你的设备上要运行Android2.3（API9）或者更高的版本，并不是所有的设备都提供SIP的支持。

ps：并不是所有的Android项目都需要写这句话，因为越高版本的手机越提示你这句话使用上有问题，所有可加可不加。

二：注册

1.初始化SipManager

SipManager manager = SipManager.newInstance(this);
//很多手机这里依然会返回null,原因就是不支持SIP
//之后会说PJSIP，比较通用
if (manager == null) {
    return;
}

2. SipProfile

//uesrname表示注册用户名,domain表示域,实际就是sip服务器ip
SipProfile.Builder builder = new SipProfile.Builder(username, domain);
builder.setPassword(password); //注册用户密码
SipProfile me = builder.build();


//添加一个本地的过滤器，用于接受电话
//构造一个PendingIntent对象,这样当sip Service收到一个通话请求时,
//SipService会调用PendingIntent的send方法发送相应广播消息给调用者,也就是当前的SipProfile对象.
Intent i = new Intent();
i.setAction("android.SipDemo.INCOMING_CALL");
PendingIntent pi = PendingIntent.getBroadcast(this, 0, i, Intent.FILL_IN_DATA);
//此处就是用于注册一个账户到sip服务器
manager.open(me, pi, null);

3. 注册状态监听

//注册一个监听器,用于获取注册账户时的通知状态,当然也可以不注册.
manager.setRegistrationListener(me.getUriString(), new SipRegistrationListener() {
        public void onRegistering(String localProfileUri) { //正在注册
        }

        public void onRegistrationDone(String localProfileUri, long expiryTime) {//注册成功
        }

        public void onRegistrationFailed(String localProfileUri, int errorCode,
                String errorMessage) {//注册失败
        }
    });

三：打电话

 public void initiateCall(String Adress) {
        try {
            SipAudioCall.Listener listener = new SipAudioCall.Listener() {
                //准备打电话
                @Override
                public void onReadyToCall(SipAudioCall call) {
                    Logger.i("onReadyToCall---->");
                }

                @Override
                public void onRinging(SipAudioCall call, SipProfile caller) {
                    Logger.i("onRinging---->");
                }

                @Override
                public void onCallEstablished(SipAudioCall call) {
                    Logger.i("onCallEstablished---->");
                    call.startAudio();
                    call.setSpeakerMode(true);
                    call.toggleMute();
                }

                @Override
                public void onCallEnded(SipAudioCall call) {
                    Logger.i("onCallEnded----start");
                    handler.post(new Runnable() {
                        @Override
                        public void run() {
                            ToastView.newInstance(mContext).setToastMessage("通话结束");
                        }
                    });
                }
            };

            call = MyApplication.mSipManager.makeAudioCall(mSipProfile.getUriString(), Adress + "@" + ip, listener, 30);

            call.toggleMute();

        } catch (Exception e) {
            if (mSipProfile != null) {
                try {
                    mSipManager.close(mSipProfile.getUriString());
                } catch (Exception ee) {
                    ee.printStackTrace();
                }
            }
            if (call != null) {
                call.close();
            }
        }
    }

adress 的格式

xxx@ip 例如 [email protected] (目标id+sip的服务ip地址)

四：接受电话

public class IncomingCallReceiver extends BroadcastReceiver {
    /**
     * Processes the incoming call, answers it, and hands it over to the
     * WalkieTalkieActivity.
     * @param context The context under which the receiver is running.
     * @param intent The intent being received.
     */
    @Override
    public void onReceive(Context context, Intent intent) {
        SipAudioCall incomingCall = null;
        try {
            SipAudioCall.Listener listener = new SipAudioCall.Listener() {
                @Override
                public void onRinging(SipAudioCall call, SipProfile caller) {
                    try {
                        call.answerCall(30);
                    } catch (Exception e) {
                        e.printStackTrace();
                    }
                }
            };
            WalkieTalkieActivity wtActivity = (WalkieTalkieActivity) context;
            incomingCall = wtActivity.mSipManager.takeAudioCall(intent, listener);
            incomingCall.answerCall(30);
            incomingCall.startAudio();
            incomingCall.setSpeakerMode(true);
            if(incomingCall.isMuted()) {
                incomingCall.toggleMute();
            }
         //   wtActivity.call = incomingCall;
       //     wtActivity.updateStatus(incomingCall);
        } catch (Exception e) {
            if (incomingCall != null) {
                incomingCall.close();
            }
        }
    }
}

五：接受到对方挂电话的状态

  private Handler handler = new Handler();
    private void initGetSipSession() {
        try {
            SipSession sessionFor = MyApplication.mSipManager.getSessionFor(intent);

            SipSession.Listener listener = new SipSession.Listener(){
                @Override
                public void onCalling(SipSession session) {
                    Logger.i("onCalling");
                }
                @Override
                public void onCallEnded(SipSession session) {
                    Logger.i("onCallEnded");
                    handler.post(new Runnable() {
                        @Override
                        public void run() {
                            ToastView.newInstance(mContext).setToastMessage("通话通断");
                        }
                    });
                }
            };
            sessionFor.setListener(listener);
        } catch (SipException e) {
            e.printStackTrace();
        }
    }

六：主动挂电话

 incomingCall.endCall();

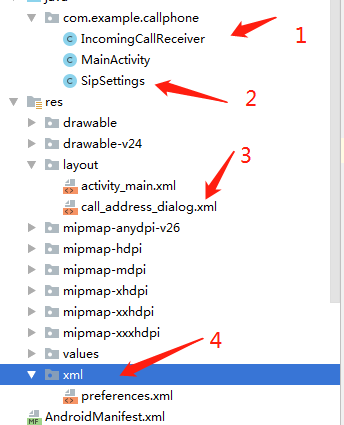

接下来就是要把需要文件也顺便导入进去，如图

废话不多说，直接上全的MainActivity页面代码

//sip注册
// 拨打电话
//呼叫喊话
//20190904
public class MainActivity extends AppCompatActivity {
    public String sipAddress = null;

    public SipManager manager = null;
    public SipProfile me = null;
    public SipAudioCall call = null;
    public IncomingCallReceiver callReceiver;

    private static final int CALL_ADDRESS = 1;
    private static final int SET_AUTH_INFO = 2;
    private static final int UPDATE_SETTINGS_DIALOG = 3;
    private static final int HANG_UP = 4;
    private  SipProfile.Builder builder;

    private static final String TAG = "MainActivity";
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        if (isNetworkConnected(this)==false){
            Toast.makeText(this,"暂无网络连接",Toast.LENGTH_SHORT).show();
        }
        //申请sip、录音权限
        //6.0以后的Android不支持静态注册，必须动态注册申请权限
        verifyAudioPermissions(this);
    }
    /**
     * 判断是否有网络连接
     *
     * @param context
     * @return
     */
    public static boolean isNetworkConnected(Context context) {
        if (context != null) {
            ConnectivityManager mConnectivityManager = (ConnectivityManager) context
                    .getSystemService(Context.CONNECTIVITY_SERVICE);
            NetworkInfo mNetworkInfo = mConnectivityManager.getActiveNetworkInfo();
            if (mNetworkInfo != null) {
                return mNetworkInfo.isAvailable();
            }
        }
        return false;
    }
    /*
     * 申请sip权限*/
    private static String[] PERMISSION_SIP = {
            Manifest.permission.USE_SIP
    };
    //申请录音权限
    private static String[] PERMISSION_AUDIO = {
            Manifest.permission.RECORD_AUDIO
    };
    //申请sdk权限
    private static String[] PERMISSION_SDK = {
            Manifest.permission.WRITE_EXTERNAL_STORAGE
    };
    public static void verifyAudioPermissions(Activity activity) {
        int permission = ActivityCompat.checkSelfPermission(activity,
                Manifest.permission.USE_SIP);
        int permission_audio = ActivityCompat.checkSelfPermission(activity,
                Manifest.permission.RECORD_AUDIO);
        if (permission != PackageManager.PERMISSION_GRANTED) {
            ActivityCompat.requestPermissions(activity, PERMISSION_SIP,
                    1);
        }else {
            Log.e(TAG, "verifyAudioPermissions: sip权限已开启");
        }
        if (permission_audio != PackageManager.PERMISSION_GRANTED) {
            ActivityCompat.requestPermissions(activity, PERMISSION_AUDIO,
                    1);
        }else {
            Log.e(TAG, "verifyAudioPermissions: 录音权限已开启");
        }
        if (permission_sdk != PackageManager.PERMISSION_GRANTED) {
            ActivityCompat.requestPermissions(activity, PERMISSION_SDK,
                    1);
        }else {
            Log.e(TAG, "verifyAudioPermissions: sdk权限已开启");
        }
    }

    //开始进行sipmanager的注册
    @Override
    public void onStart() {
        super.onStart();
        // When we get back from the preference setting Activity, assume
        // settings have changed, and re-login with new auth info.
        initializeManager();
    }
    //销毁的时候把相应开启的空间释放
    @Override
    public void onDestroy() {
        super.onDestroy();
        if (call != null) {
            call.close();
        }

        closeLocalProfile();

        if (callReceiver != null) {
            this.unregisterReceiver(callReceiver);
        }
    }

    public void initializeManager() {
        //实例化
        if(manager == null) {
            manager = SipManager.newInstance(this);
        }

        initializeLocalProfile();
    }

    /**
     * Logs you into your SIP provider, registering this device as the location to
     * send SIP calls to for your SIP address.
     */
    public void initializeLocalProfile() {
        if (manager == null) {
            return;
        }

        if (me != null) {
            closeLocalProfile();
        }

        SharedPreferences prefs = PreferenceManager.getDefaultSharedPreferences(getBaseContext());
        String username = prefs.getString("namePref", "");
        String domain = prefs.getString("domainPref", "");
        String password = prefs.getString("passPref", "");

        if (username.length() == 0 || domain.length() == 0 || password.length() == 0) {
            showDialog(UPDATE_SETTINGS_DIALOG);
            return;
        }

        try {
            //uesrname表示注册用户名,domain表示域,实际就是sip服务器ip
            builder = new SipProfile.Builder(username, domain);
            builder.setPassword(password);
            me = builder.build();

            //添加一个本地的过滤器，用于接受电话
            //构造一个PendingIntent对象,这样当sip Service收到一个通话请求时,
            //SipService会调用PendingIntent的send方法发送相应广播消息给调用者,也就是当前的SipProfile对象.
            Intent i = new Intent();
            i.setAction("android.SipDemo.INCOMING_CALL");
            PendingIntent pi = PendingIntent.getBroadcast(this, 0, i, Intent.FILL_IN_DATA);
            manager.open(me, pi, null);


            // This listener must be added AFTER manager.open is called,
            // Otherwise the methods aren't guaranteed to fire.
            //注册一个监听器,用于获取注册账户时的通知状态
            manager.setRegistrationListener(me.getUriString(), new SipRegistrationListener() {
                public void onRegistering(String localProfileUri) {
                    updateStatus("Registering with SIP Server...");
                    Log.e(TAG, "onRegistering: "+"请求sip服务中" );
                }

                public void onRegistrationDone(String localProfileUri, long expiryTime) {
                    updateStatus("Ready");
                    Log.e(TAG, "onRegistering: "+"sip注册成功" );

                }

                public void onRegistrationFailed(String localProfileUri, int errorCode,
                                                 String errorMessage) {
                    updateStatus("Registration failed.  Please check settings.");
                    Log.e(TAG, "onRegistering: "+"sip注册失败" );
                }
            });


        } catch (ParseException pe) {
            updateStatus("Connection Error.");
        } catch (SipException se) {
            updateStatus("Connection error.");
        }
    }

    /**
     * Closes out your local profile, freeing associated objects into memory
     * and unregistering your device from the server.
     */
    public void closeLocalProfile() {
        if (manager == null) {
            return;
        }
        try {
            if (me != null) {
                manager.close(me.getUriString());
            }
        } catch (Exception ee) {
//            Log.d("WalkieTalkieActivity/onDestroy", "Failed to close local profile.", ee);
        }
    }

    /**
     * Make an outgoing call.
     */
    public void initiateCall() {

        updateStatus(sipAddress);

        try {
            SipAudioCall.Listener listener = new SipAudioCall.Listener() {
                // Much of the client's interaction with the SIP Stack will
                // happen via listeners.  Even making an outgoing call, don't
                // forget to set up a listener to set things up once the call is established.
                //准备打电话
                @Override
                public void onReadyToCall(SipAudioCall call) {
                    Log.e(TAG, "onReadyToCall: " );
                }

                @Override
                public void onRinging(SipAudioCall call, SipProfile caller) {
                    Log.e(TAG, "onRinging: ");
                }

                @Override
                public void onCallEstablished(SipAudioCall call) {
                    call.startAudio(); //启动音频
                    call.setSpeakerMode(false);//设置为扬声器模式,也就是开启回声抑制
//                    call.toggleMute();//切换静音,注意默认为非静音,调用此方法后变为静音了
                    //必须用下面这样的写法，否则没有任何声音
                    if(call.isMuted()) {
                        call.toggleMute();
                    }

                    updateStatus(call);
                    Log.e(TAG, "onCallEstablished: 内端口"+  me.getPort() );

                }

                @Override
                public void onCallEnded(SipAudioCall call) {
                    Log.e(TAG, "onCallEnded: " );
                    updateStatus("Ready....");
                }
            };
            //注意此处的makeAudioCall方法就是打网络电话的,me就是本地设备的SipProfile对象,
            //sipAddress就是目标设备的SipProfile对象,listener是监听器
            call = manager.makeAudioCall(me.getUriString(), sipAddress, listener, 30);
            call.toggleMute();
        }
        catch (Exception e) {
//            Log.i("WalkieTalkieActivity/InitiateCall", "Error when trying to close manager.", e);
            if (me != null) {
                try {
                    manager.close(me.getUriString());
                } catch (Exception ee) {
//                    Log.i("WalkieTalkieActivity/InitiateCall",
//                            "Error when trying to close manager.", ee);
                    ee.printStackTrace();
                }
            }
            if (call != null) {
                call.close();
            }
        }
    }

    /**
     * Updates the status box at the top of the UI with a messege of your choice.
     * @param status The String to display in the status box.
     */
    public void updateStatus(final String status) {
        // Be a good citizen.  Make sure UI changes fire on the UI thread.
        this.runOnUiThread(new Runnable() {
            public void run() {
                Log.i("allenssip",status);
                TextView labelView = (TextView) findViewById(R.id.sipLabel);
                labelView.setText(status);
            }
        });
    }

    /**
     * Updates the status box with the SIP address of the current call.
     * @param call The current, active call.
     */
    public void updateStatus(SipAudioCall call) {
        String useName = call.getPeerProfile().getDisplayName();
        if(useName == null) {
            useName = call.getPeerProfile().getUserName();
        }
        updateStatus(useName + "@" + call.getPeerProfile().getSipDomain());
    }

    public boolean onCreateOptionsMenu(Menu menu) {
        menu.add(0, CALL_ADDRESS, 0, "Call someone");
        menu.add(0, SET_AUTH_INFO, 0, "Edit your SIP Info.");
        menu.add(0, HANG_UP, 0, "End Current Call.");

        return true;
    }

    public boolean onOptionsItemSelected(MenuItem item) {
        switch (item.getItemId()) {
            case CALL_ADDRESS:
                showDialog(CALL_ADDRESS);
                break;
            case SET_AUTH_INFO:
                updatePreferences();
                break;
            case HANG_UP:
                if(call != null) {
                    try {
                        call.endCall();
                    } catch (SipException se) {
//                        Log.d("WalkieTalkieActivity/onOptionsItemSelected",
//                                "Error ending call.", se);
                    }
                    call.close();
                }
                break;
        }
        return true;
    }

    @Override
    protected Dialog onCreateDialog(int id) {
        switch (id) {
            case CALL_ADDRESS:

                LayoutInflater factory = LayoutInflater.from(this);
                final View textBoxView = factory.inflate(R.layout.call_address_dialog, null);
                return new AlertDialog.Builder(this)
                        .setTitle("Call Someone.")
                        .setView(textBoxView)
                        .setPositiveButton(
                                android.R.string.ok, new DialogInterface.OnClickListener() {
                                    public void onClick(DialogInterface dialog, int whichButton) {
                                        EditText textField = (EditText)
                                                (textBoxView.findViewById(R.id.calladdress_edit));
                                        sipAddress = textField.getText().toString();
                                        initiateCall();

                                    }
                                })
                        .setNegativeButton(
                                android.R.string.cancel, new DialogInterface.OnClickListener() {
                                    public void onClick(DialogInterface dialog, int whichButton) {
                                        // Noop.
                                    }
                                })
                        .create();

            case UPDATE_SETTINGS_DIALOG:
                return new AlertDialog.Builder(this)
                        .setMessage("Please update your SIP Account Settings.")
                        .setPositiveButton(android.R.string.ok, new DialogInterface.OnClickListener() {
                            public void onClick(DialogInterface dialog, int whichButton) {
                                updatePreferences();
                            }
                        })
                        .setNegativeButton(
                                android.R.string.cancel, new DialogInterface.OnClickListener() {
                                    public void onClick(DialogInterface dialog, int whichButton) {
                                        // Noop.
                                    }
                                })
                        .create();
        }
        return null;
    }

    public void updatePreferences() {
        Intent settingsActivity = new Intent(getBaseContext(),
                SipSettings.class);
        startActivity(settingsActivity);
    }

}
