分布式事务解决框架 Seata + SpringCloud + Nacos

其他 2021-11-22 19:04:09 阅读次数: 0

分布式事务解决框架 Seata + SpringCloud + Nacos

一、搭建 Seata + Nacos

  1. 从官网下载 Seata 的源码包和执行文件，由于文件都是在Github托管，可以从下面地址下载：https://download.csdn.net/download/LarrYFinal/16515872

  2. 修改配置文件 registry.conf、file.conf、conf.txt

    1. 修改registry.conf，使用的是Nacos作配置中心和注册中心

      registry {
  # file 、nacos 、eureka、redis、zk、consul、etcd3、sofa
  type = "nacos"
  loadBalance = "RandomLoadBalance"
  loadBalanceVirtualNodes = 10
  nacos {
    application = "seata-server"
    serverAddr = "127.0.0.1:8848"
    group = "SEATA_GROUP"
    namespace = "public"
    cluster = "default"
    username = "nacos"
    password = "nacos"
  }
}
​
config {
  # file、nacos 、apollo、zk、consul、etcd3
  type = "nacos"
  nacos {
    serverAddr = "127.0.0.1:8848"
    namespace = "public"
    group = "SEATA_GROUP"
    username = "nacos"
    password = "nacos"
  }
}

    1. 修改 file.conf

      ## transaction log store, only used in seata-server
store {
  ## store mode: file、db、redis
  mode = "db"
  ## database store property
  db {
    ## the implement of javax.sql.DataSource, such as DruidDataSource(druid)/BasicDataSource(dbcp)/HikariDataSource(hikari) etc.
    datasource = "druid"
    ## mysql/oracle/postgresql/h2/oceanbase etc.
    dbType = "mysql"
    driverClassName = "com.mysql.cj.jdbc.Driver"
    url = "jdbc:mysql://127.0.0.1:3306/seata?characterEncoding=UTF8&useSSL=false&serverTimezone=Asia/Shanghai"
    user = "root"
    password = "123456"
    minConn = 5
    maxConn = 100
    globalTable = "global_table"
    branchTable = "branch_table"
    lockTable = "lock_table"
    queryLimit = 100
    maxWait = 5000
  }
}

    2. 修改config.txt (位于源码包中\seata-1.4.1-source\script\config-center\config.txt)

      service.vgroupMapping.my_test_tx_group=default
service.default.grouplist=127.0.0.1:8091
service.enableDegrade=false
service.disableGlobalTransaction=false
store.mode=db
store.db.datasource=druid
store.db.dbType=mysql
store.db.driverClassName=com.mysql.cj.jdbc.Driver
store.db.url=jdbc:mysql://127.0.0.1:3306/seata?characterEncoding=UTF8&useSSL=false&serverTimezone=Asia/Shanghai
store.db.user=root
store.db.password=123456
store.db.minConn=5
store.db.maxConn=30
store.db.globalTable=global_table
store.db.branchTable=branch_table
store.db.queryLimit=100
store.db.lockTable=lock_table
store.db.maxWait=5000

  3. 初始化数据库脚本（源码包中路径）

    1. 在路径\seata-1.4.1-source\script\server\db\mysql.sql,执行下面的脚本，记住是seata模式下

      -- -------------------------------- The script used when storeMode is 'db' --------------------------------
-- the table to store GlobalSession data
CREATE TABLE IF NOT EXISTS `global_table`
(
    `xid`                       VARCHAR(128) NOT NULL,
    `transaction_id`            BIGINT,
    `status`                    TINYINT      NOT NULL,
    `application_id`            VARCHAR(32),
    `transaction_service_group` VARCHAR(32),
    `transaction_name`          VARCHAR(128),
    `timeout`                   INT,
    `begin_time`                BIGINT,
    `application_data`          VARCHAR(2000),
    `gmt_create`                DATETIME,
    `gmt_modified`              DATETIME,
    PRIMARY KEY (`xid`),
    KEY `idx_gmt_modified_status` (`gmt_modified`, `status`),
    KEY `idx_transaction_id` (`transaction_id`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;
​
-- the table to store BranchSession data
CREATE TABLE IF NOT EXISTS `branch_table`
(
    `branch_id`         BIGINT       NOT NULL,
    `xid`               VARCHAR(128) NOT NULL,
    `transaction_id`    BIGINT,
    `resource_group_id` VARCHAR(32),
    `resource_id`       VARCHAR(256),
    `branch_type`       VARCHAR(8),
    `status`            TINYINT,
    `client_id`         VARCHAR(64),
    `application_data`  VARCHAR(2000),
    `gmt_create`        DATETIME(6),
    `gmt_modified`      DATETIME(6),
    PRIMARY KEY (`branch_id`),
    KEY `idx_xid` (`xid`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;
​
-- the table to store lock data
CREATE TABLE IF NOT EXISTS `lock_table`
(
    `row_key`        VARCHAR(128) NOT NULL,
    `xid`            VARCHAR(96),
    `transaction_id` BIGINT,
    `branch_id`      BIGINT       NOT NULL,
    `resource_id`    VARCHAR(256),
    `table_name`     VARCHAR(32),
    `pk`             VARCHAR(36),
    `gmt_create`     DATETIME,
    `gmt_modified`   DATETIME,
    PRIMARY KEY (`row_key`),
    KEY `idx_branch_id` (`branch_id`)
) ENGINE = InnoDB
  DEFAULT CHARSET = utf8;

    1. 在路径\seata-1.4.1-source\script\client\at\db\mysql.sql,初始化客户端SQL脚本，这里是 test模式下

      -- for AT mode you must to init this sql for you business database. the seata server not need it.
CREATE TABLE IF NOT EXISTS `undo_log`
(
    `branch_id`     BIGINT(20)   NOT NULL COMMENT 'branch transaction id',
    `xid`           VARCHAR(100) NOT NULL COMMENT 'global transaction id',
    `context`       VARCHAR(128) NOT NULL COMMENT 'undo_log context,such as serialization',
    `rollback_info` LONGBLOB     NOT NULL COMMENT 'rollback info',
    `log_status`    INT(11)      NOT NULL COMMENT '0:normal status,1:defense status',
    `log_created`   DATETIME(6)  NOT NULL COMMENT 'create datetime',
    `log_modified`  DATETIME(6)  NOT NULL COMMENT 'modify datetime',
    UNIQUE KEY `ux_undo_log` (`xid`, `branch_id`)
) ENGINE = InnoDB
  AUTO_INCREMENT = 1
  DEFAULT CHARSET = utf8 COMMENT ='AT transaction mode undo table';

  4. 上传配置到Nacos并启动Seata-Server

    1. 上传配置

      启动Nacos，然后在\seata-1.4.1-source\script\config-center\nacos路径下，执行nacos-config.sh，打开Git Bash，然后输入sh nacos-config.sh

      image-20210408222345416

      image-20210408222734149

    2. 启动Seata-Server，在下载好的直接运行的 Seata包中，路径为D:\Software\seata\bin，直接双击seata-server.bat.

Spring Cloud 集成 Seata

  1. 配置Spring Cloud 服务 application.yml

    1. 两个客户端，一个是消息生产者nacos-service-provider，一个是消息消费者nacos-service-consumer。分别配置它们的 application.yml

    2. nacos-service-provider application.yml

      server:
  port: 8081
#Seata分布式事务配置(AT模式)
seata:
  enabled: true
  application-id: nacos-service-provider
  tx-service-group: my_test_tx_group
  config:
    type: nacos
    nacos:
      server-addr: 127.0.0.1:8848
      group: SEATA_GROUP
      username: ""
      password: ""
  registry:
    type: nacos
    nacos:
      application: seata-server
      server-addr: 127.0.0.1:8848
      group : "SEATA_GROUP"
      username: ""
      password: ""

    1. nacos-service-consumer application.yml

      server:
  port: 8082
seata:
  enabled: true
  application-id: nacos-service-consumer
  tx-service-group: my_test_tx_group
  config:
    type: nacos
    nacos:
      server-addr: 127.0.0.1:8848
      group: SEATA_GROUP
      username: ""
      password: ""
  registry:
    type: nacos
    nacos:
      application: seata-server
      server-addr: 127.0.0.1:8848
      group : "SEATA_GROUP"
      username: ""
      password: ""

  2. 启动项目，此时在Nacos中有三个服务已经注册在上面

    image-20210408223810756

实践

前提：nacos-service-provider 发送消息告诉 nacos-service-consumer，增加用户信息。此时需要在 provider 端增加一条消息发送记录，然后再 consumer 端再增加一条用户信息。

依赖文件

Provider、Consumer 都是一样

依赖版本
<dependencyManagement>
    <!--springcloud-->
    <dependencies>
    <dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-dependencies</artifactId>
    <version>Hoxton.SR5</version>
    <type>pom</type>
    <scope>import</scope>
    </dependency>
    <!--springcloud alibaba-->
    <dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-alibaba-dependencies</artifactId>
    <version>2.2.1.RELEASE</version>
    <type>pom</type>
    <scope>import</scope>
    </dependency>
    </dependencies>
</dependencyManagement>
​
​
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.rule.demo</groupId>
        <artifactId>nacos-spring-cloud-demo</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <groupId>com.rule</groupId>
    <artifactId>nacos-service-consumer</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>nacos-service-consumer</name>
    <description>Project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <!--seata-->
        <dependency>
            <groupId>io.seata</groupId>
            <artifactId>seata-spring-boot-starter</artifactId>
            <version>1.4.0</version>
            <exclusions>
                <exclusion>
                    <groupId>com.alibaba</groupId>
                    <artifactId>druid</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-seata</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>io.seata</groupId>
                    <artifactId>seata-spring-boot-starter</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <!--mysql-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.13</version>
        </dependency>
        <!--mybatis-plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus</artifactId>
            <version>3.4.2</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.0.5</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.3</version>
        </dependency>
        <!-- 引入Druid依赖，阿里巴巴所提供的数据源 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.10</version>
        </dependency>
​
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
    </dependencies>
​
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
​
</project>

实现 provider 端

主要是三个文件 UserClient、MessageInfo、MessageController、MessageMapper

image-20210408225202674

  1. UserClient

    /**
 * 修改用户名接口
 */
@FeignClient("nacos-service-consumer")
public interface UserClient {
​
    @PostMapping("/user")
    void updateUserInfo(@RequestParam("id") String id,
                        @RequestParam("username") String username);
​
}

  1. MessageInfo

    @Getter
@Setter
@TableName(value = "t_message")
@Builder
public class MessageInfo {
​
    /**
     * id
     */
    @TableId(value = "id", type = IdType.AUTO)
    private Integer id;
​
    /**
     * 标题
     */
    private String title;
​
    /**
     * 请求内容
     */
    private String body;
​
    /**
     * 类型
     */
    private String type;
​
}

  1. MessageController

    /**
 * 生产者服务，测试seata
 */
@RestController
@RequestMapping("/provider")
public class MessageController {
​
    @Resource
    private MessageMapper messageMapper;
​
    @Autowired
    private UserClient userClient;
​
    /**
     * 发送消息修改用户信息
     */
    @GetMapping("/send")
    // @GlobalTransactional  配置全局的事务方案
//    @GlobalTransactional
    public void sendMessage() {
        // 添加消息
        MessageInfo messageInfo = MessageInfo.builder().title("update user username")
                .body("{\"id\":\"1\", \"username\":\"jarry\"}")
                .type("send").build();
​
        messageMapper.insert(messageInfo);
        JSONObject body = JSON.parseObject(messageInfo.getBody());
        // 调用userClient 增加用户信息
        String username = body.getString("username") + System.currentTimeMillis();
        userClient.updateUserInfo(body.getString("id"), username);
        throw new RuntimeException("修改失败");
    }
}

  2. MessageMapper

    @Mapper
public interface MessageMapper extends BaseMapper<MessageInfo> {
}

实现 consumer 端

主要是三个文件 UserInfo、UserController、UserMapper

image-20210408225234940

  1. UserInfo

    @Data
@TableName(value = "t_user")
@Builder
public class UserInfo {
​
    @TableId(value = "ID", type = IdType.AUTO)
    private Integer id;
​
    /**
     * 用户名
     */
    private String username;
​
    /**
     * 密码
     */
    private String password;
​
    /**
     * 权限
     */
    private String authorities;
​
}

  2. UserController

    @RestController
@RequestMapping("/user")
public class UserController {
​
​
    @Resource
    private UserMapper userMapper;
​
    @PostMapping
    public void updateUserInfo(@RequestParam("id") String id,
                               @RequestParam("username") String username) {
​
        // 增加一条用户信息
        UserInfo userInfo = UserInfo.builder().username(username).password("123456").authorities("123").build();
        userMapper.insert(userInfo);
    }
}

  1. UserMapper

    @Mapper
public interface UserMapper extends BaseMapper<UserInfo> {
}

  1. 模拟正常的逻辑下，出现分布式事务

    1. 分别在两个客户端的控制层加上 @Transactional注解。模拟出现运行时异常时，让两者都不增加数据，结果却是 t_message没有增加，但是 t_user 增加一条用户

          @GetMapping("/send")
    @Transactional
    public void sendMessage() {
        ``````
        ``````
        throw new RuntimeException("修改失败");
    }

        @PostMapping
    @Transactional
    public void updateUserInfo(@RequestParam("id") String id,
                               @RequestParam("username") String username) {
        // 增加一条用户信息
        UserInfo userInfo = UserInfo.builder().username(username).password("123456").authorities("123").build();
        userMapper.insert(userInfo);
    }

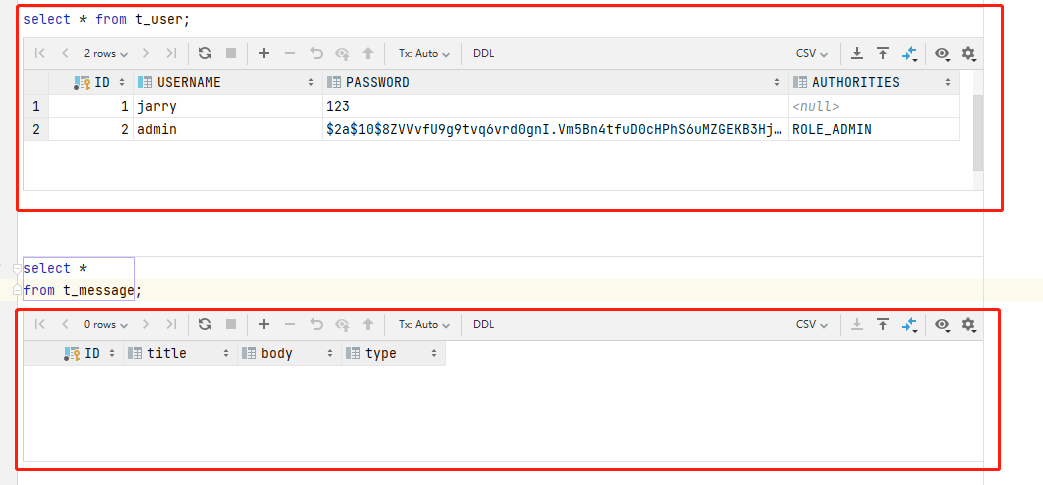

    1. 模拟请求，查看结果

      image-20210408225834979

      image-20210408230036386

  2. 模拟使用 Seata，解决分布式事务

    1. 只需要在 MessageController 上增加 @GlobalTransactional 注解。清空下两个表，再次模拟出现运行时异常时，结果时两者都没有增加数据。

      @GetMapping("/send")
    // @GlobalTransactional  配置全局的事务方案
    @GlobalTransactional
    public void sendMessage() {
        ````
        ````
        throw new RuntimeException("修改失败");
    }

    1. 模拟请求，查看结果

      image-20210408230601241

猜你喜欢

转载自blog.csdn.net/LarrYFinal/article/details/115534068
今日推荐
火速冲上 GitHub 热榜 —— 开源编程语言、框架哪有这么可爱？
北京人形机器人创新中心发布全球首个纯电驱拟人奔跑的全尺寸人形机器人“天工”
LFOSSA 源来如此公开课 | 掌握云原生未来：CNCF 认证全面攻略与备考秘籍
国产云输入法——仅华为无云端数据上传安全问题
开源日报 | 工业开源项目OGG 1.0；姐姐，你要和我一起配置火狐吗；苹果AI遥遥落后？Fedora 40
开放签电子签章：停止新增，优化体验，前进更进（五一假期前工作）
开源日报 | 中学生开源前端动画引擎；全球首个Llama3 8B中文版开源模型；联想电脑恐出局；Linus讽刺AI炒作
周排行
浏览器对同一域名进行请求的最大并发连接数
React Hook之自定义Hook
【转】MyBatis缓存机制
-Java-泛型
自动化测试常用脚本-发送邮件
LeetCode#859: Buddy Strings
java、Python处理字符串
第二篇の博客
Hadoop伪分布式环境安装
SQL Server进阶（十一）临时表、表变量
每日归档
更多
2024-04-27(56)
2024-04-26(39)
2024-04-25(22)
2024-04-24(36)
2024-04-23(26)
2024-04-22(39)
2024-04-21(0)
2024-04-20(6)
2024-04-19(5)
2024-04-18(0)

代码天地 © 2018 codetd.com

境外服务器   最新电视剧2022
