SSM框架整合（Spring + SpringMVC + Mybatis）

前言

ssm整合分为以下步骤
 1、创建项目
 2、导入依赖坐标
 3、编写数据库
 4、编写服务代码
 5、编写配置文件
 6、编写前端代码
 7、运行代码

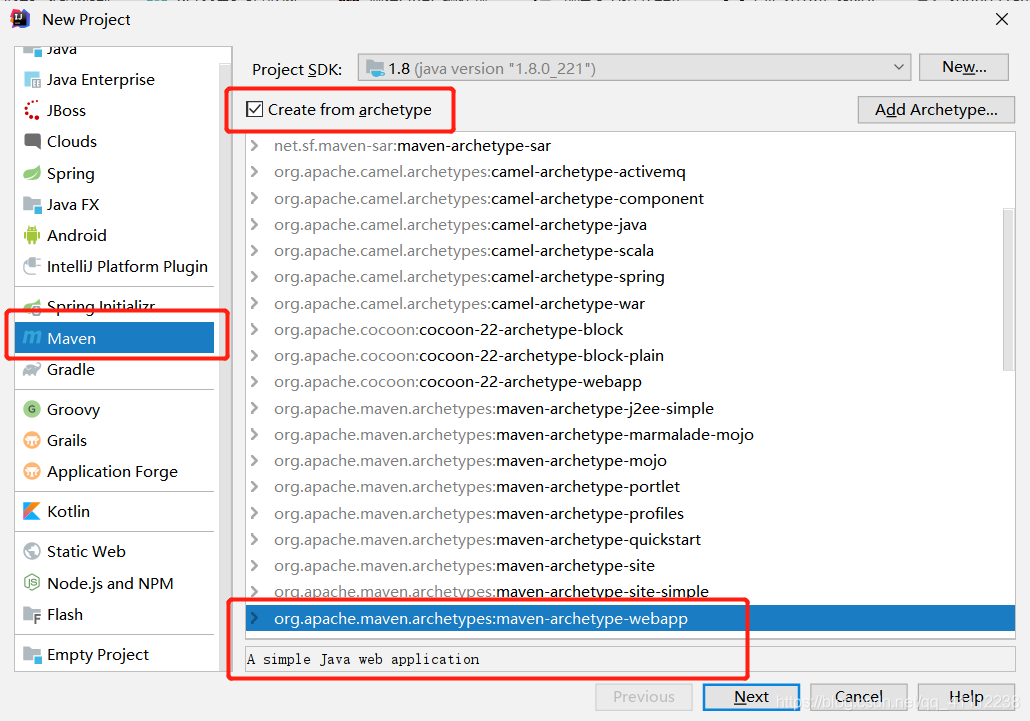

1、创建maven工程

2、导入依赖坐标

pom.xml

<dependencies>
<!--    spring相关-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>5.2.12.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.aspectj</groupId>
      <artifactId>aspectjweaver</artifactId>
      <version>1.9.6</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>5.2.12.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>5.2.12.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>5.2.12.RELEASE</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>5.2.12.RELEASE</version>
    </dependency>
<!--    servlet和jsp-->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>servlet-api</artifactId>
      <version>2.5</version>
    </dependency>
    <dependency>
      <groupId>javax.servlet.jsp</groupId>
      <artifactId>jsp-api</artifactId>
      <version>2.2</version>
    </dependency>
<!--    mybatis相关-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.5.6</version>
    </dependency>
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>2.0.6</version>
    </dependency>
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>8.0.23</version>
    </dependency>
    <dependency>
          <groupId>com.mchange</groupId>
          <artifactId>c3p0</artifactId>
          <version>0.9.5.5</version>
    </dependency>


      <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.12</version>
      <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>
  </dependencies>

3、编写数据库

SET FOREIGN_KEY_CHECKS=0;

-- ----------------------------
-- Table structure for account
-- ----------------------------
DROP TABLE IF EXISTS `account`;
CREATE TABLE `account` (
  `id` int NOT NULL AUTO_INCREMENT,
  `name` varchar(255) DEFAULT NULL,
  `money` double DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8;

4、编写实体类

Account

package com.ljx.domain;

/**
 * @Author: Ljx
 * @Date: 2021/8/23 14:06
 */
public class Account {



    private int id;
    private String name;
    private double money;

    public int getId() {


        return id;
    }

    public void setId(int id) {


        this.id = id;
    }

    public String getName() {


        return name;
    }

    public void setName(String name) {


        this.name = name;
    }

    public double getMoney() {


        return money;
    }

    public void setMoney(double money) {


        this.money = money;
    }

    @Override
    public String toString() {


        return "Account{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", money=" + money +
                '}';
    }
}

5、编写持久层接口

AccountMapper

package com.ljx.mapper;

import com.ljx.domain.Account;

import java.util.List;

/**
 * @Author: Ljx
 * @Date: 2021/8/23 14:08
 */
public interface AccountMapper {


    void save(Account account);

    List<Account> findAll();
}

6、编写业务层接口

AccountService

package com.ljx.service;

import com.ljx.domain.Account;

import java.io.IOException;
import java.util.List;

/**
 * @Author: Ljx
 * @Date: 2021/8/23 14:10
 */
public interface AccountService {



    void save(Account account) throws IOException;

    List<Account> findAll() throws IOException;
}

7、编写业务层实现类

AccountServiceImpl

package com.ljx.service.impl;

import com.ljx.domain.Account;
import com.ljx.mapper.AccountMapper;
import com.ljx.service.AccountService;
import org.apache.ibatis.io.Resources;
import org.apache.ibatis.session.SqlSession;
import org.apache.ibatis.session.SqlSessionFactory;
import org.apache.ibatis.session.SqlSessionFactoryBuilder;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.io.IOException;
import java.io.InputStream;
import java.util.List;

/**
 * @Author: Ljx
 * @Date: 2021/8/23 14:11
 */
@Service("accountService")
public class AccountServiceImpl implements AccountService {



    @Autowired
    private AccountMapper accountMapper;

    @Override
    public void save(Account account) throws IOException {


        InputStream resourceAsStream = Resources.getResourceAsStream("sqlMapConfig.xml");
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(resourceAsStream);
        SqlSession sqlSession = sqlSessionFactory.openSession();
        AccountMapper mapper = sqlSession.getMapper(AccountMapper.class);
        mapper.save(account);
        sqlSession.commit();
        sqlSession.close();

    }

    @Override
    public List<Account> findAll() throws IOException {


        return accountMapper.findAll();
    }
}

8、编写 Controller

AccountController

package com.ljx.controller;

import com.ljx.domain.Account;
import com.ljx.service.AccountService;
import com.ljx.service.impl.AccountServiceImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.servlet.ModelAndView;

import java.io.IOException;
import java.util.List;

/**
 * @Author: Ljx
 * @Date: 2021/8/23 14:13
 */
@Controller
@RequestMapping("/account")
public class AccountController {



    @Autowired
    private AccountService accountService;

    /**
     * 保存
     * @param account
     * @return
     */
    @RequestMapping(value = "/save", produces = "text/html;charset=UTF-8")
    @ResponseBody
    public String save(Account account) throws IOException {


        accountService.save(account);
        return "保存成功";
    }

    /**
     * 查询
     * @return
     */
    @RequestMapping("/findAll")
    public ModelAndView findAll() throws IOException {


        List<Account> accountList = accountService.findAll();
        ModelAndView modelAndView = new ModelAndView();
        modelAndView.addObject("accountList",accountList);
        modelAndView.setViewName("accountList");
        return modelAndView;
    }
}

9、编写配置文件

AccountMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.ljx.mapper.AccountMapper">
    <insert id="save" parameterType="account">
        insert into account values (#{id},#{name},#{money})
    </insert>

    <select id="findAll" resultType="account">
        select * from account
    </select>

</mapper>

applicationContest.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
                           http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
                           http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
                           http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">

<!--    注解扫描-->
    <context:component-scan base-package="com.ljx">
<!--        排除Controller扫描-->
        <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
    </context:component-scan>

<!--    加载properties文件-->
    <context:property-placeholder location="classpath:jdbc.properties"/>

<!--    配置数据源信息-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>

<!--    配置sessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
<!--        加载mybatis核心文件-->
        <property name="configLocation" value="classpath:sqlMapConfig-spring.xml"/>
    </bean>

<!--    扫描mapper所在的包 为mapper创建实现类-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.ljx.mapper"/>
    </bean>


<!--    声明式事务控制-->
<!--    平台事务管理器-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

<!--    配置事务增强-->
    <tx:advice id="txAdvice">
        <tx:attributes>
            <tx:method name="*"/>
        </tx:attributes>
    </tx:advice>

<!--    事务的aop织入-->
    <aop:config>
        <aop:advisor advice-ref="txAdvice" pointcut="execution(* com.ljx.service.impl.*.*(..))"/>
    </aop:config>
</beans>

jdbc.properties

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssm
jdbc.username=
jdbc.password=

log4j.properties

### direct log messages to stdout ###
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target=System.out
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n

### direct messages to file mylog.log ###
log4j.appender.file=org.apache.log4j.FileAppender
log4j.appender.file.File=c:/mylog.log
log4j.appender.file.layout=org.apache.log4j.PatternLayout
log4j.appender.file.layout.ConversionPattern=%d{ABSOLUTE} %5p %c{1}:%L - %m%n

### set log levels - for more verbose logging change 'info' to 'debug' ###

log4j.rootLogger=info, stdout

spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
                           http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd
                           http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">

<!--    组件扫描 主要扫描controller-->
    <context:component-scan base-package="com.ljx.controller"></context:component-scan>
<!--    配置mvc注解驱动-->
    <mvc:annotation-driven></mvc:annotation-driven>
<!--    内部资源视图解析器-->
    <bean id="resourceViewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/pages/"/>
        <property name="suffix" value=".jsp"/>
    </bean>
<!--    开放静态资源的访问权限-->
    <mvc:default-servlet-handler/>

</beans>

sqlMapConfig.xml

<?xml version="1.0" encoding="UTF-8" ?>

<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>


<!--    加载properties文件-->
    <properties resource="jdbc.properties"></properties>
<!--    定义别名-->
    <typeAliases>
<!--        <typeAlias type="com.ljx.domain.Account" alias="account"></typeAlias>-->
        <package name="com.ljx.domain"/>
    </typeAliases>

<!--    环境-->
    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"></transactionManager>
            <dataSource type="POOLED">
                <property name="driver" value="${jdbc.driver}"/>
                <property name="url" value="${jdbc.url}"/>
                <property name="username" value="${jdbc.username}"/>
                <property name="password" value="${jdbc.password}"/>
            </dataSource>
        </environment>
    </environments>

<!--    加载映射-->
    <mappers>
<!--        <mapper resource="com/ljx/mapper/AccountMapper.xml"/>-->
        <package name="com/ljx/mapper"/>
    </mappers>
</configuration>

sqlMapConfig-spring.xml

<?xml version="1.0" encoding="UTF-8" ?>

<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <!--    定义别名-->
    <typeAliases>
        <!--        <typeAlias type="com.ljx.domain.Account" alias="account"></typeAlias>-->
        <package name="com.ljx.domain"/>
    </typeAliases>

</configuration>

10、编写web代码

web.xml

<?xml version="1.0" encoding="UTF-8" ?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
                             http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5">


<!--  spring监听器-->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>classpath:applicationContest.xml</param-value>
    </context-param>
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

<!--  springmvc前端控制器-->
    <servlet>
        <servlet-name>DispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:spring-mvc.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>DispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

<!--  乱码过滤器-->
    <filter>
        <filter-name>CharacterEncodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>CharacterEncodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
</web-app>

index.jsp

<html>
<body>
<h2>Hello World!</h2>
</body>
</html>

accountList.jsp

<%--
  Created by IntelliJ IDEA.
  User: jijunxiang
  Date: 2021/8/23
  Time: 14:29
  To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ page isELIgnored="false" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
    <title>Title</title>
</head>
<body>

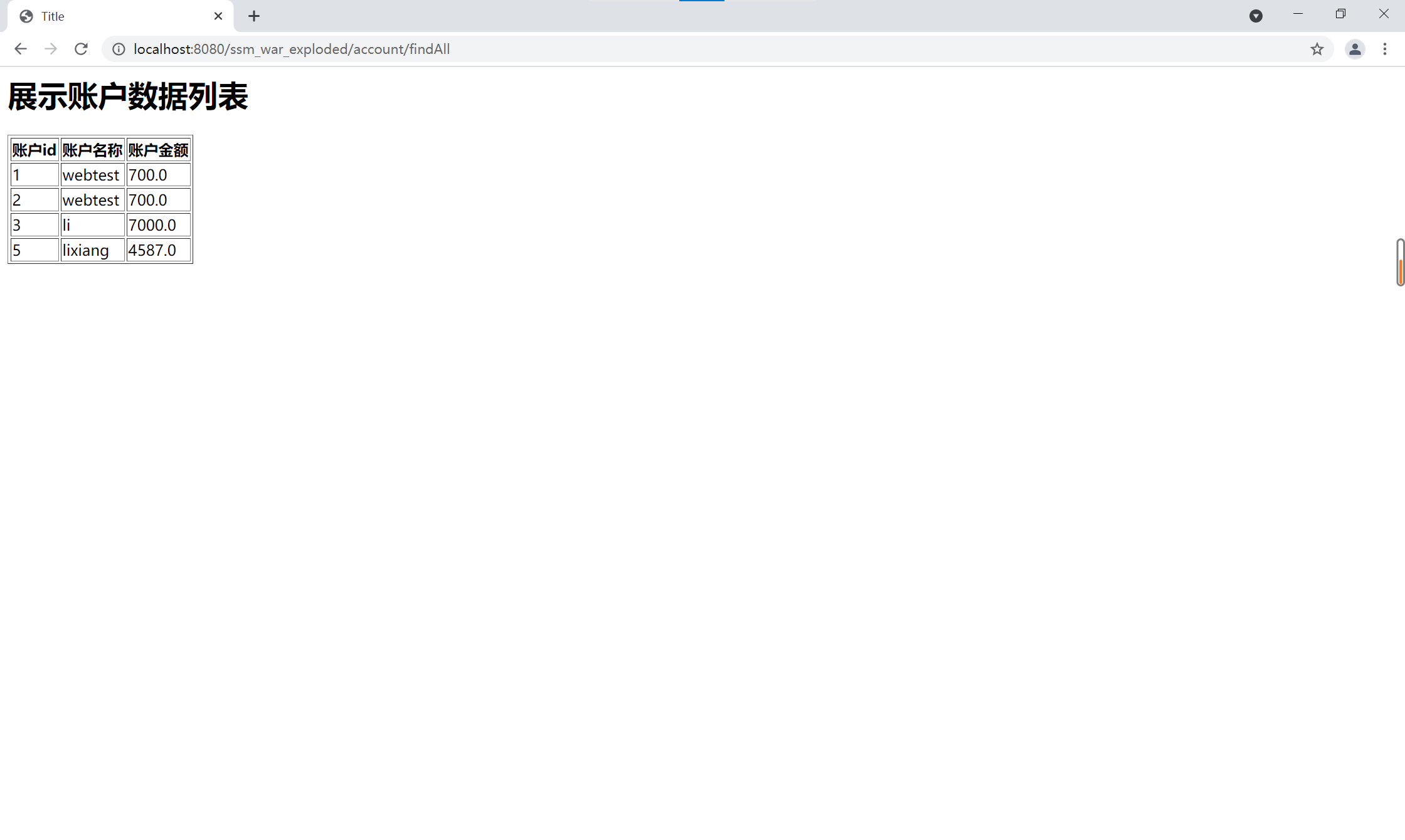

    <h1>展示账户数据列表</h1>
    <table border="1">
        <tr>
            <th>账户id</th>
            <th>账户名称</th>
            <th>账户金额</th>
        </tr>
        <c:forEach items="${accountList}" var="account">
            <tr>
                <td>${account.id}</td>
                <td>${account.name}</td>
                <td>${account.money}</td>
            </tr>
        </c:forEach>

    </table>
</body>
</html>

save.jsp

<%--
  Created by IntelliJ IDEA.
  User: jijunxiang
  Date: 2021/8/23
  Time: 14:18
  To change this template use File | Settings | File Templates.
--%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ page isELIgnored="false" %>
<html>
<head>
    <title>Title</title>
</head>
<body>

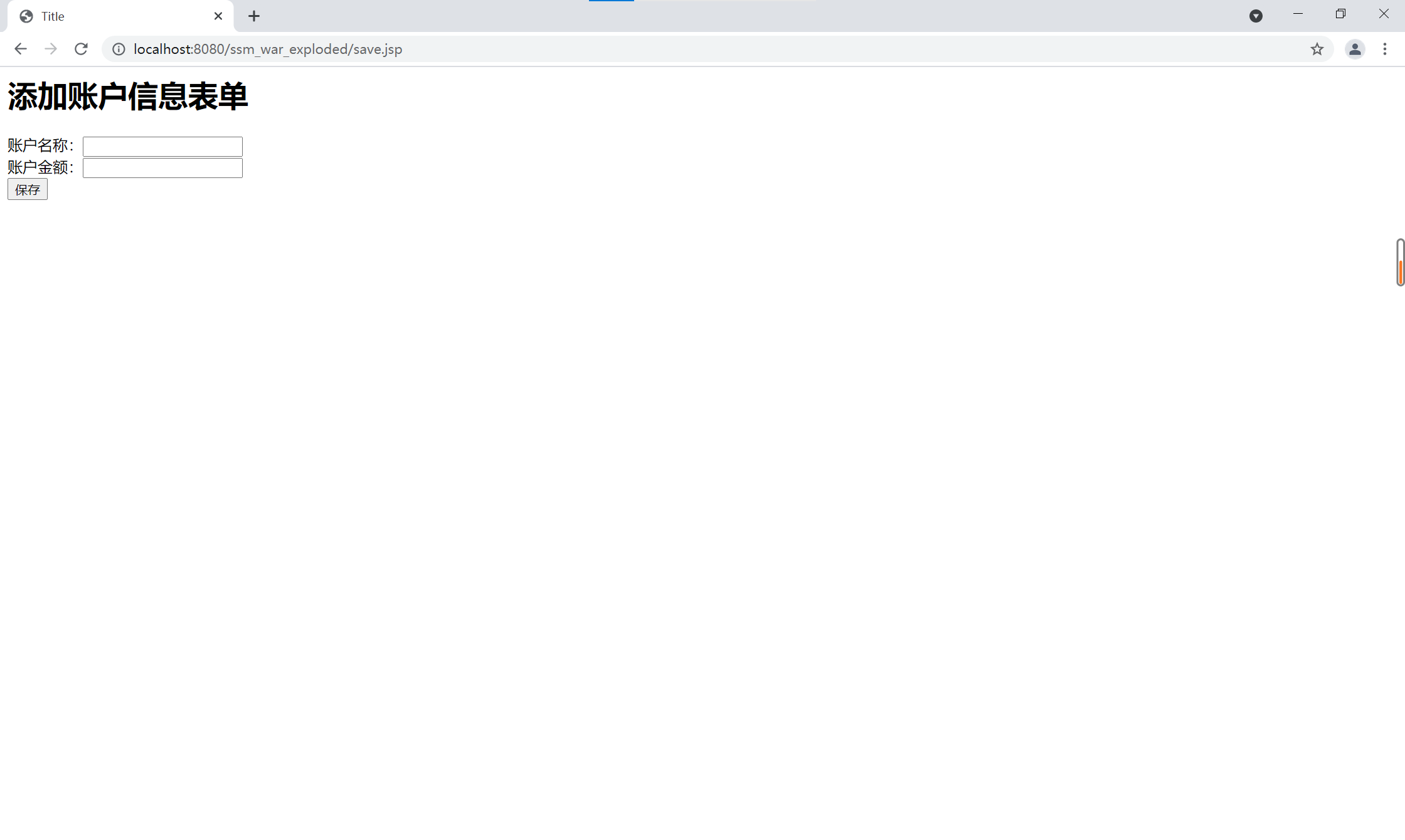

    <h1>添加账户信息表单</h1>
    <form name="accountForm" action="${pageContext.request.contextPath}/account/save" method="post">
        账户名称：<input type="text" name="name"><br>
        账户金额：<input type="text" name="money"><br>
        <input type="submit" value="保存"><br>
    </form>
</body>
</html>

11、完成后代码框架

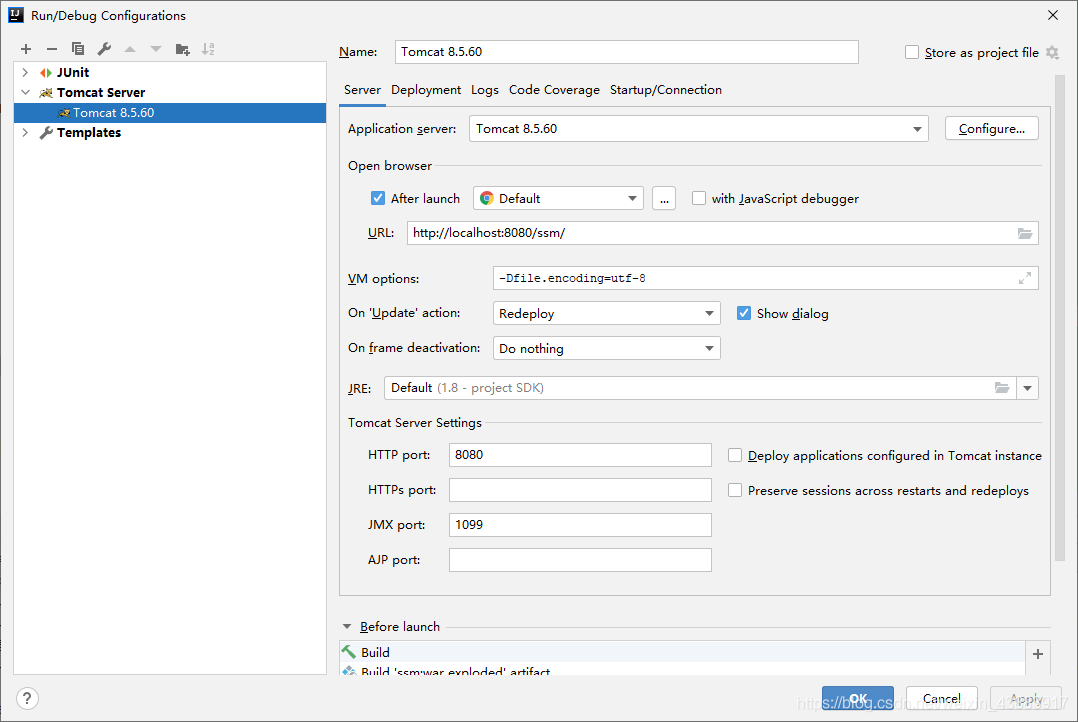

12、运行代码
