【LaTeX应用】绘图，流程图，折线

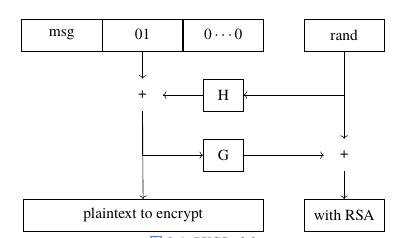

绘制图形的时候，可能需要有折线，这个简单的应用就可以满足这点，代码逻辑非常简单

\begin{tikzpicture}[
	nodex/.style = {draw, minimum width=20mm, minimum height=8mm},
	nodey/.style = {draw, minimum width=10mm, minimum height=8mm},
	]

	\node[nodex] (n1)  {msg};
	\node[nodex, right = (0mm of n1)] (n2)  {01};
	\node[nodex, right = (0mm of n2)] (n3)  {$ 0\cdots 0 $};
	\node[nodex, right = (10mm of n3)] (n4)  {rand};
	\node[nodey, below of=n3, node distance=15mm] (n5)  {H};
	\node[minimum width=10mm, minimum height=8mm, below of=n2, node distance=15mm] (n6)  {+};
	\node[nodey, below of=n5, node distance=15mm] (n7)  {G};
	\node[minimum width=10mm, minimum height=8mm, right =(20mm of n7), node distance=10mm] (n8)  {+};
	\node[nodex, below of=n8, node distance=15mm] (n9)  {with RSA};
	\node[nodex, minimum width=60mm, left =(10mm of n9)] (n10) {plaintext to encrypt};

	\draw[->] (n2) -- (n6);
	\draw[->] (n4) |- (n5);
	\draw[->] (n4) -- (n8);
	\draw[->] (n5) -- (n6);
	\draw[->] (n6) -- (n10);
	\draw[->] (n6) |- (n7);
	\draw[->] (n7) -- (n8);
	\draw[->] (n8) -- (n9);
	\end{tikzpicture}

还可以参考前面一篇博客，也是绘制流程图，可能在调试的时候有些帮助
