	private static final Class<?>[] ASPECTJ_ANNOTATION_CLASSES = new Class<?>[] {
			Pointcut.class, Around.class, Before.class, After.class, AfterReturning.class, AfterThrowing.class};

判断是否有@Aspect注解。

	@Override
	public boolean isAspect(Class<?> clazz) {
		return (hasAspectAnnotation(clazz) && !compiledByAjc(clazz));
	}

	private boolean hasAspectAnnotation(Class<?> clazz) {
		return (AnnotationUtils.findAnnotation(clazz, Aspect.class) != null);
	}

通过AnnotationUtils获取注解信息。

protected static AspectJAnnotation<?> findAspectJAnnotationOnMethod(Method method) {
		for (Class<?> clazz : ASPECTJ_ANNOTATION_CLASSES) {
			AspectJAnnotation<?> foundAnnotation = findAnnotation(method, (Class<Annotation>) clazz);
			if (foundAnnotation != null) {
				return foundAnnotation;
			}
		}
		return null;
	}

	@Nullable
	private static <A extends Annotation> AspectJAnnotation<A> findAnnotation(Method method, Class<A> toLookFor) {
		A result = AnnotationUtils.findAnnotation(method, toLookFor);
		if (result != null) {
			return new AspectJAnnotation<>(result);
		}
		else {
			return null;
		}
	}

AspectJAnnotation

AspectJAnnotation为AspectJ注解的包装类。

//是什么注解
private final A annotation;
//注解枚举值
private final AspectJAnnotationType annotationType;
//注解表达式
private final String pointcutExpression;
//参数名称
private final String argumentNames;


		static {
			annotationTypeMap.put(Pointcut.class, AspectJAnnotationType.AtPointcut);
			annotationTypeMap.put(Around.class, AspectJAnnotationType.AtAround);
			annotationTypeMap.put(Before.class, AspectJAnnotationType.AtBefore);
			annotationTypeMap.put(After.class, AspectJAnnotationType.AtAfter);
			annotationTypeMap.put(AfterReturning.class, AspectJAnnotationType.AtAfterReturning);
			annotationTypeMap.put(AfterThrowing.class, AspectJAnnotationType.AtAfterThrowing);
		}

ReflectiveAspectJAdvisorFactory

getAdvisors

getAdvisors函数会获取@Aspect修饰的实例中所有没有被@Pointcut修饰的方法，然后调用getAdvisor函数，并且将这些方法作为参数。

@Override
	public List<Advisor> getAdvisors(MetadataAwareAspectInstanceFactory aspectInstanceFactory) {
        //获取Aspect类
		Class<?> aspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
		String aspectName = aspectInstanceFactory.getAspectMetadata().getAspectName();
		validate(aspectClass);

		// We need to wrap the MetadataAwareAspectInstanceFactory with a decorator
		// so that it will only instantiate once.
		MetadataAwareAspectInstanceFactory lazySingletonAspectInstanceFactory =
				new LazySingletonAspectInstanceFactoryDecorator(aspectInstanceFactory);

		List<Advisor> advisors = new ArrayList<>();
        //获取被@AspectJ注释的所有方法。
		for (Method method : getAdvisorMethods(aspectClass)) {
			Advisor advisor = getAdvisor(method, lazySingletonAspectInstanceFactory, advisors.size(), aspectName);
			if (advisor != null) {
				advisors.add(advisor);
			}
		}

		// If it's a per target aspect, emit the dummy instantiating aspect.
		if (!advisors.isEmpty() && lazySingletonAspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {
			Advisor instantiationAdvisor = new SyntheticInstantiationAdvisor(lazySingletonAspectInstanceFactory);
			advisors.add(0, instantiationAdvisor);
		}

		// Find introduction fields.
		for (Field field : aspectClass.getDeclaredFields()) {
			Advisor advisor = getDeclareParentsAdvisor(field);
			if (advisor != null) {
				advisors.add(advisor);
			}
		}

		return advisors;
	}

没有被@PointCut注解的，则返回。

	private List<Method> getAdvisorMethods(Class<?> aspectClass) {
		final List<Method> methods = new ArrayList<>();
		ReflectionUtils.doWithMethods(aspectClass, method -> {
			// Exclude pointcuts
			if (AnnotationUtils.getAnnotation(method, Pointcut.class) == null) {
				methods.add(method);
			}
		}, ReflectionUtils.USER_DECLARED_METHODS);
		methods.sort(METHOD_COMPARATOR);
		return methods;
	}

getAdvisor

生成Advisor，实际指：InstantiationModelAwarePointcutAdvisorImpl。

PointcutAdvisor实例中必然有一个Pointcut和Advice实例。修饰在方法上的注解包括：@Pointcut, @Around, @Before, @After, @AfterReturning和@AfterThrowing，所以InstantiationModelAwarePointcutAdvisorImpl会依据不同的不同的注解生成不同的Advice通知。

	public Advisor getAdvisor(Method candidateAdviceMethod, MetadataAwareAspectInstanceFactory aspectInstanceFactory,
			int declarationOrderInAspect, String aspectName) {
//判断是否一个合法的AspectJ 类
		validate(aspectInstanceFactory.getAspectMetadata().getAspectClass());
// 获得该方法上的切入点条件表达式
		AspectJExpressionPointcut expressionPointcut = getPointcut(
				candidateAdviceMethod, aspectInstanceFactory.getAspectMetadata().getAspectClass());
		if (expressionPointcut == null) {
			return null;
		}
//
		return new InstantiationModelAwarePointcutAdvisorImpl(expressionPointcut, candidateAdviceMethod,
				this, aspectInstanceFactory, declarationOrderInAspect, aspectName);
	}

getPointcut

获取切入点表达式。

@Nullable
	private AspectJExpressionPointcut getPointcut(Method candidateAdviceMethod, Class<?> candidateAspectClass) {
// 获得该函数上@Pointcut, @Around, @Before, @After, @AfterReturning, @AfterThrowing注解的信息
		AspectJAnnotation<?> aspectJAnnotation =
		AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod);
		if (aspectJAnnotation == null) {
			return null;
		}

		AspectJExpressionPointcut ajexp =
				new AspectJExpressionPointcut(candidateAspectClass, new String[0], new Class<?>[0]);
// 获得注解信息中的切入点判断表达式
		ajexp.setExpression(aspectJAnnotation.getPointcutExpression());
		if (this.beanFactory != null) {
			ajexp.setBeanFactory(this.beanFactory);
		}
		return ajexp;
	}

getAdvice

为AspectJ方法构造Advice。根据不同的Aspect注解生成不同的Advice。

public Advice getAdvice(Method candidateAdviceMethod, AspectJExpressionPointcut expressionPointcut,
			MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {

		Class<?> candidateAspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
		validate(candidateAspectClass);
        //获取方法上的AspectJ注解。
		AspectJAnnotation<?> aspectJAnnotation =
				AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod);
		if (aspectJAnnotation == null) {
			return null;
		}

		//走到此处，说明是个AspectJ方法，判断是@AspectJ注解的
		if (!isAspect(candidateAspectClass)) {
			//异常
		}

		AbstractAspectJAdvice springAdvice;
        //根据注解类型生成Advice。
		switch (aspectJAnnotation.getAnnotationType()) {
			case AtPointcut:

				return null;
			case AtAround:
				springAdvice = new AspectJAroundAdvice(
						candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
				break;
			case AtBefore:
				springAdvice = new AspectJMethodBeforeAdvice(
						candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
				break;
			case AtAfter:
				springAdvice = new AspectJAfterAdvice(
						candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
				break;
			case AtAfterReturning:
				springAdvice = new AspectJAfterReturningAdvice(
						candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
				AfterReturning afterReturningAnnotation = (AfterReturning) aspectJAnnotation.getAnnotation();
				if (StringUtils.hasText(afterReturningAnnotation.returning())) {
					springAdvice.setReturningName(afterReturningAnnotation.returning());
				}
				break;
			case AtAfterThrowing:
				springAdvice = new AspectJAfterThrowingAdvice(
						candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
				AfterThrowing afterThrowingAnnotation = (AfterThrowing) aspectJAnnotation.getAnnotation();
				if (StringUtils.hasText(afterThrowingAnnotation.throwing())) {
					springAdvice.setThrowingName(afterThrowingAnnotation.throwing());
				}
				break;
			default:
				throw new UnsupportedOperationException(
						"Unsupported advice type on method: " + candidateAdviceMethod);
		}

		// 配置Advice。
		springAdvice.setAspectName(aspectName);
		springAdvice.setDeclarationOrder(declarationOrder);
		String[] argNames = this.parameterNameDiscoverer.getParameterNames(candidateAdviceMethod);
		if (argNames != null) {
			springAdvice.setArgumentNamesFromStringArray(argNames);
		}
		springAdvice.calculateArgumentBindings();

		return springAdvice;
	}

InstantiationModelAwarePointcutAdvisorImpl

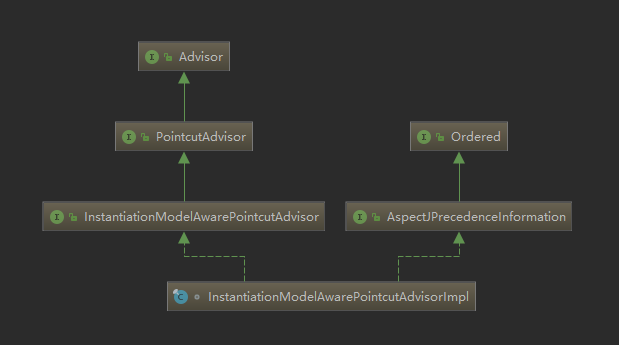

InstantiationModelAwarePointcutAdvisorImpl的继承结构如下图，它本身是个Advisor，并且是个PointcutAdvisor。是对各种AspectJ 增强的封装。

它包括以下属性：

private static final Advice EMPTY_ADVICE = new Advice() {};


	private final AspectJExpressionPointcut declaredPointcut;
//定义类型
	private final Class<?> declaringClass;
//方法名
	private final String methodName;
//参数类型
	private final Class<?>[] parameterTypes;
//AspectJ方法
	private transient Method aspectJAdviceMethod;

	private final AspectJAdvisorFactory aspectJAdvisorFactory;

	private final MetadataAwareAspectInstanceFactory aspectInstanceFactory;
//顺序
	private final int declarationOrder;
//AspectJ名称
	private final String aspectName;
//切点
	private final Pointcut pointcut;
//
	private final boolean lazy;
//Advice
	@Nullable
	private Advice instantiatedAdvice;

	@Nullable
	private Boolean isBeforeAdvice;

	@Nullable
	private Boolean isAfterAdvice;

在构造函数中，会根据参数生成Advice。调用的aspectJAdvisorFactory的getAdvice方法。见前面内容。

	private Advice instantiateAdvice(AspectJExpressionPointcut pointcut) {
		Advice advice = this.aspectJAdvisorFactory.getAdvice(this.aspectJAdviceMethod, pointcut,
				this.aspectInstanceFactory, this.declarationOrder, this.aspectName);
		return (advice != null ? advice : EMPTY_ADVICE);
	}

ProxyFactory

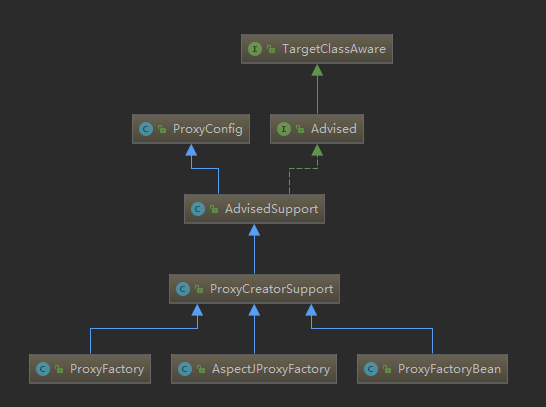

ProxyFactory是真正创建代理对象的类，其类继承结构如下图：

TargetClassAware

public interface TargetClassAware {
	/**代理实现后面的目标类类型，可能是一个proxy，也可能是代理配置。
	 */
	@Nullable
	Class<?> getTargetClass();

}

ProxyConfig

上篇已介绍，主要是代理配置信息。

Advised

封装代理配置信息的接口，配置包含：Interceptors 、other advice、 Advisors、proxied interfaces。

public interface Advised extends TargetClassAware {
	boolean isFrozen();

	/**是否代理的target class，而不是特定接口
	 * Are we proxying the full target class instead of specified interfaces?
	 */
	boolean isProxyTargetClass();
	Class<?>[] getProxiedInterfaces();
	boolean isInterfaceProxied(Class<?> intf);
	void setTargetSource(TargetSource targetSource);
	TargetSource getTargetSource();
	void setExposeProxy(boolean exposeProxy);
	boolean isExposeProxy();
	void setPreFiltered(boolean preFiltered);
	boolean isPreFiltered();
    /*Advisor相关*/
	Advisor[] getAdvisors();
	void addAdvisor(Advisor advisor) throws AopConfigException;
	void addAdvisor(int pos, Advisor advisor) throws AopConfigException;
	boolean removeAdvisor(Advisor advisor);
	void removeAdvisor(int index) throws AopConfigException;
	int indexOf(Advisor advisor);
	boolean replaceAdvisor(Advisor a, Advisor b) throws AopConfigException;
    /*Advice相关*/
	void addAdvice(Advice advice) throws AopConfigException;
	void addAdvice(int pos, Advice advice) throws AopConfigException;
	boolean removeAdvice(Advice advice);
	int indexOf(Advice advice);
	String toProxyConfigString();
}

AdvisedSupport

Advised的一个具体实现，就是怎么存、取属性值。引入了AdvisorChainFactory 。

AdvisorChainFactory advisorChainFactory = new DefaultAdvisorChainFactory();

AdvisorChainFactory

AdvisorChainFactory主要实现Advisor链。为指定方法构造Advisor链。默认实现为：DefaultAdvisorChainFactory。

public interface AdvisorChainFactory {
	List<Object> getInterceptorsAndDynamicInterceptionAdvice(Advised config, Method method, @Nullable Class<?> targetClass);

}

DefaultAdvisorChainFactory

返回方法的所有Advisor，根据Advisor类型来决定是否匹配方法。

	@Override
	public List<Object> getInterceptorsAndDynamicInterceptionAdvice(
			Advised config, Method method, @Nullable Class<?> targetClass) {

		AdvisorAdapterRegistry registry = GlobalAdvisorAdapterRegistry.getInstance();
        //获取所有Advisor。
		Advisor[] advisors = config.getAdvisors();
		List<Object> interceptorList = new ArrayList<>(advisors.length);
        //目标类实际类型。
		Class<?> actualClass = (targetClass != null ? targetClass : method.getDeclaringClass());
		Boolean hasIntroductions = null;
        //循环每个Advisor。
		for (Advisor advisor : advisors) {
            //切点类型Advisor。
			if (advisor instanceof PointcutAdvisor) {

				PointcutAdvisor pointcutAdvisor = (PointcutAdvisor) advisor;
                //类类型是否匹配。
				if (config.isPreFiltered() || pointcutAdvisor.getPointcut().getClassFilter().matches(actualClass)) {
					MethodMatcher mm = pointcutAdvisor.getPointcut().getMethodMatcher();
					boolean match;

					if (mm instanceof IntroductionAwareMethodMatcher) {
						if (hasIntroductions == null) {
							hasIntroductions = hasMatchingIntroductions(advisors, actualClass);
						}
						match = ((IntroductionAwareMethodMatcher) mm).matches(method, actualClass, hasIntroductions);
					}
					else {
						match = mm.matches(method, actualClass);
					}
                    //方法是否匹配
					if (match) {
						MethodInterceptor[] interceptors = registry.getInterceptors(advisor);
                        //动态匹配。
						if (mm.isRuntime()) {
							for (MethodInterceptor interceptor : interceptors) {
								interceptorList.add(new InterceptorAndDynamicMethodMatcher(interceptor, mm));
							}
						}
						else {
                        //静态匹配。
							interceptorList.addAll(Arrays.asList(interceptors));
						}
					}
				}
			}
            //引介类型Advisor。
			else if (advisor instanceof IntroductionAdvisor) {
				IntroductionAdvisor ia = (IntroductionAdvisor) advisor;
                //引介类型 仅需要匹配 类类型。
				if (config.isPreFiltered() || ia.getClassFilter().matches(actualClass)) {
					Interceptor[] interceptors = registry.getInterceptors(advisor);
					interceptorList.addAll(Arrays.asList(interceptors));
				}
			}
            //其他Advisor，默认表示匹配。
			else {

				Interceptor[] interceptors = registry.getInterceptors(advisor);
				interceptorList.addAll(Arrays.asList(interceptors));
			}
		}

		return interceptorList;
	}

ProxyCreatorSupport

代理工厂的实现的基本支持类，引入了AopProxyFactory （DefaultAopProxyFactory）。并且通过AopProxyFactory.createAopProxy()创建AopProxy实例。

        private AopProxyFactory aopProxyFactory;

	public ProxyCreatorSupport() {
		this.aopProxyFactory = new DefaultAopProxyFactory();
	}

	protected final synchronized AopProxy createAopProxy() {
		if (!this.active) {
			activate();
		}
		return getAopProxyFactory().createAopProxy(this);
	}

ProxyFactory实现

ProxyFactory主要提供了些操作Advised属性的方法，例如增加接口，设置TargetSource等，内部调用AopProxy.getProxy()方法生成代理实例。

AopProxyFactory

根据代理配置信息，生成Aop代理。

public interface AopProxyFactory {
	AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException;

}

DefaultAopProxyFactory

根据代理配置信息，决定是使用JDK动态代理，还是cglib代理。

@Override
	public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
		if (config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config)) {
			Class<?> targetClass = config.getTargetClass();
			if (targetClass == null) {
				throw new AopConfigException("TargetSource cannot determine target class: " +
						"Either an interface or a target is required for proxy creation.");
			}
			if (targetClass.isInterface() || Proxy.isProxyClass(targetClass)) {
				return new JdkDynamicAopProxy(config);
			}
			return new ObjenesisCglibAopProxy(config);
		}
		else {
			return new JdkDynamicAopProxy(config);
		}
	}

AopProxy

AopProxy是真正产生代理实例的类。包括JDK动态代理实现和cglib实现。

public interface AopProxy {
	Object getProxy();
	Object getProxy(@Nullable ClassLoader classLoader);

}

JdkDynamicAopProxy

JdkDynamicAopProxy又实现了InvocationHandler接口，使用java.lang.reflect.Proxy 通过反射来构造实例。JdkDynamicAopProxy的invoke方法中，如果有Advisor，则会生成一个ReflectiveMethodInvocation对象，执行增强。

	@Override
	public Object getProxy(@Nullable ClassLoader classLoader) {
		if (logger.isTraceEnabled()) {
			logger.trace("Creating JDK dynamic proxy: " + this.advised.getTargetSource());
		}
		Class<?>[] proxiedInterfaces = AopProxyUtils.completeProxiedInterfaces(this.advised, true);
		findDefinedEqualsAndHashCodeMethods(proxiedInterfaces);
		return Proxy.newProxyInstance(classLoader, proxiedInterfaces, this);
	}

	@Override
	@Nullable
	public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
		Object oldProxy = null;
		boolean setProxyContext = false;

		TargetSource targetSource = this.advised.targetSource;
		Object target = null;

		try {
        //target自身没有实现equal方法，
			if (!this.equalsDefined && AopUtils.isEqualsMethod(method)) {
				return equals(args[0]);
			}
       //target自身没有实现hashCode方法，
			else if (!this.hashCodeDefined && AopUtils.isHashCodeMethod(method)) {
				return hashCode();
			}

			else if (method.getDeclaringClass() == DecoratingProxy.class) {
				// There is only getDecoratedClass() declared -> dispatch to proxy config.
				return AopProxyUtils.ultimateTargetClass(this.advised);
			}
			else if (!this.advised.opaque && method.getDeclaringClass().isInterface() &&
					method.getDeclaringClass().isAssignableFrom(Advised.class)) {
				// Service invocations on ProxyConfig with the proxy config...
				return AopUtils.invokeJoinpointUsingReflection(this.advised, method, args);
			}

			Object retVal;

			if (this.advised.exposeProxy) {
				// Make invocation available if necessary.
				oldProxy = AopContext.setCurrentProxy(proxy);
				setProxyContext = true;
			}

            //获取最后一个Target，targetSource的target会变化。
			target = targetSource.getTarget();
			Class<?> targetClass = (target != null ? target.getClass() : null);

			//获取方法的拦截器链。
			List<Object> chain = this.advised.getInterceptorsAndDynamicInterceptionAdvice(method, targetClass);

            //如果没有任何advice，直接调用 target的方法。
			if (chain.isEmpty()) {
				Object[] argsToUse = AopProxyUtils.adaptArgumentsIfNecessary(method, args);
				retVal = AopUtils.invokeJoinpointUsingReflection(target, method, argsToUse);
			}
			else {
                如果有advice，则构造MethodInvocation，调用proceed。
				MethodInvocation invocation =
						new ReflectiveMethodInvocation(proxy, target, method, args, targetClass, chain);
				retVal = invocation.proceed();
			}

			// Massage return value if necessary.
			Class<?> returnType = method.getReturnType();
			if (retVal != null && retVal == target &&
					returnType != Object.class && returnType.isInstance(proxy) &&
					!RawTargetAccess.class.isAssignableFrom(method.getDeclaringClass())) {
                    //如果方法返回结果为this，则返回proxy。
				retVal = proxy;
			}
			else if (retVal == null && returnType != Void.TYPE && returnType.isPrimitive()) {
				throw new AopInvocationException(
						"Null return value from advice does not match primitive return type for: " + method);
			}
			return retVal;
		}
		finally {
			if (target != null && !targetSource.isStatic()) {
				// 如果可能释放target。
				targetSource.releaseTarget(target);
			}
			if (setProxyContext) {
				// Restore old proxy.
				AopContext.setCurrentProxy(oldProxy);
			}
		}
	}

ReflectiveMethodInvocation

属性：

protected ReflectiveMethodInvocation(
			Object proxy, @Nullable Object target, Method method, @Nullable Object[] arguments,
			@Nullable Class<?> targetClass, List<Object> interceptorsAndDynamicMethodMatchers) {

		this.proxy = proxy;
		this.target = target;
		this.targetClass = targetClass;
		this.method = BridgeMethodResolver.findBridgedMethod(method);
		this.arguments = AopProxyUtils.adaptArgumentsIfNecessary(method, arguments);
		this.interceptorsAndDynamicMethodMatchers = interceptorsAndDynamicMethodMatchers;
	}

proceed

    @Override
	@Nullable
	public Object proceed() throws Throwable {
		// 最后一个拦截器，则调用invokeJoinpoint，使用代理的方法。
		if (this.currentInterceptorIndex == this.interceptorsAndDynamicMethodMatchers.size() - 1) {
			return invokeJoinpoint();
		}

        //循环拦截器。
		Object interceptorOrInterceptionAdvice =
				this.interceptorsAndDynamicMethodMatchers.get(++this.currentInterceptorIndex);
        //动态拦截器
		if (interceptorOrInterceptionAdvice instanceof InterceptorAndDynamicMethodMatcher) {
			InterceptorAndDynamicMethodMatcher dm =
					(InterceptorAndDynamicMethodMatcher) interceptorOrInterceptionAdvice;
			Class<?> targetClass = (this.targetClass != null ? this.targetClass : this.method.getDeclaringClass());
            //匹配，则返回拦截器的调用。
			if (dm.methodMatcher.matches(this.method, targetClass, this.arguments)) {
				return dm.interceptor.invoke(this);
			}
			else {
                //不匹配，则下一个。
				return proceed();
			}
		}
		else {
           //静态拦截器，直接调用增强方法。
			return ((MethodInterceptor) interceptorOrInterceptionAdvice).invoke(this);
		}
	}

ObjenesisCglibAopProxy

不细谈，具体的了解cglib相关知识。

Proxy

Proxy是反射包中的实现类。主要方法是newProxyInstance。

public static Object newProxyInstance(ClassLoader loader,
                                          Class<?>[] interfaces,
                                          InvocationHandler h)
        throws IllegalArgumentException
    {
        Objects.requireNonNull(h);

        final Class<?>[] intfs = interfaces.clone();
... ...
        /*
         * 调用native方法生成代理类.
         */
        Class<?> cl = getProxyClass0(loader, intfs);
        try {
            if (sm != null) {
                checkNewProxyPermission(Reflection.getCallerClass(), cl);
            }
            //获取代理类的构造函数。InvocationHandler.class
            final Constructor<?> cons = cl.getConstructor(constructorParams);

            ... ...

            //实例化。
            return cons.newInstance(new Object[]{h});
        } catch (IllegalAccessException|InstantiationException e) {
       ... ...
        }
    }

Spring AOP源码解析（三）—— AOP引入（续）

AbstractAspectJAdvisorFactory
