inferno.io.transform介绍及使用
inferno简介
Inferno是一个库，提供了围绕PyTorch的实用程序和方便的函数/类，为深度学习和实现神经网络提供便利。关于inferno的其他模块介绍：
inferno Pytorch: inferno.extensions.layers.convolutional 介绍及使用
inferno Pytorch: inferno.io.box.cifar下载cifar10 cifar100数据集 介绍及使用
inferno Pytorch: inferno.io.transform 介绍及使用
inferno安装
pip install inferno-pytorch
inferno.io.transform
源码介绍
inferno.io.transform下面有多个模块实现对数据的transformation。
inferno.io.transform.base
Transform
是下面介绍的其他变换的基类
class Transform(object):
"""
Base class for a Transform. The argument `apply_to` (list) specifies the indices of
the tensors this transform will be applied to.
The following methods are recognized (in order of descending priority):
- `batch_function`: Applies to all tensors in a batch simultaneously
- `tensor_function`: Applies to just __one__ tensor at a time.
- `volume_function`: For 3D volumes, applies to just __one__ volume at a time.
- `image_function`: For 2D or 3D volumes, applies to just __one__ image at a time.
For example, if both `volume_function` and `image_function` are defined, this means that
only the former will be called. If the inputs are therefore not 5D batch-tensors of 3D
volumes, a `NotImplementedError` is raised.
"""
def __init__(self, apply_to=None):
"""
Parameters
----------
apply_to : list or tuple
Indices of tensors to apply this transform to. The indices are with respect
to the list of arguments this object is called with.
"""
self._random_variables = {
}
self._apply_to = list(apply_to) if apply_to is not None else None
def build_random_variables(self, **kwargs):
pass
def clear_random_variables(self):
self._random_variables = {
}
def get_random_variable(self, key, default=None, build=True,
**random_variable_building_kwargs):
if key in self._random_variables:
return self._random_variables.get(key, default)
else:
if not build:
return default
else:
self.build_random_variables(**random_variable_building_kwargs)
return self.get_random_variable(key, default, build=False)
def set_random_variable(self, key, value):
self._random_variables.update({
key: value})
def __call__(self, *tensors, **transform_function_kwargs):
tensors = pyu.to_iterable(tensors)
# Get the list of the indices of the tensors to which we're going to apply the transform
apply_to = list(range(len(tensors))) if self._apply_to is None else self._apply_to
# Flush random variables and assume they're built by image_function
self.clear_random_variables()
if hasattr(self, 'batch_function'):
transformed = self.batch_function(tensors, **transform_function_kwargs)
return pyu.from_iterable(transformed)
elif hasattr(self, 'tensor_function'):
transformed = [self.tensor_function(tensor, **transform_function_kwargs)
if tensor_index in apply_to else tensor
for tensor_index, tensor in enumerate(tensors)]
return pyu.from_iterable(transformed)
elif hasattr(self, 'volume_function'):
# Loop over all tensors
transformed = [self._apply_volume_function(tensor, **transform_function_kwargs)
if tensor_index in apply_to else tensor
for tensor_index, tensor in enumerate(tensors)]
return pyu.from_iterable(transformed)
elif hasattr(self, 'image_function'):
# Loop over all tensors
transformed = [self._apply_image_function(tensor, **transform_function_kwargs)
if tensor_index in apply_to else tensor
for tensor_index, tensor in enumerate(tensors)]
return pyu.from_iterable(transformed)
else:
raise NotImplementedError
# noinspection PyUnresolvedReferences
def _apply_image_function(self, tensor, **transform_function_kwargs):
assert pyu.has_callable_attr(self, 'image_function')
# 2D case
if tensor.ndim == 4:
return np.array([np.array([self.image_function(image, **transform_function_kwargs)
for image in channel_image])
for channel_image in tensor])
# 3D case
elif tensor.ndim == 5:
return np.array([np.array([np.array([self.image_function(image,
**transform_function_kwargs)
for image in volume])
for volume in channel_volume])
for channel_volume in tensor])
elif tensor.ndim == 3:
# Assume we have a 3D volume (signature zyx) and apply the image function
# on all yx slices.
return np.array([self.image_function(image, **transform_function_kwargs)
for image in tensor])
elif tensor.ndim == 2:
# Assume we really do have an image.
return self.image_function(tensor, **transform_function_kwargs)
else:
msg = f"{type(tensor)} "
try:
msg += str(tensor.ndim)
except Exception:
pass
raise NotImplementedError(msg)
# noinspection PyUnresolvedReferences
def _apply_volume_function(self, tensor, **transform_function_kwargs):
assert pyu.has_callable_attr(self, 'volume_function')
# 3D case
if tensor.ndim == 5:
# tensor is bczyx
# volume function is applied to zyx, i.e. loop over b and c
# FIXME This loops one time too many
return np.array([np.array([np.array([self.volume_function(volume,
**transform_function_kwargs)
for volume in channel_volume])
for channel_volume in batch])
for batch in tensor])
elif tensor.ndim == 4:
# We're applying the volume function on a czyx tensor, i.e. we loop over c and apply
# volume function to (zyx)
return np.array([self.volume_function(volume, **transform_function_kwargs)
for volume in tensor])
elif tensor.ndim == 3:
# We're applying the volume function on the volume itself
return self.volume_function(tensor, **transform_function_kwargs)
else:
raise NotImplementedError
Compose
将多个变换组合起来，类似torchvision的Compose
class Compose(object):
"""Composes multiple callables (including but not limited to `Transform` objects)."""
def __init__(self, *transforms: Callable):
"""
Parameters
----------
transforms : list of callable or tuple of callable
Transforms to compose.
"""
assert all([callable(transform) for transform in transforms])
self.transforms = list(transforms)
def add(self, transform):
assert callable(transform)
self.transforms.append(transform)
return self
def remove(self, name):
transform_idx = None
for idx, transform in enumerate(self.transforms):
if type(transform).__name__ == name:
transform_idx = idx
break
if transform_idx is not None:
self.transforms.pop(transform_idx)
return self
def __call__(self, *tensors):
intermediate = tensors
for transform in self.transforms:
intermediate = pyu.to_iterable(transform(*intermediate))
return pyu.from_iterable(intermediate)
inferno.io.transform.image 用于图像处理
PILImage2NumPyArray
将一个PIL Image对象转换为一个numpy数组
class PILImage2NumPyArray(Transform):
"""Convert a PIL Image object to a numpy array.
For images with multiple channels (say RGB), the channel axis is moved to front. Therefore,
a (100, 100, 3) RGB image becomes an array of shape (3, 100, 100).
"""
def tensor_function(self, tensor):
tensor = np.asarray(tensor)
if tensor.ndim == 3:
# There's a channel axis - we move it to front
tensor = np.moveaxis(tensor, source=-1, destination=0)
elif tensor.ndim == 2:
pass
else:
raise NotImplementedError("Expected tensor to be a 2D or 3D "
"numpy array, got a {}D array instead."
.format(tensor.ndim))
return tensor
Scale
实现图像放缩变换，用要求顺序的样条插值将图像缩放到给定的大小
class Scale(Transform):
"""Scales an image to a given size with spline interpolation of requested order.
Unlike torchvision.transforms.Scale, this does not depend on PIL and therefore works
with numpy arrays. If you do have a PIL image and wish to use this transform, consider
applying `PILImage2NumPyArray` first.
Warnings
--------
This transform uses `scipy.ndimage.zoom` and requires scipy >= 0.13.0 to work correctly.
"""
def __init__(self, output_image_shape, interpolation_order=3, zoom_kwargs=None, **super_kwargs):
"""
Parameters
----------
output_image_shape : list or tuple or int or None
Target size of the output image. Aspect ratio may not be preserved.
If output_image_shape is None, image input size will be preserved
interpolation_order : int
Interpolation order for the spline interpolation.
zoom_kwargs : dict
Keyword arguments for `scipy.ndimage.zoom`.
super_kwargs : dict
Keyword arguments for the superclass.
"""
super(Scale, self).__init__(**super_kwargs)
if output_image_shape is not None:
output_image_shape = (output_image_shape, output_image_shape) \
if isinstance(output_image_shape, int) else tuple(output_image_shape)
assert_(len(output_image_shape) == 2,
"`output_image_shape` must be an integer or a tuple of length 2.",
ValueError)
self.output_image_shape = output_image_shape
self.interpolation_order = interpolation_order
self.zoom_kwargs = {
} if zoom_kwargs is None else dict(zoom_kwargs)
def image_function(self, image):
source_height, source_width = image.shape
target_height, target_width = self.output_image_shape
# We're on Python 3 - take a deep breath and relax.
zoom_height, zoom_width = (target_height / source_height), (target_width / source_width)
with catch_warnings():
# Ignore warning that scipy should be > 0.13 (it's 0.19 these days)
simplefilter('ignore')
rescaled_image = zoom(image, (zoom_height, zoom_width),
order=self.interpolation_order, **self.zoom_kwargs)
# This should never happen
assert_(rescaled_image.shape == (target_height, target_width),
"Shape mismatch that shouldn't have happened if you were on scipy > 0.13.0. "
"Are you on scipy > 0.13.0?",
ShapeError)
return rescaled_image
RandomCrop
类似于torchvision.transforms对图像进行随机裁剪，不过这里处理的是PIL图像。
class RandomCrop(Transform):
"""Crop input to a given size.
This is similar to torchvision.transforms.RandomCrop, except that it operates on
numpy arrays instead of PIL images. If you do have a PIL image and wish to use this
transform, consider applying `PILImage2NumPyArray` first.
Warnings
--------
If `output_image_shape` is larger than the image itself, the image is not cropped
(along the relevant dimensions).
"""
def __init__(self, output_image_shape, **super_kwargs):
"""
Parameters
----------
output_image_shape : tuple or list or int
Expected shape of the output image. Could be an integer, (say) 100, in
which case it's interpreted as `(100, 100)`. Note that if the image shape
along some (or all) dimension is smaller, say `(50, 200)`, the resulting
output images will have the shape `(50, 100)`.
super_kwargs : dict
Keywords to the super class.
"""
super(RandomCrop, self).__init__(**super_kwargs)
# Privates
self._image_shape_cache = None
# Publics
output_image_shape = (output_image_shape, output_image_shape) \
if isinstance(output_image_shape, int) else tuple(output_image_shape)
assert_(len(output_image_shape) == 2,
"`output_image_shape` must be an integer or a tuple of length 2.",
ValueError)
self.output_image_shape = output_image_shape
def clear_random_variables(self):
self._image_shape_cache = None
super(RandomCrop, self).clear_random_variables()
def build_random_variables(self, height_leeway, width_leeway):
if height_leeway > 0:
self.set_random_variable('height_location',
np.random.randint(low=0, high=height_leeway + 1))
if width_leeway > 0:
self.set_random_variable('width_location',
np.random.randint(low=0, high=width_leeway + 1))
def image_function(self, image):
# Validate image shape
if self._image_shape_cache is not None:
assert_(self._image_shape_cache == image.shape,
"RandomCrop works on multiple images simultaneously only "
"if they have the same shape. Was expecting an image of "
"shape {}, got one of shape {} instead."
.format(self._image_shape_cache, image.shape),
ShapeError)
else:
self._image_shape_cache = image.shape
source_height, source_width = image.shape
crop_height, crop_width = self.output_image_shape
height_leeway = source_height - crop_height
width_leeway = source_width - crop_width
if height_leeway > 0:
# Crop height
height_location = self.get_random_variable('height_location',
height_leeway=height_leeway,
width_leeway=width_leeway)
cropped = image[height_location:(height_location + crop_height), :]
assert cropped.shape[0] == self.output_image_shape[0], "Well, shit."
else:
cropped = image
if width_leeway > 0:
# Crop width
width_location = self.get_random_variable('width_location',
height_leeway=height_leeway,
width_leeway=width_leeway)
cropped = cropped[:, width_location:(width_location + crop_width)]
assert cropped.shape[1] == self.output_image_shape[1], "Well, shit."
return cropped
RandomSizedCrop
从图像中裁剪一个随机大小的图像。
class RandomSizedCrop(Transform):
"""Extract a randomly sized crop from the image.
The ratio of the sizes of the cropped and the original image can be limited within
specified bounds along both axes. To resize back to a constant sized image, compose
with `Scale`.
"""
def __init__(self, ratio_between=None, height_ratio_between=None, width_ratio_between=None,
preserve_aspect_ratio=False, relative_target_aspect_ratio=None, **super_kwargs):
"""
Parameters
----------
ratio_between : tuple
Specify the bounds between which to sample the crop ratio. This applies to
both height and width if not overriden. Can be None if both height and width
ratios are specified individually.
height_ratio_between : tuple
Specify the bounds between which to sample the vertical crop ratio.
Can be None if `ratio_between` is not None.
width_ratio_between : tuple
Specify the bounds between which to sample the horizontal crop ratio.
Can be None if `ratio_between` is not None.
preserve_aspect_ratio : bool
Whether to preserve aspect ratio. If both `height_ratio_between`
and `width_ratio_between` are specified, the former is used if this
is set to True.
relative_target_aspect_ratio : float
Specify the target aspect ratio (W x H) relative to the input image
(i.e. by mapping the input image ratio to 1:1). For instance, if an image
has the size 1024 (H) x 2048 (W), a relative target aspect ratio of 0.5
might yield images of size 1024 x 1024. Note that this only applies if
`preserve_aspect_ratio` is set to False.
super_kwargs : dict
Keyword arguments for the super class.
"""
AdditiveGaussianNoise
添加高斯噪声
class AdditiveGaussianNoise(Transform):
"""Add gaussian noise to the input."""
def __init__(self, sigma, **super_kwargs):
super(AdditiveGaussianNoise, self).__init__(**super_kwargs)
self.sigma = sigma
def build_random_variables(self, **kwargs):
np.random.seed()
self.set_random_variable('noise', np.random.normal(loc=0, scale=self.sigma,
size=kwargs.get('imshape')))
def image_function(self, image):
image = image + self.get_random_variable('noise', imshape=image.shape)
return image
RandomRotate
随机90度旋转
class RandomRotate(Transform):
"""Random 90-degree rotations."""
def __init__(self, **super_kwargs):
super(RandomRotate, self).__init__(**super_kwargs)
def build_random_variables(self, **kwargs):
np.random.seed()
self.set_random_variable('k', np.random.randint(0, 4))
def image_function(self, image):
return np.rot90(image, k=self.get_random_variable('k'))
RandomTranspose
随机2D transpose, 就是维数翻转过来，不懂可以看下面示例，二维的就相当于把 H × W H \times W H×W变成 W × H W \times H W×H。
>>> a = np.random.random((2,1,3,4))
>>> b = np.transpose(a)
>>> b.shape
(4, 3, 1, 2)
class RandomTranspose(Transform):
"""Random 2d transpose."""
def __init__(self, **super_kwargs):
super(RandomTranspose, self).__init__(**super_kwargs)
def build_random_variables(self, **kwargs):
np.random.seed()
self.set_random_variable('do_transpose', np.random.uniform() > 0.5)
def image_function(self, image):
if self.get_random_variable('do_transpose'):
image = np.transpose(image)
return image
RandomFlip
随机的左右翻转或上下翻转
class RandomFlip(Transform):
"""Random left-right or up-down flips."""
def __init__(self, allow_lr_flips=True, allow_ud_flips=True, **super_kwargs):
super(RandomFlip, self).__init__(**super_kwargs)
self.allow_lr_flips = allow_lr_flips
self.allow_ud_flips = allow_ud_flips
def build_random_variables(self, **kwargs):
np.random.seed()
self.set_random_variable('flip_lr', np.random.uniform() > 0.5)
self.set_random_variable('flip_ud', np.random.uniform() > 0.5)
def image_function(self, image):
if self.allow_lr_flips and self.get_random_variable('flip_lr'):
image = np.fliplr(image)
if self.allow_ud_flips and self.get_random_variable('flip_ud'):
image = np.flipud(image)
return image
CenterCrop
就是中心裁剪
class CenterCrop(Transform):
""" Crop patch of size `size` from the center of the image """
def __init__(self, size, **super_kwargs):
super(CenterCrop, self).__init__(**super_kwargs)
assert isinstance(size, (int, tuple))
self.size = (size, size) if isinstance(size, int) else size
def image_function(self, image):
h, w = image.shape
th, tw = self.size
if h > th:
y1 = int(round((h - th) / 2.))
image = image[y1:y1 + th, :]
if w > tw:
x1 = int(round((w - tw) / 2.))
image = image[:, x1:x1 + tw]
return image
BinaryMorphology
对图像应用二进制形态学操作。支持的操作是膨胀和侵蚀
class BinaryMorphology(Transform):
"""
Apply a binary morphology operation on an image. Supported operations are dilation
and erosion.
"""
def __init__(self, mode, num_iterations=1, morphology_kwargs=None, **super_kwargs):
"""
Parameters
----------
mode : {'dilate', 'erode'}
Whether to dilate or erode.
num_iterations : int
Number of iterations to apply the operation for.
morphology_kwargs: dict
Keyword arguments to the morphology function
(i.e. `scipy.ndimage.morphology.binary_erosion` or
`scipy.ndimage.morphology.binary_erosion`)
super_kwargs : dict
Keyword arguments to the superclass.
"""
super(BinaryMorphology, self).__init__(**super_kwargs)
# Validate and assign mode
assert_(mode in ['dilate', 'erode'],
"Mode must be one of ['dilate', 'erode']. Got {} instead.".format(mode),
ValueError)
self.mode = mode
self.num_iterations = num_iterations
self.morphology_kwargs = {
} if morphology_kwargs is None else dict(morphology_kwargs)
def image_function(self, image):
if self.mode == 'dilate':
transformed_image = binary_dilation(image, iterations=self.num_iterations,
**self.morphology_kwargs)
elif self.mode == 'erode':
transformed_image = binary_erosion(image, iterations=self.num_iterations,
**self.morphology_kwargs)
else:
raise ValueError
# Cast transformed image to the right dtype and return
return transformed_image.astype(image.dtype)
class BinaryDilation(BinaryMorphology):
"""Apply a binary dilation operation on an image."""
def __init__(self, num_iterations=1, morphology_kwargs=None, **super_kwargs):
super(BinaryDilation, self).__init__(mode='dilate', num_iterations=num_iterations,
morphology_kwargs=morphology_kwargs,
**super_kwargs)
class BinaryErosion(BinaryMorphology):
"""Apply a binary erosion operation on an image."""
def __init__(self, num_iterations=1, morphology_kwargs=None, **super_kwargs):
super(BinaryErosion, self).__init__(mode='erode', num_iterations=num_iterations,
morphology_kwargs=morphology_kwargs,
**super_kwargs)
FineRandomRotations
对输入图像和标签图像进行旋转
class FineRandomRotations(Transform):
""" Random Rotation with random uniform angle distribution
batch_function applies to rotation of input and label image
Parameters
----------
angle_range : int
maximum angle of rotation
axes : tuple, default (1,2) assuming that channel axis is 0
pair of axis that define the 2d-plane of rotation
mask_label : constant value that is used to pad the label images
"""
def __init__(self, angle_range, axes=(1,2), mask_label=0, **super_kwargs):
super(FineRandomRotations, self).__init__(**super_kwargs)
self.angle_range = angle_range
self.axes = axes
self.ml = mask_label
def build_random_variables(self):
np.random.seed()
self.set_random_variable('angle',
np.random.uniform(low=-self.angle_range,
high=self.angle_range))
def batch_function(self, image):
angle = self.get_random_variable('angle')
return rotate(image[0], angle, axes=self.axes, reshape=False), \
rotate(image[1], angle, axes=self.axes, order=0, cval=self.ml, reshape=False)
RandomScaleSegmentation
随机比例输入图像和标签图像
class RandomScaleSegmentation(Transform):
""" Random Scale input and label image
Parameters
----------
scale_range : tuple of floats defining (min, max) scales
maximum angle of rotation
resize : if True, image is cropped or padded to the original size
pad_const: value used for constant padding
"""
def __init__(self, scale_range, resize=True, pad_const=0, **super_kwargs):
super(RandomScaleSegmentation, self).__init__(**super_kwargs)
self.scale_range = scale_range
self.resize = resize
self.pad_const = pad_const
def build_random_variables(self):
np.random.seed()
self.set_random_variable('seg_scale',
np.random.uniform(low=self.scale_range[0],
high=self.scale_range[1]))
def batch_function(self, image):
scale = self.get_random_variable('seg_scale')
input_image, segmentation = image
image_shape = np.array(input_image.shape[1:])
if input_image.ndim == segmentation.ndim + 1:
segmentation = segmentation[None]
with catch_warnings():
simplefilter('ignore')
img = np.stack([zoom(x, scale, order=3) for x in input_image])
seg = np.stack([zoom(x, scale, order=0) for x in segmentation])
new_shape = np.array(img.shape[1:])
if self.resize:
if scale > 1.:
# pad image to original size
crop_l = (new_shape - image_shape) // 2
crop_r = new_shape - image_shape - crop_l
cropping = [slice(None)] + [slice(c[0] if c[0] > 0 else None,
-c[1] if c[1] > 0 else None) for c in zip(crop_l, crop_r)]
img = img[cropping]
seg = seg[cropping]
else:
# crop image to original size
pad_l = (image_shape - new_shape) // 2
pad_r = image_shape - new_shape - pad_l
padding = [(0,0)] + list(zip(pad_l, pad_r))
img = np.pad(img, padding, 'constant', constant_values=self.pad_const)
seg = np.pad(seg, padding, 'constant', constant_values=self.pad_const)
return img, seg
RandomGammaCorrection
伽玛校正 https://en.wikipedia.org/wiki/Gamma_correction
class RandomGammaCorrection(Transform):
"""Applies gamma correction [1] with a random gamma.
This transform uses `skimage.exposure.adjust_gamma`, which requires the input be positive.
References
----------
[1] https://en.wikipedia.org/wiki/Gamma_correction
"""
def __init__(self, gamma_between=(0.5, 2.), gain=1, **super_kwargs):
"""
Parameters
----------
gamma_between : tuple or list
Specifies the range within which to sample gamma (uniformly).
gain : int or float
The resulting gamma corrected image is multiplied by this `gain`.
super_kwargs : dict
Keyword arguments for the superclass.
"""
super(RandomGammaCorrection, self).__init__(**super_kwargs)
self.gamma_between = list(gamma_between)
self.gain = gain
def build_random_variables(self):
np.random.seed()
self.set_random_variable('gamma',
np.random.uniform(low=self.gamma_between[0],
high=self.gamma_between[1]))
def image_function(self, image):
gamma_adjusted = adjust_gamma(image,
gamma=self.get_random_variable('gamma'),
gain=self.gain)
return gamma_adjusted
ElasticTransform
随机弹性变换
class ElasticTransform(Transform):
"""Random Elastic Transformation."""
NATIVE_DTYPES = {
'float32', 'float64'}
PREFERRED_DTYPE = 'float32'
def __init__(self, alpha, sigma, order=1, invert=False, **super_kwargs):
self._initial_dtype = None
super(ElasticTransform, self).__init__(**super_kwargs)
self.alpha = alpha
self.sigma = sigma
self.order = order
self.invert = invert
def build_random_variables(self, **kwargs):
# All this is done just once per batch (i.e. until `clear_random_variables` is called)
np.random.seed()
imshape = kwargs.get('imshape')
# Build and scale random fields
random_field_x = np.random.uniform(-1, 1, imshape) * self.alpha
random_field_y = np.random.uniform(-1, 1, imshape) * self.alpha
# Smooth random field (this has to be done just once per reset)
sdx = gaussian_filter(random_field_x, self.sigma, mode='reflect')
sdy = gaussian_filter(random_field_y, self.sigma, mode='reflect')
# Make meshgrid
x, y = np.meshgrid(np.arange(imshape[1]), np.arange(imshape[0]))
# Make inversion coefficient
_inverter = 1. if not self.invert else -1.
# Distort meshgrid indices (invert if required)
flow_y, flow_x = (y + _inverter * sdy).reshape(-1, 1), (x + _inverter * sdx).reshape(-1, 1)
# Set random states
self.set_random_variable('flow_x', flow_x)
self.set_random_variable('flow_y', flow_y)
def cast(self, image):
if image.dtype not in self.NATIVE_DTYPES:
self._initial_dtype = image.dtype
image = image.astype(self.PREFERRED_DTYPE)
return image
def uncast(self, image):
if self._initial_dtype is not None:
image = image.astype(self._initial_dtype)
self._initial_dtype = None
return image
def image_function(self, image):
# Cast image to one of the native dtypes (one which that is supported by scipy)
image = self.cast(image)
# Take measurements
imshape = image.shape
# Obtain flows
flows = self.get_random_variable('flow_y', imshape=imshape), \
self.get_random_variable('flow_x', imshape=imshape)
# Map cooordinates from image to distorted index set
transformed_image = map_coordinates(image, flows,
mode='reflect', order=self.order).reshape(imshape)
# Uncast image to the original dtype
transformed_image = self.uncast(transformed_image)
return transformed_image
inferno.io.transform.volume 处理三维体积数据
功能和inferno.io.transform.image的函数大多类似，这里只给出函数入口
RandomFlip3D
class RandomFlip3D(Transform):
def __init__(self, **super_kwargs):
super(RandomFlip3D, self).__init__(**super_kwargs)
RandomRot3D
class RandomRot3D(Transform):
def __init__(self, rot_range, p=0.125, only_one=True, **super_kwargs):
AdditiveRandomNoise3D
class AdditiveRandomNoise3D(Transform):
""" Add gaussian noise to 3d volume
Need to know input shape before application, but can be
synchronized between different inputs (cf. `AdditiveNoise`)
Arguments:
shape: shape of input volumes
std: standard deviation of gaussian
super_kwargs: keyword arguments for `Transform` base class
"""
def __init__(self, shape, std, **super_kwargs):
AdditiveNoise
class AdditiveNoise(Transform):
""" Add noise to 3d volume
Do NOT need to know input shape before application, but CANNOT be
synchronized between different inputs (cf. `AdditiveRandomNoise`)
Arguments:
sigma: sigma for noise
mode: mode of distribution (only gaussian supported for now)
super_kwargs: keyword arguments for `Transform` base class
"""
def __init__(self, sigma, mode='gaussian', **super_kwargs):
VolumeCenterCrop
class VolumeCenterCrop(Transform):
""" Crop patch of size `size` from the center of the volume """
def __init__(self, size, **super_kwargs):
class VolumeAsymmetricCrop(Transform):
""" Crop `crop_left` from the left borders and `crop_right` from the right borders """
def __init__(self, crop_left, crop_right, **super_kwargs):
Slices2Channels
输入数据将一维(x、y或z)转换为通道
对于目标数据，只需接受中央切片并丢弃所有其余部分
class Slices2Channels(Transform):
""" Needed for training 2D network with slices above/below as additional channels
For the input data transforms one dimension (x, y or z) into channels
For the target data just takes the central slice and discards all the rest"""
def __init__(self, num_channels, downsampling = 1, **super_kwargs):
inferno.io.transform.generic 通用的处理方法
Normalize
归一化为均值为0方差为1， 就是服从正态分布
class Normalize(Transform):
"""Normalizes input to zero mean unit variance."""
def __init__(self, eps=1e-4, mean=None, std=None, **super_kwargs):
"""
Parameters
----------
eps : float
A small epsilon for numerical stability.
mean : list or float or numpy.ndarray
Global dataset mean for all channels.
std : list or float or numpy.ndarray
Global dataset std for all channels.
super_kwargs : dict
Kwargs to the superclass `inferno.io.transform.base.Transform`.
"""
super(Normalize, self).__init__(**super_kwargs)
self.eps = eps
self.mean = np.asarray(mean) if mean is not None else None
self.std = np.asarray(std) if std is not None else None
def tensor_function(self, tensor):
mean = np.asarray(tensor.mean()) if self.mean is None else self.mean
std = np.asarray(tensor.std()) if self.std is None else self.std
# Figure out how to reshape mean and std
reshape_as = [-1] + [1] * (tensor.ndim - 1)
# Normalize
tensor = (tensor - mean.reshape(*reshape_as))/(std.reshape(*reshape_as) + self.eps)
return tensor
NormalizeRange
除以某个值进行归一化
class NormalizeRange(Transform):
"""Normalizes input by a constant."""
def __init__(self, normalize_by=255., **super_kwargs):
"""
Parameters
----------
normalize_by : float or int
Scalar to normalize by.
super_kwargs : dict
Kwargs to the superclass `inferno.io.transform.base.Transform`.
"""
super(NormalizeRange, self).__init__(**super_kwargs)
self.normalize_by = float(normalize_by)
def tensor_function(self, tensor):
return tensor / self.normalize_by
Project
给定一个投影映射(即一个dict)和一个输入张量，这个变换将该张量中等于一个键的所有值替换为该键对应的值。
class Project(Transform):
"""
Given a projection mapping (i.e. a dict) and an input tensor, this transform replaces
all values in the tensor that equal a key in the mapping with the value corresponding to
the key.
"""
def __init__(self, projection, **super_kwargs):
"""
Parameters
----------
projection : dict
The projection mapping.
super_kwargs : dict
Keywords to the super class.
"""
super(Project, self).__init__(**super_kwargs)
self.projection = dict(projection)
def tensor_function(self, tensor):
output = np.zeros_like(tensor)
for source, target in self.projection.items():
output[tensor == source] = target
return output
Label2OneHot
对标签进行one-hot编码
class Label2OneHot(Transform, DTypeMapping):
"""Convert integer labels to one-hot vectors for arbitrary dimensional data."""
def __init__(self, num_classes, dtype='float', **super_kwargs):
"""
Parameters
----------
num_classes : int
Number of classes.
dtype : str
Datatype of the output.
super_kwargs : dict
Keyword arguments to the superclass.
"""
super(Label2OneHot, self).__init__(**super_kwargs)
self.num_classes = num_classes
self.dtype = self.DTYPE_MAPPING.get(dtype)
def tensor_function(self, tensor):
reshaped_arange = np.arange(self.num_classes).reshape(-1, *(1,)*tensor.ndim)
output = np.equal(reshaped_arange, tensor).astype(self.dtype)
# output = np.zeros(shape=(self.num_classes,) + tensor.shape, dtype=self.dtype)
# # Optimizing for simplicity and memory efficiency, because one would usually
# # spawn multiple workers
# for class_num in range(self.num_classes):
# output[class_num] = tensor == class_num
return output
Cast
将输入强制转换为指定的数据类型
class Cast(Transform, DTypeMapping):
"""Casts inputs to a specified datatype."""
def __init__(self, dtype='float', **super_kwargs):
"""
Parameters
----------
dtype : {'float16', 'float32', 'float64', 'half', 'float', 'double'}
Datatype to cast to.
super_kwargs : dict
Kwargs to the superclass `inferno.io.transform.base.Transform`.
"""
super(Cast, self).__init__(**super_kwargs)
assert dtype in self.DTYPE_MAPPING.keys()
self.dtype = self.DTYPE_MAPPING.get(dtype)
def tensor_function(self, tensor):
return getattr(np, self.dtype)(tensor)
AsTorchBatch
将给定的numpy数组转换为torch批张量
维度:{1,2,3}
数据的维数:1 向量，2 图像，3 体积。
class AsTorchBatch(Transform):
"""Converts a given numpy array to a torch batch tensor.
The result is a torch tensor __without__ the leading batch axis. For example,
if the input is an image of shape `(100, 100)`, the output is a batch of shape
`(1, 100, 100)`. The collate function will add the leading batch axis to obtain
a tensor of shape `(N, 1, 100, 100)`, where `N` is the batch-size.
"""
def __init__(self, dimensionality, add_channel_axis_if_necessary=True, **super_kwargs):
"""
Parameters
----------
dimensionality : {1, 2, 3}
Dimensionality of the data: 1 if vector, 2 if image, 3 if volume.
add_channel_axis_if_necessary : bool
Whether to add a channel axis where necessary. For example, if `dimensionality = 2`
and the input temperature has 2 dimensions (i.e. an image), setting
`add_channel_axis_if_necessary` to True results in the output being a 3 dimensional
tensor, where the leading dimension is a singleton and corresponds to `channel`.
super_kwargs : dict
Kwargs to the superclass `inferno.io.transform.base.Transform`.
"""
super(AsTorchBatch, self).__init__(**super_kwargs)
assert dimensionality in [1, 2, 3]
self.dimensionality = dimensionality
self.add_channel_axis_if_necessary = bool(add_channel_axis_if_necessary)
def _to_batch(self, tensor):
assert_(isinstance(tensor, np.ndarray),
"Expected numpy array, got %s" % type(tensor),
DTypeError)
if self.dimensionality == 3:
# We're dealing with a volume. tensor can either be 3D or 4D
assert tensor.ndim in [3, 4]
if tensor.ndim == 3 and self.add_channel_axis_if_necessary:
# Add channel axis
return torch.from_numpy(tensor[None, ...])
else:
# Channel axis is in already
return torch.from_numpy(tensor)
elif self.dimensionality == 2:
# We're dealing with an image. tensor can either be 2D or 3D
assert tensor.ndim in [2, 3]
if tensor.ndim == 2 and self.add_channel_axis_if_necessary:
# Add channel axis
return torch.from_numpy(tensor[None, ...])
else:
# Channel axis is in already
return torch.from_numpy(tensor)
elif self.dimensionality == 1:
# We're dealing with a vector - it has to be 1D
assert tensor.ndim == 1
return torch.from_numpy(tensor)
else:
raise NotImplementedError
def tensor_function(self, tensor):
assert_(isinstance(tensor, (list, np.ndarray)),
"Expected numpy array or list, got %s" % type(tensor),
DTypeError)
if isinstance(tensor, np.ndarray):
return self._to_batch(tensor)
else:
return [self._to_batch(elem) for elem in tensor]
使用示例
使用上面提到的一些模块调用了一下，发现和torchvision.transforms的使用其实没有什么太大差别，就是Compose不需要加[]了，如果你之前习惯用torchvision.transforms，那么这个inferno.io.transform也没什么难的。
from inferno.io.transform.base import Transform, Compose
from inferno.io.transform.generic import Normalize
from inferno.io.transform.image import RandomCrop, RandomRotate, RandomFlip, PILImage2NumPyArray
import torch
from torch.utils.data import Dataset, DataLoader
from torchvision.datasets import ImageFolder
transform = Compose(PILImage2NumPyArray(), RandomCrop(64), RandomRotate(), RandomFlip())
transform.add(Normalize()) ## 增加一个变换
datasetData = ImageFolder('../video2image/Data/Data_train',transform=transform)
dataloaderData = DataLoader(datasetData, batch_size=4, shuffle=False, num_workers=1, drop_last=True)
datasetLabel = ImageFolder('../video2image/Data/Label_train',transform=transform)
dataloaderLabel = DataLoader(datasetLabel, batch_size=4, shuffle=False, num_workers=1, drop_last=True)
dataTrain = zip(dataloaderData, dataloaderLabel)
for batch,loadTrain in enumerate(dataTrain):
data0, label0 = loadTrain[0][0], loadTrain[1][0]
print(data0.shape, label0.shape)

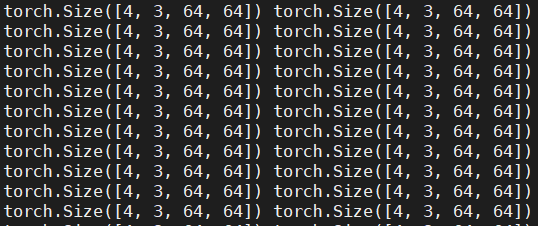

结果
