Activiti6：调用另外一个文件的流程(把文件当成子流程调用)

1.声明

当前内容主要为本人学习和测试之用，主要内容为一个流程中调用另外一个文件的子流程(主要使用Call Activity)

当前创建pbmn文件使用的是eclipse的activiti插件（例子还是员工请假的例子），安装插件请参考这篇博文：eclipse中安装activit的插件

2.创建流程文件

1.创建主要流程请假主体文件：CallSubProcessEventTest.bpmn

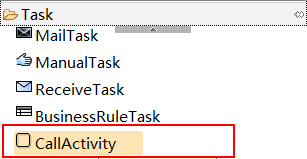

其中调用子流程使用的是：

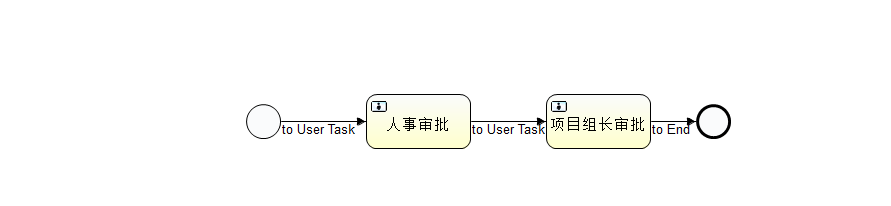

2.创建另外一个文件：SubProcess.bpmn

3.让主流程文件关联另外一个文件的流程

当前关联主要是通过两个文件的process中的id方式进行关联，并且需要加载两个流程文件才行！

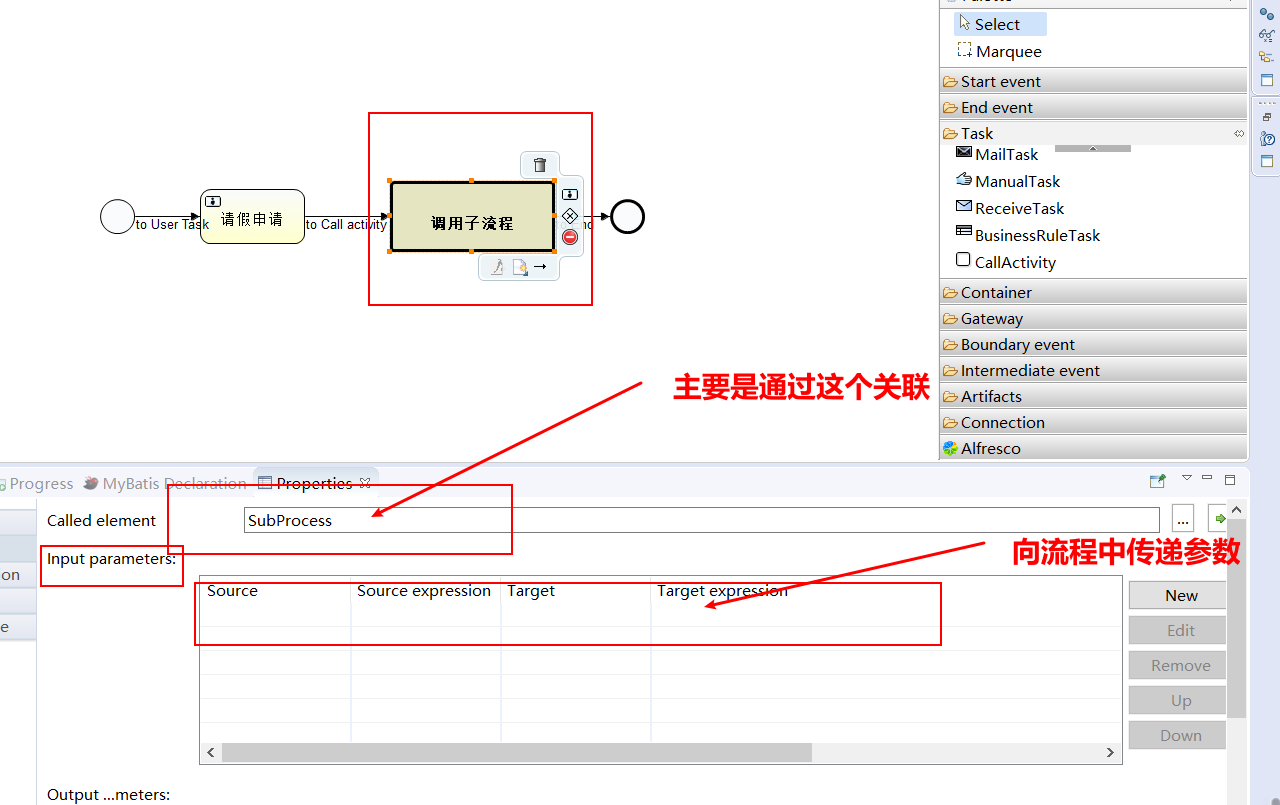

开始配置关联：

此时配置完毕

4.主要测试

import org.activiti.engine.HistoryService;
import org.activiti.engine.ManagementService;
import org.activiti.engine.ProcessEngine;
import org.activiti.engine.ProcessEngineConfiguration;
import org.activiti.engine.RepositoryService;
import org.activiti.engine.RuntimeService;
import org.activiti.engine.TaskService;
import org.activiti.engine.impl.history.HistoryLevel;
import org.activiti.engine.runtime.ProcessInstance;
import org.activiti.engine.task.Task;

/**
 *
 * @author hy
 * @createTime 2021-04-03 14:49:02
 * @description 当前内容主要为测试和使用当前的呼叫另外一个文件的子流程的测试操作
 *
 */
public class CallSubProcessEventTest {


	public static void main(String[] args) {


		ProcessEngine processEngine = ProcessEngineConfiguration.createStandaloneInMemProcessEngineConfiguration()
				.setDatabaseSchemaUpdate(ProcessEngineConfiguration.DB_SCHEMA_UPDATE_CREATE_DROP)
				.setJdbcUrl("jdbc:h2:mem:my-own-db;DB_CLOSE_DELAY=1000").setAsyncExecutorActivate(false)
				.setHistoryLevel(HistoryLevel.FULL) // 开启所有历史数据保存的功能，不开启直接查询显示0
				.buildProcessEngine();

		RepositoryService repositoryService = processEngine.getRepositoryService();
		repositoryService.createDeployment().addClasspathResource("\\test\\CallSubProcessEventTest.bpmn")
				.addClasspathResource("\\test\\SubProcess.bpmn").deploy();
		System.out
				.println("Number of process definitions: " + repositoryService.createProcessDefinitionQuery().count());

		TaskService taskService = processEngine.getTaskService();
		RuntimeService runtimeService = processEngine.getRuntimeService();
		HistoryService historyService = processEngine.getHistoryService();
		ManagementService managementService = processEngine.getManagementService();

		ProcessInstance processInstance1 = runtimeService.startProcessInstanceByKey("CallSubProcessEventTest");

		// 1. 填写表单
		Task nextTask = taskService.createTaskQuery().singleResult();
		printTask(nextTask);
		// 完成填写表单的任务
		taskService.complete(nextTask.getId());

		// 2. 直接进入子流程了
		nextTask = taskService.createTaskQuery().singleResult();
		printTask(nextTask);
		processEngine.close();
	}

	public static void printTask(Task task) {


		System.out.println("当前任务为：" + task.getId() + "," + task.getName());
	}
}

测试结果

SLF4J: Found binding in [jar:file:/D:/JavaSoftware/mavenReposity/org/slf4j/slf4j-log4j12/1.7.12/slf4j-log4j12-1.7.12.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/D:/JavaSoftware/mavenReposity/ch/qos/logback/logback-classic/1.1.3/logback-classic-1.1.3.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
log4j:WARN No appenders could be found for logger (org.activiti.engine.impl.cfg.ProcessEngineConfigurationImpl).
log4j:WARN Please initialize the log4j system properly.
log4j:WARN See http://logging.apache.org/log4j/1.2/faq.html#noconfig for more info.
Number of process definitions: 2
当前任务为：12,填写申请
当前任务为：18,人事审批

测试成功

5.总结

1.以前都是直接在页面上画好子流程，现在可以将子流程分开为特定的文件，然后通过Call Activity方式调用即可，更加层次分明了
