简介

Kubernetes中的Ingress服务是一种全局的、为了代理不同后端 Service 而设置的负载均衡服务。Ingress由两部分组成：Ingress controller和Ingress服务。

一、实验环境

1.部署好的k8s平台，一个master,两个node节点，一个私有docker镜像仓库
2.master主机名：server2
3.node节点主机名：server3,server4
4.私有docker镜像仓库:server1

二、基本部署

1.应用后端定义文件

kubectl apply -f demo.yml
demo.yml文件内容如下：
---
apiVersion: v1
kind: Service
metadata:
  name: myservice
spec:
  selector:
    app: myapp
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo2
spec:
  replicas: 3
  selector:
    matchLabels:
      app: myapp
  template:
    metadata:
      labels:
        app: myapp
    spec:
      containers:
      - name: myapp
        image: myapp:v2

2.应用Ingress定义文件

kubectl apply -f deploy.yaml
deploy.yaml内容见如下链接：

链接: https://blog.csdn.net/nk298120/article/details/113976226.

3.创建ingress服务

kubectl apply -f nginx.yml
nginx.yml文件内容如下：
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-demo
spec:
  rules:
  - host: www1.westos.org
    http:
      paths:
      - path: /
        backend:
          serviceName: myservice   %为1中定义的后端
          servicePort: 80

注意：要为server4上添加www1.westos.org的解析，因为在deploy.yaml文件中将Ingress controller部署到server4上去了

4.定义不同后端

kubectl apply -f nginx-svc.yml
nginx.yml文件内容如下：
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-svc
spec:
  selector:
    app: nginx
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deployment
spec:
  replicas: 2
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: myapp
        image: myapp:v1

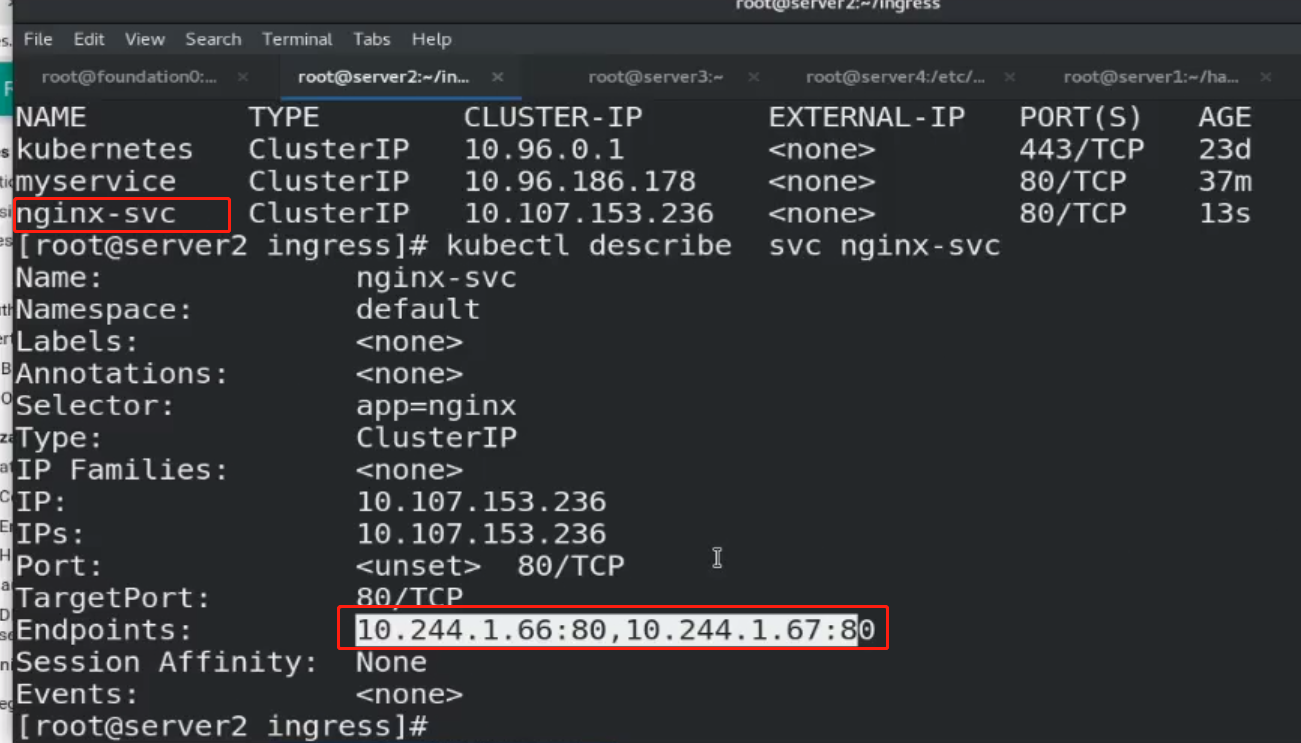

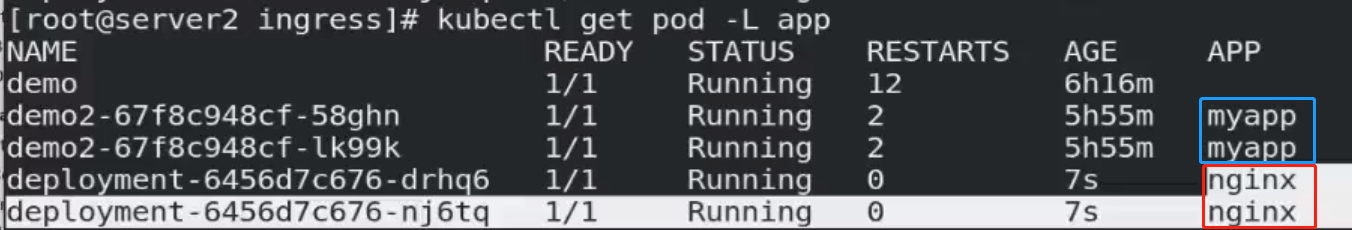

在这里插入图片描述

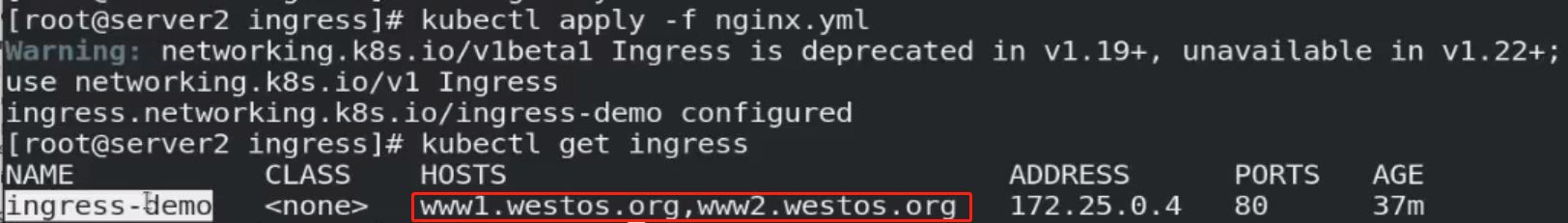

编辑nginx.yml将上述定义的svc给负载出去：
nginx.yml文件内容如下：
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-demo
spec:
  rules:
  - host: www1.westos.org
    http:
      paths:
      - path: /
        backend:
          serviceName: myservice
          servicePort: 80
  - host: www2.westos.org
    http:
      paths:
      - path: /
        backend:
          serviceName: nginx-svc   %为新定义的svc
          servicePort: 80

在这里插入图片描述
注意：当然也可以将不同的svc通过创建不同的ingress服务分离开

三、加密配置（Ingress TLS 配置）

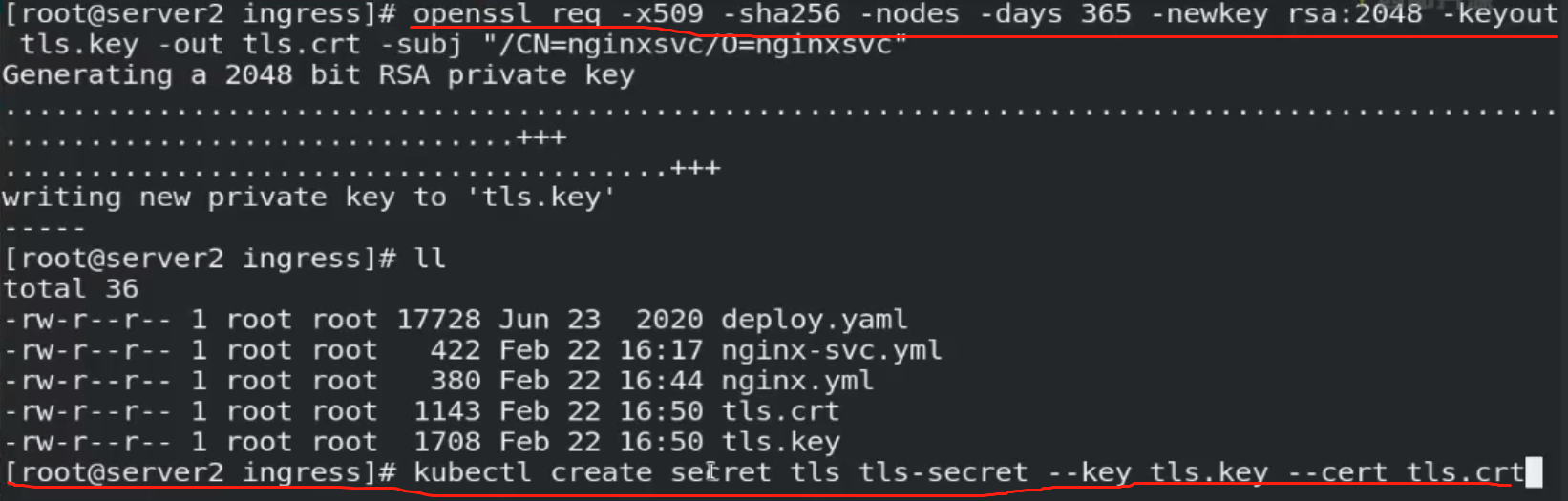

openssl req -x509 -sha256 -nodes -days 365 -newkey rsa:2048 -keyout tls.key -out tls.crt -subj "/CN=nginxsvc/O=nginxsvc"  % 在本地生成key和证书

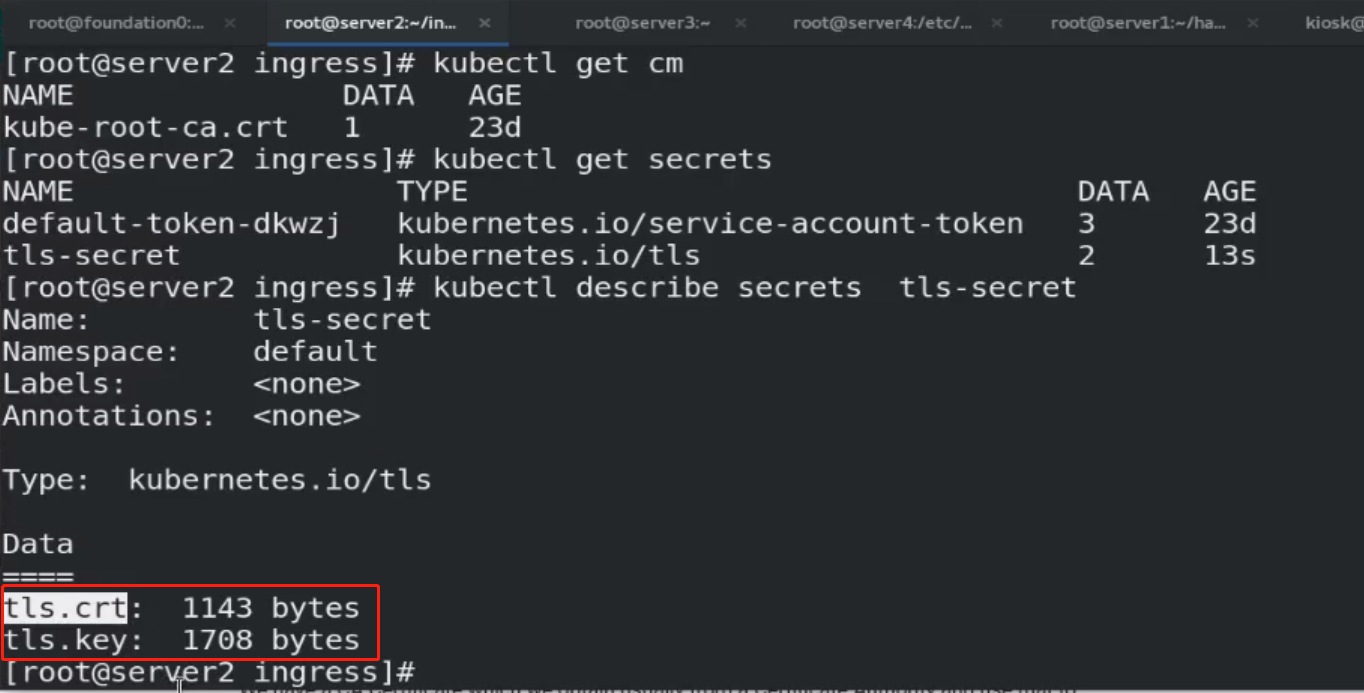

kubectl create secret tls tls-secret --key tls.key --cert tls.crt %将生成的key和证书存到k8s中
修改nginx.yml文件并应用使证书生效：
nginx.yml文件内容如下：
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-demo
spec:
  tls:                          % 添加tls配置
    - hosts:
      - www1.westos.org
      secretName: tls-secret
  rules:
  - host: www1.westos.org
    http:
      paths:
      - path: /
        backend:
          serviceName: myservice
          servicePort: 80
  - host: www2.westos.org
    http:
      paths:
      - path: /
        backend:
          serviceName: nginx-svc
          servicePort: 80

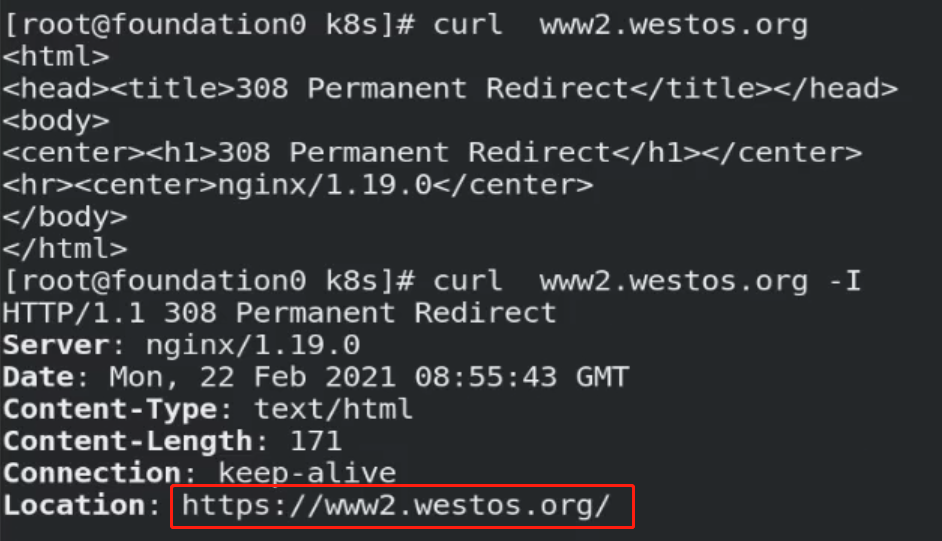

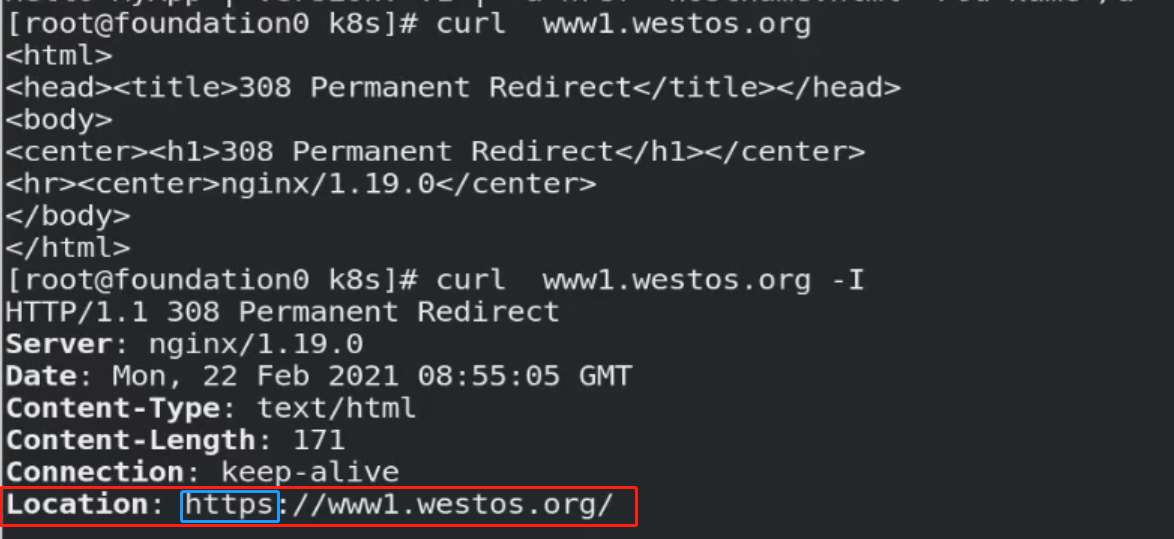

注意：上述nginx.yml文件中没有将两个svc分离，还在一个ingress服务中，因此在上述位置添加证书后会使两个后端同时生效，如果要分离开，可修改nginx.yml文件如下：

apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-demo
spec:
  tls:                          % 添加tls配置
    - hosts:
      - www1.westos.org
      secretName: tls-secret
  rules:
  - host: www1.westos.org
    http:
      paths:
      - path: /
        backend:
          serviceName: myservice
          servicePort: 80
---
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-demo2
spec:
  - host: www2.westos.org
    http:
      paths:
      - path: /
        backend:
          serviceName: nginx-svc
          servicePort: 80

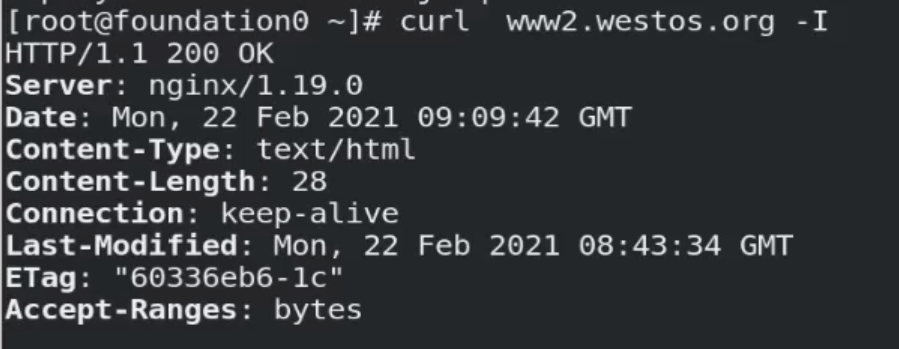

在这里插入图片描述

四、Ingress 认证配置

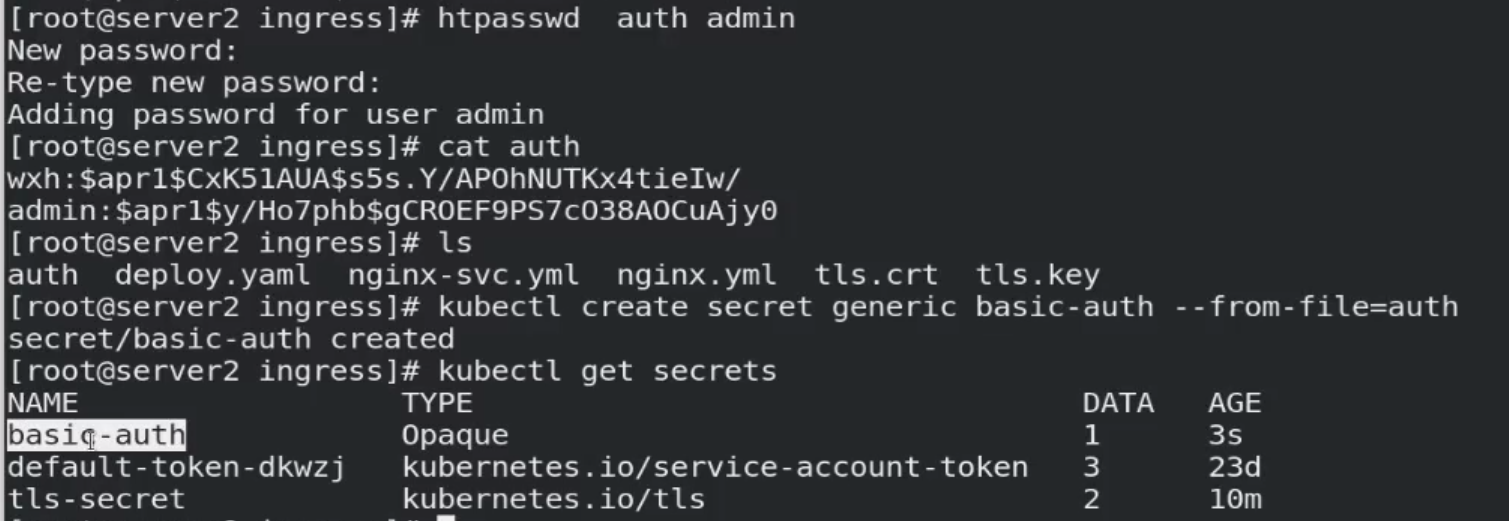

yum install -y httpd-tools   % 安装相应工具

htpasswd -c auth wxh    % 创建认证用户及密码
New password:
Re-type new password:
Adding password for user xxx
kubectl create secret generic basic-auth --from-file=auth %将认证信息存到secret中的auth文件中

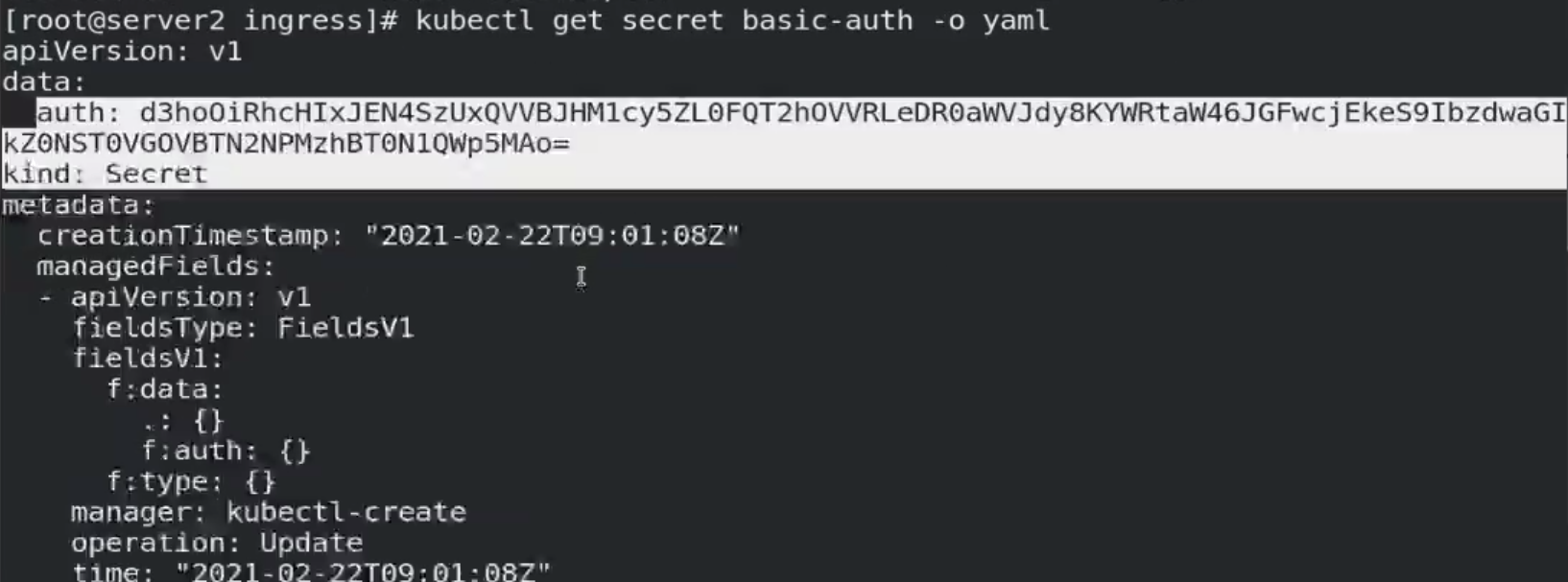

kubectl get secret basic-auth -o yaml   %查看认证信息

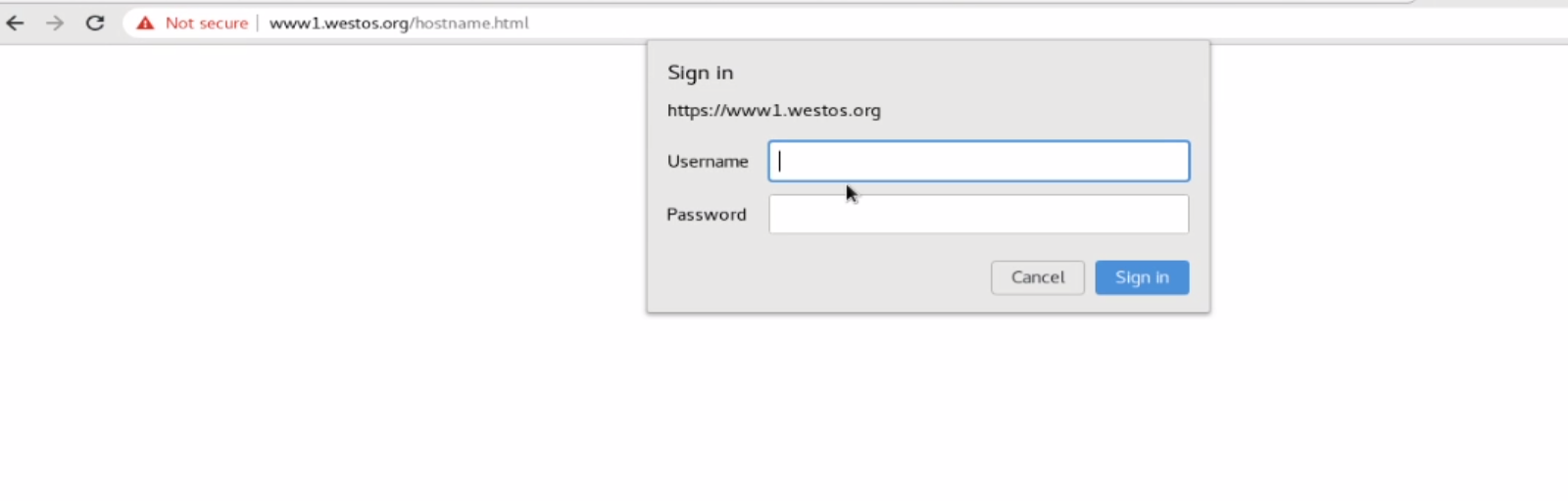

更改nginx.yml文件，激活认证：
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-demo
  annotations:                   % 添加认证信息
    nginx.ingress.kubernetes.io/auth-type: basic
    nginx.ingress.kubernetes.io/auth-secret: basic-auth
    nginx.ingress.kubernetes.io/auth-realm: 'Authentication Required - xxx'
spec:
  tls:
    - hosts:
      - www1.westos.org
      secretName: tls-secret
  rules:
  - host: www1.westos.org
    http:
      paths:
      - path: /
        backend:
          serviceName: myservice
          servicePort: 80
---
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-demo2
spec:
  - host: www2.westos.org
    http:
      paths:
      - path: /
        backend:
          serviceName: nginx-svc
          servicePort: 80

在这里插入图片描述

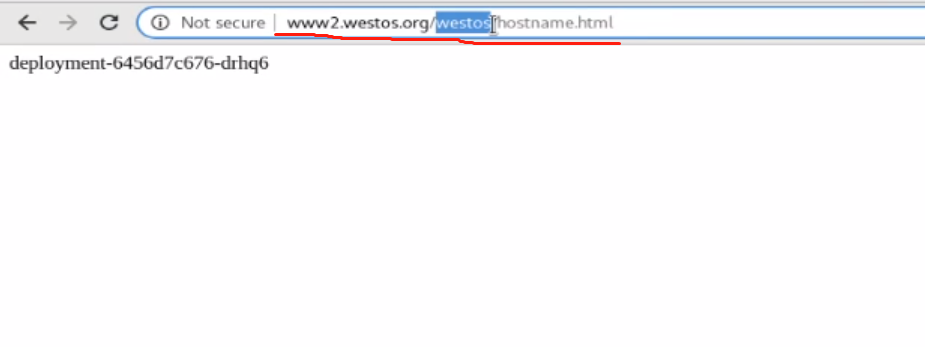

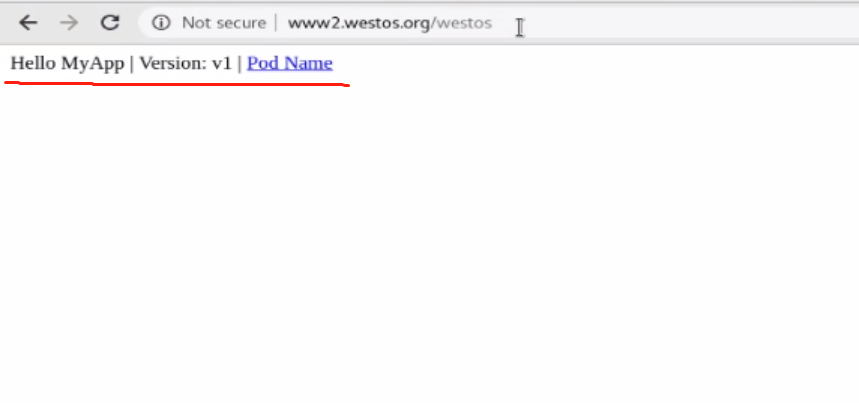

五、Ingress地址重写

重写可使访问域名时直接重定向到某个页面下
修改nginx.yml文件如下：
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-demo
  annotations:
    nginx.ingress.kubernetes.io/auth-type: basic
    nginx.ingress.kubernetes.io/auth-secret: basic-auth
    nginx.ingress.kubernetes.io/auth-realm: 'Authentication Required - xxx'
spec:
  tls:
    - hosts:
      - www1.westos.org
      secretName: tls-secret
  rules:
  - host: www1.westos.org
    http:
      paths:
      - path: /
        backend:
          serviceName: myservice
          servicePort: 80
---
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
  name: ingress-demo2
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /$2    % 定义重写对象参数
spec:
  rules:
  - host: www2.westos.org
    http:
      paths:
      - backend:
          serviceName: nginx-svc
          servicePort: 80
        path: /westos(/|$)(.*)     % 定义重写规则
