一、更改NodePort端口范围
kubeadm 更改NodePort端口范围
kubernetes默认端口号范围是 30000-32767 ,如果期望值不是这个区间则需要更改。

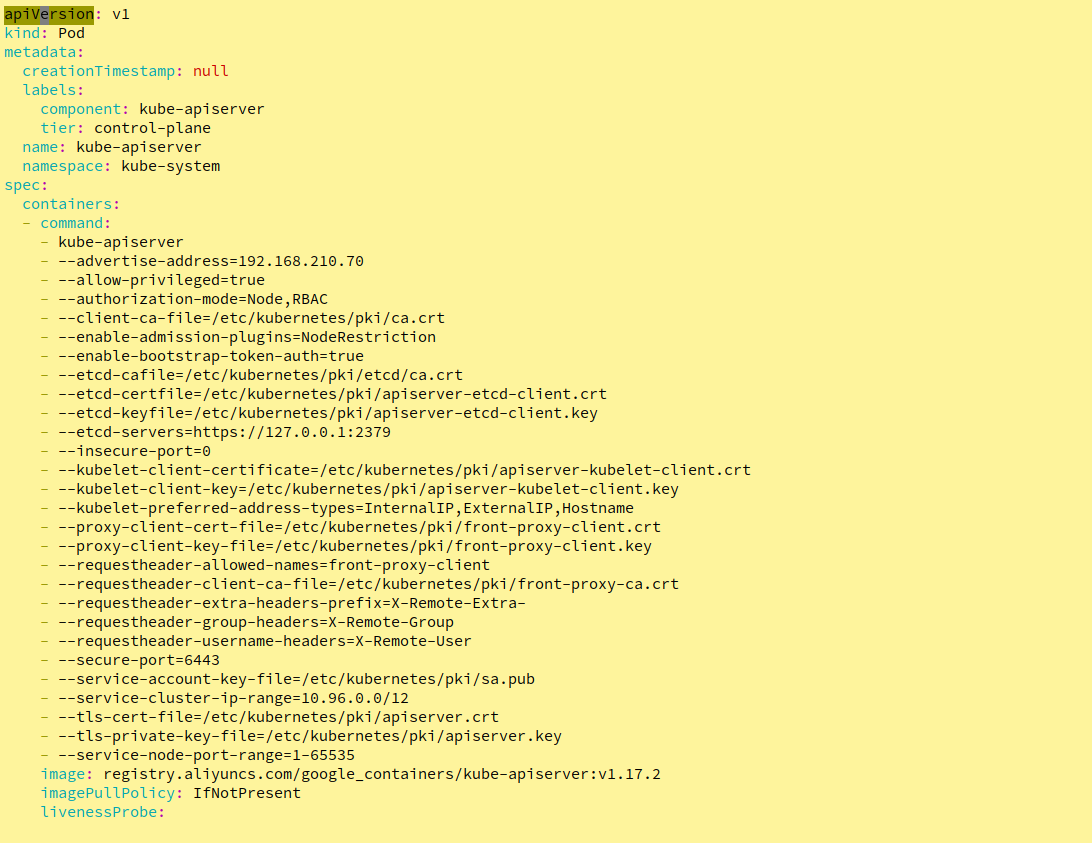

vim /etc/kubernetes/manifests/kube-apiserver.yaml
编辑添加配置 service-node-port-range=1-65535
保存后,稍等10秒左右会自动生效
二、部署ingress插件
ingress 官网https://kubernetes.github.io/ingress-nginx/deploy/

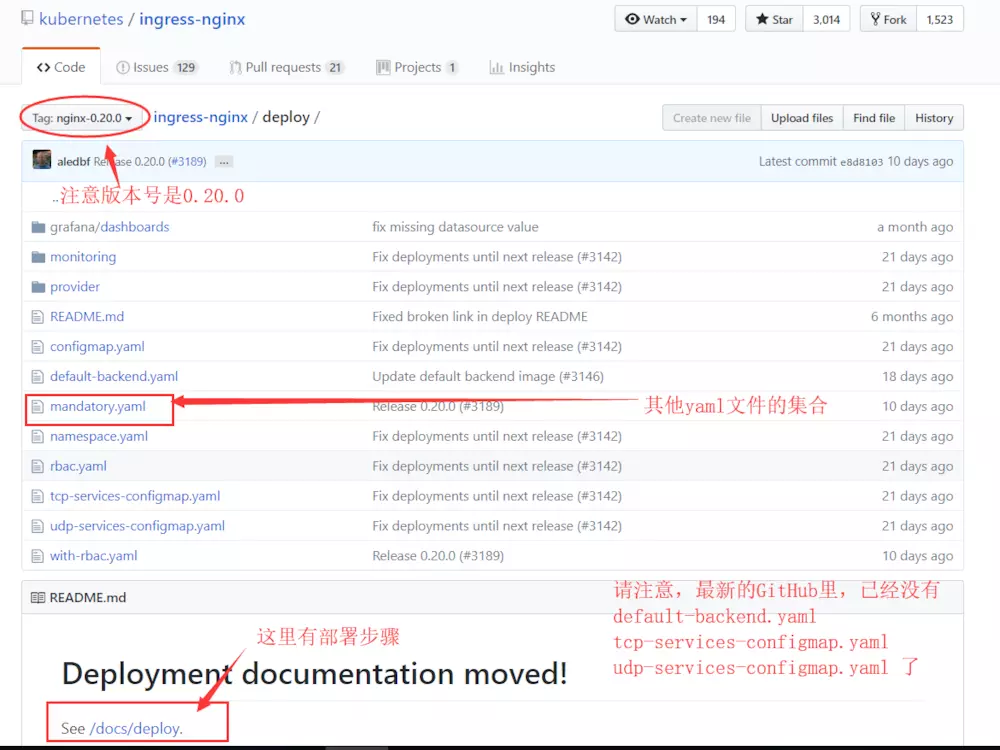

获取配置文件位置: https://github.com/kubernetes/ingress-nginx/tree/nginx-0.20.0/deploy
1.namespace.yaml
创建一个独立的命名空间 ingress-nginx
2.configmap.yaml
ConfigMap是存储通用的配置变量的,类似于配置文件,使用户可以将分布式系统中用于不同模块的环境变量统一到一个对象中管理;而它与配置文件的区别在于它是存在集群的“环境”中的,并且支持K8S集群中所有通用的操作调用方式。
从数据角度来看,ConfigMap的类型只是键值组,用于存储被Pod或者其他资源对象(如RC)访问的信息。这与secret的设计理念有异曲同工之妙,主要区别在于ConfigMap通常不用于存储敏感信息,而只存储简单的文本信息。
ConfigMap可以保存环境变量的属性,也可以保存配置文件。
创建pod时,对configmap进行绑定,pod内的应用可以直接引用ConfigMap的配置。相当于configmap为应用/运行环境封装配置。
pod使用ConfigMap,通常用于:设置环境变量的值、设置命令行参数、创建配置文件。3.default-backend.yaml
如果外界访问的域名不存在的话,则默认转发到default-http-backend这个Service,其会直接返回404:4.rbac.yaml
负责Ingress的RBAC授权的控制,其创建了Ingress用到的ServiceAccount、ClusterRole、Role、RoleBinding、ClusterRoleBinding5.with-rbac.yaml
是Ingress的核心,用于创建ingress-controller。前面提到过,ingress-controller的作用是将新加入的Ingress进行转化为Nginx的配置
更换国内镜像
sed -i 's#k8s.gcr.io/defaultbackend-amd64#registry.cn-beijing.aliyuncs.com/kaikai136/defaultbackend-amd64#g' mandatory.yaml
sed -i 's#quay.io/kubernetes-ingress-controller/nginx-ingress-controller#registry.cn-beijing.aliyuncs.com/kaikai136/nginx-ingress-controller#g' mandatory.yaml
修改Deployment apiVersion类型为apps/v1
vim /opt/plugin/ingress/ingress-nginx/deploy/mandatory.yaml
apiVersion: apps/v1
kind: Deployment
修改service-nodeport.yaml文件,添加NodePort端口,默认为随机端口
vim /opt/plugin/ingress/ingress-nginx/deploy/provider/baremetal/service-nodeport.yaml
apiVersion: v1
kind: Service
metadata:
name: ingress-nginx
namespace: ingress-nginx
labels:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
spec:
type: NodePort
ports:
- name: http
port: 80
targetPort: 80
protocol: TCP
nodePort: 80 #http
- name: https
port: 443
targetPort: 443
protocol: TCP
nodePort: 443 #https
selector:
app.kubernetes.io/name: ingress-nginx
app.kubernetes.io/part-of: ingress-nginx
部署nginx-ingress
kubectl apply -f /opt/plugin/ingress/ingress-nginx/deploy/mandatory.yaml
kubectl apply -f /opt/plugin/ingress/ingress-nginx/deploy/provider/baremetal/service-nodeport.yaml
部署测试
vim vh-ingress.yaml
apiVersion: apps/v1 kind: Deployment metadata: name: deployment1 spec: replicas: 2 selector: matchLabels: name: nginx template: metadata: labels: name: nginx spec: containers: - name: nginx image: nginx imagePullPolicy: IfNotPresent ports: - containerPort: 80 imagePullSecrets: - name: kaikai.txt-regcred --- apiVersion: v1 kind: Service metadata: name: svc-1 spec: ports: - port: 80 targetPort: 80 nodePort: 30902 protocol: TCP selector: name: nginx type: NodePort --- apiVersion: extensions/v1beta1 kind: Ingress metadata: name: ingress1 spec: rules: - host: www1.kaikai.txt.com http: paths: - path: / backend: serviceName: svc-1 servicePort: 80
kubectl apply -f vh-ingress.yaml
解析域名

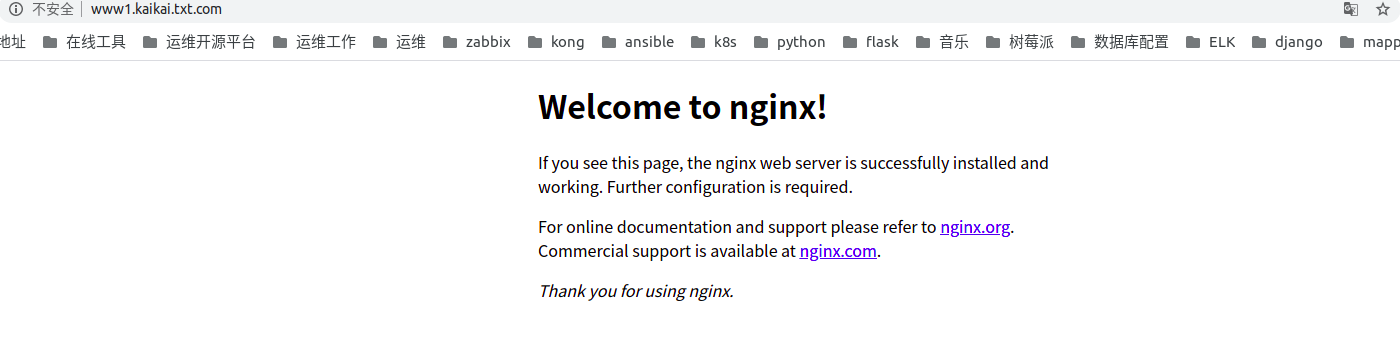

www1.kaikai.txt.com 为k8s任意节点 访问
