背景
最近在一个项目中遇到一个场景:需要服务器端发送字节数组byte[]给客户端,后台采用Java提供接口,前段采用HTML + JavaScript访问接口。
解决方案
服务器端
服务器端比较简单,直接提供一个接口即可,接口返回 byte[ ] 数组。
package com.xl.projects.interactiondemo.controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
/**
*
* @author Administrator
*
*/
@RestController
public class ByteArrayInteractionController {
@GetMapping("/get")
public byte[] byteArrayInteraction(HttpServletResponse response) {
response.setHeader("Access-Control-Allow-Origin", "*");// 解决跨域问题
// 这里为了测试直接创建的一个byte数组,
// 实际应用的时候可根据具体的业务需求将图片、文件、文字、数字等转成byte数组
byte[] bts = new byte[] {
1,23,22,21,55};
return bts;
}
}

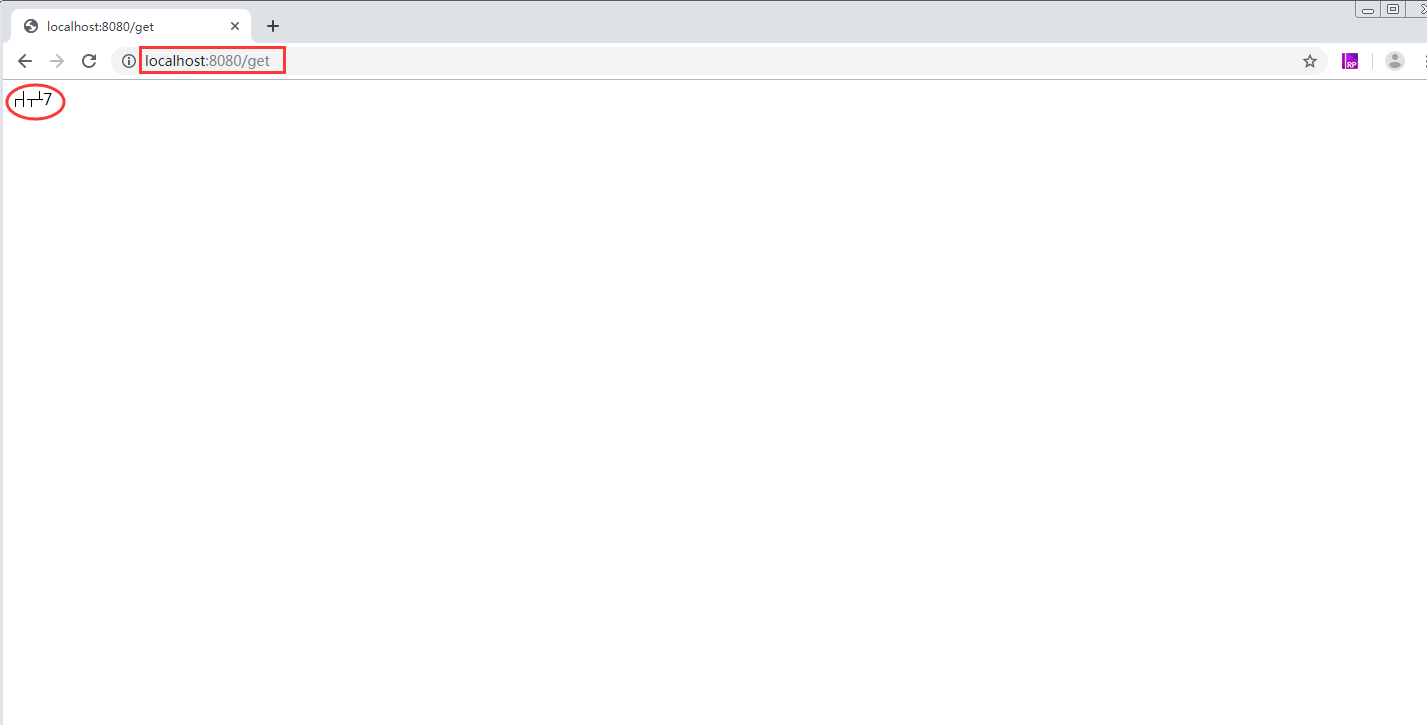

浏览器输入地址(这里的接口是发布在本机上的):localhost:8080/get
如图显示为乱码(这是因为浏览器默认的设置导致的),不过,没关系这一步主要是验证接口可以正常访问。客户端要想得到期望的数据 byte[],则需要使用XMLHttpReqeust来请求接口。
客户端
客户端的代码才是该问题的重点!!
使用的主要技术点是XMLHttpReqeust,为什么XMLHttpReqeust可以解决这个问题?原因在于:XMLHttpReqeust的对应有一个responseType属性,通过设置该属性的值可以改变服务器端返回的响应类型。responseType的取值可以是“arraybuffer”、“blob”、“document”、“json”以及“text”,默认值是“”(空串)。另外一个属性response用于接收不同类型的responseType返回的实体,即是如果responseType="arraybuffer"则返回的response的内容为byte[],如果responseType="json"则返回的response的内容为json。下面为代码:
<!DOCTYPE html>
<html>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<head>
<title>Welcome</title>
<script type="text/javascript" src="http://ajax.microsoft.com/ajax/jquery/jquery-1.4.min.js"></script>
</head>
<body>
<div style="margin: auto;text-align: center">
<h1>Welcome hahha1 </h1>
</div>
</body>
<script type="text/javascript">
var oReq = new XMLHttpRequest();
oReq.open("GET", "http://127.0.0.1:8080/get", true);
oReq.responseType = "arraybuffer";
oReq.onload = function (oEvent) {
var arrayBuffer = oReq.response; // Note: not oReq.responseText
if (arrayBuffer) {
var byteArray = new Uint8Array(arrayBuffer);
for (var i = 0; i < byteArray.byteLength; i++) {
// do something with each byte in the array
console.log(byteArray[i]);
}
}
};
oReq.send(null);
</script>
</html>

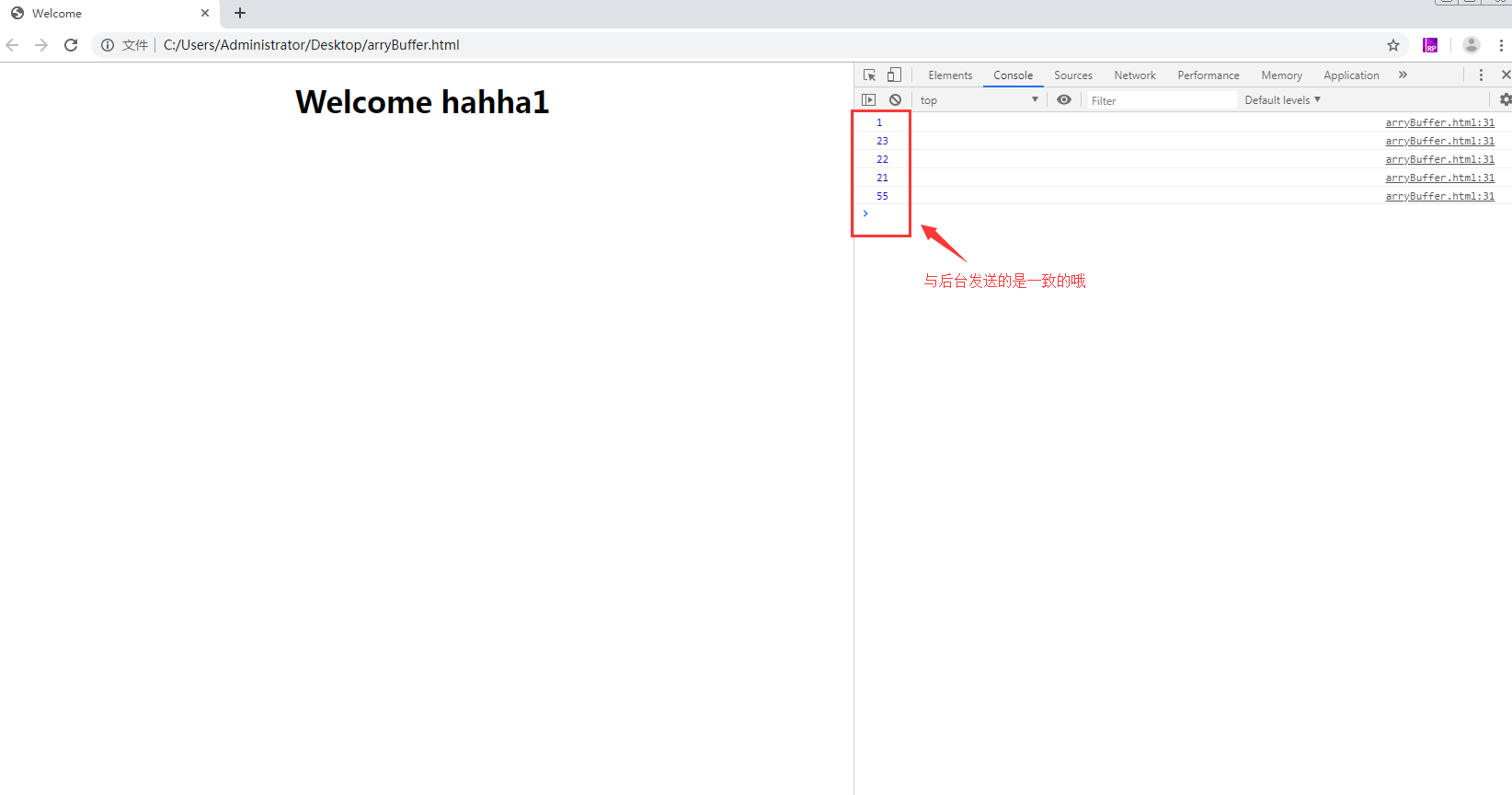

将以上html文件使用浏览器打开,打开浏览器控制台即可看到接收到byte[ ] ,客户端接收到byte[ ]数组后就可以根据具体的业务需求进行操作该byte[ ]了。
***参考资料:***https://developer.mozilla.org/en-US/docs/Web/API/XMLHttpRequest/Sending_and_Receiving_Binary_Data
