任务要求:
设计一个串口,有一个QLabel,两个QPushbutton。
当点击按钮1时让QLabel中文字在"你好"和"再见"之间切换。
当点击按钮2时让QLable中文字的颜色在绿色和红色之间切换。
QT工程的创建请跳转:https://blog.csdn.net/weixin_43793181/article/details/109519743
main.c
#include "widget.h"
#include <QApplication>
int main(int argc, char *argv[])
{
QApplication a(argc, argv);
Widget w;
w.resize(800,480);
w.show();
return a.exec();
}
widget.h
#ifndef WIDGET_H
#define WIDGET_H
#include <QWidget>
#include <QLabel>
#include <QPushButton>
class Widget : public QWidget
{
Q_OBJECT
public:
Widget(QWidget *parent = nullptr);
~Widget();
signals:
void testclicked();
private slots:
int myclicked1();
int myclicked2();
int myclicked3();
private:
int string_flag = 0;
int color_flag = 0;
QLabel *lab;
QPushButton *button1;
QPushButton *button2;
QPushButton *button3;
};
#endif // WIDGET_H
widget.cpp
#include "widget.h"
#include <QDebug>
Widget::Widget(QWidget *parent) :
QWidget(parent)
{
lab = new QLabel(this);
button1 = new QPushButton("1",this);
button2 = new QPushButton("2",this);
button3 = new QPushButton("退出",this);
button1->move(200,400);
button2->move(500,400);
button3->move(680,0);
QObject::connect(button1,SIGNAL(clicked()),this,SLOT(myclicked1()));
QObject::connect(button2,SIGNAL(clicked()),this,SLOT(myclicked2()));
QObject::connect(button3,SIGNAL(clicked()),this,SLOT(myclicked3()));
}
int Widget :: myclicked1()
{
if(string_flag == 0)
{
string_flag =1;
lab->setText("你好!");
lab->move(350,100);
lab->resize(300,200);
QFont font("Times",30,5,false);
lab->setFont(font);
QPalette p;
QColor color(0,0,0);
p.setColor(QPalette::WindowText,color);
lab->setPalette(p);
return 0;
}
else
{
string_flag = 0;
lab->setText("再见!");
lab->move(350,100);
lab->resize(300,200);
QFont font("Times",30,5,false);
lab->setFont(font);
QPalette p;
QColor color(0,0,0);
p.setColor(QPalette::WindowText,color);
lab->setPalette(p);
return 0;
}
}
int Widget :: myclicked2()
{
if(color_flag == 0)
{
QPalette p;
QColor color(0,255,0);
p.setColor(QPalette::WindowText,color);
lab->setPalette(p);
color_flag =1;
return 0;
}
else
{
QPalette p;
QColor color(255,0,0);
p.setColor(QPalette::WindowText,color);
lab->setPalette(p);
color_flag = 0;
return 0;
}
}
int Widget :: myclicked3()
{
exit(0);
}
Widget::~Widget()
{
}

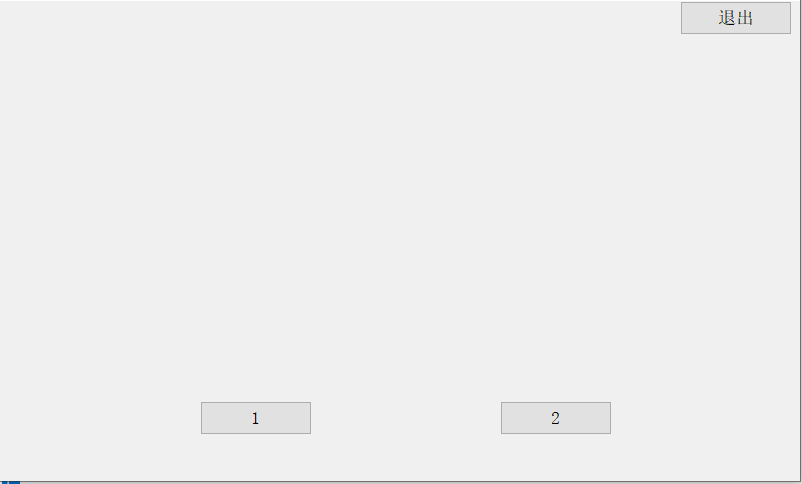

程序运行会弹出如下窗口

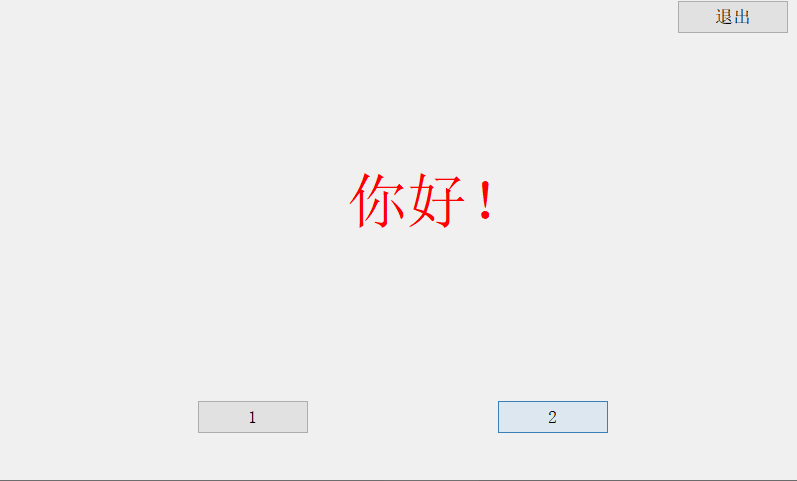

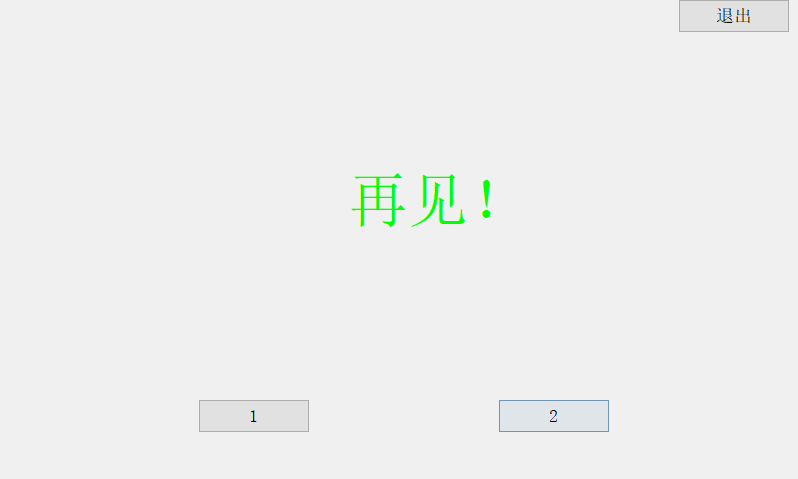

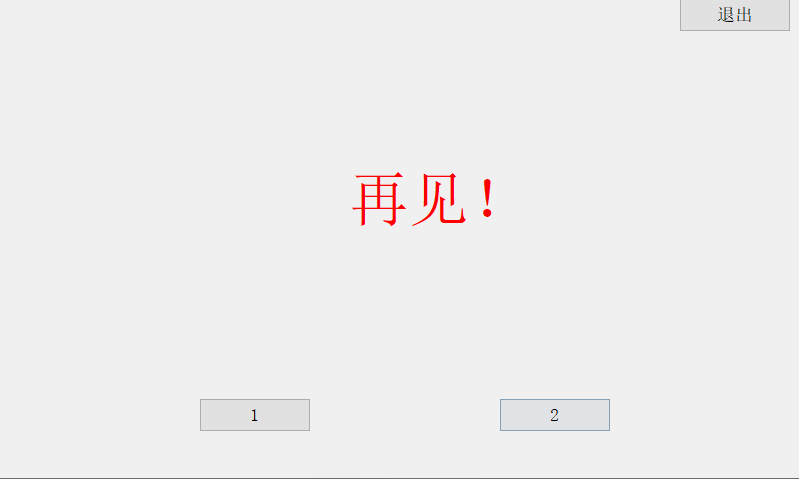

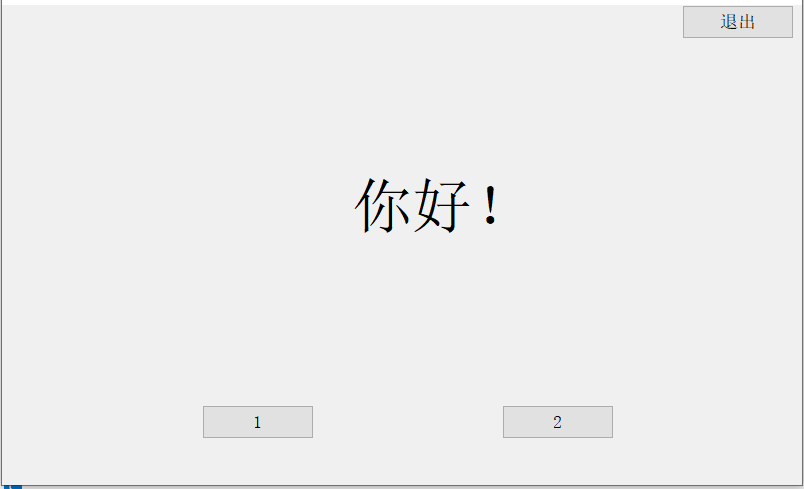

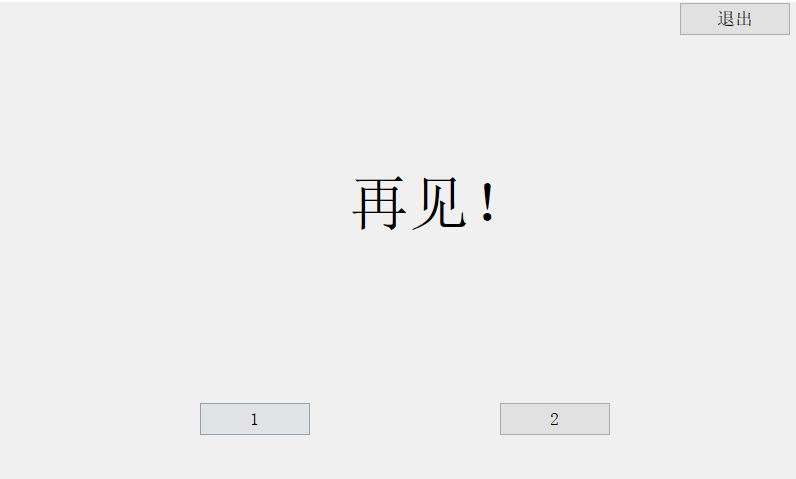

接着按1,2,2,1,2,2,对应效果如下
