案例-模拟美团商家上下线

模拟美团服务平台，商家营业通知，商家打烊通知
提前在根节点下，创建好 /meituan 节点

商家服务类

/**
 * @Program: test-zookeeper
 * @Author: XiaoXing
 * @Create: 2021-01-12 21:56
 * @Description: 商家服务类
 **/
public class ShopServer {



    //zookeeper集群的IP和端口
    private String connectString = "106.75.245.83:2181,106.75.245.83:2181,106.75.245.83:2181";

    //session超时时间，毫秒单位，此处为60秒
    //时间不宜设置太小，因为zookeeper和加载集群环境会因为性能等原因而延迟略高
    //如果时间太少，还没有创建好客户端，就开始创建节点，会报错
    private int sesionTimeout = 60 * 1000;

    //zookeeper客户端对象
    private ZooKeeper zooKeeperClient;

    /**
     * 创建连接zookeper方法
     */
    public void conntect(){



        /**
         * new Watcher()：监听器
         */
        try {


            zooKeeperClient = new ZooKeeper(connectString, sesionTimeout, new Watcher() {


                public void process(WatchedEvent watchedEvent) {



                }
            });
        } catch (IOException e) {


            e.printStackTrace();
        }

    }

    /**
     * 注册到zookeeper
     * @param shopName
     */
    public void register(String shopName){


        try {


            //一定要创建临时有顺序节点  CreateMode.EPHEMERAL_SEQUENTIA
            //以来可以自动编号，二来断开时，节点自动删除（打样）
            String string = zooKeeperClient.create("/meituan/shop", shopName.getBytes(), ZooDefs.Ids.OPEN_ACL_UNSAFE, CreateMode.EPHEMERAL_SEQUENTIAL);
            System.out.println("【" + shopName + "】开始营业！" + string);
        } catch (KeeperException e) {


            e.printStackTrace();
        } catch (InterruptedException e) {


            e.printStackTrace();
        }
    }

    /**
     * 做生意
     * @param shopName
     */
    private void business(String shopName) {


        System.out.println("【" + shopName + "】正在火爆营业中！");
        try {


            //线程等待
            System.in.read();
        } catch (IOException e) {


            e.printStackTrace();
        }
    }

    public static void main(String[] args) {


        //连接zookeeper集群
        ShopServer shop = new ShopServer();
        //和美团取得联系
        shop.conntect();;
        //入住美团，将服务节点注册到zookeeper
        shop.register(args[0]);
        //业务逻辑处理
        shop.business(args[0]);
    }

}

客户类

/**
 * @Program: test-zookeeper
 * @Author: XiaoXing
 * @Create: 2021-01-12 22:07
 * @Description: 客户消费者
 **/
public class Customers {



    //zookeeper集群的IP和端口
    private String connectString = "106.75.245.83:2181,106.75.245.83:2181,106.75.245.83:2181";

    //session超时时间，毫秒单位，此处为60秒
    //时间不宜设置太小，因为zookeeper和加载集群环境会因为性能等原因而延迟略高
    //如果时间太少，还没有创建好客户端，就开始创建节点，会报错
    private int sesionTimeout = 60 * 1000;

    //zookeeper客户端对象
    private ZooKeeper zooKeeperClient;

    /**
     * 创建连接zookeper方法
     */
    public void conntect() {



        /**
         * new Watcher()：监听器
         */
        try {


            zooKeeperClient = new ZooKeeper(connectString, sesionTimeout, new Watcher() {


                public void process(WatchedEvent watchedEvent) {


                    //重新再次获取商家列表
                    getShopList();
                }
            });
        } catch (IOException e) {


            e.printStackTrace();
        }

    }

    /**
     * 获取商家，获取子节点列表
     */
    private void getShopList() {


        try {


            //获取服务器子节点，并对父节点进行监听
            List<String> shops = zooKeeperClient.getChildren("/meituan", true);
            //声明储存服务器信息集合
            ArrayList<String> shopList = new ArrayList<>();
            shops.forEach(item -> {


                try {


                    //获取节点上数据，某一个商店
                    byte[] data = zooKeeperClient.getData("/meituan/" + item, false, new Stat());
                    shopList.add(new String(data));
                } catch (KeeperException e) {


                    e.printStackTrace();
                } catch (InterruptedException e) {


                    e.printStackTrace();
                }
            });
            System.out.println("目前正在营业的商家：" + shopList);
        } catch (KeeperException e) {


            e.printStackTrace();
        } catch (InterruptedException e) {


            e.printStackTrace();
        }
    }

    /**
     * 做生意
     */
    private void business() {


        System.out.println("客户正在浏览商家。。。");
        try {


            //线程等待
            System.in.read();
        } catch (IOException e) {


            e.printStackTrace();
        }
    }

    public static void main(String[] args) {


        Customers client = new Customers();
        //获得zookeeper连接，打开美团
        client.conntect();
        //获取美团下的子节点，获取商家列表
        client.getShopList();
        //业务逻辑处理，对比商家，下单点餐
        client.business();
    }

}

运行商家服务类（以main方法带参数的形式运行）

案例-分布式锁-商品秒杀

• 锁：我们在多线程中接触过，作用就是让当前的资源不会被其他线程访问！

  • 我的日记本，不可以被别人看到。所以要锁在保险柜中
  • 当我打开锁，将日记本拿走了，别人才能使用这个保险柜

• 在zookeeper中使用传统的锁引发的 “羊群效应” ：1000个人创建节点，只有一个人能成功，999人需要等待！

• 羊群是一种很散乱的组织，平时在一起也是盲目地左冲右撞，但一旦有一只头羊动起来，其他的羊也会不假思索地一哄而上，全然不顾旁边可能有的狼和不远处更好的草。羊群效应就是比喻人都有一种从众心理，从众心理很容易导致盲从，而盲从往往会陷入骗局或遭到失败。

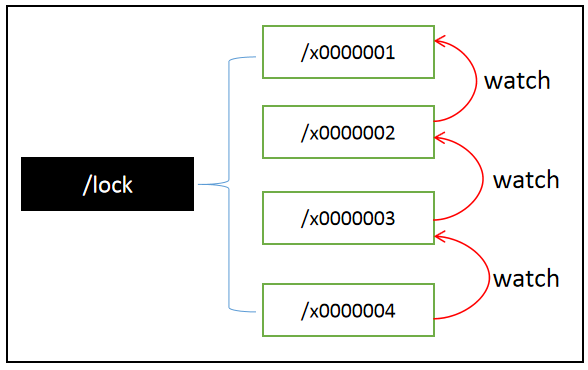

• 避免“羊群效应”，zookeeper采用分布式锁

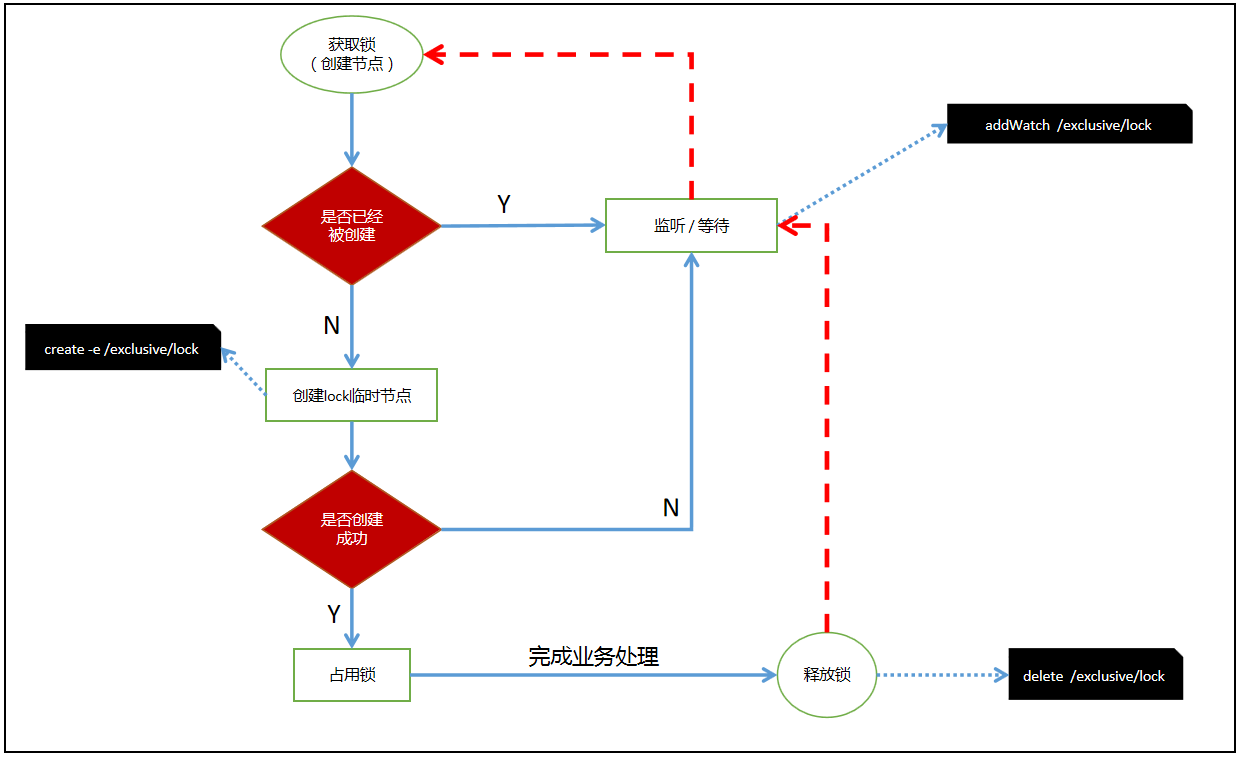

1. 所有请求进来，在/lock下创建 临时顺序节点 ，放心，zookeeper会帮你编号排序
2. 判断自己是不是/lock下最小的节点
   1. 是，获得锁（创建节点）
   2. 否，对前面小我一级的节点进行监听
3. 获得锁请求，处理完业务逻辑，释放锁（删除节点），后一个节点得到通知（比你年轻的死了，你成为最嫩的了）
4. 重复步骤2

实现步骤

<packaging>war</packaging>
<properties>
    <spring.version>5.2.7.RELEASE</spring.version>
</properties>
<dependencies>
    <!-- Spring -->
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-context</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-beans</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-webmvc</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-jdbc</artifactId>
        <version>${spring.version}</version>
    </dependency>
    <!-- Mybatis -->
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis</artifactId>
        <version>3.5.5</version>
    </dependency>
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis-spring</artifactId>
        <version>2.0.5</version>
    </dependency>
    <!-- 连接池 -->
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid</artifactId>
        <version>1.1.10</version>
    </dependency>
    <!-- 数据库 -->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>8.0.20</version>
    </dependency>
    <!-- junit -->
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.12</version>
        <scope>test</scope>
    </dependency>
</dependencies>
<build>
    <plugins>
        <!-- maven内嵌的tomcat插件 -->
        <plugin>
            <groupId>org.apache.tomcat.maven</groupId>
            <!-- 目前apache只提供了tomcat6和tomcat7两个插件 -->
            <artifactId>tomcat7-maven-plugin</artifactId>
            <version>2.2</version>
            <configuration>
                <port>8001</port>
                <path>/</path>
            </configuration>
            <executions>
                <execution>
                    <!-- 打包完成后,运行服务 -->
                    <phase>package</phase>
                    <goals>
                        <goal>run</goal>
                    </goals>
                </execution>
            </executions>
        </plugin>
    </plugins>
</build>

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

    <!--开启驼峰命名-->
    <settings>
        <!-- 是否开启自动驼峰命名规则（camel case）映射，即从数据库列名 A_COLUMN 到属性名aColumn 的类似映射 a_name aName-->
        <setting name="mapUnderscoreToCamelCase" value="true"/>
        <!-- 后台的日志输出：针对开发者-->
        <setting name="logImpl" value="STDOUT_LOGGING"/>
    </settings>

</configuration>

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:p="http://www.springframework.org/schema/p"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        https://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/aop
        http://www.springframework.org/schema/aop/spring-aop.xsd
        http://www.springframework.org/schema/tx
        https://www.springframework.org/schema/tx/spring-tx.xsd">


    <!--开启注解扫描-->
    <context:component-scan base-package="com.szx.*"></context:component-scan>

    <!--引入数据库配置文件-->
    <context:property-placeholder location="classpath:jdbc.properties"></context:property-placeholder>

    <!--配置数据源-->
    <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
        <property name="driverClassName" value="${jdbc.driver}"/>
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>

    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--连接数据源-->
        <property name="dataSource" ref="dataSource"></property>
        <!--配置别名-->
        <property name="typeAliasesPackage" value="com.szx.pojo"></property>
        <!--引入mybatis配置文件-->
        <property name="configLocation" value="classpath:mybatis/mybatis-config.xml"></property>
    </bean>

    <!--事务管理器-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!--注入数据源-->
        <property name="dataSource" ref="dataSource"></property>
    </bean>

    <!--开启事务-->
    <tx:annotation-driven></tx:annotation-driven>

</beans>

/**
 * @Program: zk_product
 * @Author: XiaoXing
 * @Create: 2021-01-13 18:29
 * @Description: 订单Mapper层
 **/
@Mapper
public interface OrderMapper {



    /**
     * 添加订单信息
     * @param order
     * @return
     */
    @Insert("insert into `order`(id,pid,userid) values(#{id},#{pid},#{userid})")
    public int insert(Order order);

}

/**
 * @Program: zk_product
 * @Author: XiaoXing
 * @Create: 2021-01-13 18:30
 * @Description: 商品Mapper层
 **/
@Mapper
public interface ProductMapper {



    /**
     * 查询商品（目的查询库存）
     * @param id
     * @return
     */
    @Select("select * from product where id = #{id}")
    public Product getProduct(@Param("id")int id);

    /**
     * 减库存
     * @param id
     * @return
     */
    @Update("update product set stock = stock - 1 where id = #{id}")
    public int reduceStock(@Param("id")int id);

}

/**
 * @Program: zk_product
 * @Author: XiaoXing
 * @Create: 2021-01-13 18:31
 * @Description: 商品服务接口
 **/
public interface ProductService {



    /**
     * 减库存
     * @param id
     */
    public void reduceStock(int id);

}

/**
 * @Program: zk_product
 * @Author: XiaoXing
 * @Create: 2021-01-13 18:32
 * @Description: 商品服务接口实现类
 **/
@Service("productService")
public class ProductServiceImpl implements ProductService {



    @Autowired
    private ProductMapper productMapper;

    @Autowired
    private OrderMapper orderMapper;

    /**
     * 减库存
     * @param id
     */
    public void reduceStock(int id) {


        //获取库存，根据商品id查询商品
        Product product = productMapper.getProduct(id);
        //判断商品库存
        if (product.getStock() <= 0){


            throw new RuntimeException("抢光了，你来晚了呦。。。。");
        }
        //减库存
        int i = productMapper.reduceStock(id);
        //判断是否成功
        if (i == 1){


            //生成订单
            orderMapper.insert(new Order(UUID.randomUUID().toString(),id,101));
        } else {


            throw new RuntimeException("哎呀，咋没减去库存。。。。");
        }
    }

}

/**
 * @Program: zk_product
 * @Author: XiaoXing
 * @Create: 2021-01-13 18:26
 * @Description: 控制层
 **/
@Controller
@MapperScan("com.szx.mapper")
public class ProductActionController {



    @Autowired
    private ProductService productService;

    /**
     * 减库存控制器
     * @param id
     * @return
     */
    @GetMapping("/product/reduce")
    @ResponseBody
    public Object reduce(int id){


        productService.reduceStock(id);
        return "ok";
    }

}

Zookeeper分布式锁（Curator）

/**
 * @Program: zk_product
 * @Author: XiaoXing
 * @Create: 2021-01-13 18:26
 * @Description: 控制层
 **/
@Controller
@MapperScan("com.szx.mapper")
public class ProductActionController {



    //zookeeper集群的IP和端口
    private String connectString = "106.75.245.83:2181,106.75.245.83:2181,106.75.245.83:2181";

    @Autowired
    private ProductService productService;

    /**
     * 减库存控制器
     * @param id
     * @return
     */
    @GetMapping("/product/reduce")
    @ResponseBody
    public Object reduce(int id){


        //重试策略（1000毫秒试一次，最多试三次）
        RetryPolicy retryPolicy = new ExponentialBackoffRetry(1000, 3);
        //创建curator工具对象
        CuratorFramework client = CuratorFrameworkFactory.newClient(connectString, retryPolicy);
        //启动
        client.start();
        //根据客户端工具对象创建内部互斥锁
        InterProcessMutex lock = new InterProcessMutex(client,"/product_" + id);
        //加锁
        try {


            lock.acquire();
            productService.reduceStock(id);
        } catch (Exception e) {


            if (e instanceof RuntimeException){


                try {


                    throw e;
                } catch (Exception ex) {


                    ex.printStackTrace();
                }
            }
        } finally {


            try {


                //释放锁
                lock.release();
            } catch (Exception e) {


                e.printStackTrace();
            }
        }
        return "ok";
    }

}
