java8在线API:https://www.matools.com/api/java8

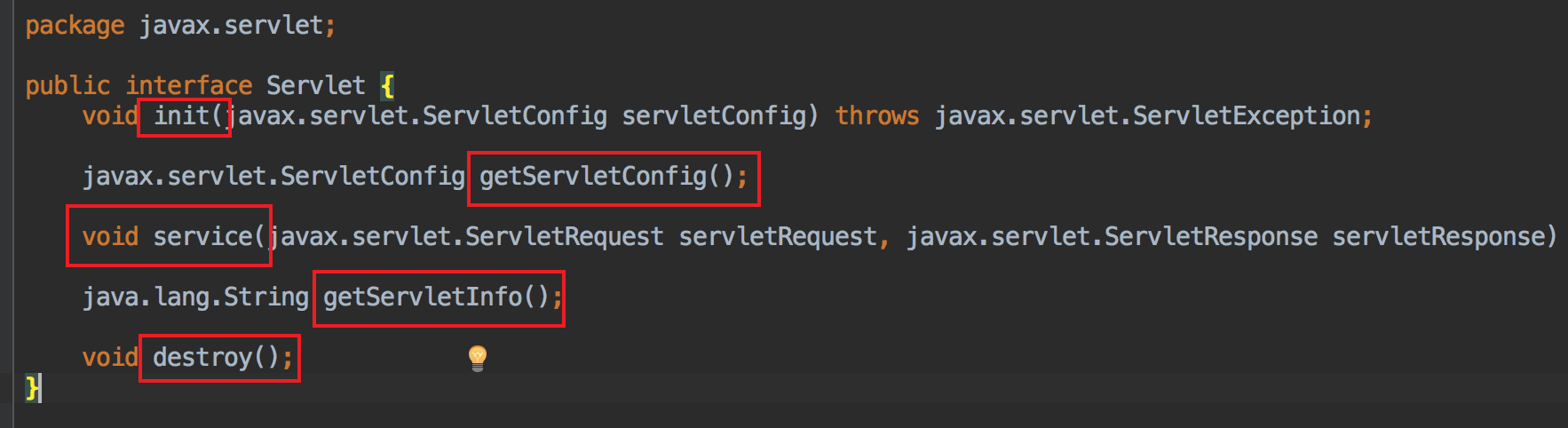

1、Servlet 接口

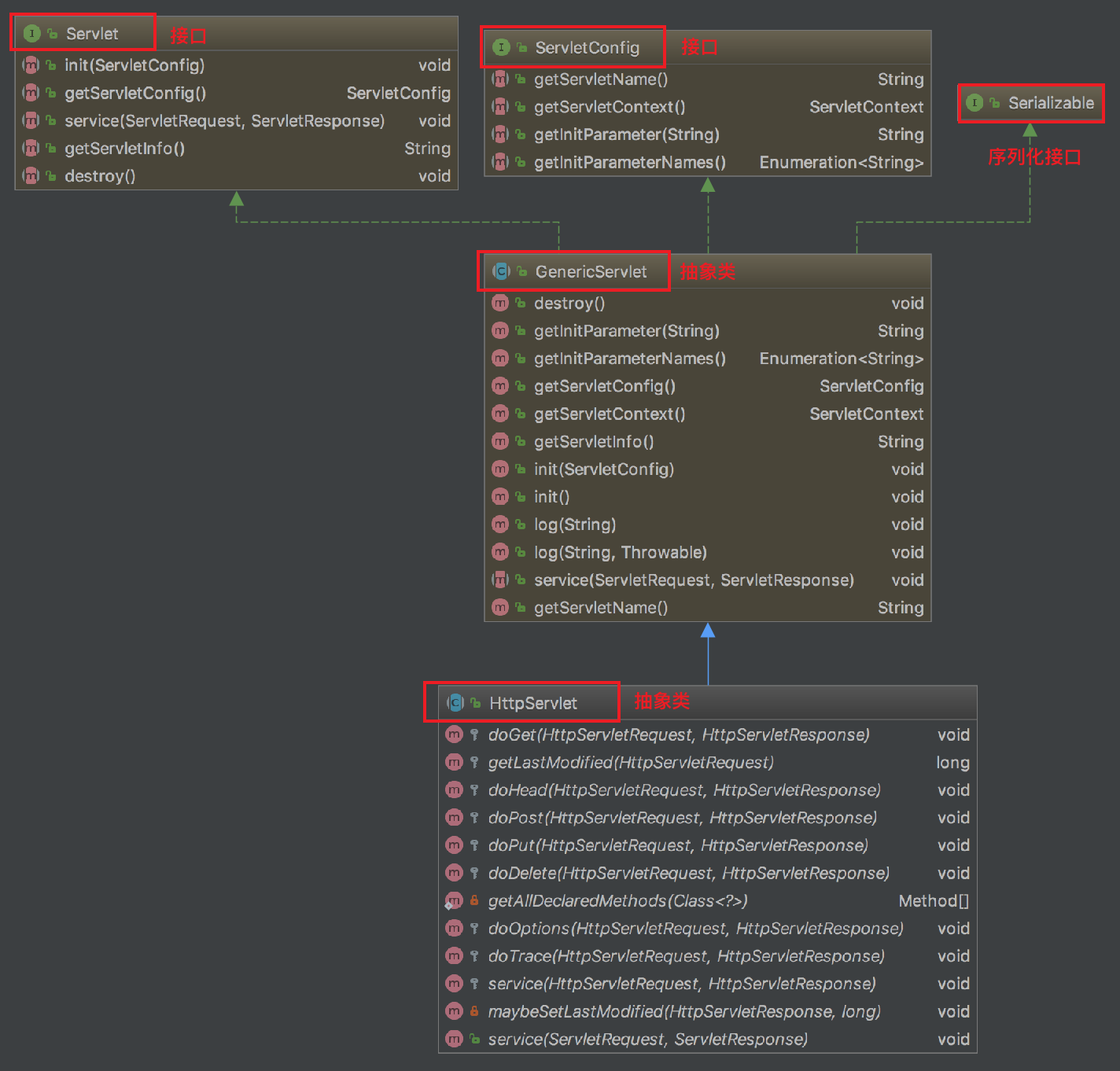

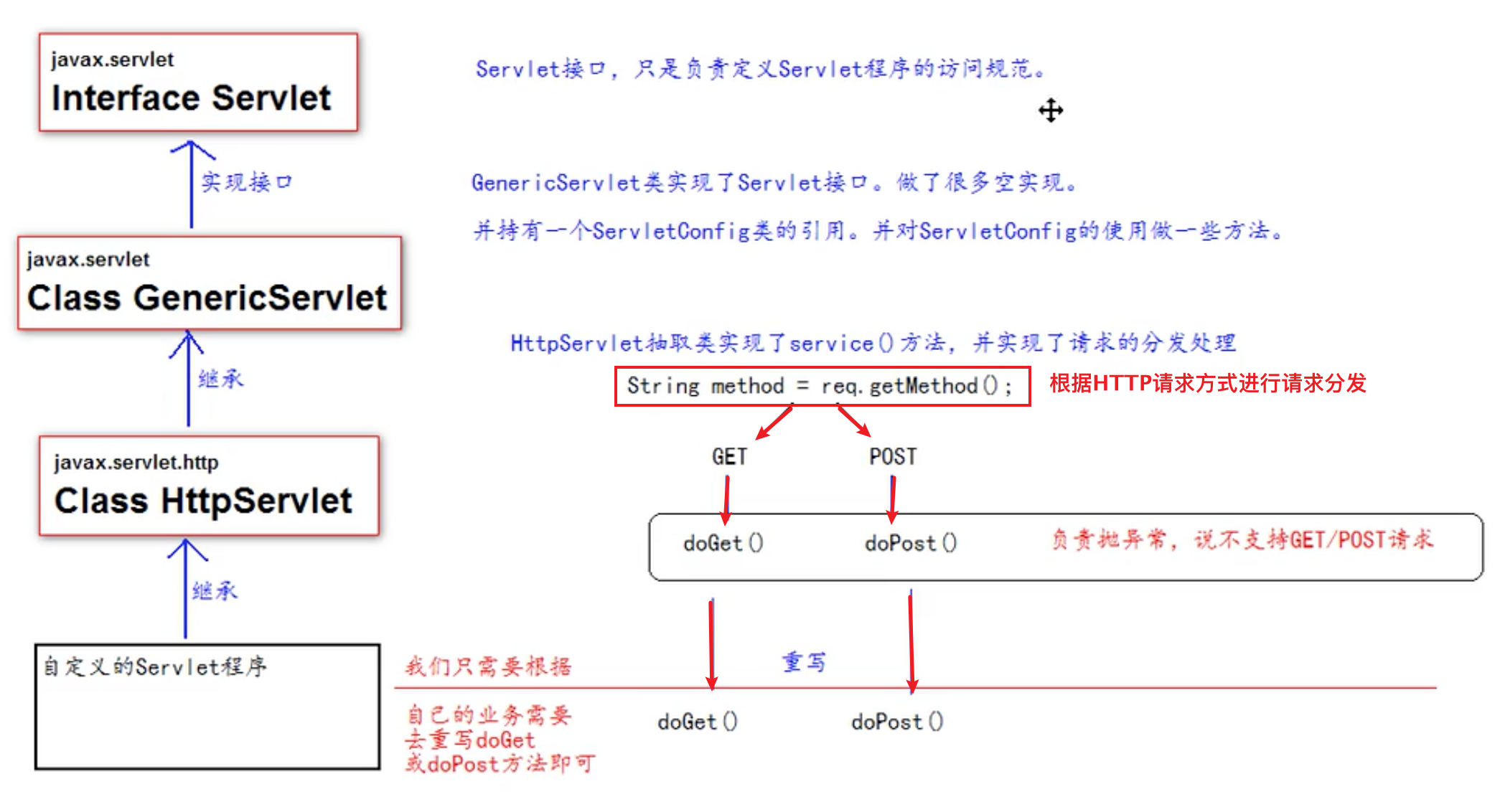

1.1、Servlet 接口的继承体系
2、ServletConfig 接口

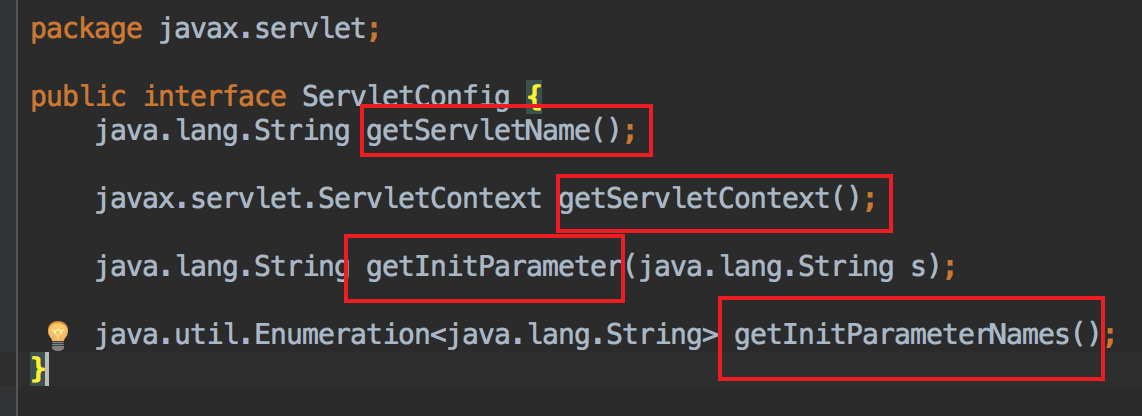

2.1 ServletConfig 接口描述
从名字来看,得知 ServletConfig 接口中是 Servlet 程序的配置信息:
(1)Servlet程序和ServletConfig对象都是由Tomcat负责创建,编程人员负责使用。
(2)Servlet程序默认是第一次访问时创建(不访问不创建),每个Servlet程序创建时会对应的创建ServletConfig对象,二者相互对应。某个Servlet程序只可以获得与它对应的ServletConfig对象,无法获得别的Servlet程序的ServletConfig对象。

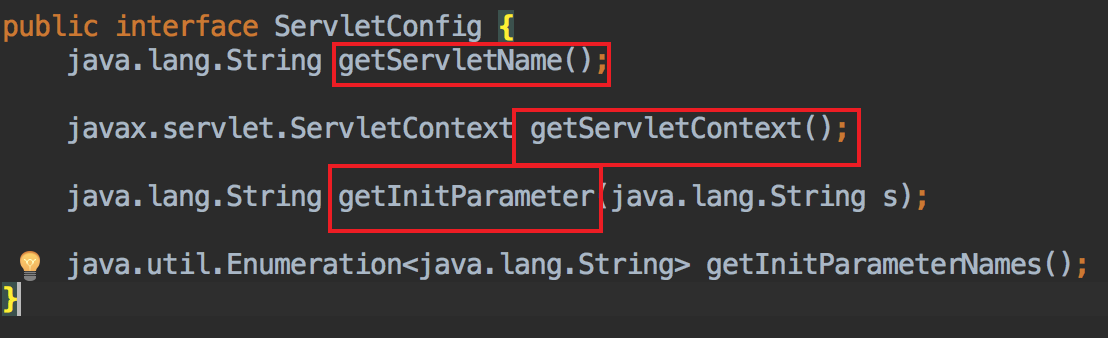

2.2 ServletConfig 接口的三大作用
(1)可以获取Servlet程序的别名(即web.xml中配置的Servlet程序的别名)。
(2)可以获取web.xml中配置的初始化参数。
(3)可以获取ServletContext对象。
2.3 ServletConfig 接口的代码演示
2.3.1 Servlet处理器-HttpServletProcessor
package com.wind.servlet;
import javax.servlet.ServletConfig;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
/**
* 演示ServletConfig接口的作用
*/
public class HttpServletProcessor extends HttpServlet {
private static final long serialVersionUID = -7511536601794982778L;
public HttpServletProcessor() {
System.out.println("1.HttpServletProcessor extends HttpServlet 的无参构造器执行了...");
}
@Override
public void init(ServletConfig servletConfig) throws ServletException {
super.init(servletConfig);
System.out.println("2.HttpServletProcessor extends HttpServlet 的init方法执行了...");
//ServletConfig接口的三大作用:
//(1) 可以获取Servlet程序的别名(即web.xml的的内容)
System.out.println("Servlet程序的别名:" + servletConfig.getServletName());
//(2) 可以获取web.xml的初始化参数的值
System.out.println("Servlet程序的初始化参数1:" + servletConfig.getInitParameter("username"));
System.out.println("Servlet程序的初始化参数2:" + servletConfig.getInitParameter("password"));
//(3) 可以获取ServletContext对象
System.out.println("Servlet程序的ServletContext对象:" + servletConfig.getServletContext());
}
@Override
public ServletConfig getServletConfig() {
return null;
}
@Override
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
System.out.println("3.HttpServletProcessor extends HttpServlet, doGet done...");
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
System.out.println("4.HttpServletProcessor extends HttpServlet, doPost done...");
}
@Override
public String getServletInfo() {
return null;
}
@Override
public void destroy() {
System.out.println("5.HttpServletProcessor extends HttpServlet 的destroy方法执行了.");
}
}

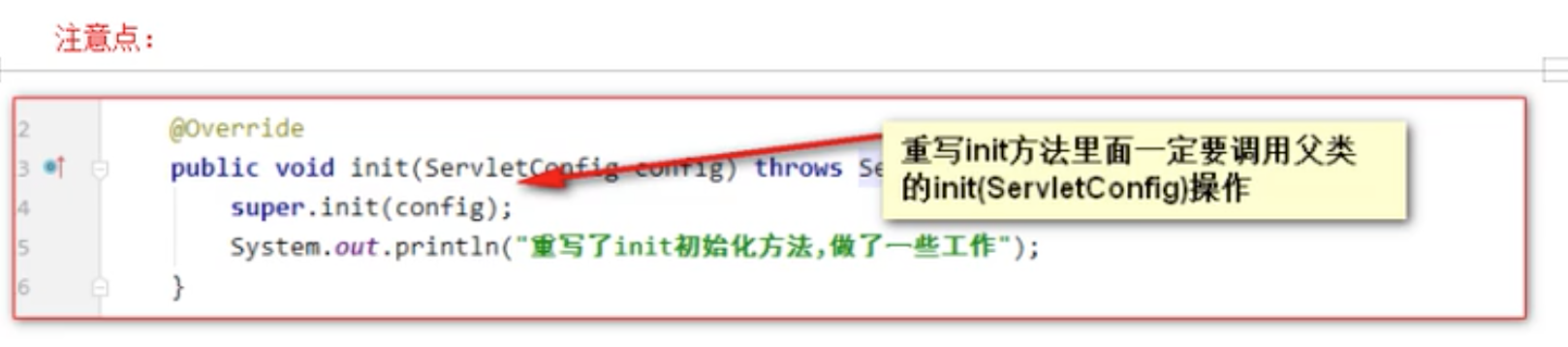

2.3.2 重写init方法的注意事项
注意:重写 Servlet 接口的 init 方法时,必须要在函数体内写:super.init(config); 原因是:父类GenericServlet中的init方法将参数config保存起来,子类若不调用则无法保存。
2.3.3 Servlet处理器-web.xml 配置文件
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<!--1.使用servlet标签给Tomcat配置动态servlet程序-->
<servlet>
<!--servlet-name标签:给servlet程序起一个别名(一般就是类名)-->
<servlet-name>HttpServletProcessor</servlet-name>
<!--servlet-class标签:servlet程序的全类名-->
<servlet-class>com.wind.servlet.HttpServletProcessor</servlet-class>
<!--init-param标签:给Servlet程序传入初始化参数-->
<init-param>
<param-name>username</param-name>
<param-value>root</param-value>
</init-param>
<init-param>
<param-name>password</param-name>
<param-value>root</param-value>
</init-param>
</servlet>
<!--2.使用servlet-mapping标签给动态servlet程序配置访问地址-->
<servlet-mapping>
<!--servlet-name标签:告诉Tomcat服务器,我当前配置的访问地址是给哪个servlet程序使用-->
<servlet-name>HttpServletProcessor</servlet-name>
<!--url-pattern标签:配置访问地址.
(1)/ :斜杠表示,在服务器解析的时候,表示访问地址是:http://ip:port/工程路径
(2)/httpServlet : 表示访问地址是:http://ip:port/工程路径/httpServlet 比如:http://localhost:8080/javaWeb/httpServlet -->
<url-pattern>/httpServlet</url-pattern>
</servlet-mapping>
<!--3.使用b.html访问-->
</web-app>
2.3.4 Servlet处理器-前端HTTP请求

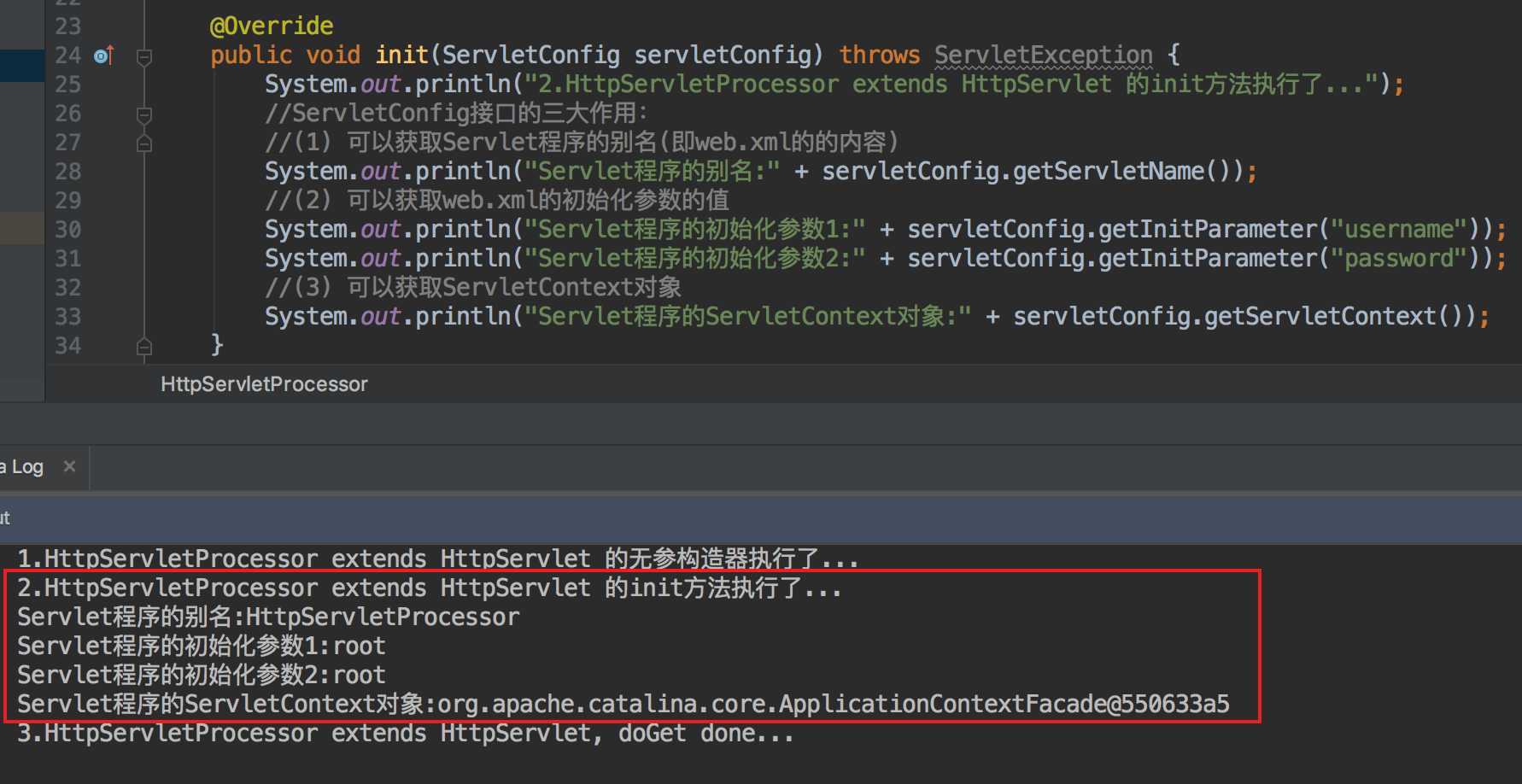

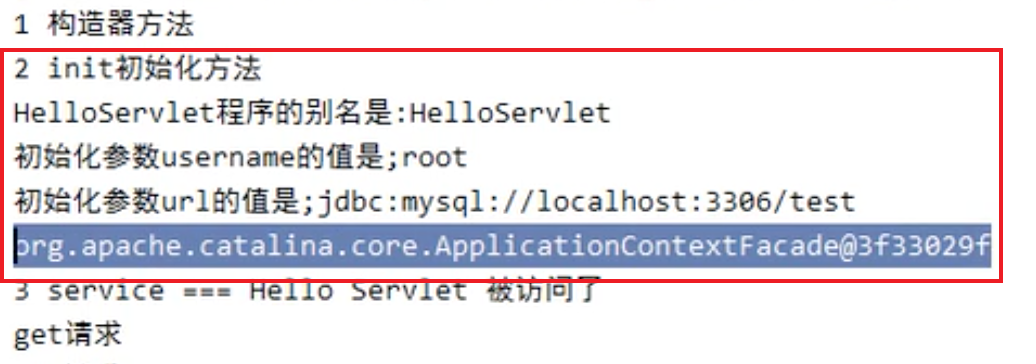

2.3.5 Servlet处理器-后端HTTP请求处理结果
3、ServletContext 接口
3.1、ServletContext 接口描述
(1)ServletContext接口表示Servlet上下文对象。
(2)一个web工程只有一个ServletContext对象实例。
(3)ServletContext是在web工程启动时创建,在web工程停止时销毁。
(4)ServletContext对象是一个域对象。什么是域对象呢?域对象就是:像Map一样存取数据的对象称为域对象,域 指的是存取数据的操作范围,ServletContext的域就是整个web工程。
3.2、ServletContext 对象的作用
(1)获取web.xml 中配置的上下文参数标签中的值。
(2)获取当前工程的路径,格式:/工程路径,也就是 Edit Configurations 中 Deployment 中的 Application context 的内容(即地址中8080之后,具体的打开的页面之前的内容)。
(3)获取工程部署后在硬盘上的绝对路径。
(4)像Map一样存取数据。
3.3、ServletContext 对象的作用-代码演示
3.3.1 Servlet处理器-ServletContext对象功能测试-HttpServletProcessorAuto
package com.wind.servlet;
import javax.servlet.ServletConfig;
import javax.servlet.ServletContext;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
/**
* ServletContext 测试
*/
public class HttpServletProcessorAuto extends HttpServlet {
private static final long serialVersionUID = 2050438983192725273L;
@Override
public void init(ServletConfig config) throws ServletException {
super.init(config);
}
/**
* 默认执行的是doGet方法,故只重写doGet方法
*/
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//GenericServlet类中有 public ServletConfig getServletConfig()方法,返回 this.config
ServletContext servletContext = getServletConfig().getServletContext();
//ServletContext作用 1.获取web.xml中配置的上下文参数<context-param>标签中的值
System.out.println("context-param参数的username值是:" + servletContext.getInitParameter("username"));
/* 运行结果:context-param参数的username值是:username-root */
System.out.println("context-param参数的password值是:" + servletContext.getInitParameter("password"));
/* 运行结果:context-param参数的password值是:password-root */
//ServletContext作用 2.获取当前工程的路径
System.out.println("当前工程路径:" + servletContext.getContextPath());
/* 运行结果:当前工程路径:/javaWeb */
//ServletContext作用 3.获取web工程部署后在硬盘上的绝对路径
/* /斜杠(默认路径)对应IDEA代码的web目录 */
System.out.println("工程部署后的绝对路径是:" + servletContext.getRealPath("/"));
/* 运行结果:工程部署后的绝对路径是:/Users/cmm/codes/spring5-txdemo3-javaWeb/out/artifacts/javaWeb_war_exploded/ */
//另:在web目录下创建一个css文件夹
System.out.println("工程下css目录的绝对路径是:" + servletContext.getRealPath("/css"));
/* 运行结果:工程下css目录的绝对路径是:/Users/cmm/codes/spring5-txdemo3-javaWeb/out/artifacts/javaWeb_war_exploded/css */
//在web目录下创建一个img文件夹,里面放1.gif文件
System.out.println("工程下img目录1.jpg的绝对路径是:" + servletContext.getRealPath("/img/1.jpg"));
/* 输出:工程下img目录1.gif的绝对路径是:/Users/cmm/codes/spring5-txdemo3-javaWeb/out/artifacts/javaWeb_war_exploded/img/1.jpg */
}
@Override
protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
System.out.println("3.HttpServletProcessorAuto extends HttpServlet, doGet done...");
}
}
3.3.2 Servlet处理器-ServletContext对象功能测试-web.xml 配置文件
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<!--<context-param>标签中是web工程的上下文参数,属于整个web工程-->
<!--<context-param>标签可以有多个,但是,全部都需要写在第一个<servlet>标签之上!!!-->
<context-param>
<param-name>username</param-name>
<param-value>username-root</param-value>
</context-param>
<context-param>
<param-name>password</param-name>
<param-value>password-root</param-value>
</context-param>
<!--<context-param>标签下方,才能够是servlet类对应的<servlet标签>-->
<!--1.使用servlet标签给Tomcat配置动态servlet程序-->
<servlet>
<servlet-name>HttpServletProcessorAuto</servlet-name>
<servlet-class>com.wind.servlet.HttpServletProcessorAuto</servlet-class>
</servlet>
<!--2.使用servlet-mapping标签给动态servlet程序配置访问地址-->
<servlet-mapping>
<servlet-name>HttpServletProcessorAuto</servlet-name>
<url-pattern>/httpServletAuto</url-pattern>
</servlet-mapping>
<!--3.使用b.html访问-->
</web-app>

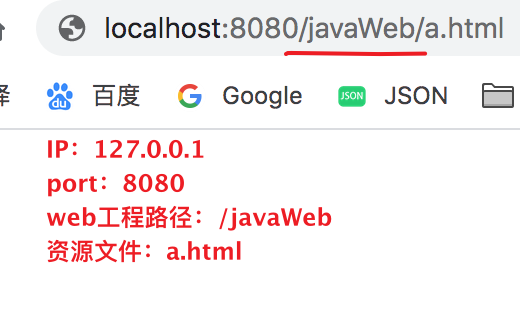

3.3.3 Servlet处理器-ServletContext对象功能测试-前端HTTP请求

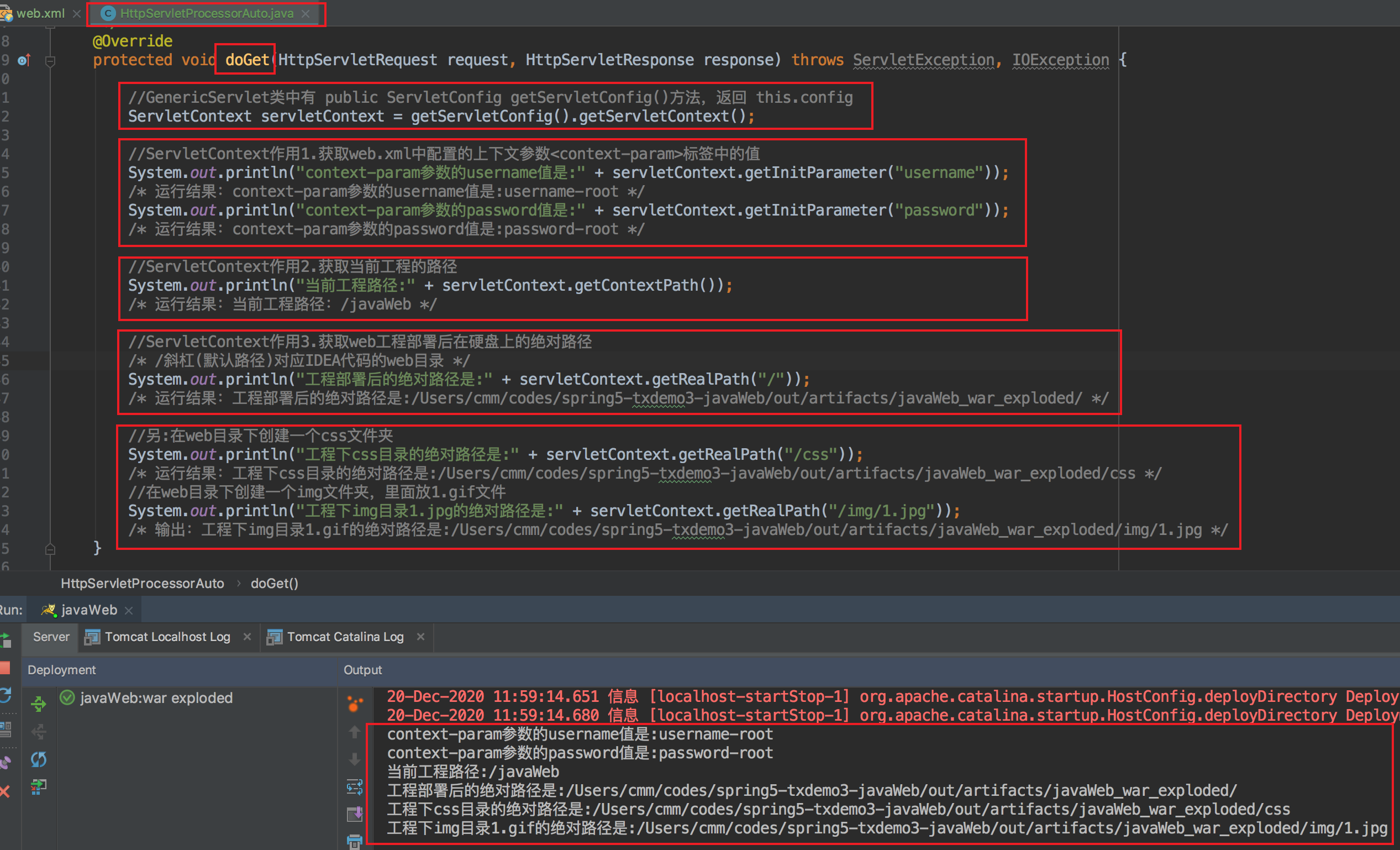

3.3.4 Servlet处理器-ServletContext对象功能测试-后端HTTP请求处理结果
3.3.5 Servlet处理器-ServletContext对象功能测试-向ServletContext对象中存储数据演示
(1)Servlet处理器-HttpServletProcessorAuto2
public class HttpServletProcessorAuto2 extends HttpServlet {
private static final long serialVersionUID = -1924341414254477696L;
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//GenericServlet类中有 public ServletConfig getServletConfig()方法,返回 this.config
ServletContext servletContext = getServletConfig().getServletContext();
//向servletContext对象中设置值
System.out.println("HttpServletProcessorAuto2=servletContext对象,key1=:" + servletContext.getAttribute("key1"));
System.out.println("HttpServletProcessorAuto2=servletContext对象hashcode=:" + servletContext);
}
}
(2)Servlet处理器-HttpServletProcessorAuto
public class HttpServletProcessorAuto extends HttpServlet {
private static final long serialVersionUID = 2050438983192725273L;
@Override
public void init(ServletConfig config) throws ServletException {
super.init(config);
}
/**
* 默认执行的是doGet方法,故只重写doGet方法
*/
@Override
protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
//GenericServlet类中有 public ServletConfig getServletConfig()方法,返回 this.config
ServletContext servletContext = getServletConfig().getServletContext();
//向servletContext对象中设置值
System.out.println("HttpServletProcessorAuto=servletContext对象设置值之前,key1=:" + servletContext.getAttribute("key1"));
servletContext.setAttribute("key1", "value1");
System.out.println("HttpServletProcessorAuto=servletContext对象设置值之后,key1=:" + servletContext.getAttribute("key1"));
System.out.println("HttpServletProcessorAuto=servletContext对象hashcode=:" + servletContext);
}
}
(3)web.xml 配置文件
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<!--<context-param>标签中是web工程的上下文参数,属于整个web工程-->
<!--<context-param>标签可以有多个,但是,全部都需要写在第一个<servlet>标签之上!!!-->
<context-param>
<param-name>username</param-name>
<param-value>username-root</param-value>
</context-param>
<context-param>
<param-name>password</param-name>
<param-value>password-root</param-value>
</context-param>
<!--<context-param>标签下方,才能够是servlet类对应的<servlet标签>-->
<!--1.使用servlet标签给Tomcat配置动态servlet程序-->
<servlet>
<servlet-name>HttpServletProcessorAuto</servlet-name>
<servlet-class>com.wind.servlet.HttpServletProcessorAuto</servlet-class>
</servlet>
<servlet>
<servlet-name>HttpServletProcessorAuto2</servlet-name>
<servlet-class>com.wind.servlet.HttpServletProcessorAuto2</servlet-class>
</servlet>
<!--2.使用servlet-mapping标签给动态servlet程序配置访问地址-->
<servlet-mapping>
<servlet-name>HttpServletProcessorAuto</servlet-name>
<url-pattern>/httpServletAuto</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>HttpServletProcessorAuto2</servlet-name>
<url-pattern>/httpServletAuto2</url-pattern>
</servlet-mapping>
<!--3.使用b.html访问-->
</web-app>
(4)运行结果
3.3.6 整个Web项目部署在Tomcat服务器中后,服务器中的动态资源和静态资源会存在磁盘中

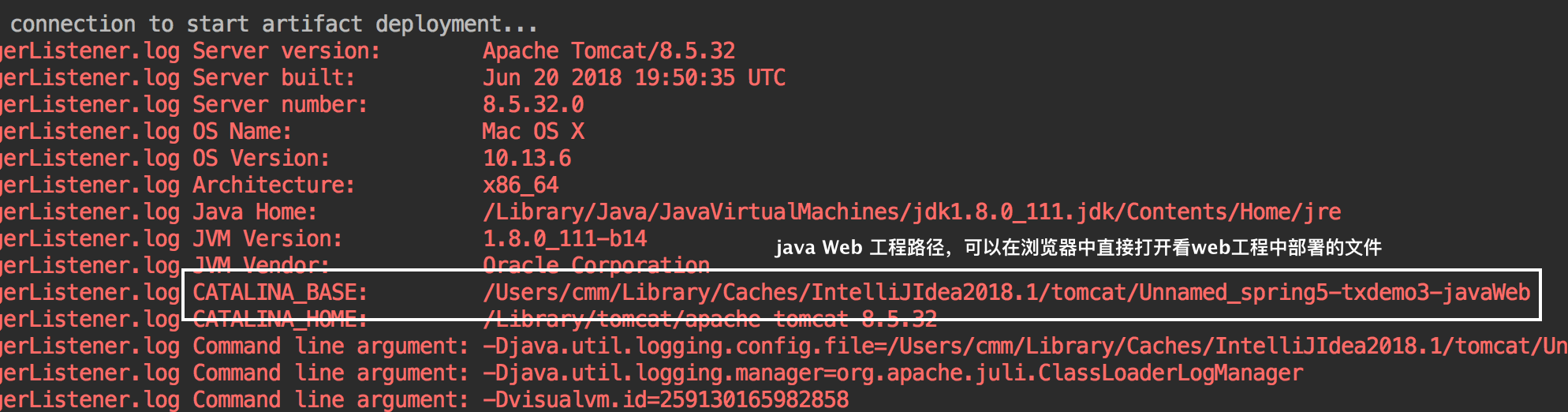

(1)整个Web项目部署在Tomcat服务器中后,服务器中的动态资源和静态资源会存在磁盘中,目录如下。

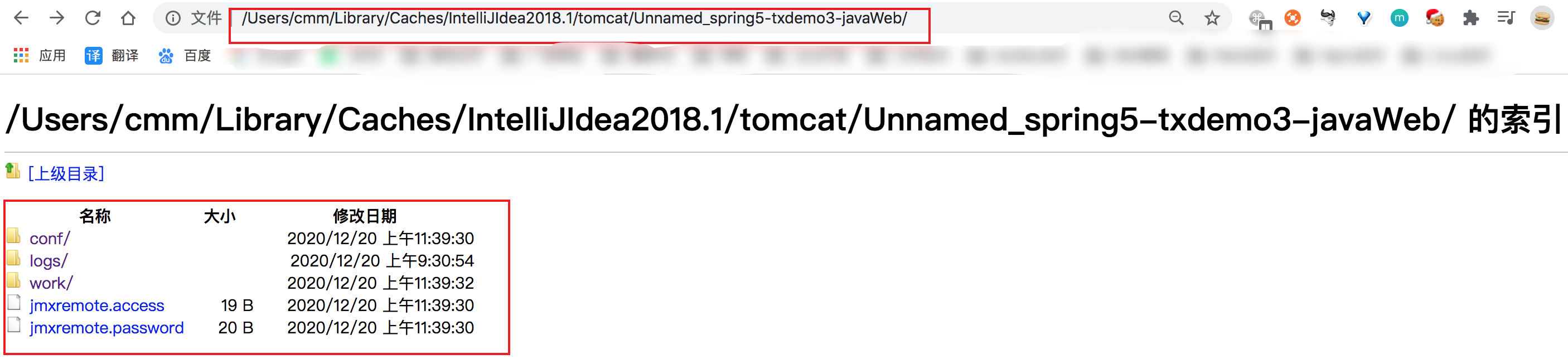

(2)并且在浏览器中可以直接打开,查看其中部署的各种资源。
(3)于是乎,别人就可以在浏览器中访问开发人员在Tomcat服务器中部署的各种资源了,访问流程大致如下。
