说明
之前使用了com.github.pagehelper.pagehelper
实现分页,现在参考源代码,自己简单实现一下功能。
插件源码地址:https://github.com/pagehelper/Mybatis-PageHelper
基础代码
基础代码可以参考:《SpringBoot项目实战(001)mybatis通过xml实现mapper》
主要代码说明
DataSourceConfig
:数据源配置,可以配置mybatis的拦截器PageInfo
;用于传入分页参数Dialect
;方言,针对不同数据库,实现不同的方言,本文使用mysqlMybatisInterceptor
;mybatis拦截器,实现分页功能
第一步,安装拦截器
首先把拦截器创建出来,并在mybatis的config中,使用拦截器。
简单修改DataSourceConfig.java
// mybatis配置
private org.apache.ibatis.session.Configuration createMybatisConfig() {
......
// 加入拦截器
config.addInterceptor(getMybatisIntercepts());
return config;
}
private Interceptor getMybatisIntercepts() {
Interceptor interceptor = new MybatisInterceptor();
return interceptor;
}
MybatisInterceptor.java
代码,基本上是空的
package com.it_laowu.springbootstudy.springbootstudydemo.core.pagehelper;
import org.apache.ibatis.cache.CacheKey;
import org.apache.ibatis.executor.Executor;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.mapping.MappedStatement;
import org.apache.ibatis.plugin.Interceptor;
import org.apache.ibatis.plugin.Intercepts;
import org.apache.ibatis.plugin.Invocation;
import org.apache.ibatis.plugin.Plugin;
import org.apache.ibatis.plugin.Signature;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;
/**
* MybatisInterceptor
*/
@Intercepts({
@Signature(type = Executor.class, method = "query", args = {
MappedStatement.class, Object.class, RowBounds.class,
ResultHandler.class }),
@Signature(type = Executor.class, method = "query", args = {
MappedStatement.class, Object.class, RowBounds.class,
ResultHandler.class, CacheKey.class, BoundSql.class }), })
public class MybatisInterceptor implements Interceptor {
private volatile IDialect dialect;
public Object intercept(Invocation invocation) throws Throwable {
try {
Object[] args = invocation.getArgs();
return null;
} finally {
if (dialect != null) {
dialect.afterAll();
}
}
}
public Object plugin(Object target) {
return Plugin.wrap(target, this);
}
}
IDialect.java
package com.it_laowu.springbootstudy.springbootstudydemo.core.pagehelper;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.session.RowBounds;
public interface IDialect {
void afterAll();
String getPagedSql(BoundSql boundSql,RowBounds rowBounds);
}

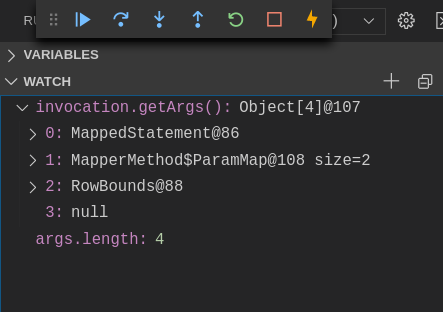

断点打在MybatisInterceptor
的intercept
方法处,运行debug,postman调个GET方法,可得:
可以看到,有四个参数,仔细看一下,大致功能:
- mybatis的mapper方面的信息
- 参数方面的信息
- 分页信息:limit offset
- null
那我们需要做的就是找到查询语句,根据dialect
改写为分页的语句,返回结果即可。
第二步,调整功能
整理参数,把三个参数包括Executor都整理出来。我们的目的是通过调整sql语句,再使用Executor完成原本的调用。
// 参数
MappedStatement ms = (MappedStatement) args[0];
Object parameter = args[1];
RowBounds rowBounds = (RowBounds) args[2];
ResultHandler resultHandler = (ResultHandler) args[3];
// 执行器
Executor executor = (Executor) invocation.getTarget();
// sql
BoundSql boundSql = ms.getBoundSql(parameter);
// 分页sql
String sql = dialect.getPagedSql(boundSql, rb);
新增MySqlDialect,实现功能getPageSql
,将BoundSql
中的sql调整为分页的。
//实现
package com.it_laowu.springbootstudy.springbootstudydemo.core.pagehelper;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.session.RowBounds;
import org.springframework.stereotype.Component;
public class MySqlDialect implements IDialect {
@Override
public void afterAll() {
}
@Override
public String getPagedSql(BoundSql boundSql, RowBounds rowBounds) {
String sql = boundSql.getSql();
StringBuilder sb = new StringBuilder();
sb.append(sql);
sb.append(" LIMIT ");
sb.append(rowBounds.getOffset());
sb.append(",");
sb.append(rowBounds.getLimit());
return sb.toString();
}
}
第三步,输入参数
现在修改整条request链路,所有findall
方法增加pageinfo参数。
首先,新增pageinfo
类型:
package com.it_laowu.springbootstudy.springbootstudydemo.core.pagehelper;
import lombok.Data;
@Data
public class PageInfo {
// 分页,第几页
private int pageNum;
// 分页,每页大小
private int pageSize;
}
OrderController 修改 orders 方法,增加一个参数
@RequestMapping(value = "/list", method = RequestMethod.GET)
public List<OrderBean> orders(OrderCondition orderCondition,PageInfo pageinfo) {
return orderService.findAll(orderCondition,pageinfo);
}
IBaseService 修改findall方法,增加pageinfo参数,注意@Param("pageinfo")
定义参数的名字
default List<Bean> findAll(@Param("conditionQC") Condition condition,@Param("pageinfo") PageInfo
pageinfo){
return getBaseDao().findAll(condition,pageinfo);
}
IBaseDao 修改findall方法,增加pageinfo参数,注意@Param("pageinfo")
定义参数的名字
public List<Bean> findAll(@Param("conditionQC") Condition conditionQC,@Param("pageinfo") PageInfo pageinfo);
第四步,完善拦截器
在拦截器中找到pageinfo参数,如果有分页参数,就将值传给方言进行分页,最后返回数据。
方言可以通过datasource的配置,自动读取,本文直接设置为MysqlDialect。
public Object intercept(Invocation invocation) throws Throwable {
try {
Object[] args = invocation.getArgs();
MappedStatement ms = (MappedStatement) args[0];
Object parameter = args[1];
RowBounds rowBounds = (RowBounds) args[2];
ResultHandler resultHandler = (ResultHandler) args[3];
Executor executor = (Executor) invocation.getTarget();
BoundSql boundSql = ms.getBoundSql(parameter);
ParamMap params = (ParamMap) parameter;
// 判断参数中是否有分页
if (params.containsKey("pageinfo")) {
PageInfo pageinfo = (PageInfo) params.get("pageinfo");
if (pageinfo.getPageNum() > 0 && pageinfo.getPageSize() > 0) {
RowBounds rb = new RowBounds((pageinfo.getPageNum() - 1) * pageinfo.getPageSize(),
pageinfo.getPageSize());
// 使用方言分页
String sql = dialect.getPagedSql(boundSql, rb);
boundSql = new BoundSql(ms.getConfiguration(), sql, boundSql.getParameterMappings(), parameter);
return executor.query(ms, parameter, RowBounds.DEFAULT, resultHandler, null, boundSql);
}
}
return invocation.proceed();
} finally {
if (dialect != null) {
dialect.afterAll();
}
}
}
使用postman测试

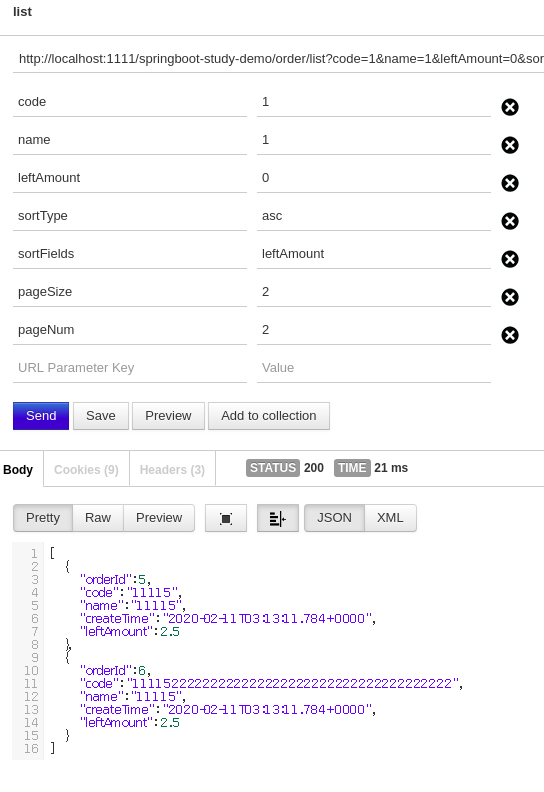

list方法,使用分页参数,返回分页结果:

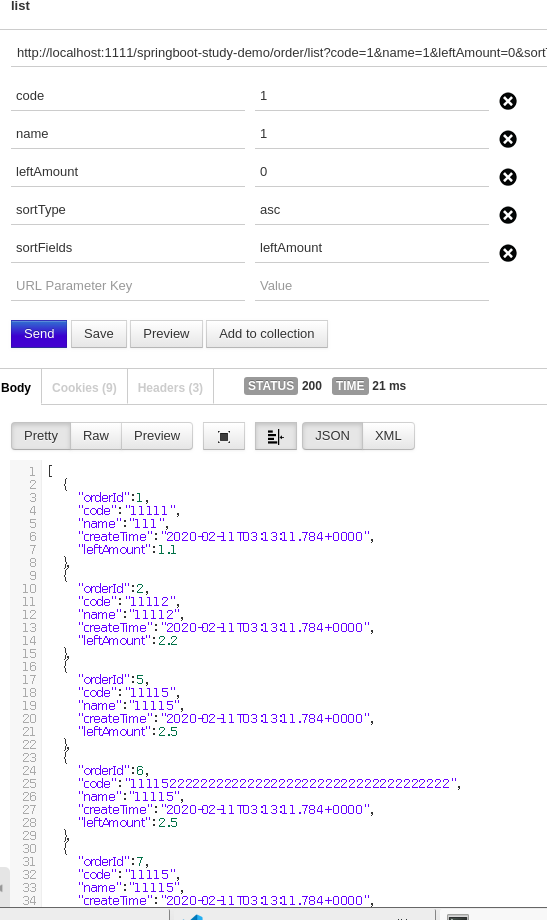

list方法,不使用分页参数,返回所有结果:

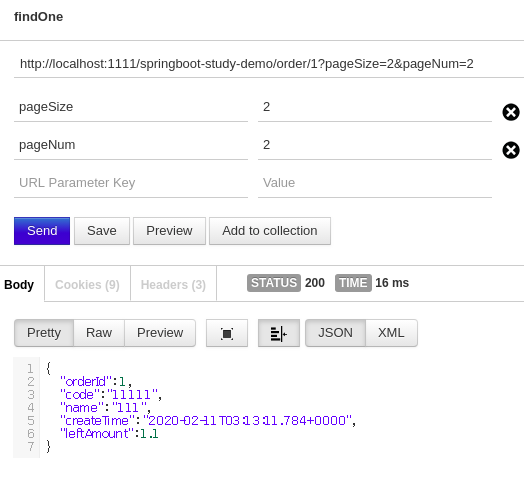

findOne方法(后台不接受分页参数),可以看到加入分页参数,也不会分页:
