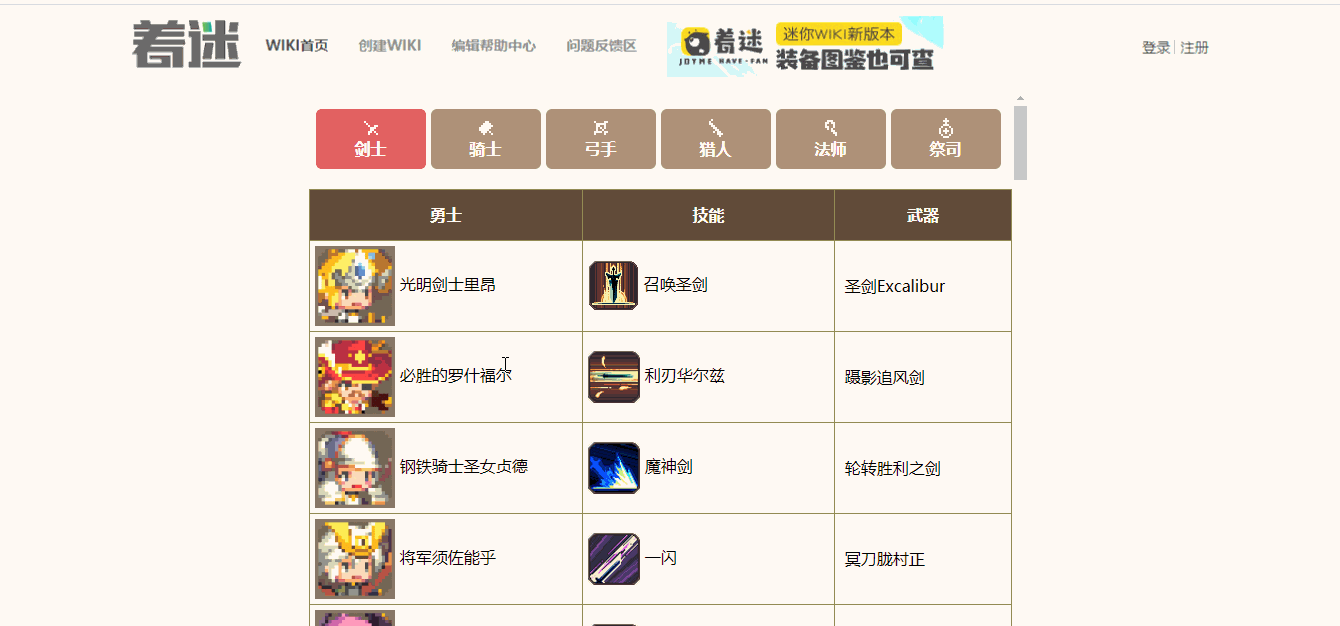

效果:
一、项目介绍
点击不同职业加载不同的英雄,点击英雄头像,以动画的方式显示其技能
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<meta http-equiv="X-UA-Compatible" content="ie=edge" />
<title>Document</title>
<link rel="stylesheet" href="./css/index.css" />
</head>
<body>
<img src="./img/header.png" alt="" class="header" />
<div class="cq-wrap">
<!-- 导航 -->
<div class="nav">
<ul>
<li><img src="./img/sword.png" alt="" /><span>剑士</span></li>
<li><img src="./img/knight.png" alt="" /> <span>骑士</span></li>
<li><img src="./img/Archer.png" alt="" /> <span>弓手</span></li>
<li><img src="./img/hunter.png" alt="" /> <span>猎人</span></li>
<li><img src="./img/magic.png" alt="" /> <span>法师</span></li>
<li><img src="./img/flamen.png" alt="" /> <span>祭司</span></li>
</ul>
</div>
<!-- table -->
<table class="cq-list">
<thead>
<th>勇士</th>
<th>技能</th>
<th>武器</th>
</thead>
<tbody>
<tr>
<td>
<img class="icon" src="http://p6.qhimg.com/dr/72__/t01b8063ea608652431.png" alt="" />
<span>
涅斯军长官尤莉娅
</span>
</td>
<td>
<img class="skill" src="http://p9.qhimg.com/dr/52__/t01087d8e61575ab25d.png" alt="" />
注射!
</td>
<td>
<img class="weapon" src="http://p6.qhimg.com/dr/45__/t0178ac936dcb72650f.png" alt="" />
疫苗-G
</td>
</tr>
</tbody>
</table>
</div>
<!-- 遮罩层 -->
<div class="cover" style="display: none">
<img class="loading" src="./img/loading01.gif" alt="" />
</div>
</body>
</html>
二、技术分析
- HTML+CSS布局
- jquery的使用(tab栏切换)
ajax的使用
- jquery 动画、动画序列(淡入淡出)
- setInterval 定时器
委托事件
art-template模板引擎
三、布局分析
- body:背景大图
- 顶部广告栏:img
- 中间版本盒子 cq-wrap
- 上面tab栏 .nav>ul>li>img+span
- 下面英雄列表栏 table
- 遮罩层 .cover>img
- 与body一样大小,半透明效果,中间有个img。默认隐藏,点击英雄头像的时候显示
- img中是一个gif动图(
一般网页加载特效都是gif动图实现
)
- 需求分析
- 1.随机背景图
- 每隔一段时间,自动刷新背景图
- 2.顶部tab栏切换
- 3.点击头像查看酷炫动图效果
- 4.点击遮罩层隐藏动图
- 1.随机背景图
四、接口文档
- 随机背景图接口
请求地址:https://autumnfish.cn/api/cover/random
请求方法:get
请求参数:无
- 英雄信息接口
请求地址:https://autumnfish.cn/api/cq/category
请求方法:get
请求参数:type
参数名 参数说明 备注
type 英雄类型 不能为空,可选值有:剑士,骑士,弓手,猎人,法师,祭司
- 英雄技能动态图接口
请求地址:https://autumnfish.cn/api/cq/gif
请求方法:get
请求参数:name
参数名 参数说明 备注
name 英雄名
五、具体步骤:
(1)导包
<script src="./js/jquery-1.12.4.min.js"></script>
<!-- 模板引擎 -->
<script src="./js/template-web.js"></script>
(2)随机背景图切换,6s换一次
- ajax请求数据
- 通过css属性设置背景图
- 注意:$(‘body’).css(‘backgroundImage’,
'url(' + backData.url + ')'
); 图片地址要拼接字符串
// 背景图在一定时间随机切换(6s)
setInterval(function () {
$.ajax({
url:'https://autumnfish.cn/api/cover/random',
type:'get',
dataType:'json',
success:function(backData){
console.log(backData);
$('body').css('backgroundImage','url(' + backData.url + ')');
}
});
}, 6000);
(3)tab栏切换加载英雄数据
-
通过类名改变tab栏样式
-
模板引擎渲染页面
-
css文件
.nav ul li.active:nth-child(1) {
background-color: #e26161;
}
.nav ul li.active:nth-child(2) {
background-color: #69b7ce;
}
.nav ul li.active:nth-child(3) {
background-color: #7fb545;
}
.nav ul li.active:nth-child(4) {
background-color: #deae26;
}
.nav ul li.active:nth-child(5) {
background-color: #a45bca;
}
.nav ul li.active:nth-child(6) {
background-color: #e84daa;
}
- js文件
// tab栏切换 加载相应的英雄数据
$('.nav ul li').click(function () {
// 排他思想
$(this).addClass('active').siblings().removeClass('active');
// 获得type 英雄类型
let type = $(this).children('span').text();
console.log(type);
// ajax请求数据
$.ajax({
url: 'https://autumnfish.cn/api/cq/category',
type: 'get',
dataType: 'json',
data: {
type: type
},
success: function (backData) {
console.log(backData);
// 渲染到页面
$('.cq-list tbody').html(template('hero_list', backData));
}
});
});
// 默认加载第一个
$('.nav>ul>li:eq(0)').trigger('click');
- 模板
<!-- 英雄列表模板 -->
<script id="hero_list" type="text/html">
{{each data.heros v}}
<tr>
<td>
<img class="icon" src="{{v.heroIcon}}" alt="" />
<span>
{{v.heroName}}
</span>
</td>
<td>
<img class="skill" src=" {{v.skillIcon}} " alt="" />
{{v.skillName}}
</td>
<td>
<img class="weapon" src=" {{v.weaponName}} " alt="" />
{{v.weaponName}}
</td>
</tr>
{{/each}}
(4) 技能及动画
- 获取当前头像对应的name
- 加载loading动画
- ajax发送请求
- 服务器响应之后 渲染页面
- 隐藏 loading动画
- 注意:数据是动加载的所以需要注册委托事件,
trim()方法
去除字符两边的空格
// 技能及动画
$('body').on('click', '.icon', function () {
// 获取name
let name = $(this).next().text().trim();
console.log(name);
// 加载动画
$('.cover').fadeIn();
// ajax加载数据
$.ajax({
url: 'https://autumnfish.cn/api/cq/gif',
type: 'get',
dataType: 'json',
data: {
name: name
},
success: function (backData) {
console.log(backData);
$('.loading').attr('src', backData.data.skillGif);
}
});
});
// 点击隐藏loading 动画序列
$('.cover').click(function () {
$(this).fadeOut(500, function () {
$('.cover .loading').attr('src','./img/loading01.gif')
})
});
六、完整代码
- css
* {
margin: 0;
padding: 0;
}
.header {
display: block;
width: 100%;
opacity: .9;
}
html,
body {
height: 100%;
overflow: hidden;
}
body {
background-size: 100% 100%;
display: flex;
flex-direction: column;
align-items: center;
}
.cq-wrap {
width: 720px;
padding-top: 20px;
margin: 0px auto;
background-color:rgba(255, 238, 222, 0.9);
/* height: 100%; */
flex:1;
overflow: auto;
}
.nav{
height: 60px;
}
.nav ul {
display: flex;
list-style: none;
justify-content: center;
}
.nav ul li {
height: 60px;
width: 110px;
background-color: #af9279;
border-radius: 6px;
margin-right: 5px;
display: flex;
flex-direction: column;
align-items: center;
justify-content: center;
color: white;
font-weight: 700;
cursor: pointer;
}
.nav ul li.active:nth-child(1) {
background-color: #e26161;
}
.nav ul li.active:nth-child(2) {
background-color: #69b7ce;
}
.nav ul li.active:nth-child(3) {
background-color: #7fb545;
}
.nav ul li.active:nth-child(4) {
background-color: #deae26;
}
.nav ul li.active:nth-child(5) {
background-color: #a45bca;
}
.nav ul li.active:nth-child(6) {
background-color: #e84daa;
}
.cq-list {
border-collapse: collapse;
margin-top: 20px;
}
.cq-list th {
height: 50px;
width: 200px;
background-color: #614c3a;
border: 1px solid #948b54;
color: white;
}
.cq-list th:nth-child(1) {
width: 320px;
}
.cq-list th:nth-child(2) {
width: 300px;
}
.cq-list td {
border: 1px solid #948b54;
padding: 5px;
height: 90px;
box-sizing: border-box;
/* font-size: 20px; */
}
.cq-list img {
vertical-align: middle;
}
.cq-list img.icon {
width: 80px;
height: 80px;
cursor: pointer;
}
/* 遮罩层 */
.cover{
height: 100%;
position: absolute;
width: 100%;
left: 0;
top: 0;
background-color: #222222;
opacity: .9;
}
.cover img{
position: absolute;
left: 50%;
top: 50%;
transform:translate(-50%,-50%)
}
- index+js
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width, initial-scale=1.0" />
<meta http-equiv="X-UA-Compatible" content="ie=edge" />
<title>Document</title>
<link rel="stylesheet" href="./css/index.css" />
</head>
<body>
<img src="./img/header.png" alt="" class="header" />
<div class="cq-wrap">
<!-- 导航 -->
<div class="nav">
<ul>
<li><img src="./img/sword.png" alt="" /><span>剑士</span></li>
<li><img src="./img/knight.png" alt="" /> <span>骑士</span></li>
<li><img src="./img/Archer.png" alt="" /> <span>弓手</span></li>
<li><img src="./img/hunter.png" alt="" /> <span>猎人</span></li>
<li><img src="./img/magic.png" alt="" /> <span>法师</span></li>
<li><img src="./img/flamen.png" alt="" /> <span>祭司</span></li>
</ul>
</div>
<!-- table -->
<table class="cq-list">
<thead>
<th>勇士</th>
<th>技能</th>
<th>武器</th>
</thead>
<tbody>
<tr>
<td>
<img class="icon" src="http://p6.qhimg.com/dr/72__/t01b8063ea608652431.png" alt="" />
<span>
涅斯军长官尤莉娅
</span>
</td>
<td>
<img class="skill" src="http://p9.qhimg.com/dr/52__/t01087d8e61575ab25d.png" alt="" />
注射!
</td>
<td>
<img class="weapon" src="http://p6.qhimg.com/dr/45__/t0178ac936dcb72650f.png" alt="" />
疫苗-G
</td>
</tr>
</tbody>
</table>
</div>
<!-- 遮罩层 -->
<div class="cover" style="display: none">
<img class="loading" src="./img/loading01.gif" alt="" />
</div>
</body>
</html>
<script src="./js/jquery-1.12.4.min.js"></script>
<!-- 模板引擎 -->
<script src="./js/template-web.js"></script>
<!-- 英雄列表模板 -->
<script id="hero_list" type="text/html">
{{each data.heros v}}
<tr>
<td>
<img class="icon" src="{{v.heroIcon}}" alt="" />
<span>
{{v.heroName}}
</span>
</td>
<td>
<img class="skill" src=" {{v.skillIcon}} " alt="" />
{{v.skillName}}
</td>
<td>
<img class="weapon" src=" {{v.weaponName}} " alt="" />
{{v.weaponName}}
</td>
</tr>
{{/each}}
</script>
<script>
/*接口文档
请求地址:https://autumnfish.cn/api/cover/random
请求方法:get
请求参数:无
请求地址:https://autumnfish.cn/api/cq/category
请求方法:get
请求参数:type
参数名 参数说明 备注
type 英雄类型 不能为空,可选值有:剑士,骑士,弓手,猎人,法师,祭司
请求地址:https://autumnfish.cn/api/cq/gif
请求方法:get
请求参数:name
参数名 参数说明 备注
name 英雄名
*/
/*思路分析
1. 每隔6s,更新随机背景图片
2. 点击每一个tab栏:tab栏切换
2.1 排他思想修改样式
2.2 获取当前点击的type类型
2.3 ajax发送请求
2.4 服务器响应之后 模板引擎渲染页面
3. 点击头像icon
3.1 获取当前头像对应的name
3.2 加载loading动画
3.3 ajax发送请求
2.4 服务器响应之后 渲染页面
4. 点击cover : 隐藏cover
*/
// 背景图在一定时间随机切换(6s)
// setInterval(function () {
// $.ajax({
// url:'https://autumnfish.cn/api/cover/random',
// type:'get',
// dataType:'json',
// success:function(backData){
// console.log(backData);
// $('body').css('backgroundImage','url(' + backData.url + ')');
// }
// });
// }, 6000);
// tab栏切换 加载相应的英雄数据
$('.nav ul li').click(function () {
// 排他思想
$(this).addClass('active').siblings().removeClass('active');
// 获得type 英雄类型
let type = $(this).children('span').text();
// console.log(type);
// ajax请求数据
$.ajax({
url: 'https://autumnfish.cn/api/cq/category',
type: 'get',
dataType: 'json',
data: {
type: type
},
success: function (backData) {
// console.log(backData);
// 渲染到页面
$('.cq-list tbody').html(template('hero_list', backData));
}
});
});
// 默认加载第一个
$('.nav>ul>li:eq(0)').trigger('click');
// 技能及动画
$('body').on('click', '.icon', function () {
// 获取name
let name = $(this).next().text().trim();
console.log(name);
// 加载动画
$('.cover').fadeIn();
// ajax加载数据
$.ajax({
url: 'https://autumnfish.cn/api/cq/gif',
type: 'get',
dataType: 'json',
data: {
name: name
},
success: function (backData) {
console.log(backData);
$('.loading').attr('src', backData.data.skillGif);
}
});
});
// 点击隐藏loading 动画序列
$('.cover').click(function () {
$(this).fadeOut(500, function () {
$('.cover .loading').attr('src','./img/loading01.gif')
})
});
</script>
七、总结
- 1.如果背景图中有无法解析的部分(例如空格),则可以将路径使用引号包裹
- 2.jq动态添加的元素,无法直接绑定事件,需要使用事件委托(ajax中非常常见)
- 3.loading动图一般使用gif图片来实现(例如京东的小狗狗)
- 4.trim()去除字符串两边的空格
