什么是版心?
“版心”(可视区)是指网页中主体内容所在的区域。一般在浏览器窗口水平居中显示,常见的宽度值为960px、980px、1000px、1200px等。
布局流程
为了提高网页制作的效率,布局时通常需要遵守一定的布局流程。具体如下:
- 确定页面的版心(可视区)
- 分析页面的行模块,以及每个行模块中的列模块。
- 制作html结构
- css初始化,然后开始运用盒子模型的原理,通过DIV+CSS布局来控制网页的各个模块。
常用布局
一列固定宽度且居中(最普通、最为常用的结构)
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Document</title>
<style>
.header,.banner,.main,.footer{
width: 960px;/*版心*/
background-color: #676767;
border:1px dashed #c1c1c1;
margin:0 auto; /*块级元素水平居中*/
text-align: center;
}
.header{
height: 90px;
}
.banner{
height: 200px;
margin:5px auto;
}
.main{
height: 500px;
}
.footer{
height: 90px;
margin:5px auto 0;
}
</style>
</head>
<body>
<div class="header">header</div>
<div class="banner">banner</div>
<div class="main">main</div>
<div class="footer">footer</div>
</body>
</html>

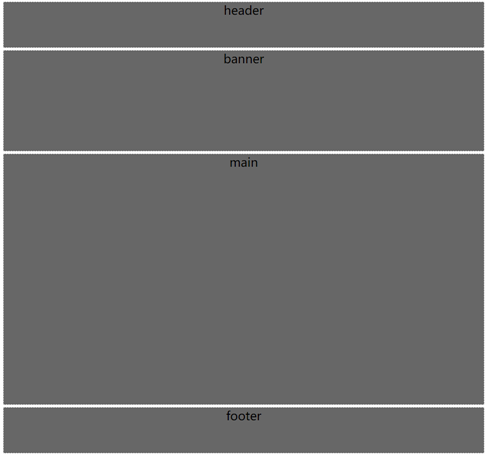

效果图
- 能共用的尽量共用,使代码看起来精简一些。
- 行间距使用margin-top或者margin-bottom时,考虑已有的margin:0 auto,避免冲突,尽量写进一个margin属性里。
两列左窄右宽型结构(比如小米官网)
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Document</title>
<style>
.top{
width: 960px;/*版心*/
height: 90px;
background-color: #000;
margin:0 auto;/*块级元素水平居中*/
text-align: center;/*文字水平居中*/
color: #fff;
}
.banner{
width: 960px;/*版心*/
height: 200px;
background-color: grey;
margin:0 auto;/*块级元素水平居中*/
text-align: center;/*文字水平居中*/
color: #fff;
}
.main{
width: 960px;/*版心*/
height: 500px;
background-color: #fff;
margin:0 auto;/*块级元素水平居中*/
text-align: center;/*文字水平居中*/
color: #fff;
}
.left{
width: 350px;
height: 500px;/*子元素不继承高度,所以要给个height值*/
background-color: #c1c1c1;
float: left;
}
.right{
width: 600px;
height: 500px;/*子元素不继承高度,所以要给个height值*/
background-color: #717171;
float: right;
}
.footer{
width: 960px;/*版心*/
height: 90px;
background-color: #000;
margin:0 auto;/*块级元素水平居中*/
text-align: center;/*文字水平居中*/
color: #fff;
}
</style>
</head>
<body>
<div class="top">TOP</div>
<div class="banner">BANNER</div>
<div class="main">
<div class="left">LEFT</div>
<div class="right">RIGHT</div>
</div>
<div class="footer">FOOTER</div>
</body>
</html>
效果图
- 左右设置宽度之后,在调整间距边框等样式时,需要考虑到margin、border、padding等导致的盒子宽度变大,一方被挤下去的情况。确保两者之和在父元素的宽度范围内。
通栏平均分布型
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Document</title>
<style>
*{
margin:0;
padding: 0;
}
.top{
/*width: 960px;*/
height: 90px;
background-color: #000;
/*margin:0 auto;*/
color: #fff
}
.inner{
width: 960px;
height: 90px;
margin:0 auto;
background-color: #1b1b1b;
}
.banner{
width: 960px;
height: 200px;
background-color: grey;
margin:0 auto;
}
.main{
width: 960px;
height: 500px;
background-color: #fff;
margin:0 auto;
}
.footer{
/*width: 960px;*/
height: 90px;
background-color: #000;
color: #fff;
/*margin:0 auto;*/
}
.left{
width: 200px;
height: 500px;
background-color: #c1c1c1;
float: left;
}
.right{
width: 700px;
height: 500px;
background-color: #717171;
float: right;
}
.banner li{
float: left;
height: 200px;
list-style: none;
width:calc( (100% - 30px)/4);
}
.one{
background-color: red;
}
.two{
background-color: yellow;
margin:0 10px;
}
.three{
background-color: skyblue;
margin-right: 10px;
}
.four{
background-color: green;
}
</style>
</head>
<body>
<!-- 在左右分布型的基础上可以改为通栏平均分布型 -->
<div class="top"><div class="inner">这是top</div></div>
<div class="banner">
<ul>
<li class="one">one</li>
<li class="two">two</li>
<li class="three">three</li>
<li class="four">four</li>
</ul>
</div>
<div class="main">
<div class="left">left</div>
<div class="right">right</div>
</div>
<div class="footer"><div class="inner">这是footer</div></div>
</body>
</html>

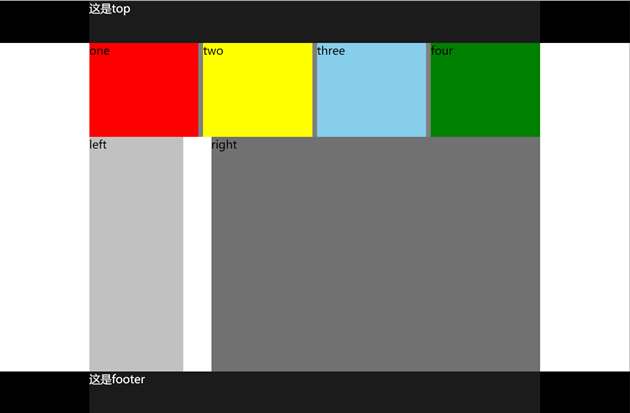

效果图
